KN-2710DL Label
KDT high quality machining center is applicable to the nesting of custom furniture.Compatible with various machining data that generated by the 3rd party's Optimized software, easy for operation.
MORE
Smart Machining Centers

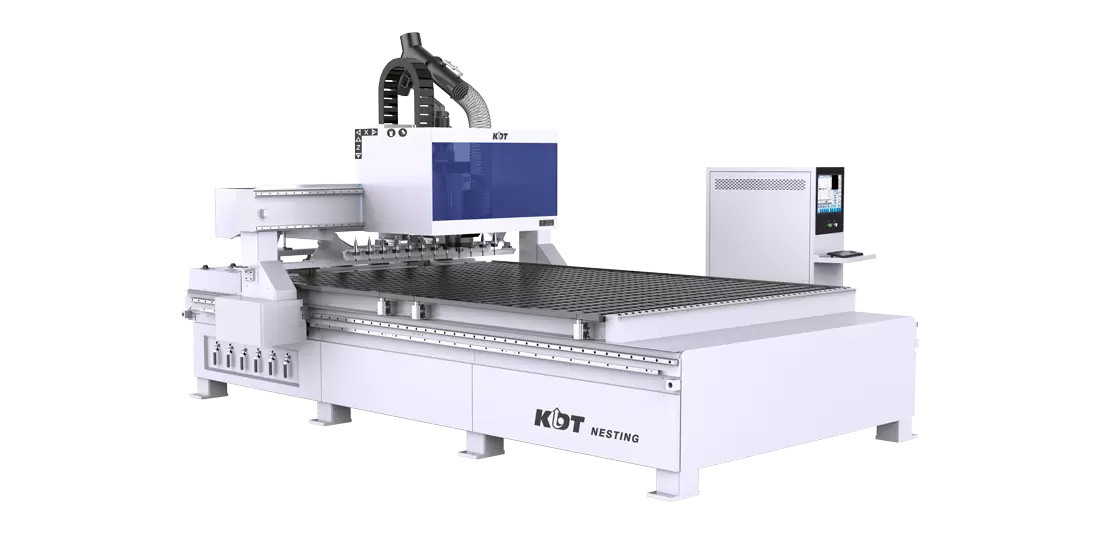

KN-2710L
FEATURES
Spindle configuration
9kW high-power spindle, effectively improving routering efficiency

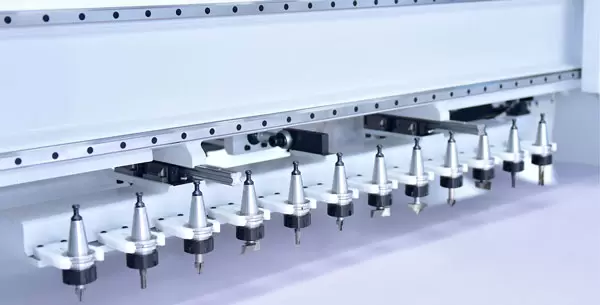

Tool library configuration
12 fold linear ATC, automatic tool-change, suitable for panel furniture and doors production

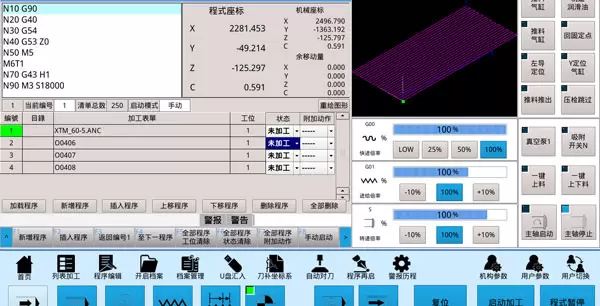

Operating system
Leading Numerical Controller System, strong anti-interference and scalability

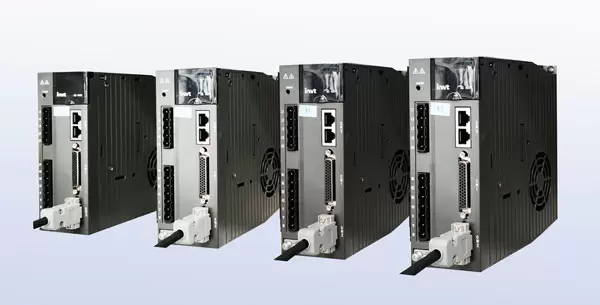

Drive system
1.5kW absolute value servo drive, no need to homing when starting, fast speed and high efficiency
Mesa partition
6 partition vacuum table zone leads to an even suction distribution which prevents small boards from deviration

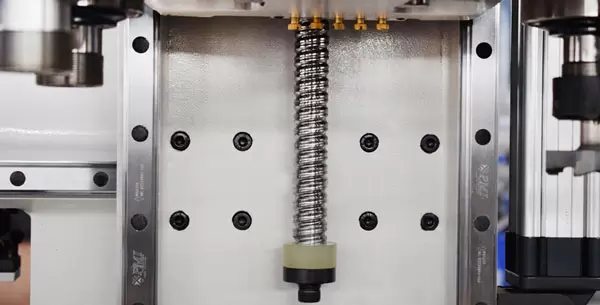

Motion mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.
Motion mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack
Pushing mechanism
Standardly Equipped with pusher，automatic pushing and feeding out workpiece
Standard with vacuum pump, friendly for enviroment and easy for maintenence.
Grab mechanism
Standard with vacuum cup for automatic feeding workpiece
Protective cover design and various safety detection and alarm devices protect the safety of operators
TECHNICAL SPECIFICATIONS
| KN-2710L | |
|---|---|
| Domestic package size | Length * width * height: 4350*2900*2500(mm)+1300*1500*800(mm) |
| Oversea package size | Length * width * height: 5950*2310*2500(mm) |
| Equipment weight | 5000kg |
| Operating system | LNC control system |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| Drill Head | none |
| Numbers of Tools changers | 12 fold Linear ATC |
| Working table size | 2150*3100mm |
| Effective working size | 2150*3100*60mm（Pressure Roller Optional: 2150*3100*40mm） |
| Max speed X/Y/Z m/min | 80/80/30m/min |
| Vacuum Capacity | 2*250 m³/h Total Power: 26kW |
