KN-2409DL
MORE
Smart Machining Centers
KN-3410DEP
FEATURES
TECHNICAL SPECIFICATIONS
| KDT Machine | |
|---|---|
| Domestic packing size | L*W*H:4330*2510*2450 (mm)+1200*1200*800 (mm) Pump |
| Export Packing Size | L*W*H: 5160*2200*2300(mm) |
| Weight | 3500kg |

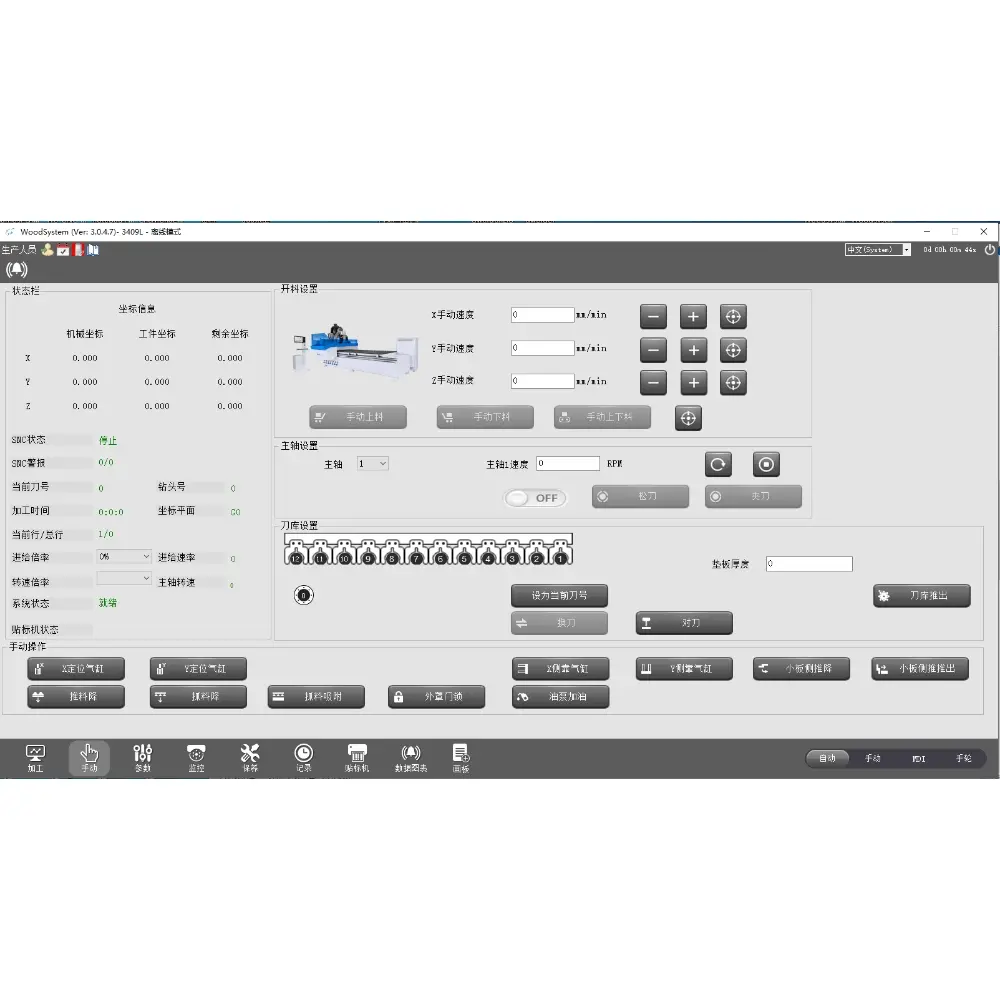

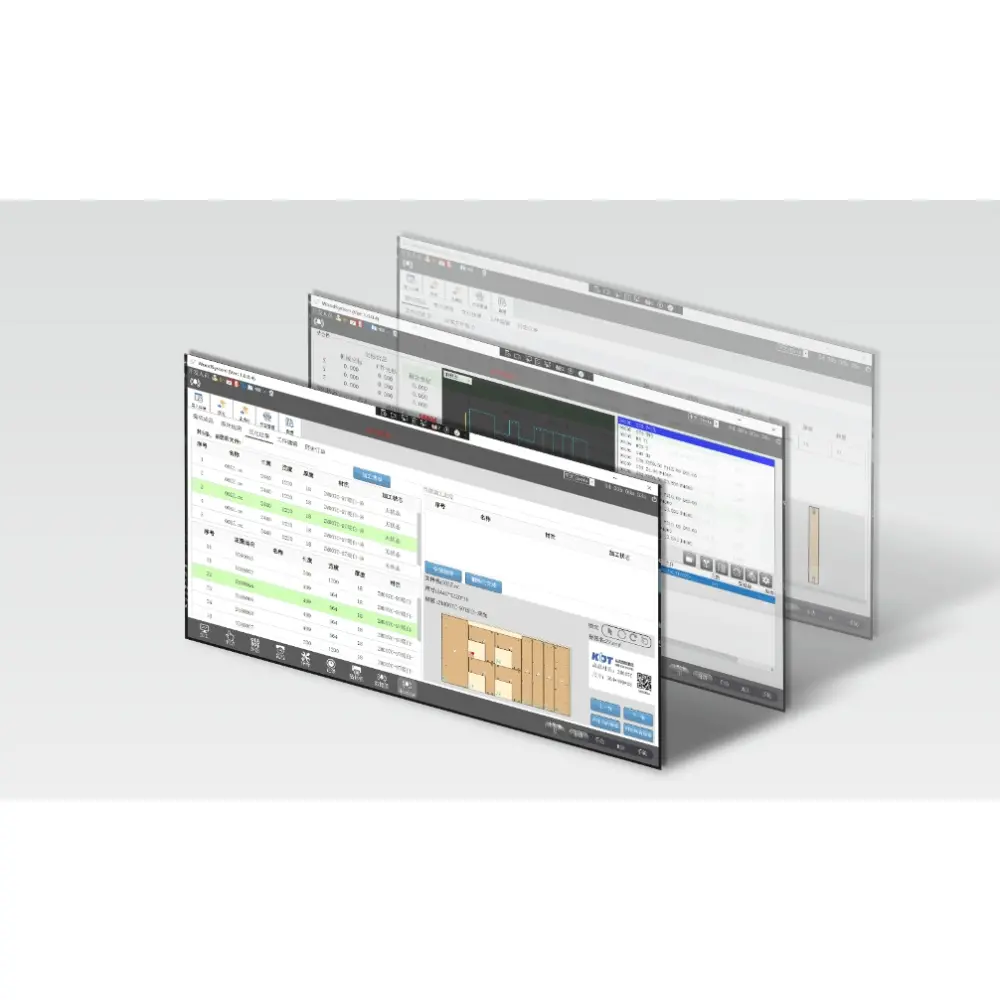

| Operating system | Bus-control system(KDT) |

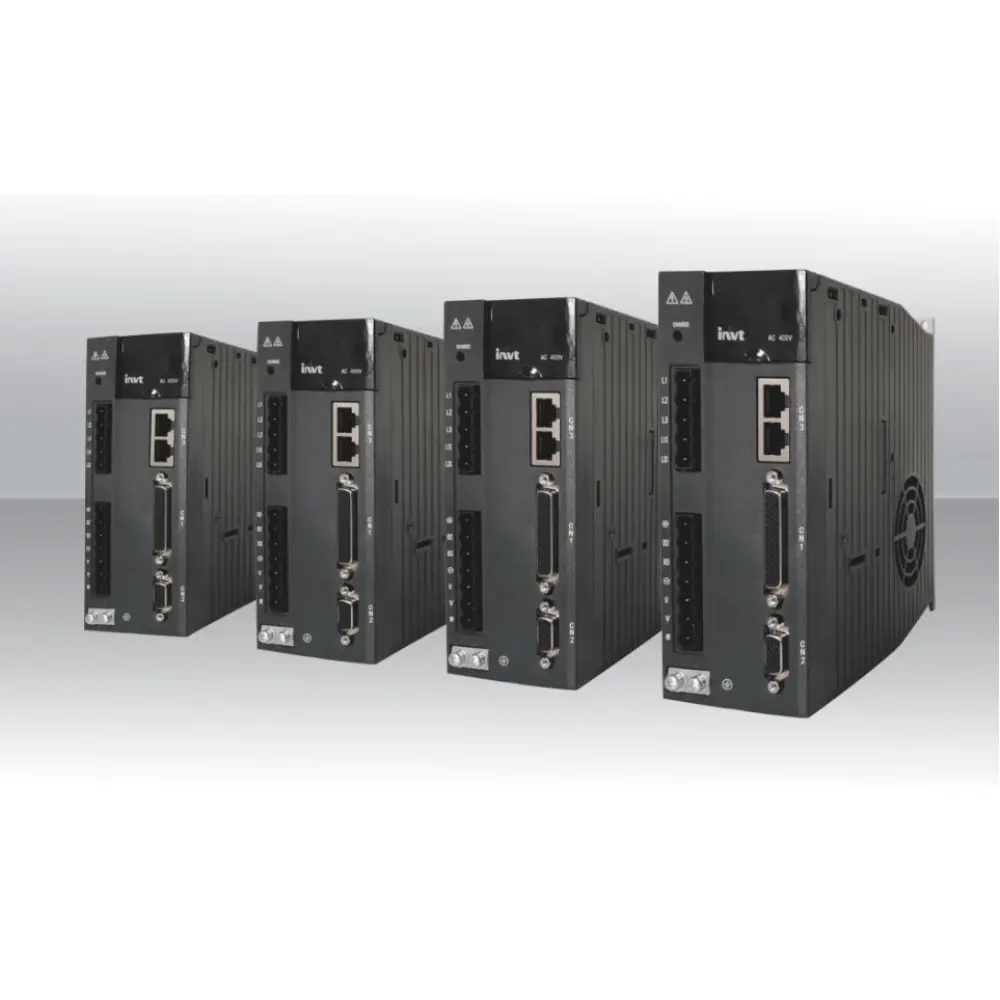

| Drive system | Absolute servo |

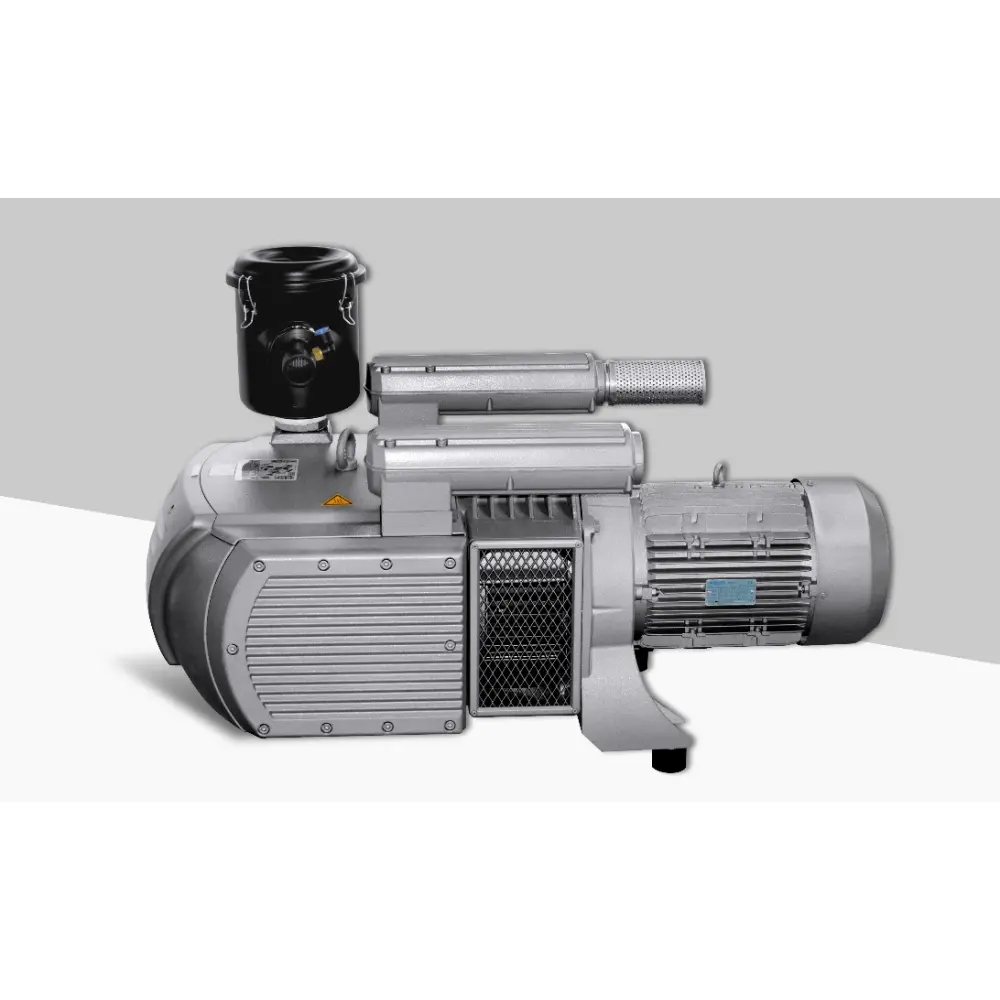

| Vacuum Capacity | 244m³/h |
| Vacuum zone | 6 |
| Effective working size | 3100mm*1260mm*80mm (Pressure Roller Optional: 3100*1260*40mm) |

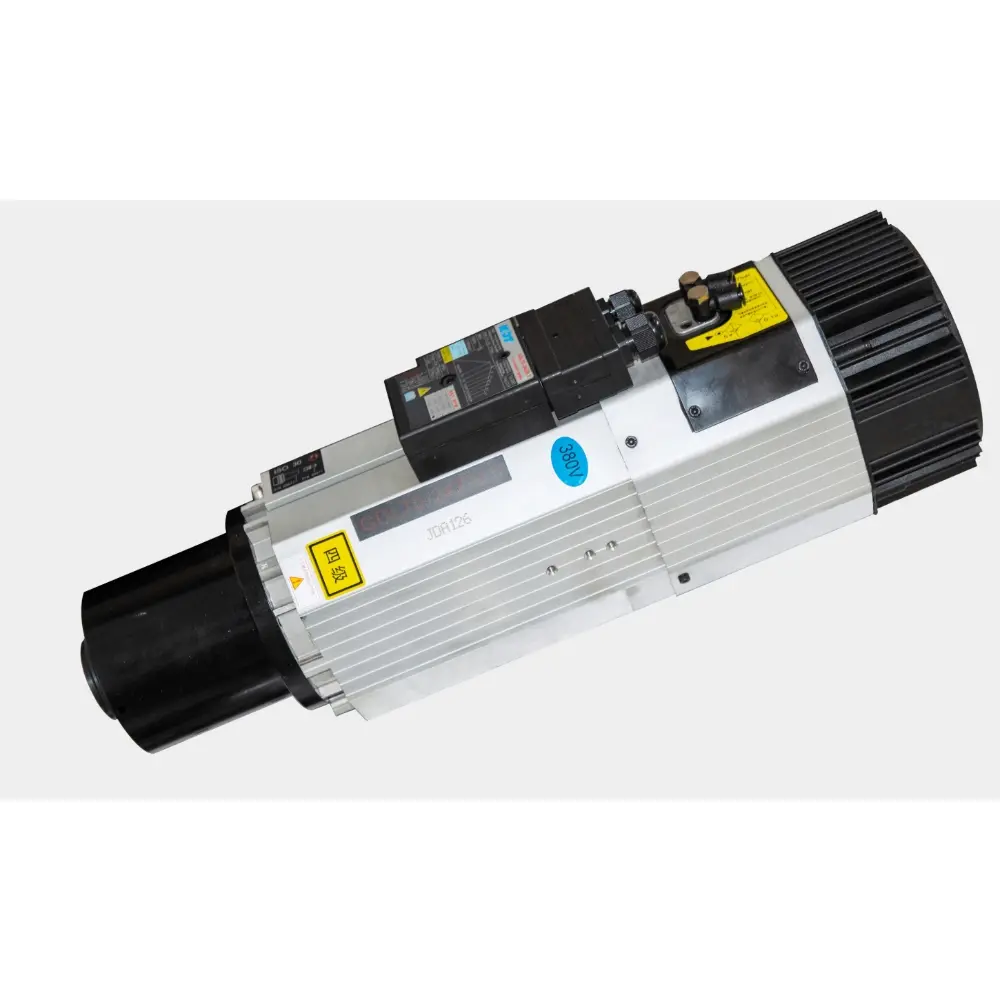

| Spindle | 12kW(ISO-30) |

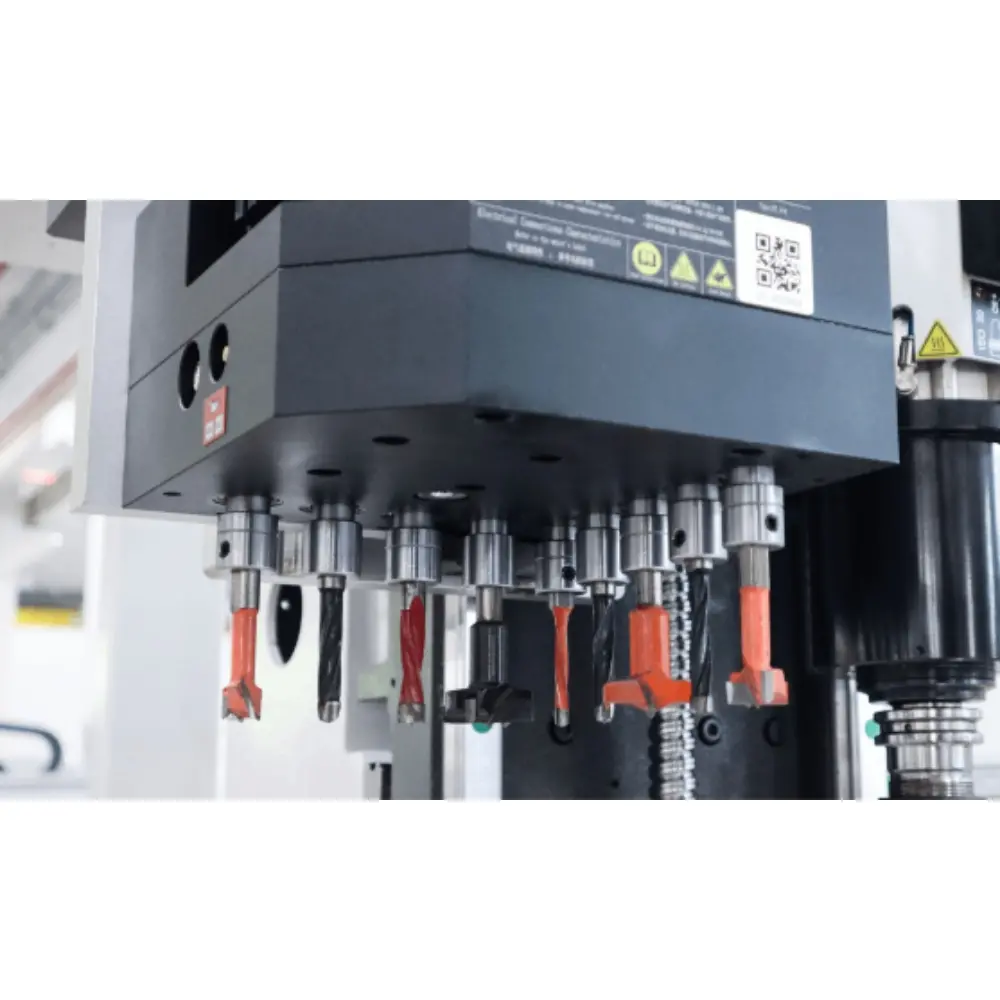

| Drilling head | 10V |

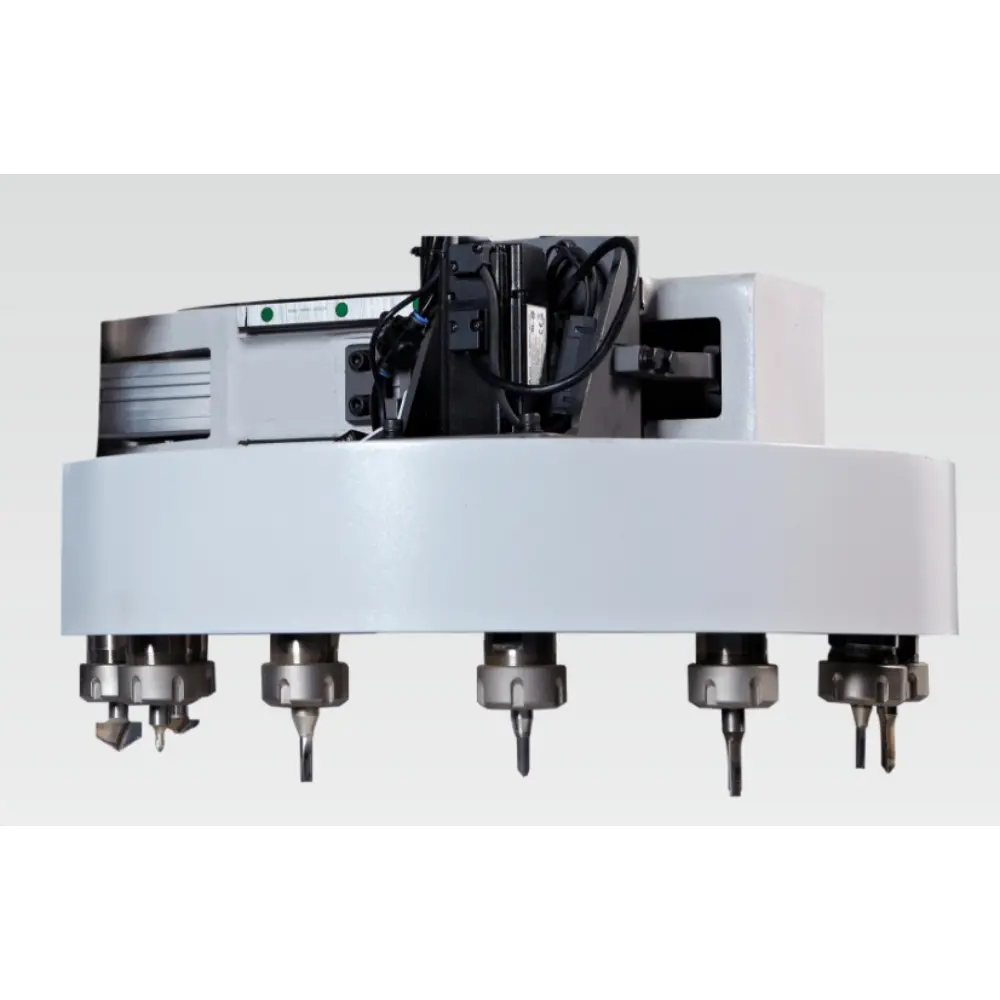

| Numbers of Tools changers | 12-post rotary ATC |

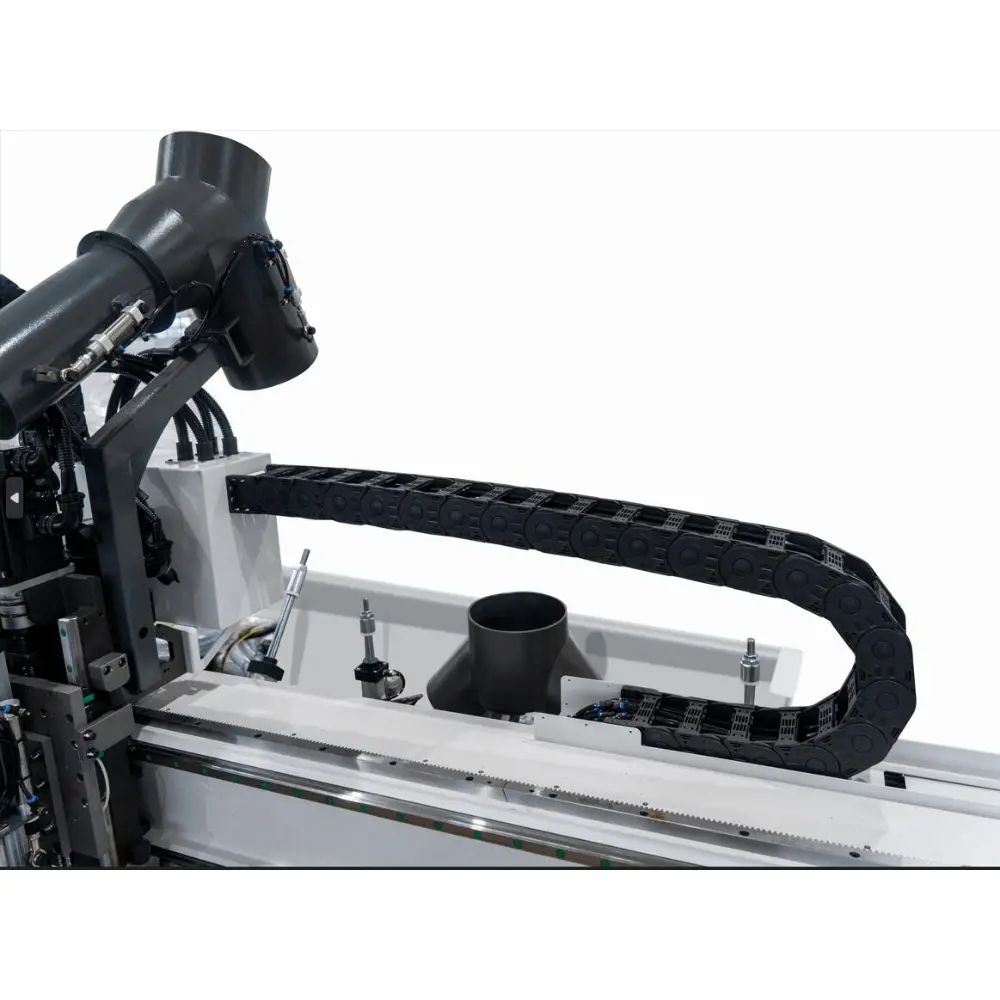

| Size&QTY of Dust Outlet | Φ200mm*1 |
| Total Power | 28.1 kW |
| Overall Size | L*W*H=4330mm*2510mm*2400mm |
| Max.Moving speed | X: 100 (m/min); Y: 100 (m/min); Z: 30 (m/min) |
| Working pressure | 0.65 Mpa |
