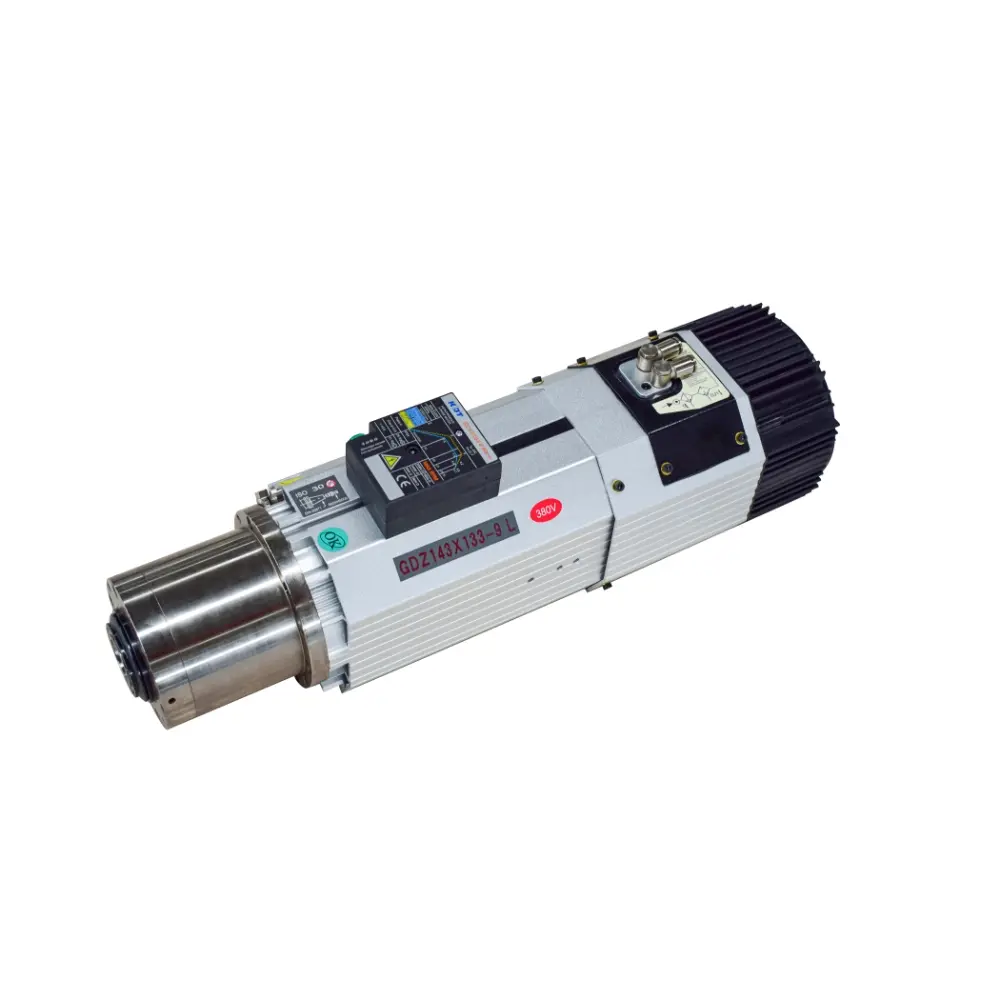

Spindle configuration
9kW high-power spindle， effectively improving routering efficiency.

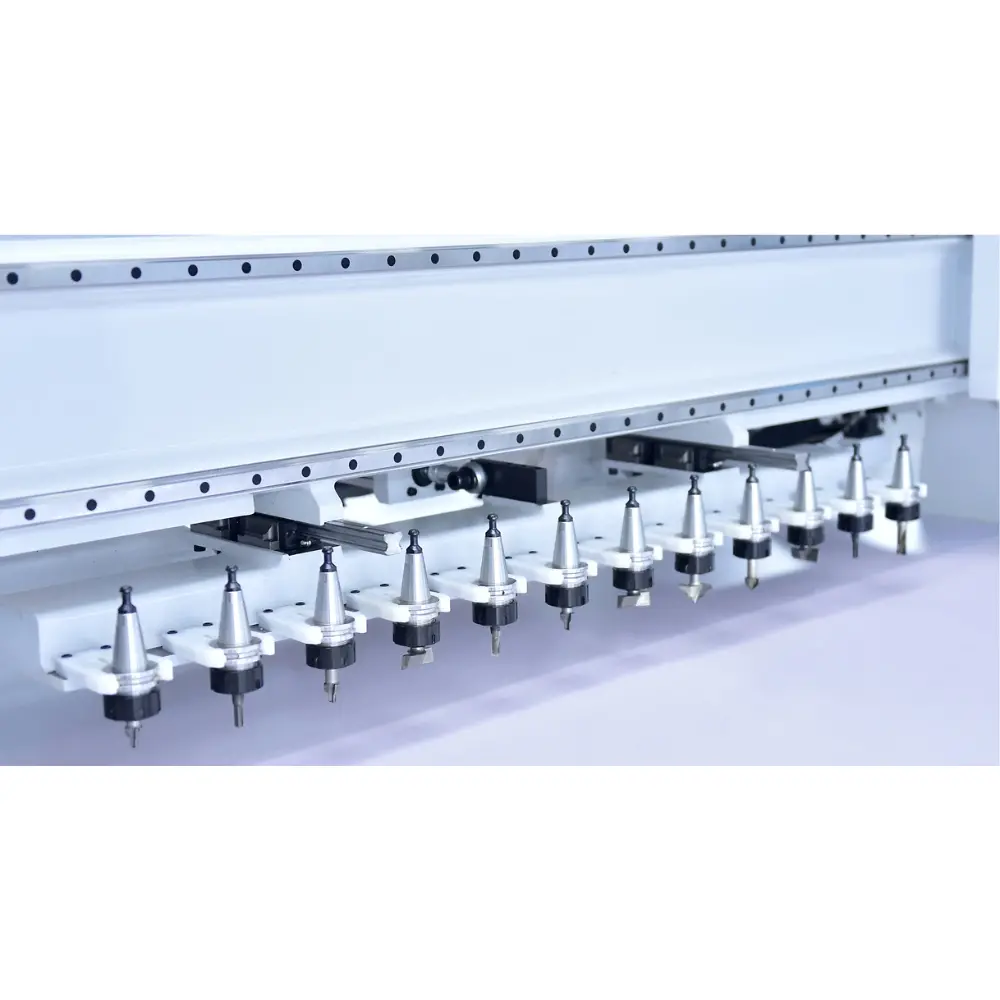

Tool library configuration
12 fold linear ATC ,automatic tool-change，suitable for panel furniture and doors production.

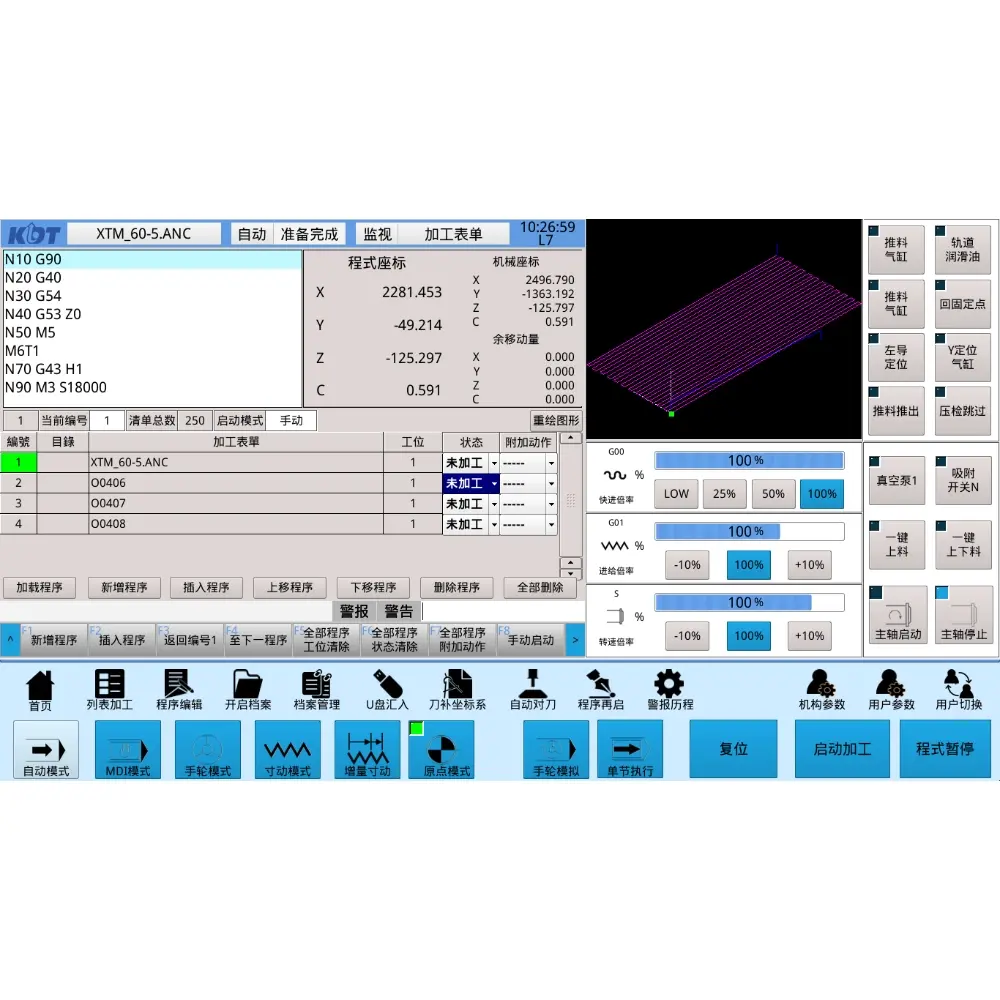

Operating system
Leading Numerical Controller System，strong anti-interference and scalability.

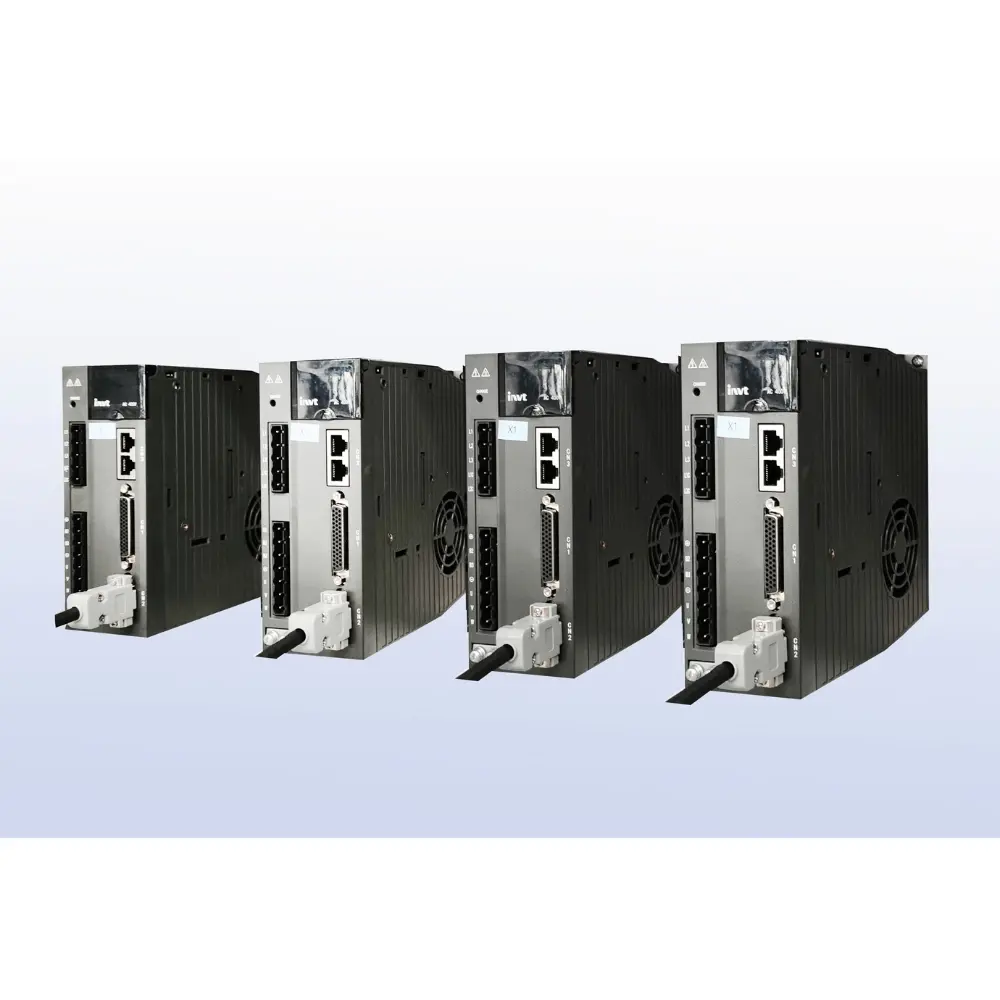

Drive system
1.5kW absolute value servo drive, no need to homing when starting, fast speed and high efficiency.

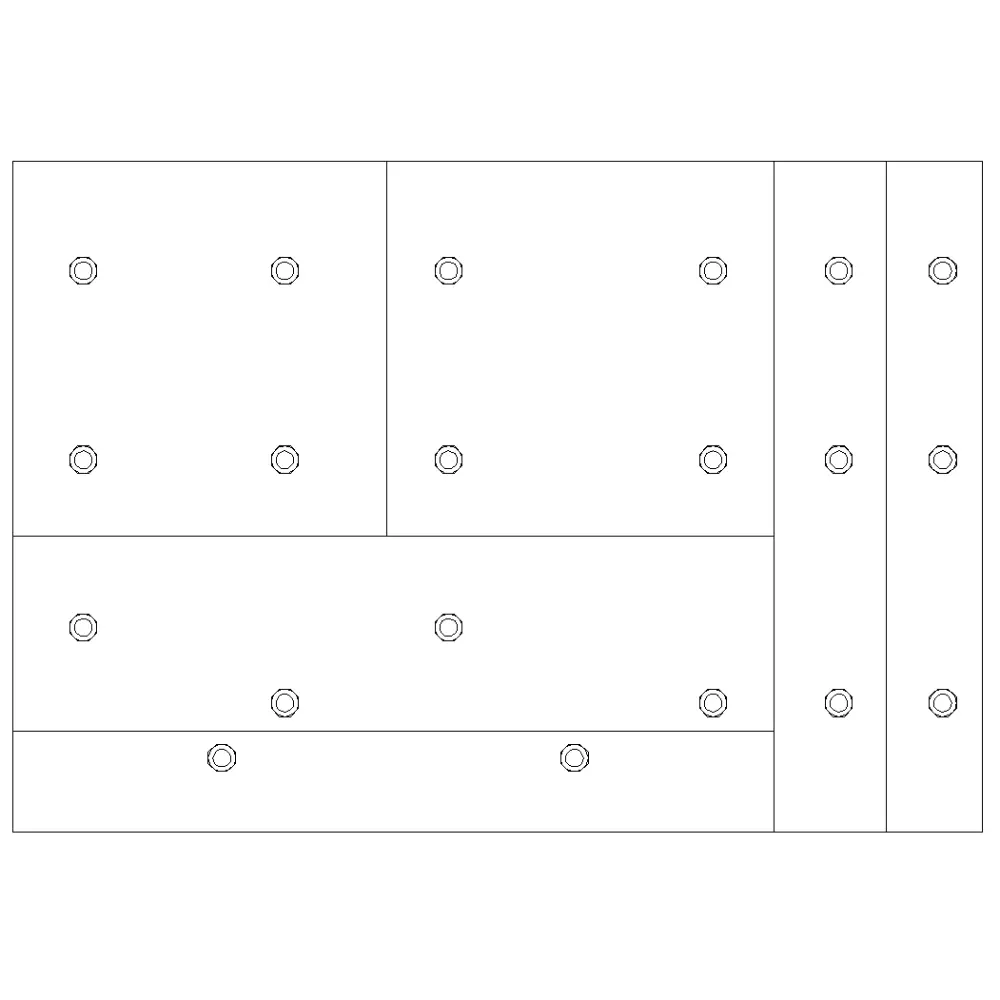

Mesa partition
6 partition vacuum table zone leads to an even suction distribution which prevents small boards from deviration.

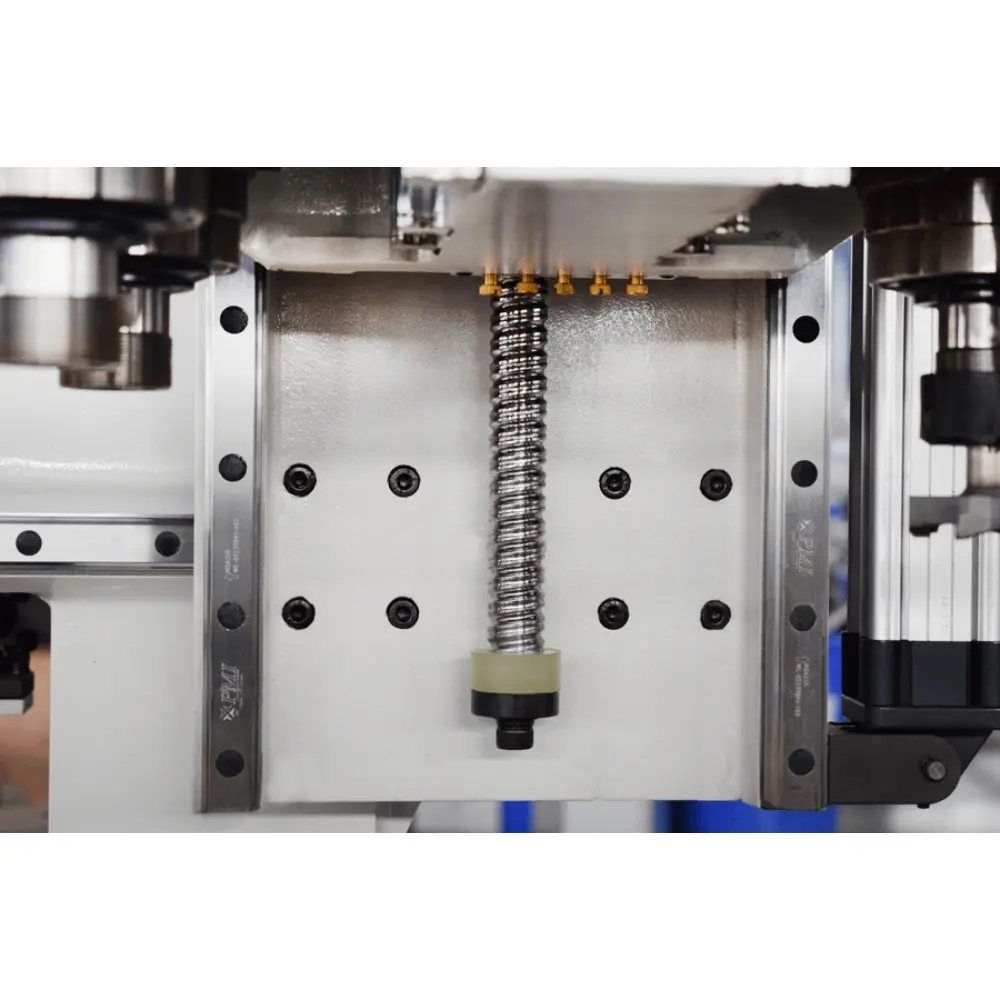

Motion mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.

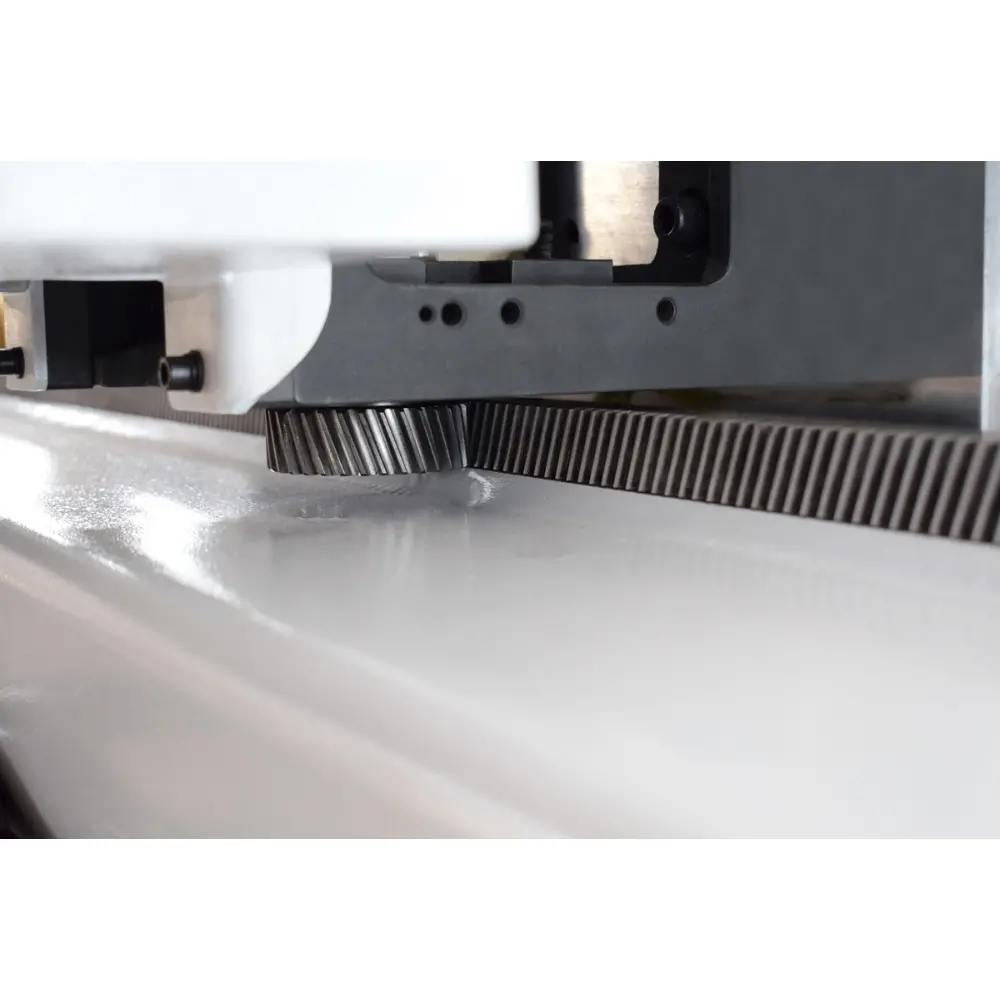

Motion mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack .

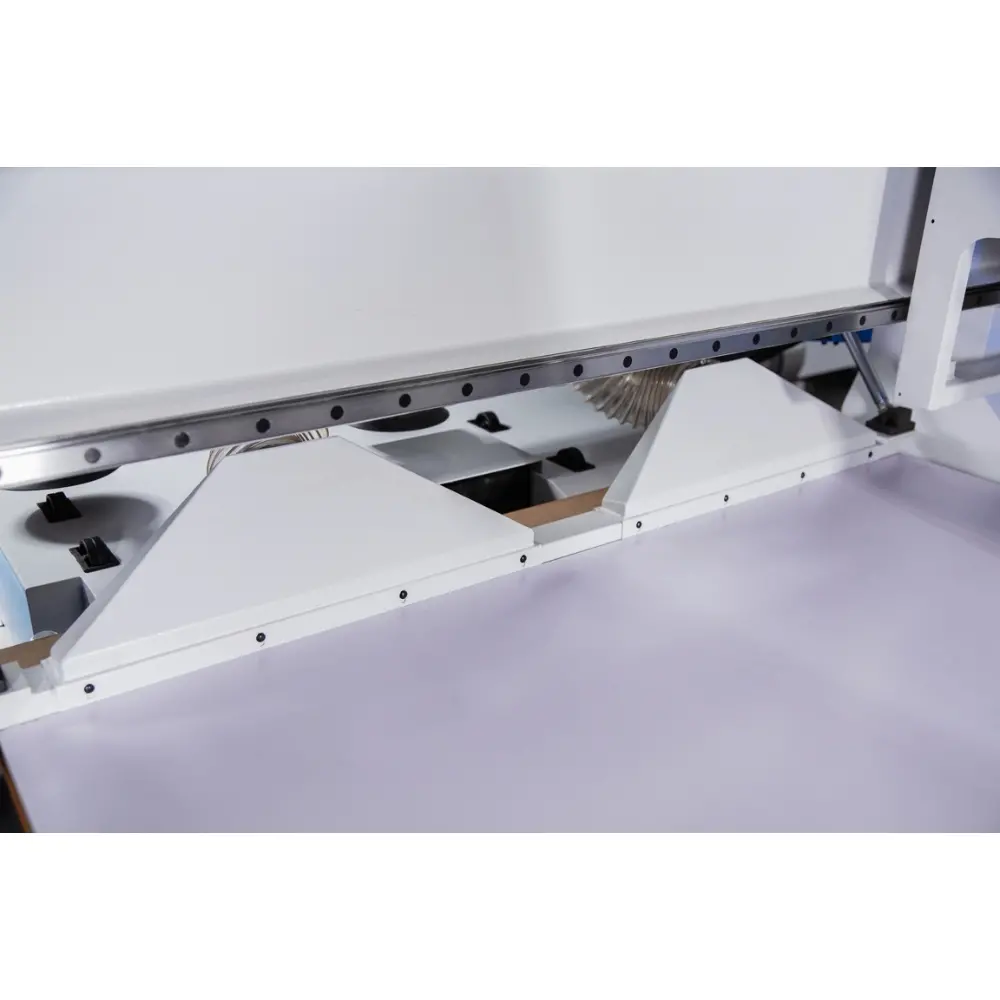

Pushing mechanism
Standardly Equipped with pusher，automatic pushing and feeding out workpiece.

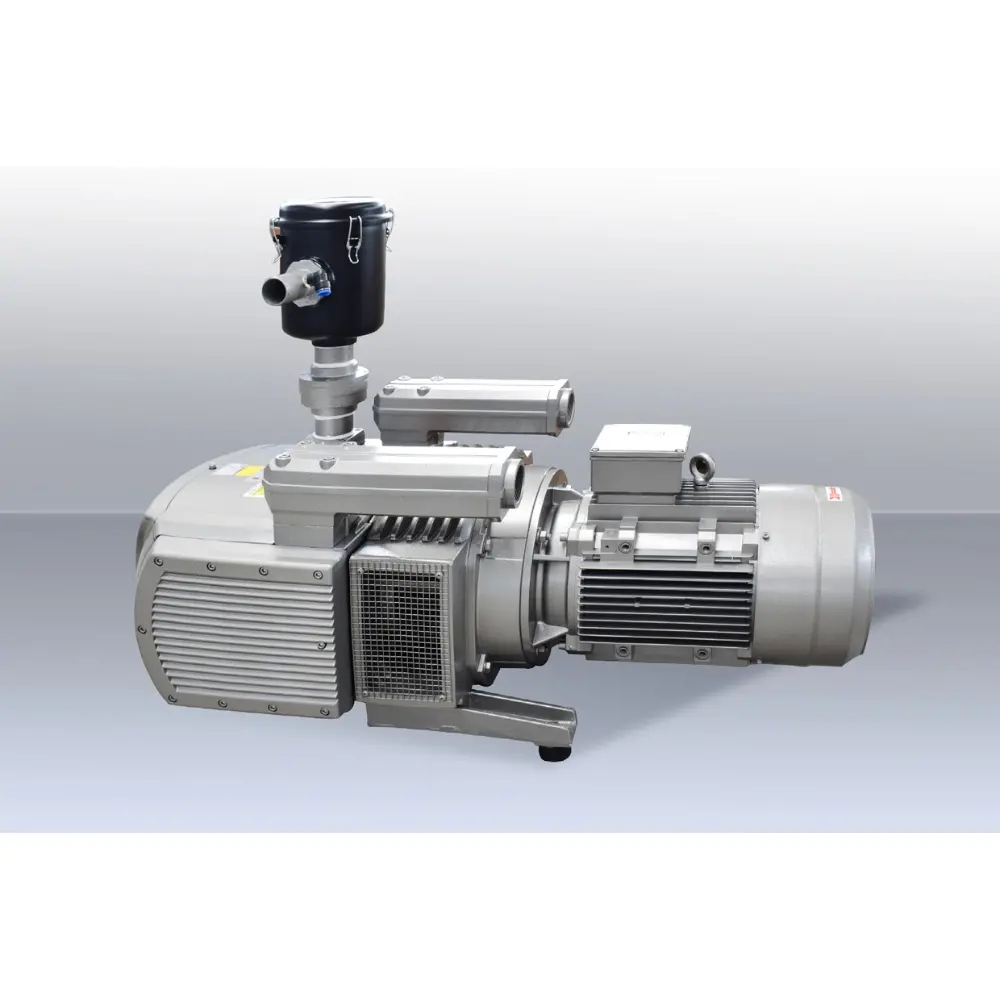

Standard with vacuum pump, friendly for enviroment and easy for maintenence.

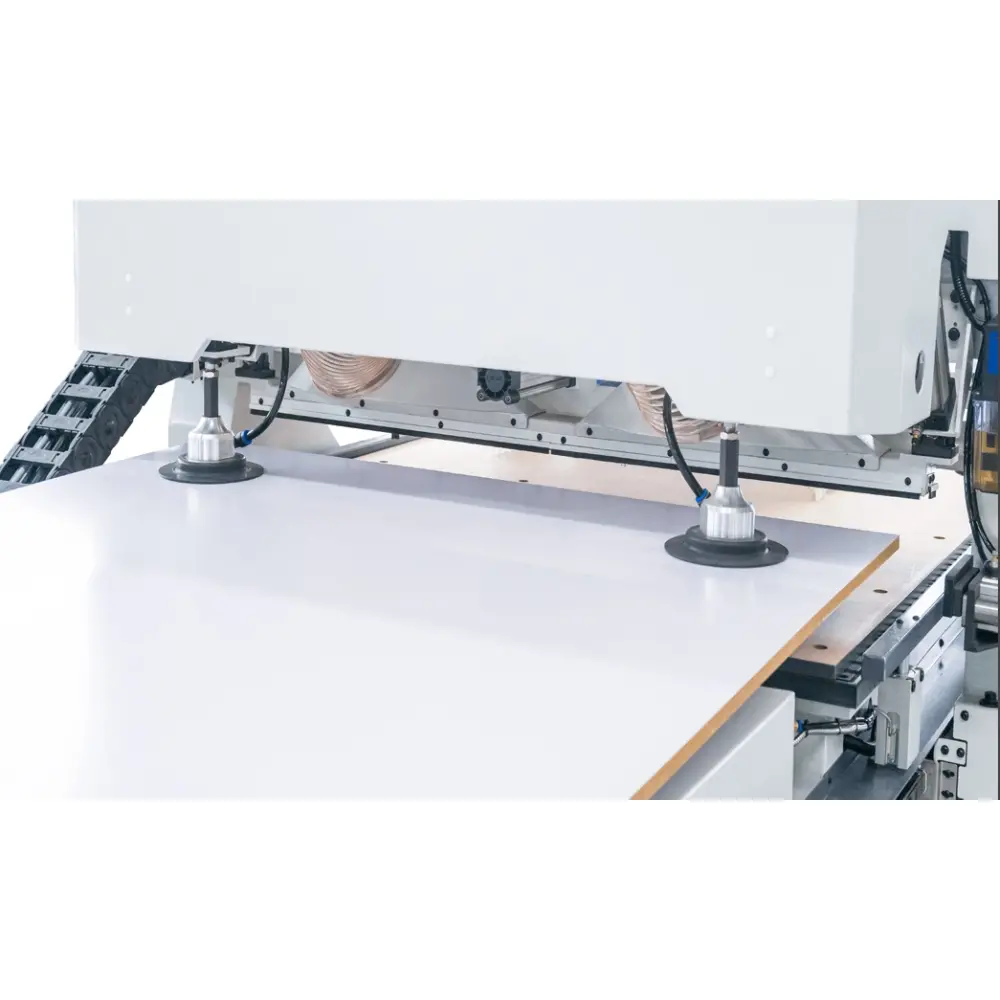

Grab mechanism
Standard with vacuum cup for automatic feeding workpiece.
| KN-2710JL | |
|---|---|
| Domestic package size | Length * width * height: 4700*2900*2500(mm)+1300*1500*800(mm) |
| Oversea package size | Length * width * height: 6180*2320*2500(mm) |
| Equipment weight | 5000kg |
| Operating system | LNC control system |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| 7.5KW*1 | |
| Numbers of Tools changers | 12 fold Linear ATC |
| Working table size | 2150*3100mm |
| Effective working size | 2150*3100*60mm (Pressure Roller Optional: 2150*3100*40mm) |
| Max speed X/Y/Z (m/min) | 80/80/30m/min |
| Vacuum Capacity | 2*250 m³/h |
| Total Power | 34.5KW |
