Smart Machining Centers

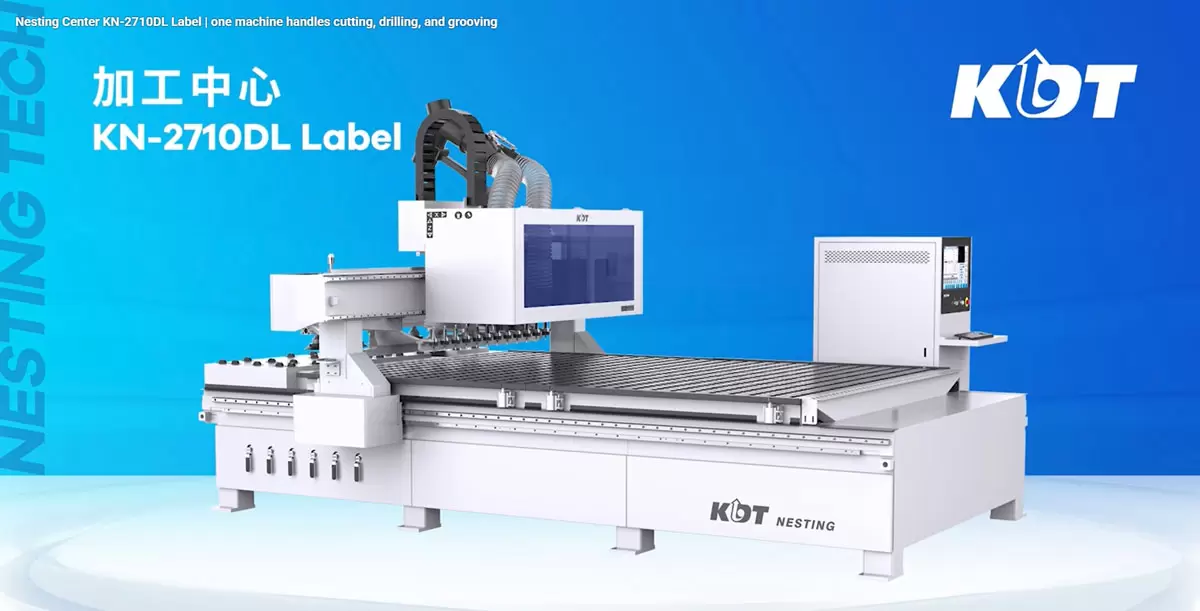

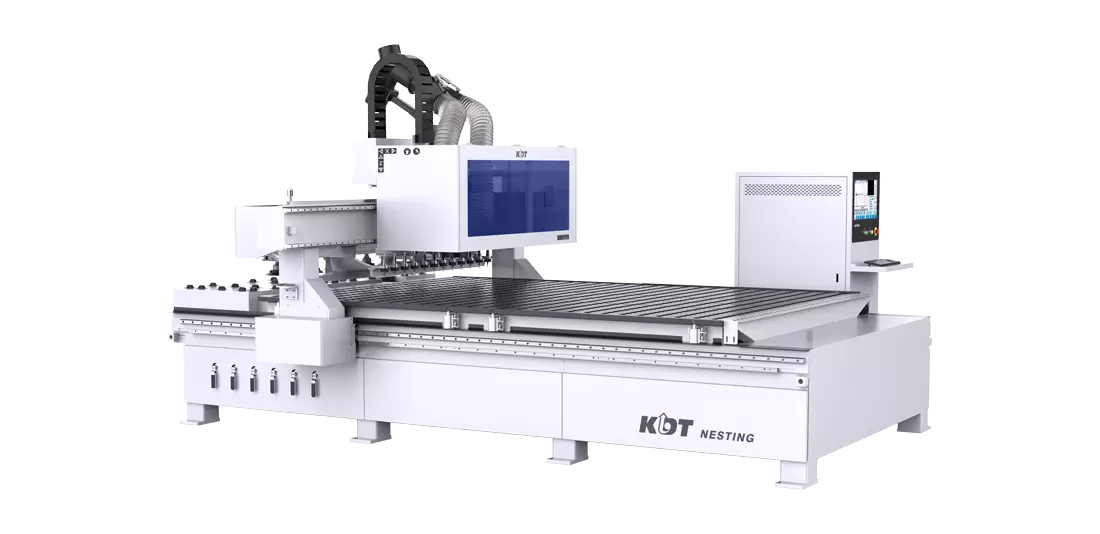

KN-2710DL Label
FEATURES
Industrial-grade label printer
Industrial-grade printer, highly efficient and stable. Features a patented label storage platform for fast label output and high stability. Automatically alerts for missing or incorrect labels, easy to maintain. Equipped with automatic alignment and calibration to ensure labeling accuracy
10V Drill Set
10V drill unit with optimized layout for higher precision, improved simultaneous drilling capability, and greater drilling efficiency
Spindle configuration
A 9kW high-power spindle enables high-quality and efficient routering operations

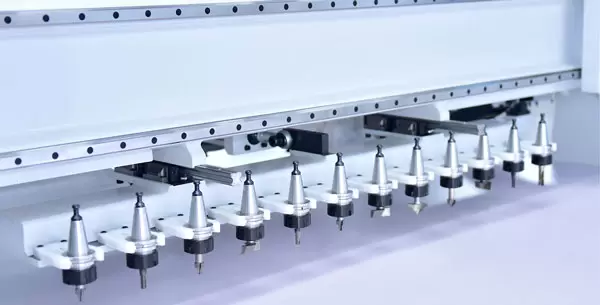

Tool Changers configuration
12 fold linear ATC, automatic tool-change, suitable for panel furniture and doors production

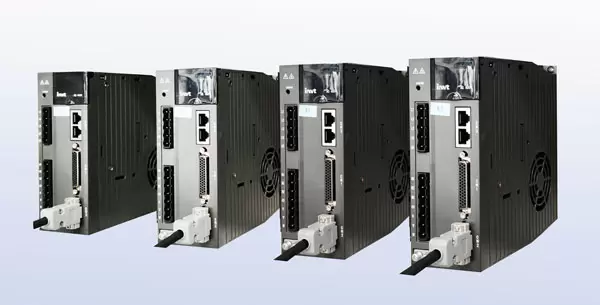

Drive system
A 1.5kW absolute value servo drive eliminates the need for homing upon startup, delivering high speed and efficiency
Vacuum Zone table
6-zone vacuum adsorption table ensures strong board holding force. The main frame undergoes annealing treatment to maintain structural stability during operation, providing long-lasting durability and resistance to deformation
Vacuum pump
Equipped with two Becker 244 m³/h dry vacuum pumps, offering high flow rate to ensure strong sheet material adsorption and prevent small boards from deviation
Aligner positioning
Capable of automatically and precisely positioning on various sizes of panels, featuring high flexibility and greater intelligence.

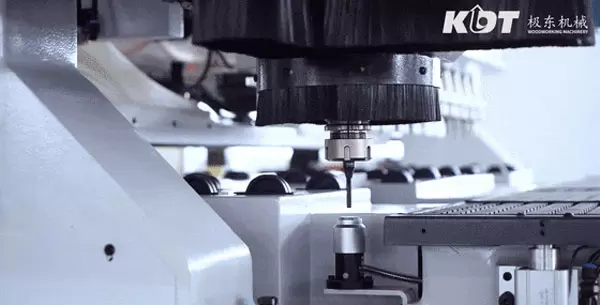

Tools pre-setter
Automatic and precise tool setting for high precision, low maintenance, and improved processing efficiency

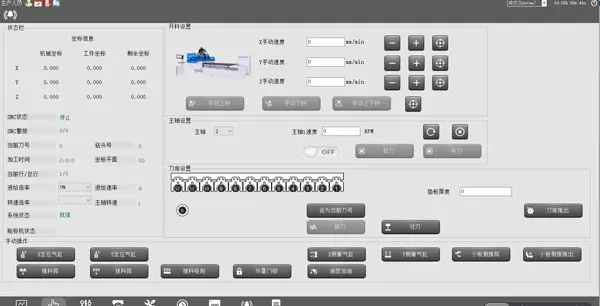

Bus-control system
Clear interface, capable of simulation, simple to operate, enabling efficient production.
TECHNICAL SPECIFICATIONS
| KN-2710DL Label | |
|---|---|
| Domestic package size | Length * width * height: 4350*3200*2500(mm)+1300*1500*800(mm) |
| Oversea package size | Length * width * height: 5950*2310*2500(mm) |
| Equipment weight | 5000kg |
| Operating system | Bus-control system (KDT Customized) |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| Drill set | 10V |
| Numbers of Tools changers | 12 fold Linear ATC |
| Working table size | 2150*3100mm |
| Effective working size | 2150*3100*60mm（Pressure Roller Optional: 2150*3100*40mm） |
| Max speed X/Y/Z m/min | 80/80/30m/min |
| Vacuum Capacity | 2*244m³/h |
| Total Power | 28.2kW |
