Vacuum chanmber,Rigid frame

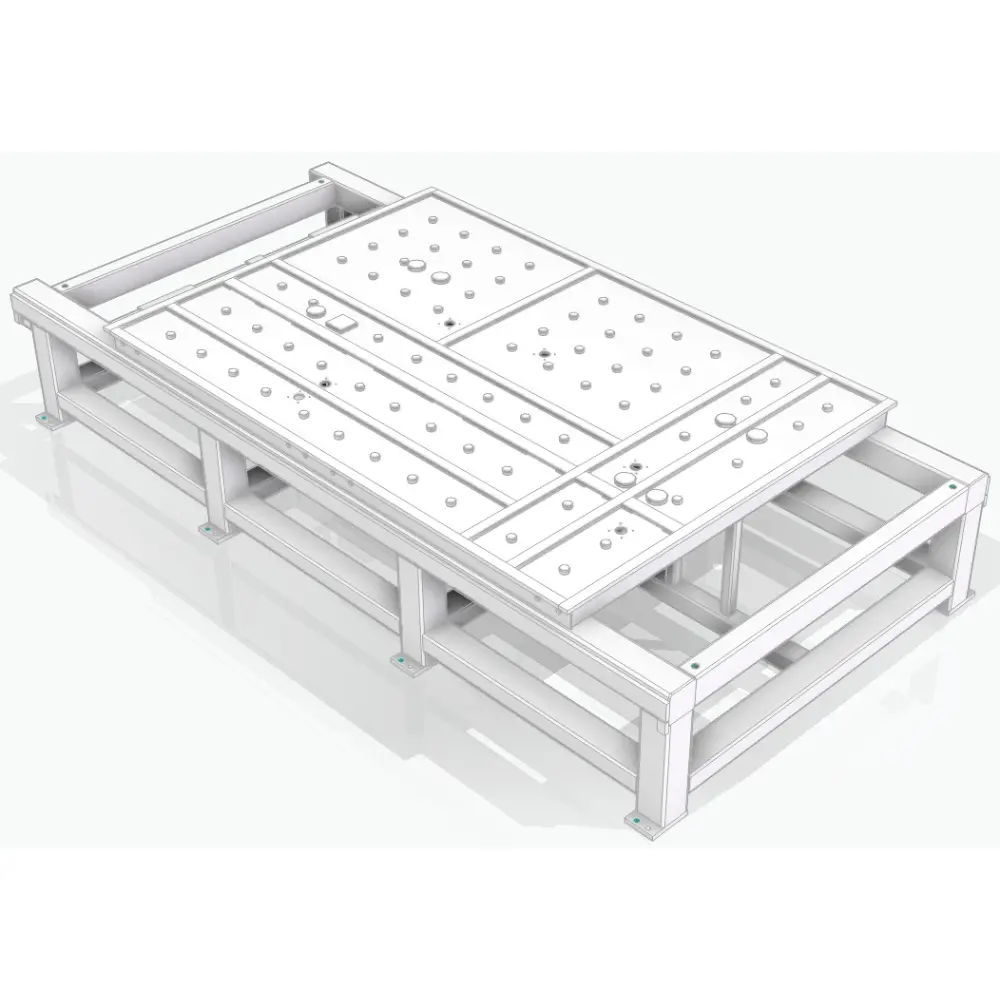

The machine frame with annealing treatment ensures stable and reliable running;Refined vacuum zones guarantee stronger absorption, improving stablility.
Spindle

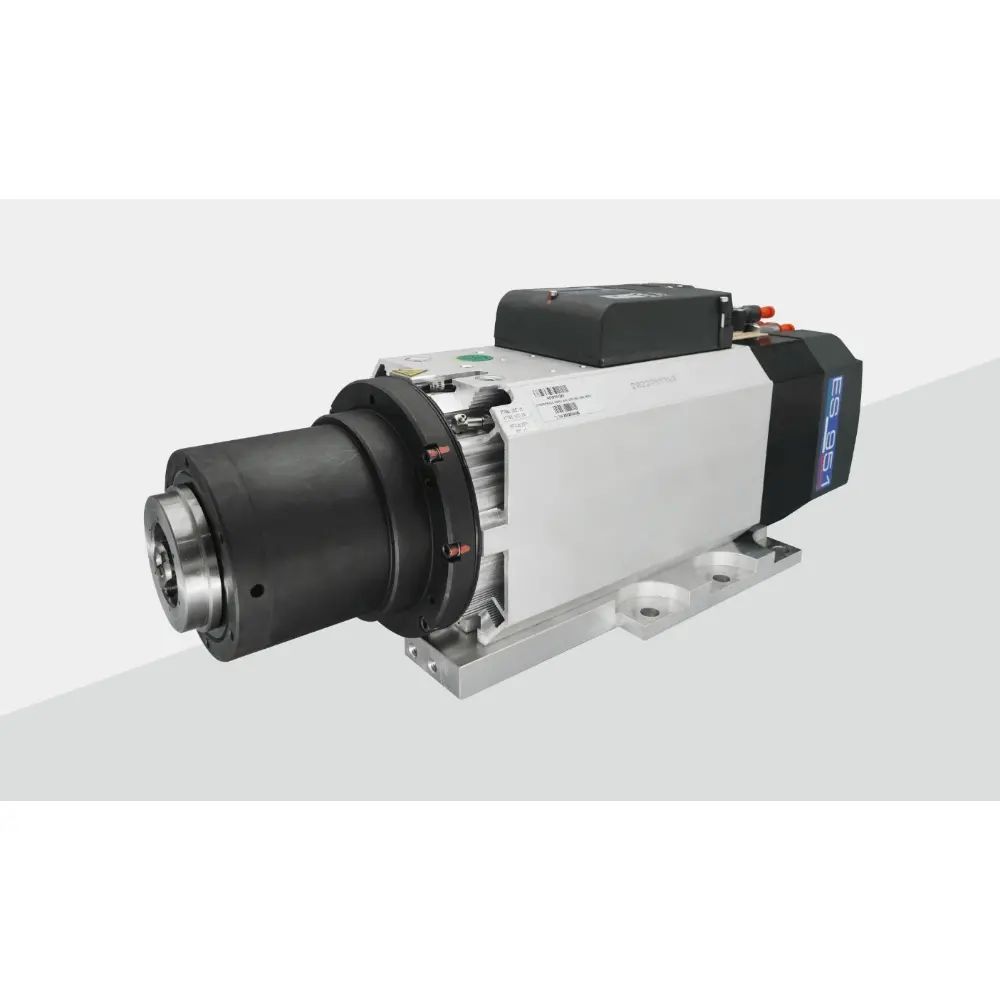

HSD13.2KW HSK-F63 spindle,，High power，high accuracy and long service life.

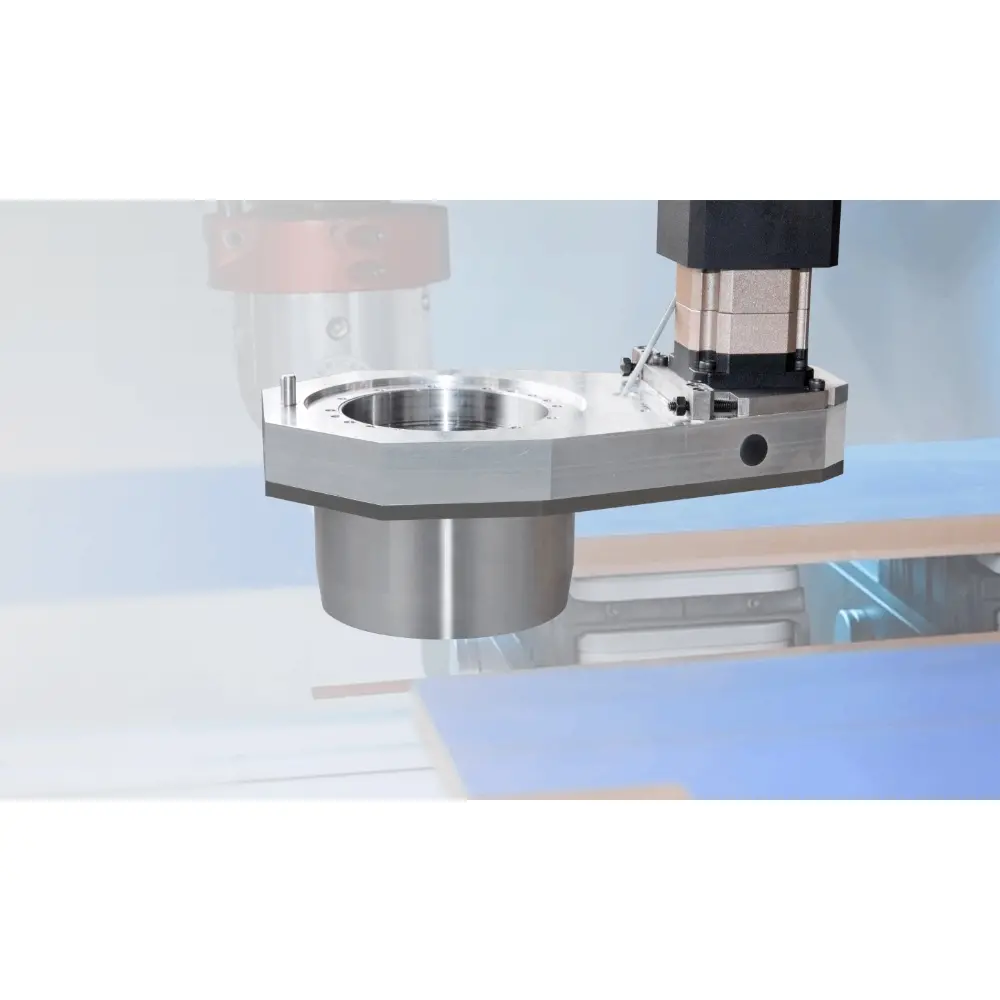

C axis standard configured

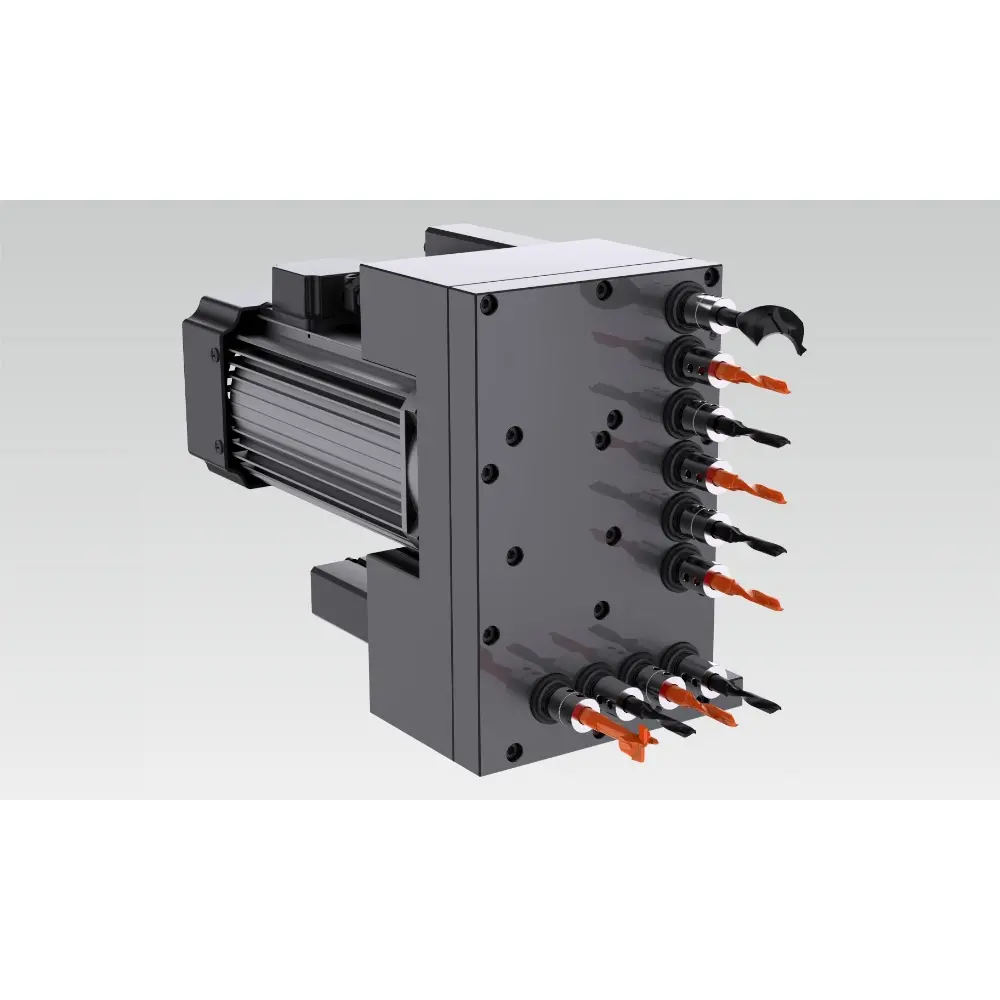

Drill Head
10V Drill head standard configured
12V8H1S optioned
Tools Changers

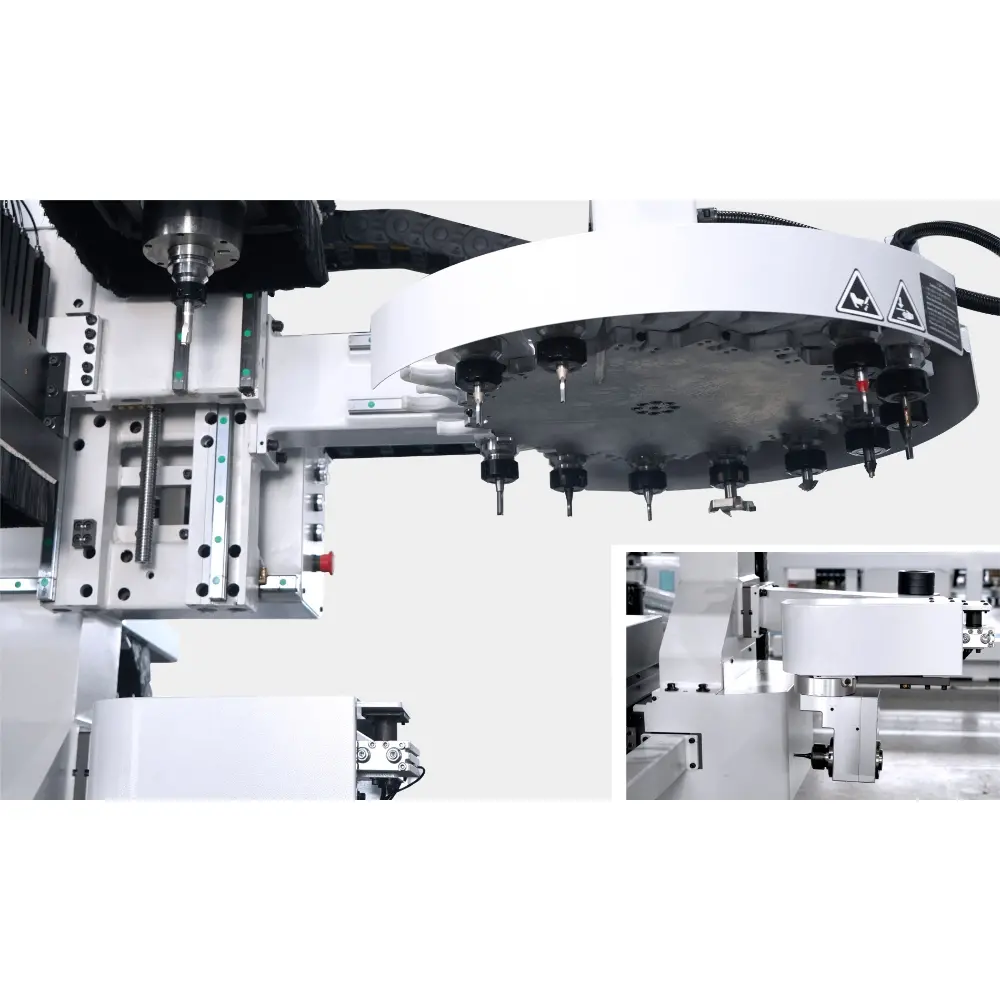

16-post rotary ATC,HSKF63 equipped, fast and accurate changeover.

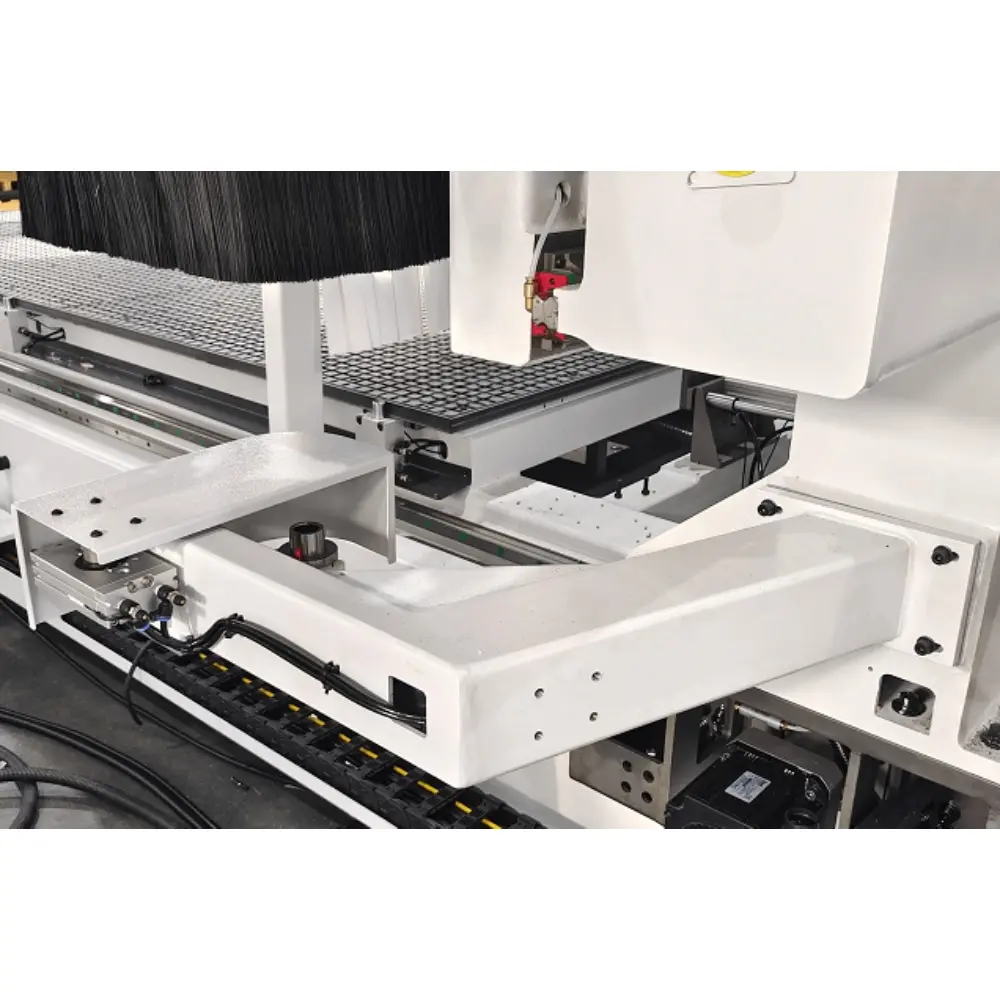

1-position aggregate holder configured.

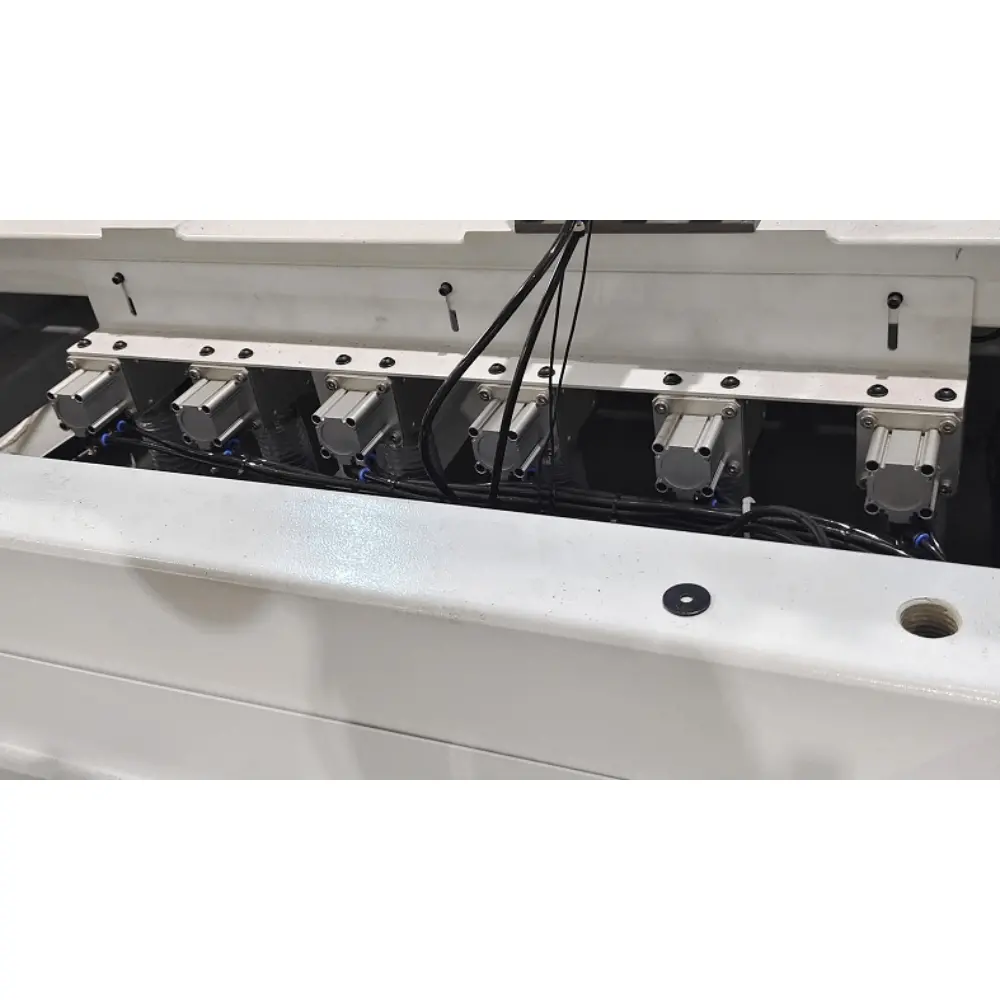

Automatic Vacuum valve
6 automatic control vacuum zone.
Vacuum Pump

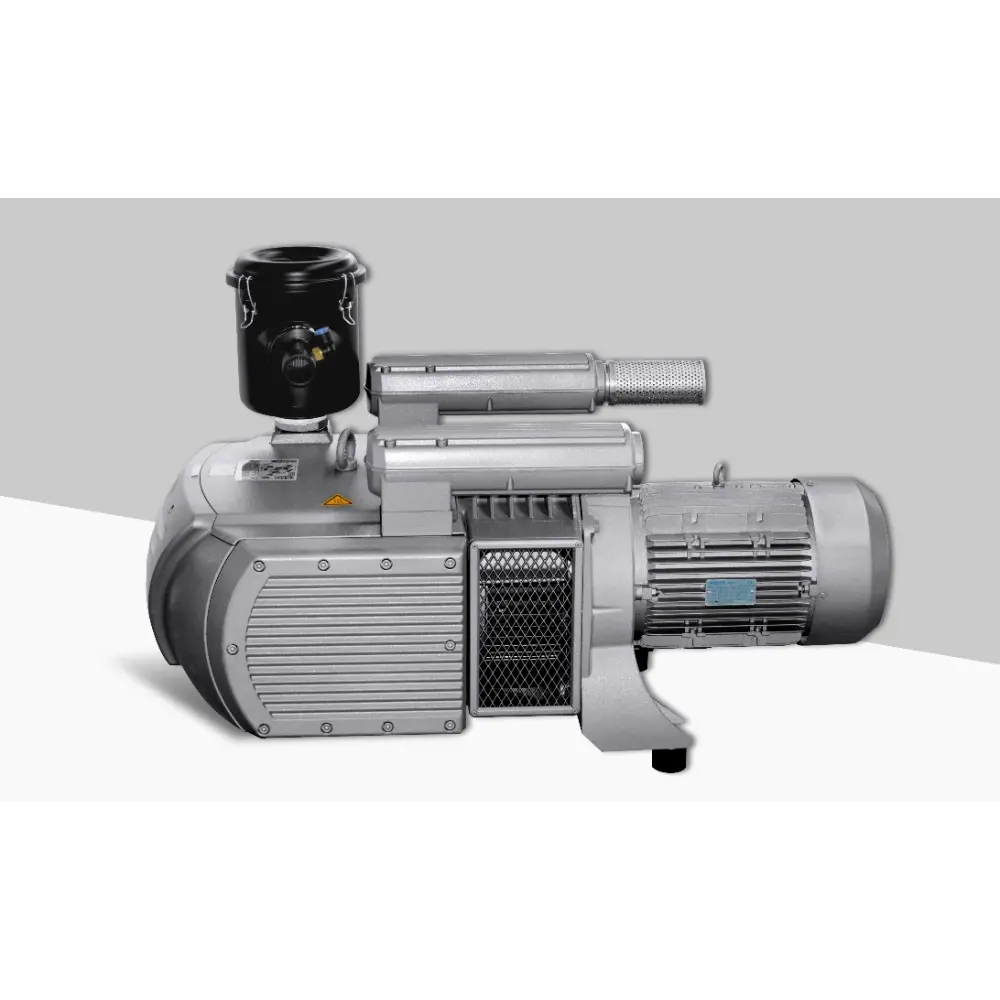

Dry air-cooled Becker pump with 244m³/ H capacity which ensures strong vacuum suction and prevents small board deviation.2 pcs of vacuum pump equiped for cnc with large table to ensure for stronger vacuum suction.
Motion Machanism

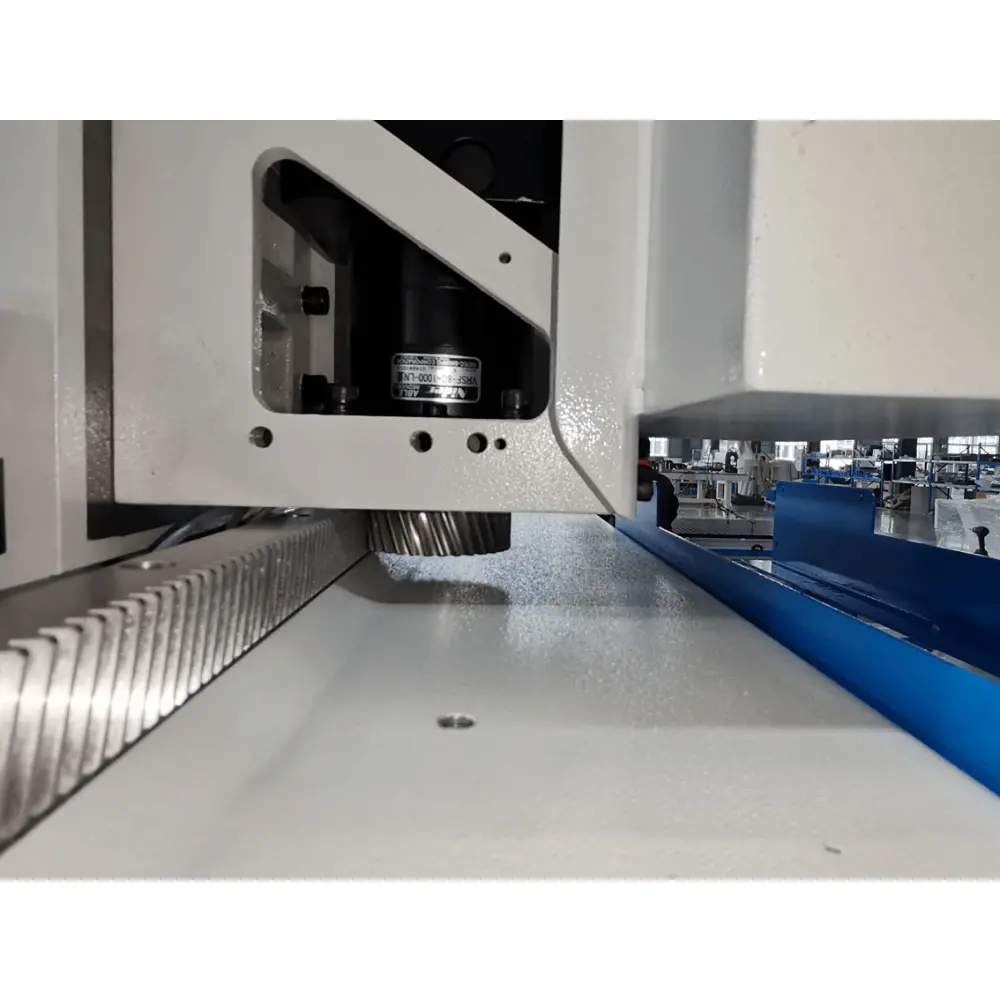

X/Y axis transmits along helical gear&rack ,high accuracy and stable run.

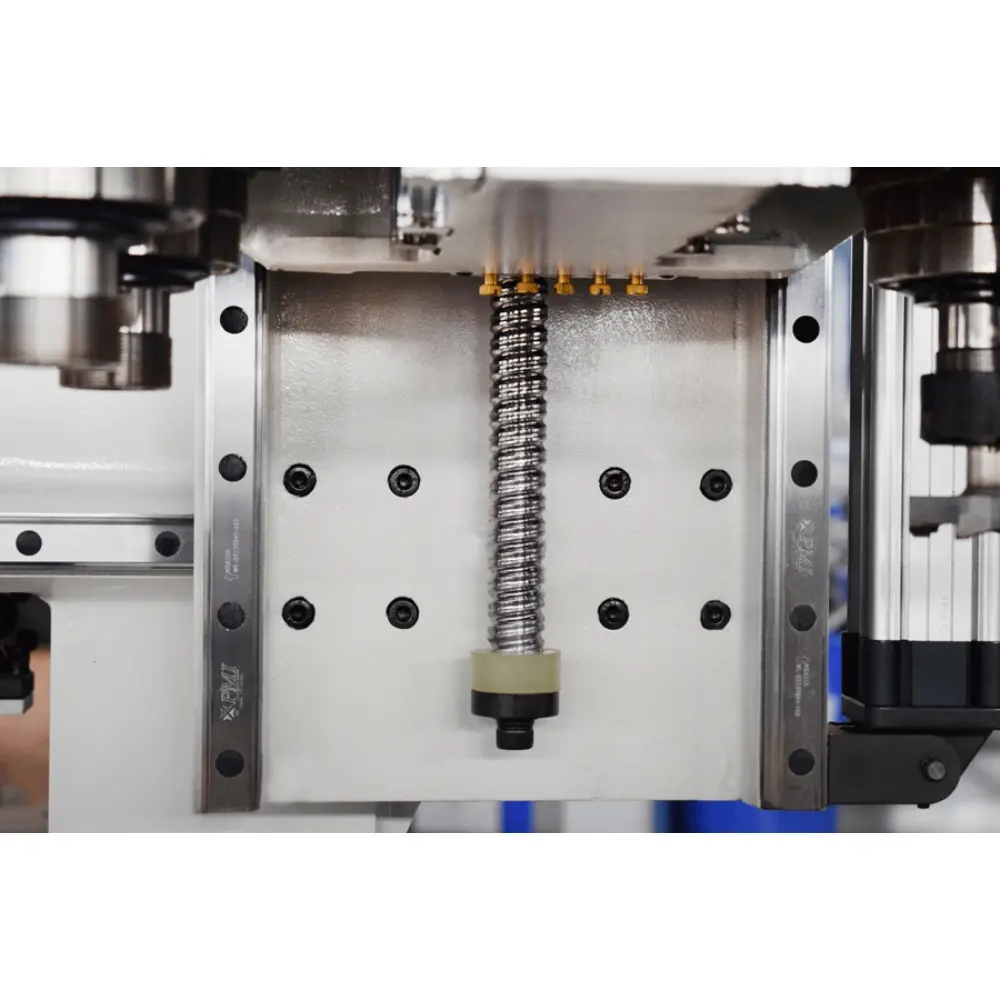

Transmission Machanism
Z axis is driven by ball screw,high precession in motion and compact structure.

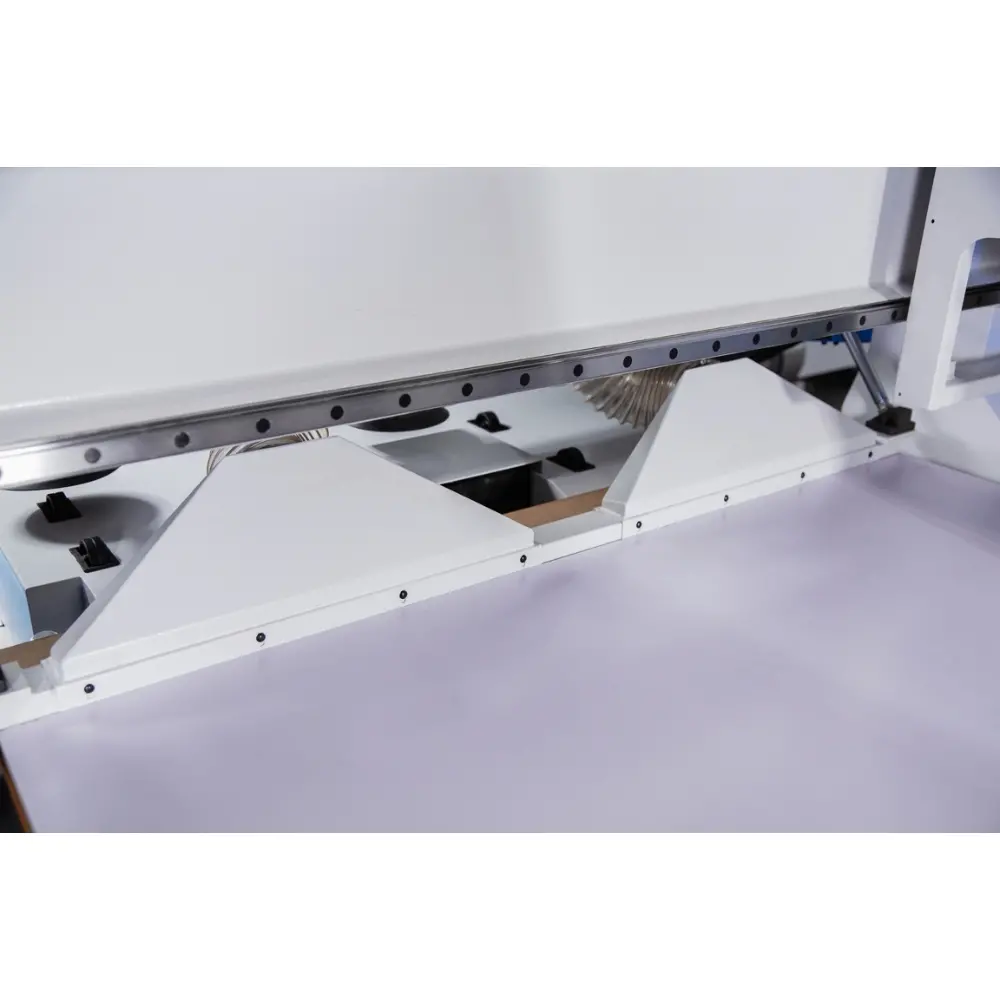

Automatic Pusher
Standard with pusher mechanism to reduce the manpower work, meanwhile, to effectively remove the dust/chips off workpeice.

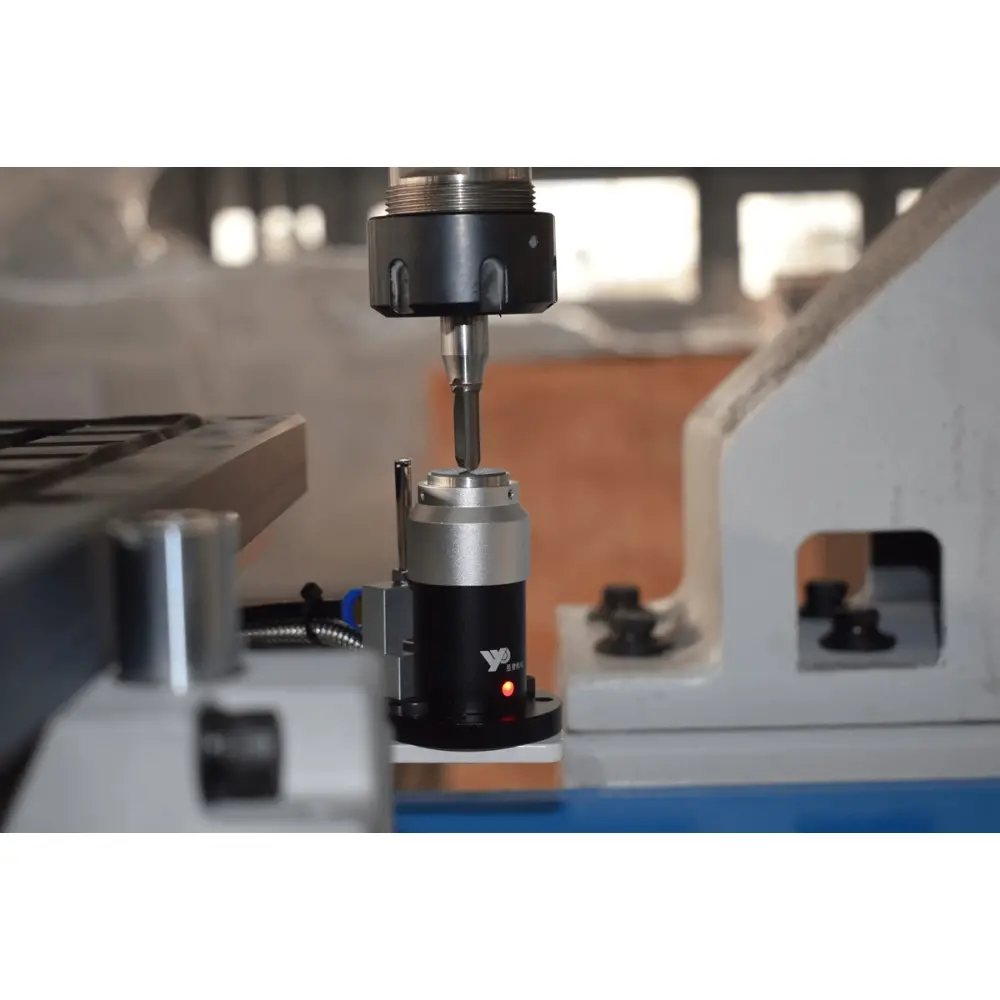

Tools Pre-setter
High precision in tools measurement.
Movable Control Panel

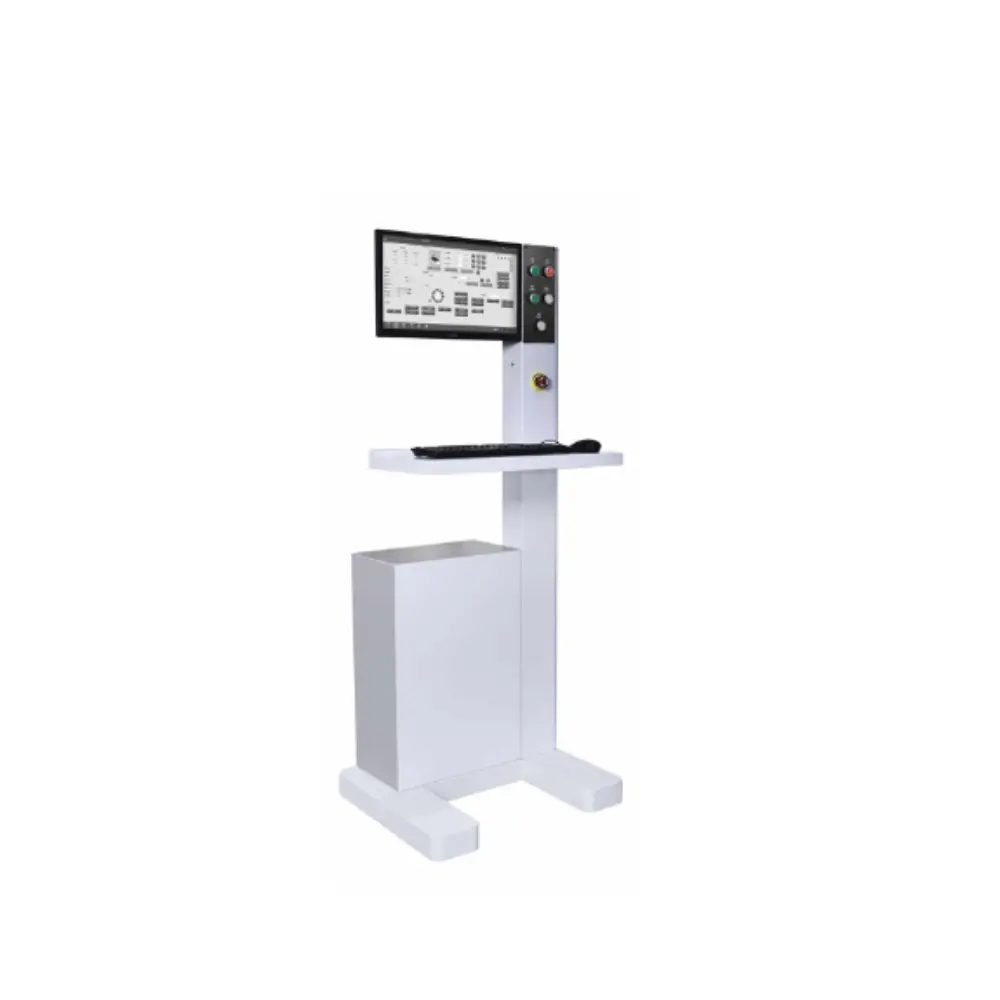

Control panel is movable at any position, convenient for operation.

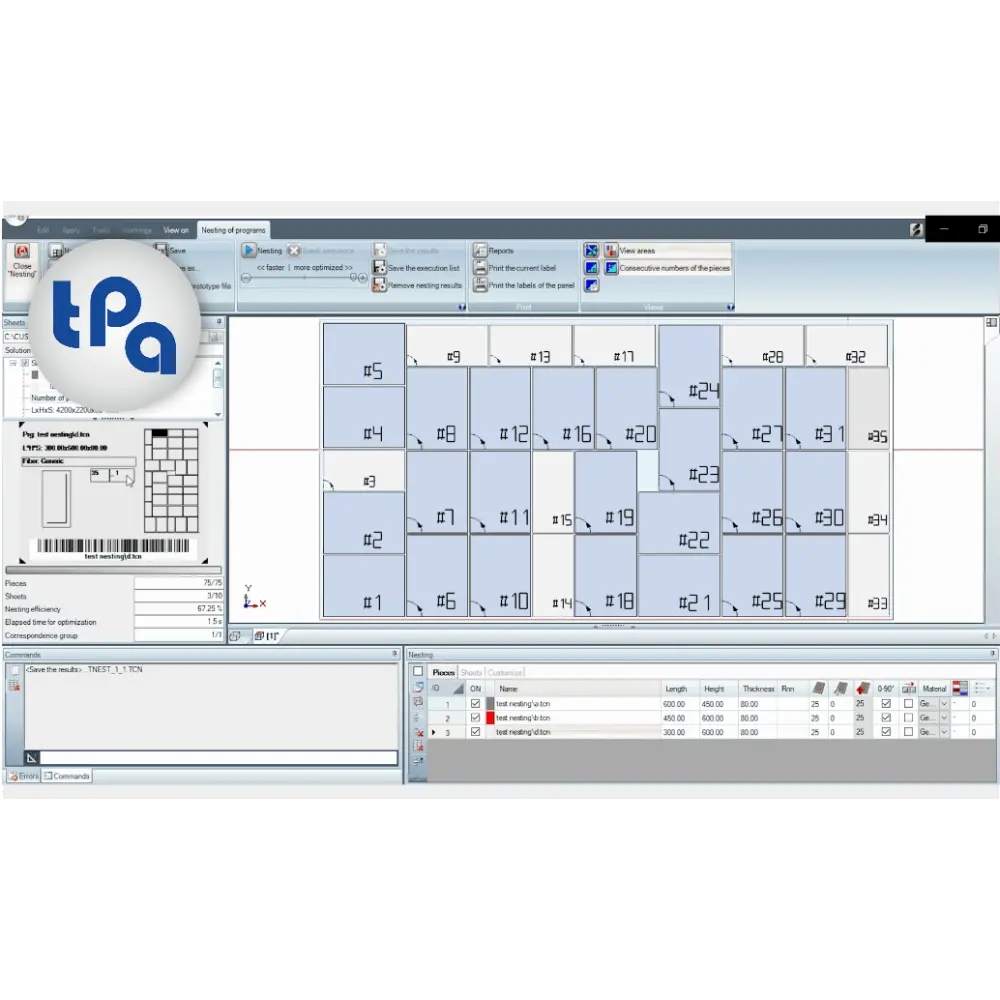

Control system
Intutitve control panel, easy operation, fast reponse,and high position accuracy,available for remote teamview, easy for maintenence management.

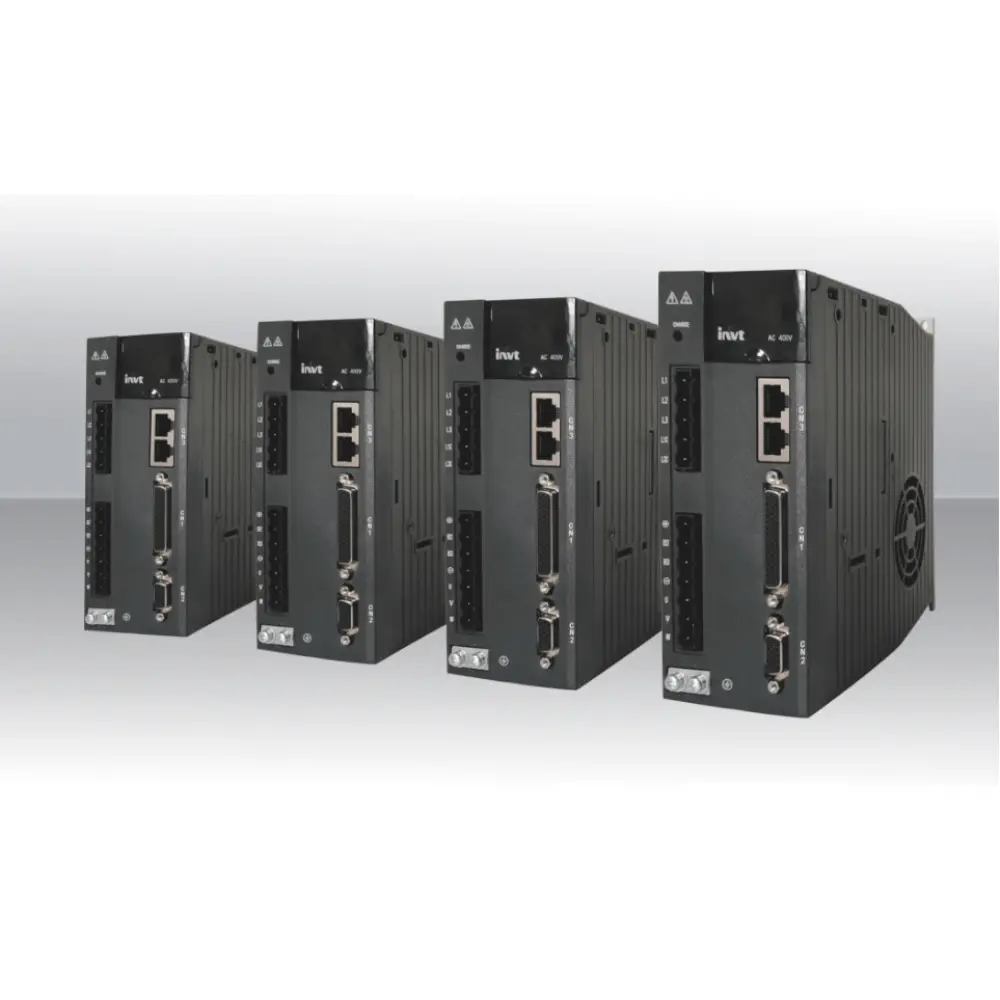

Servo Drive
2.0kW High power high performance Motor equiped, max.speed up to 80m/min.
Imported Cable

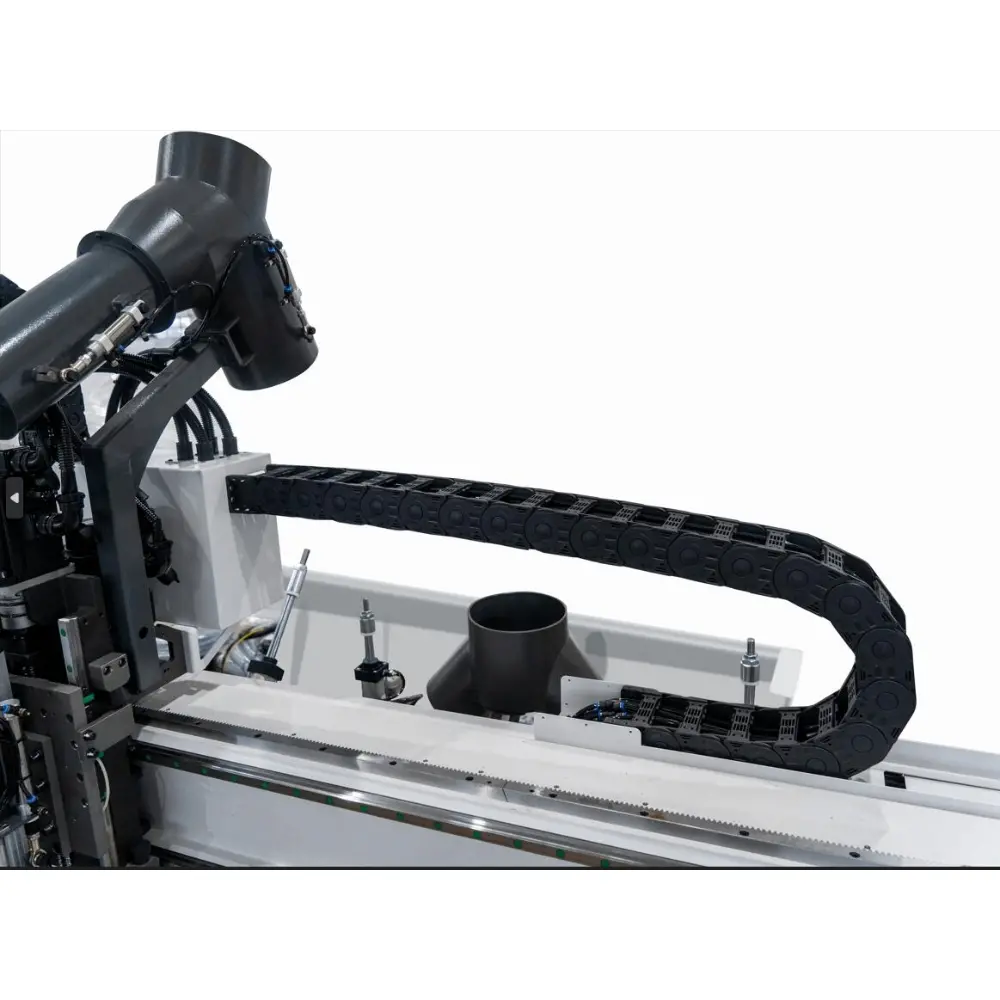

Adopts German flexible cable,prevents faulty error caused by wear of wooper wire.
| KN-3713DPC | |
|---|---|
| Domestic packing size | L*W*H:4600*3150*2650 (mm)+1300*1500*800 (mm) Pump |
| Export Packing Size | L*W*H: 6180*2320*2550(mm) |
| Weight | 6000kg |
| Operating system | TPA |
| Drive system | Invt |
| Vacuum Capacity | 2*244 m³/h |
| Vacuum zone | 6 |
| Effective working size | 4260mm*2210mm*230mm (Pressure Roller Optional:4260*2210*40mm) |
| Spindle | 13.2kW HSK-F63 |
| Drilling head | 10V (or 12V8H1S) |
| Numbers of Tools changers | 16+1 fold |
| Size&QTY of Dust Hood | Φ200mm*1 |
| Total Power | 35.6 kW |
| Overall Size | L*W*H=4600mm*3970mm*2650mm |
| Max.moving speed | X: 80 (m/min); Y: 80 (m/min); Z: 30 (m/min) |
| Working pressure | 0.65 Mpa |
