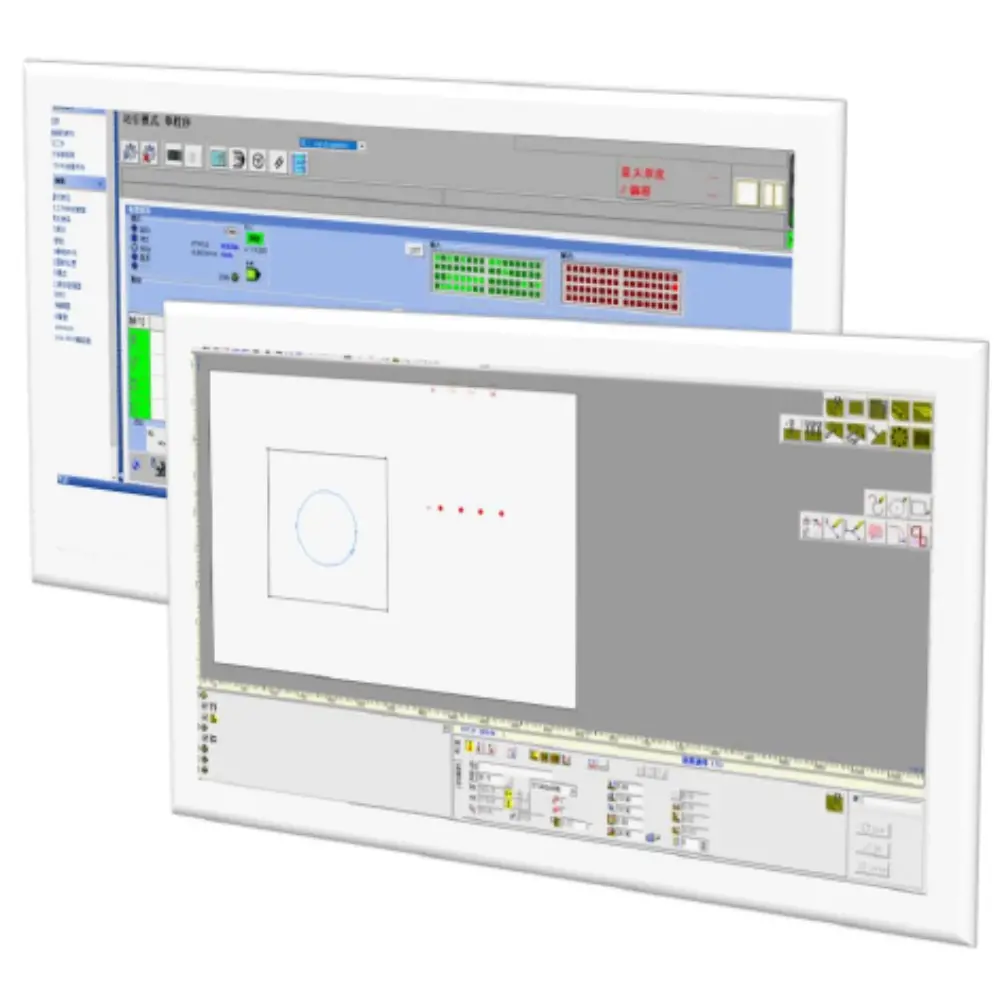

Control System
Italian T.P.A control system.

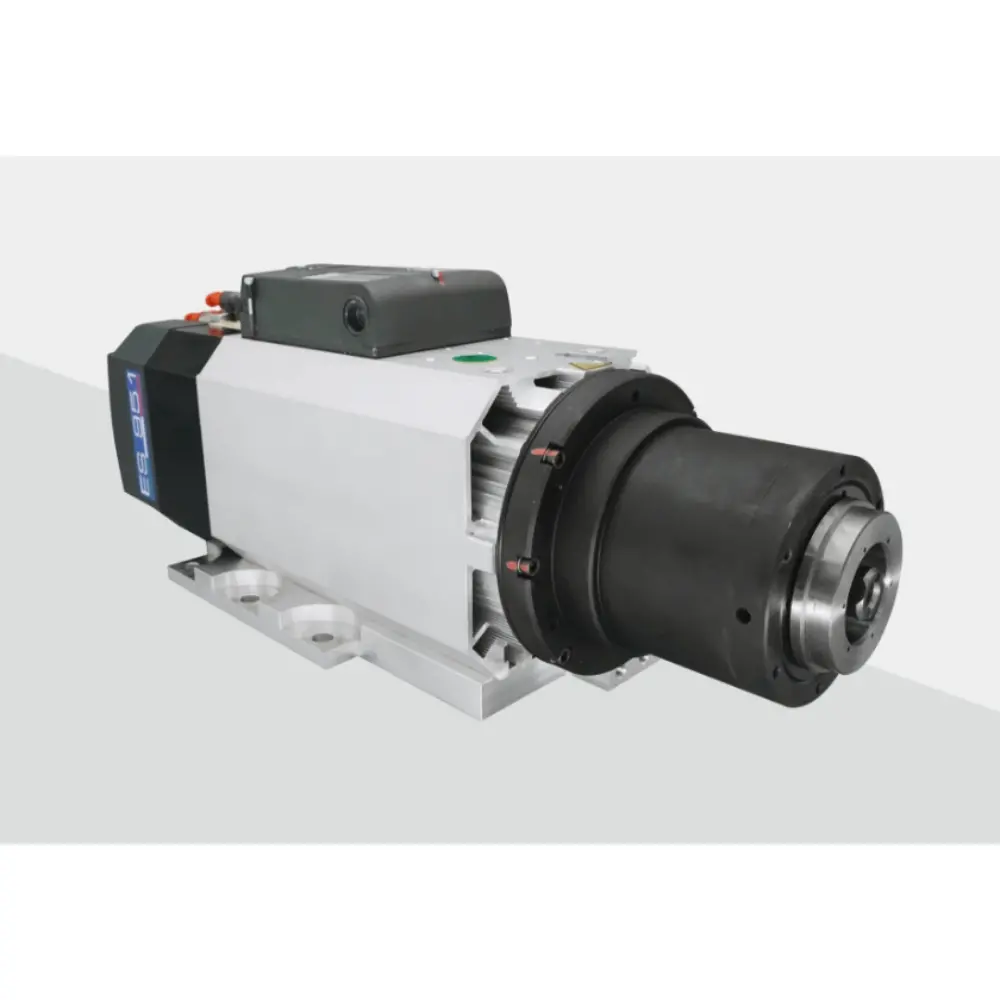

HSD 13.2kW high-power spindle.

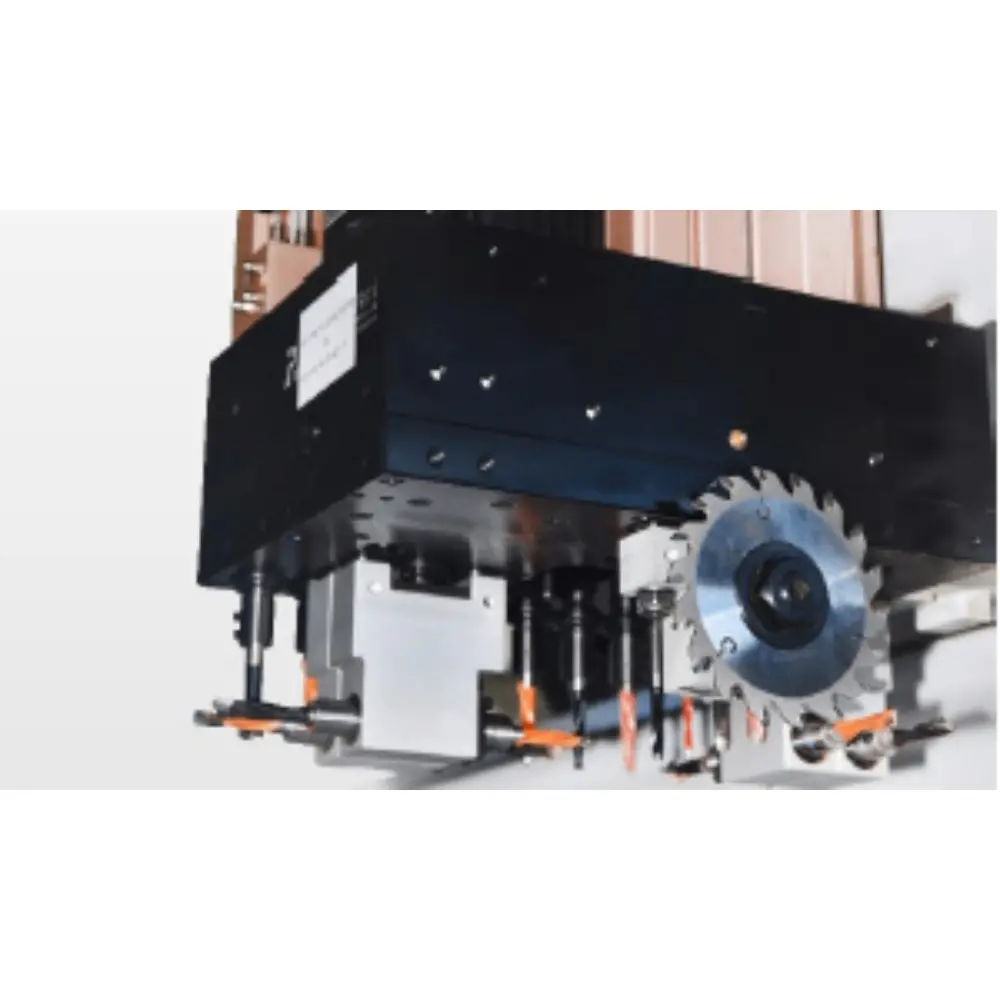

Drill Head
12V 8H 1S.

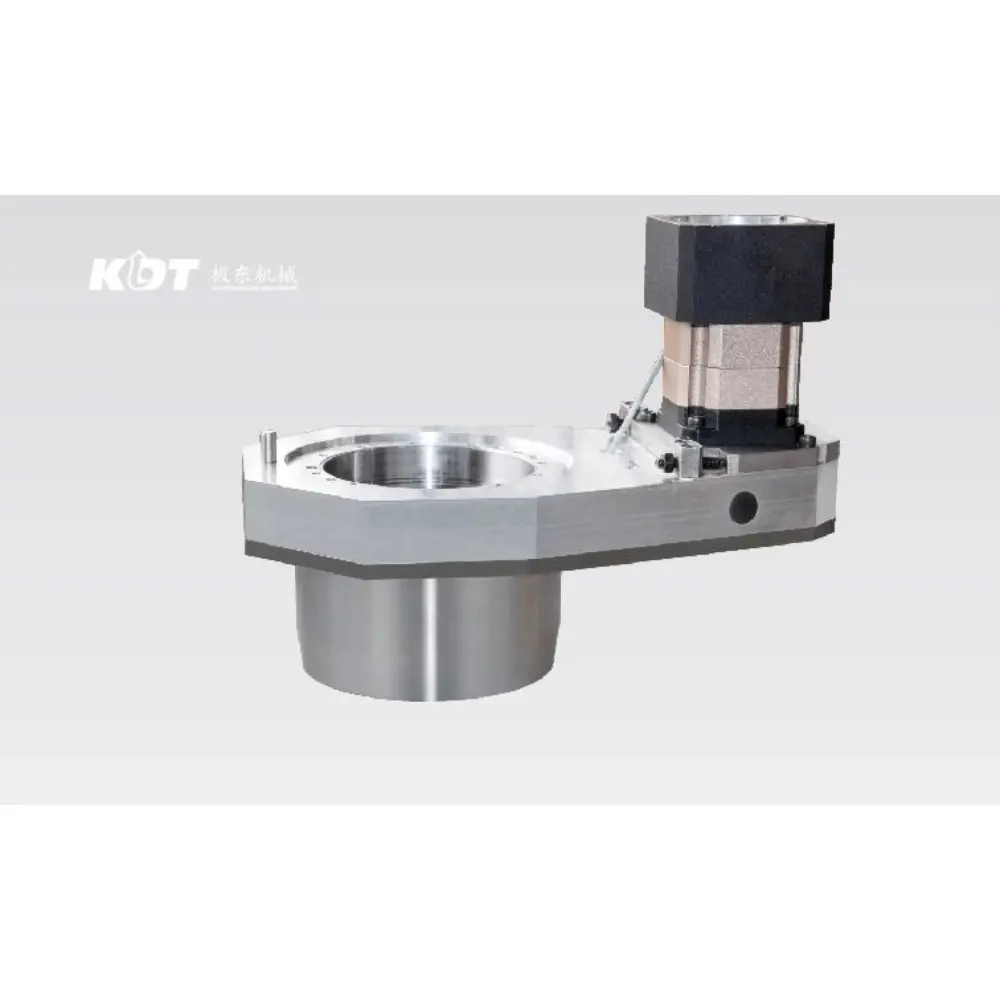

C axis
Standard with a C-axis, can be used with various angle heads to achieve.
Special processes such as bevel cutting and 45° inclined lamino and so on.

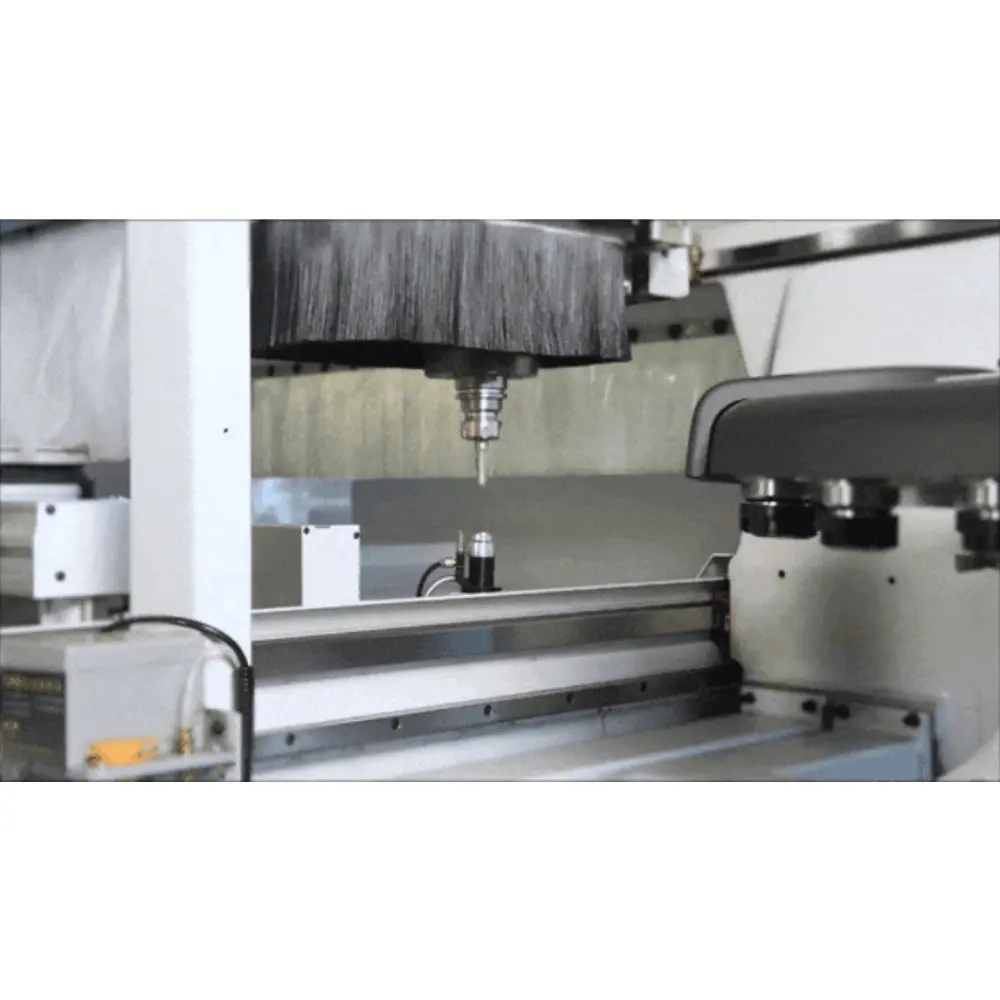

Precision Tool Touch Off
The tool setting is more accurate and the efficiency is more improved.

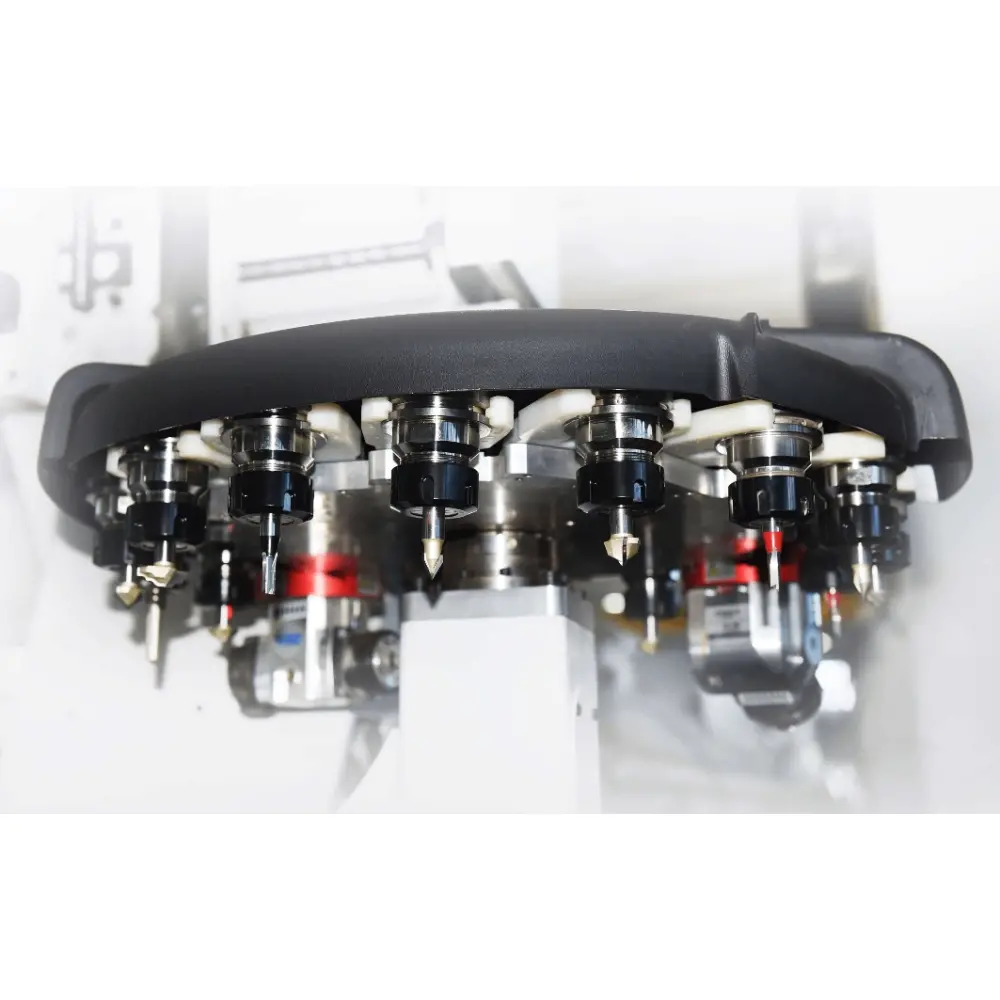

Tool Magazine
16-position servo Rotary ATC satisfies various process demands.

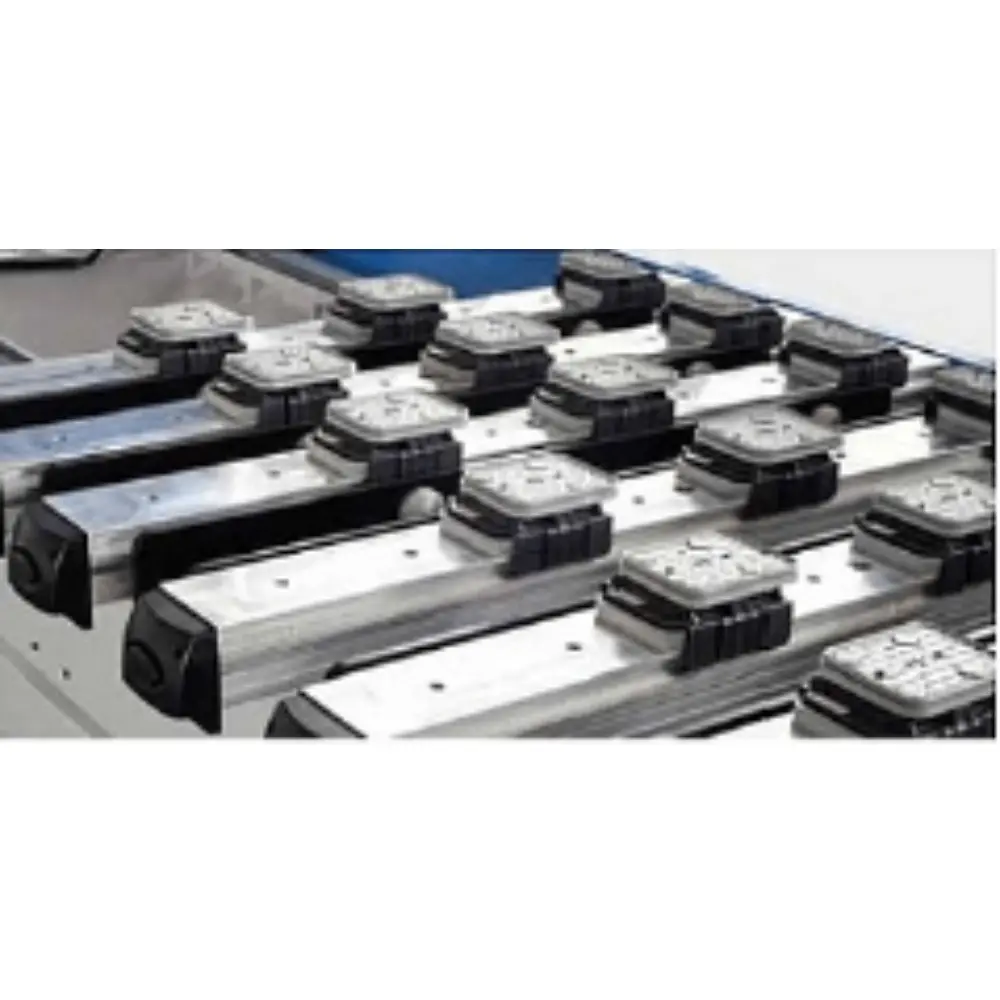

Pod&rail
6 sets of movable bridge frames, equipped with Schmalz suction cups from Germany, allow for free combination and flexible variation, enabling rapid loading and unloading of workpieces.

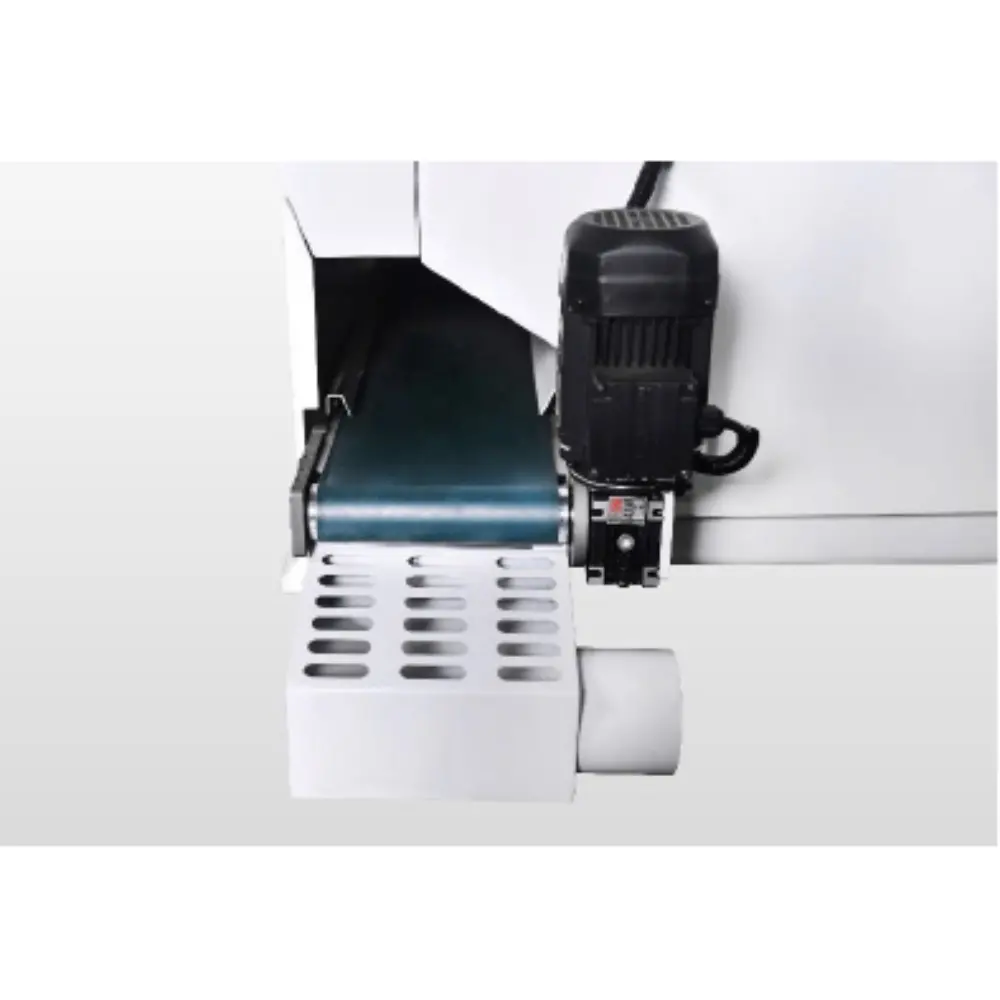

Dust removal system
Automatic conveying dust collection system improve dust removal and easy for maintenance.

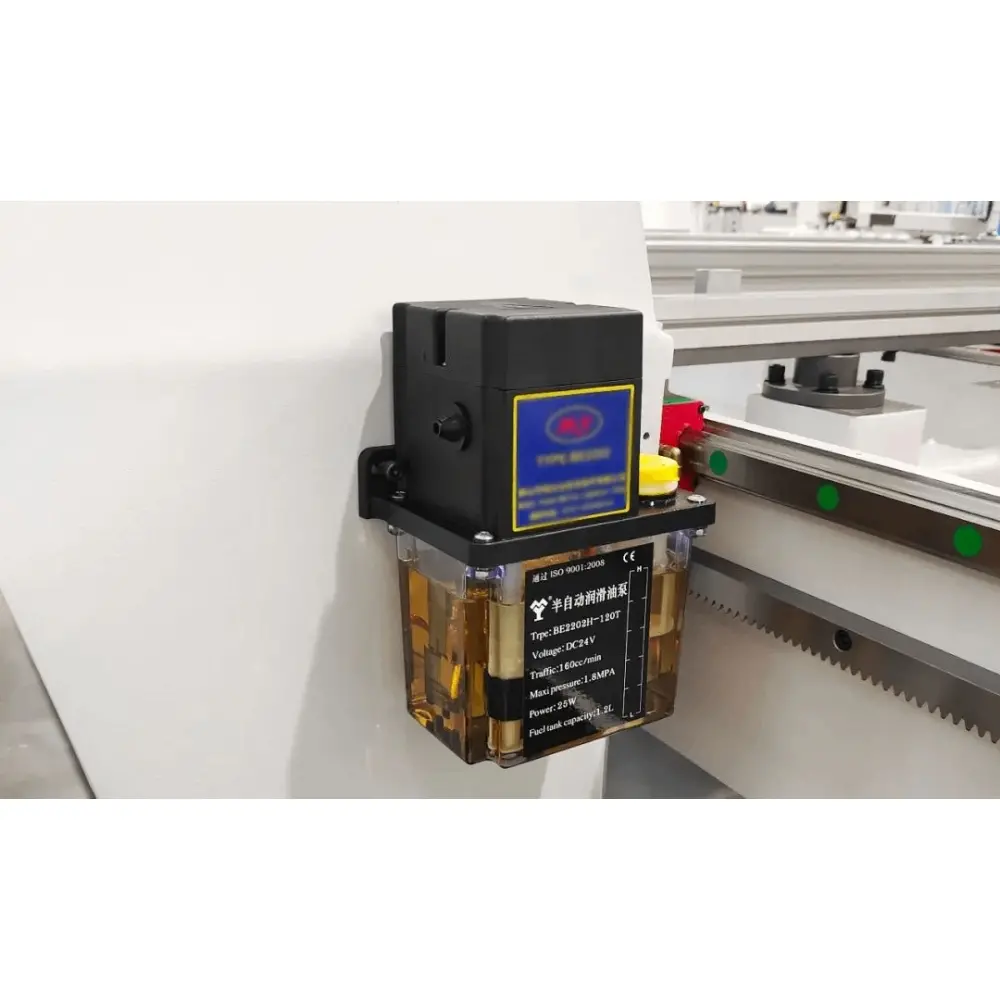

Automatic lubrication system
Automatic lubrication of the transmission mechanism to ensure the long-term.
Stable operation of the equipment.

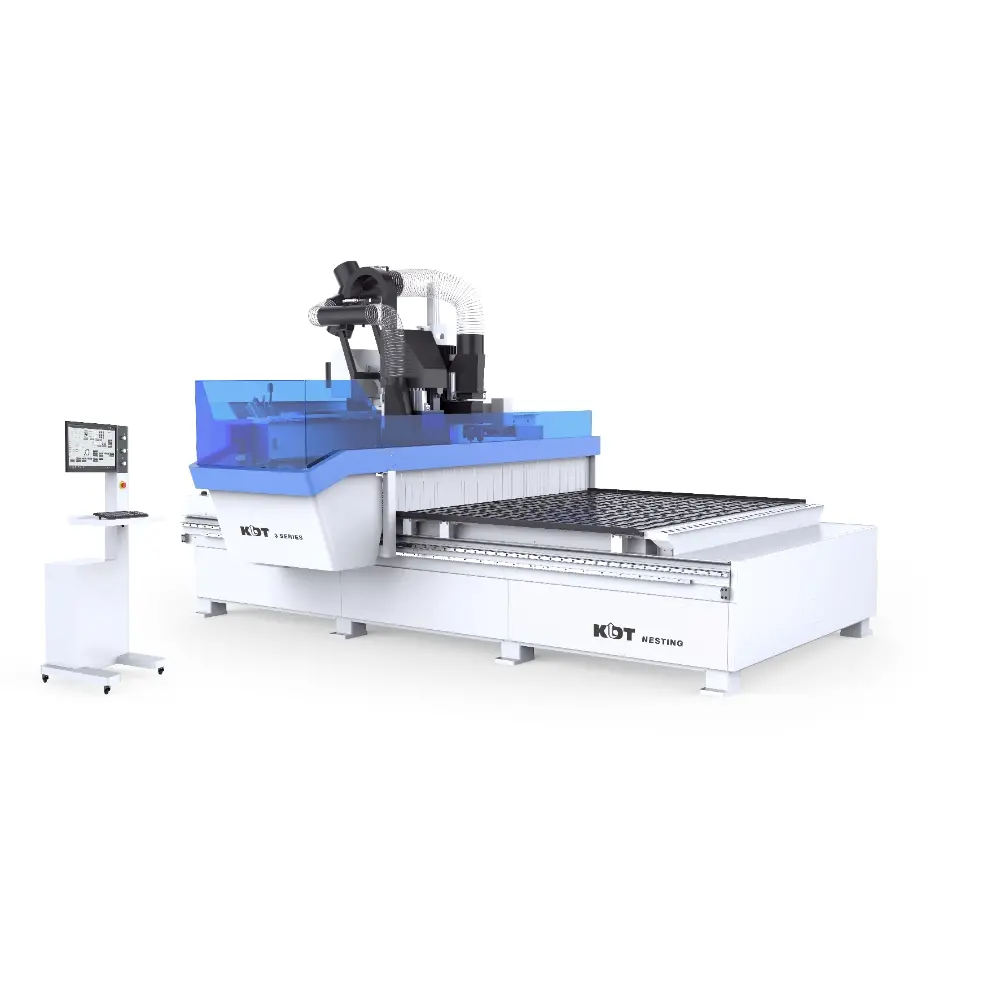

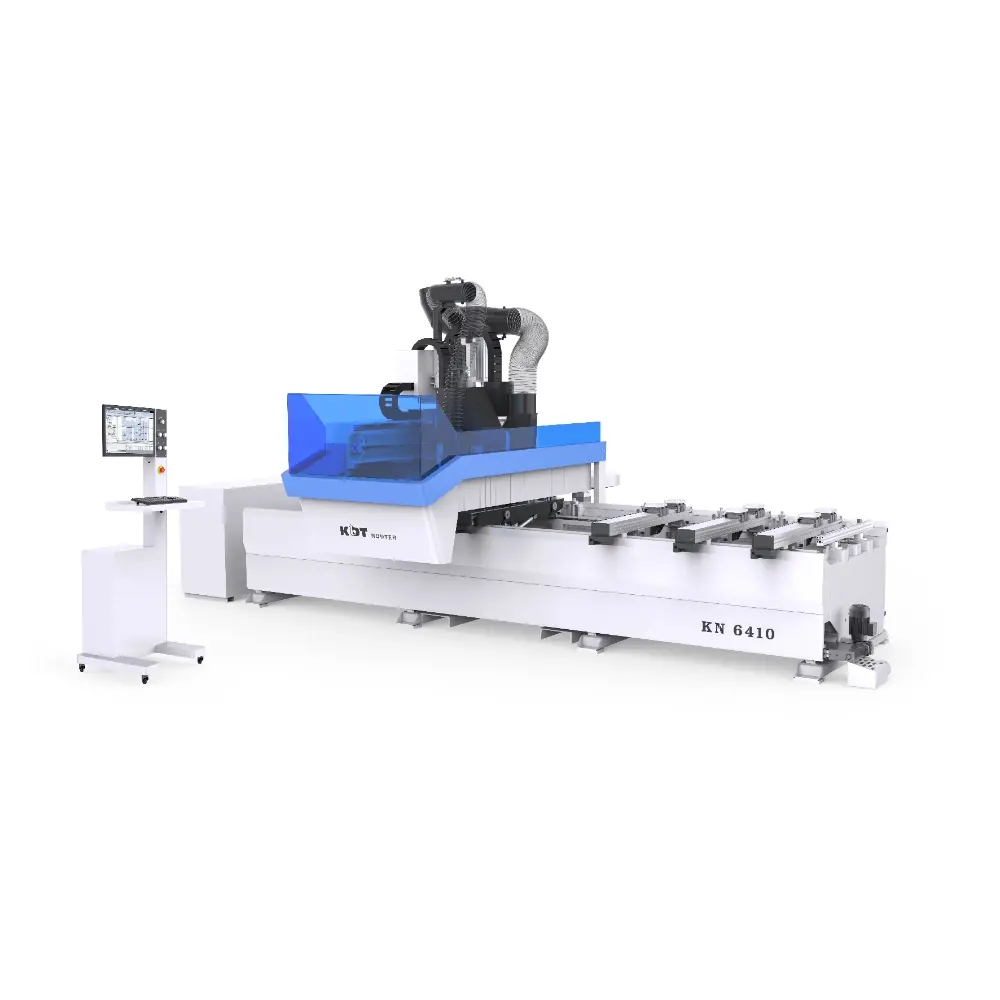

| KN-6410C | |
|---|---|
| Domestic Packing size | L*W*H:5800*2310*2350(mm) |
| Export packing size | L*W*H:5800*2310*2350(mm) |
| Weight | 5000kg |
| Effective working size | 3250×1250×200(mm) |
| Minimum Working Size | 320mm×90mm |
| Vacuum Capacity | 129 m³/h |
| Drive system | DELTA |
| X/Y/Z Max.Moving speed | 80/75/30(m/min) |
| Drill Head | 12V+8H+1S |
| Operating system | TPA |
| Spindle | HSD HSK-F63 |
| Spindle power (standard) | 13.2kW |
| Type of ATC | Servo Rotary |
| Numbers of Tools changers | 16 fold |
| Working station | 2-field |
| Working pressure | 0.65MPa |
| Dust extraction volume | 2660 m³/h |
| Total power | 25.5kW |
