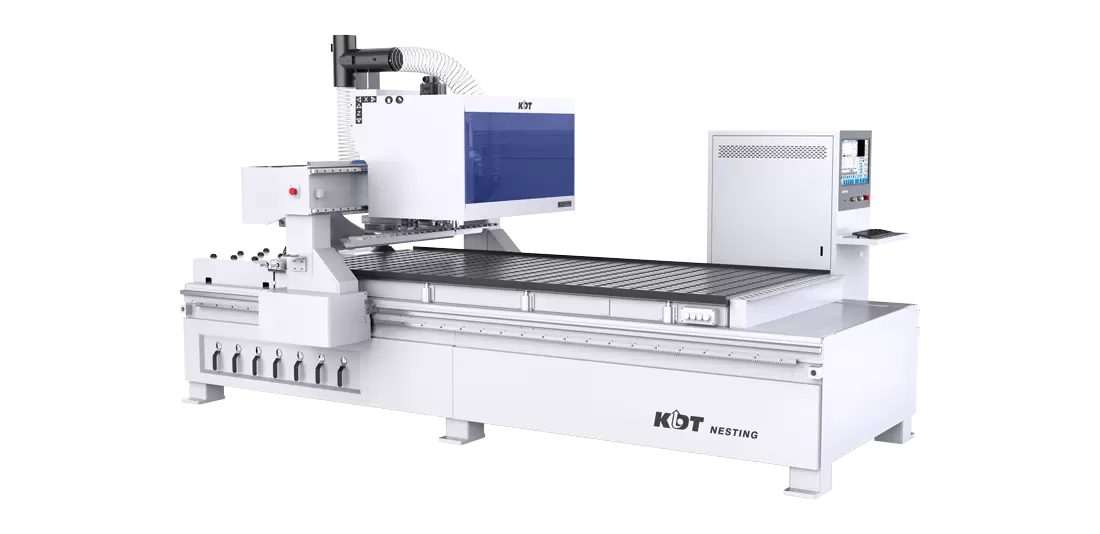

Smart Machining Centers
KN-2409LP
FEATURES

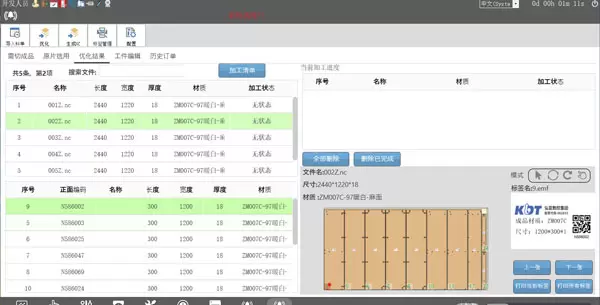

CAM software
With the capability of rapid drawing generation and the function of inserting or supplementing orders, the processing site can produce labels in real-time, significantly enhancing the operational experience.

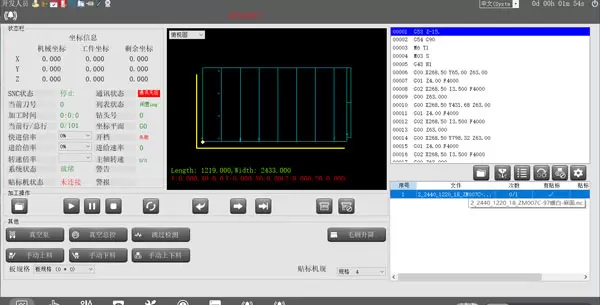

PC configured
KDT software operation interface, real-time monitors the running status, and can be integrated with factory information systems

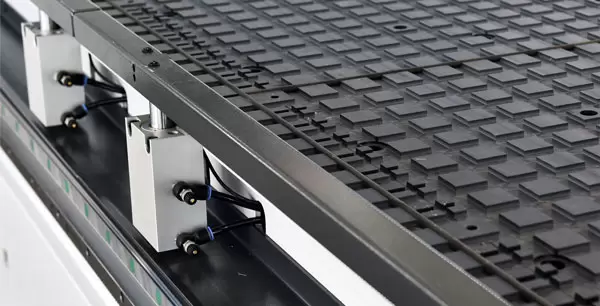

Guide rail configured
Guide device to outfeed effectively prevent deviation of small boards
Spindle configuration
9kW high-power spindle, improving cutting efficiency

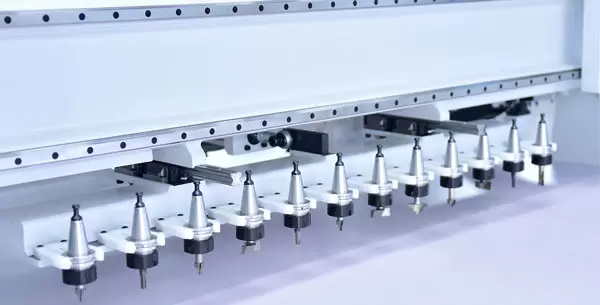

Tools Magazine configured
12-position linear tools magazine, automatic tool-change, suitable for panel furniture production

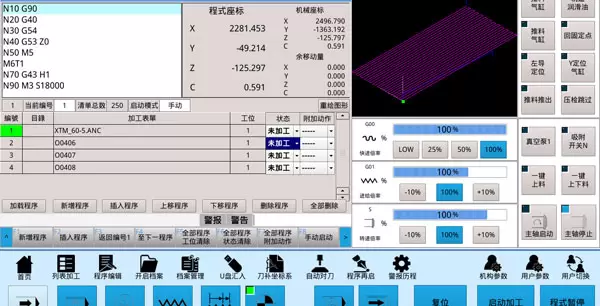

Operating system
Leading Numerical Controller System, strong anti-interference and scalability

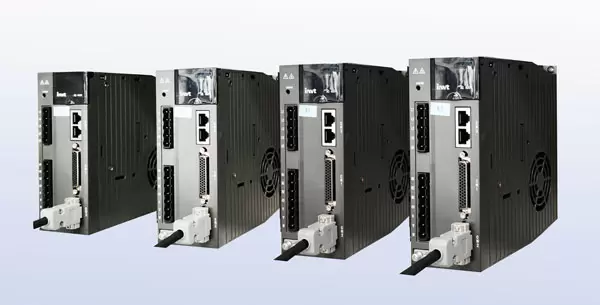

Drive system
1.5kW absolute value servo drive, no need to return to zero when starting, fast speed and high efficiency
Vacumm table zone
Seven partition vacuum adsorption table, the suction distribution is more uniform, and the small plate is not easy to deviate
Motion mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack

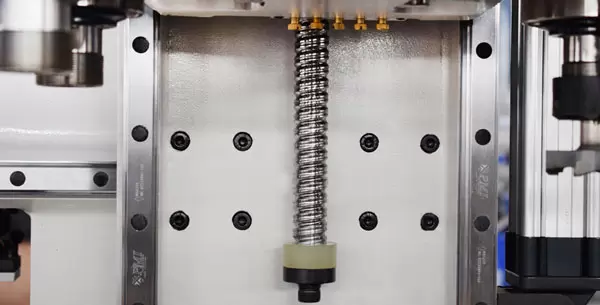

Motion mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.
Vacuum Suction
Standard vacuum air pump, green, easy to maintain
Pusher mechanism
Equipped with pusher, automatic pushing and unloading workpiece after machining
Gripper mechanism
Standard configuration gripper mechanism, automatic loading Workpiece
Protective cover
Protective cover design and various safety detection and alarm devices protect the safety of operators
TECHNICAL SPECIFICATIONS
| KN-2409LP | |
|---|---|
| Packing Size (Domestic) | L*W*H 4030*2100*2210(mm) |
| Packing size (Oversea) | L*W*H: 4200*2240*2450 (mm) |
| Total weight | 2300kg |
| Operating system | LNC |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| Drill Head | none |
| Numbers of Tools changers | 12 fold Linear ATC |
| Working table size | 2860*1260mm |
| Effective working size | 2850*1260*40mm（Pressure Roller Optional: 2850*1260*40mm） |
| Max speed X/Y/Z m/min | 100/100/30m/min |
| Vacuum Capacity | 250 m³/h |
