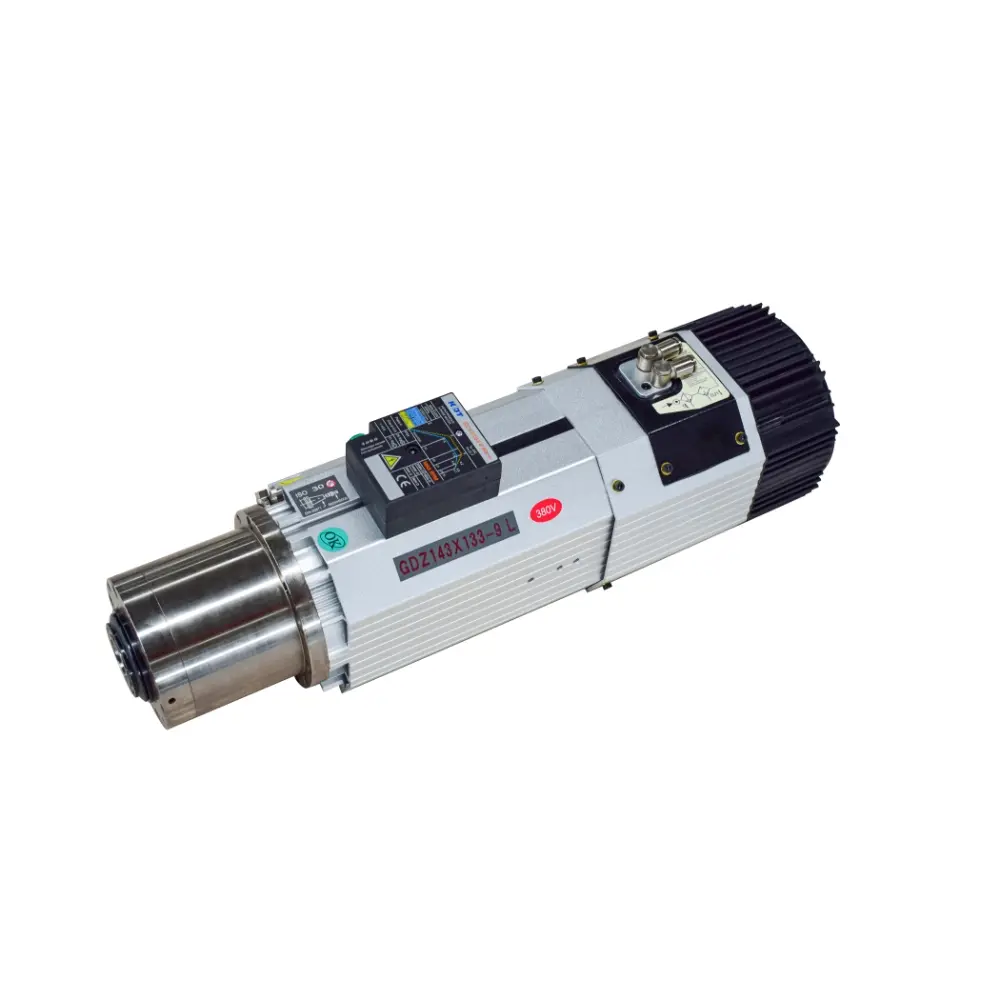

Spindle configuration
9kW high-power spindle, improving cutting efficiency.

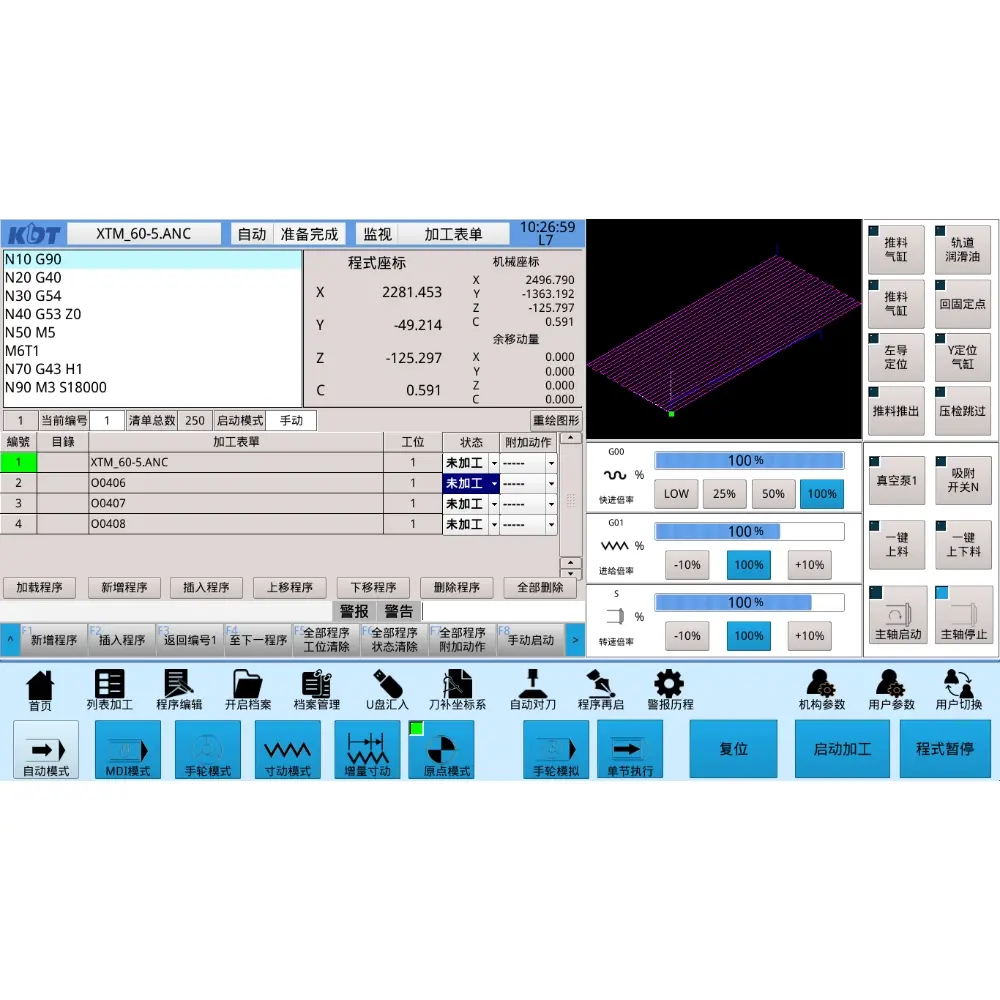

Operating system
Leading Numerical Controller System,strong anti-interference and scalability.

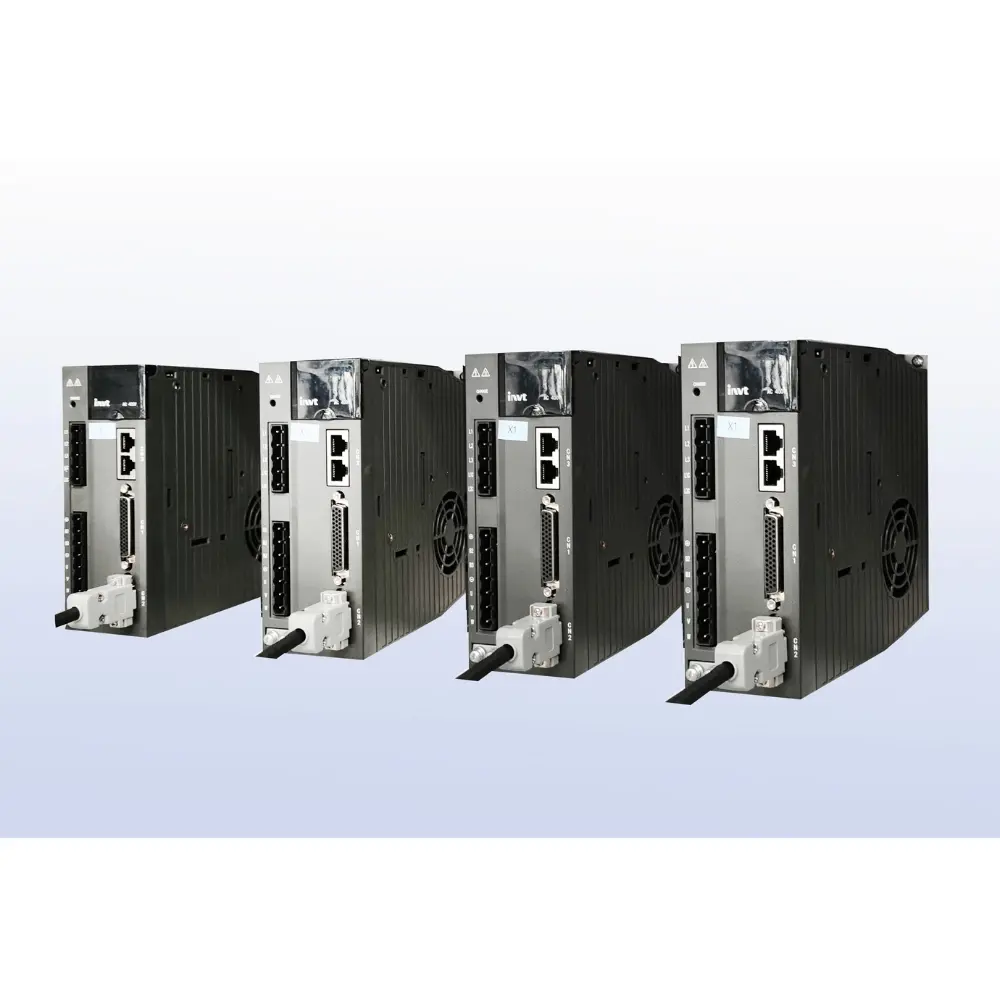

Drive system
1.5kW absolute value servo drive, no need to return to zero when starting,fast speed and high efficiency.

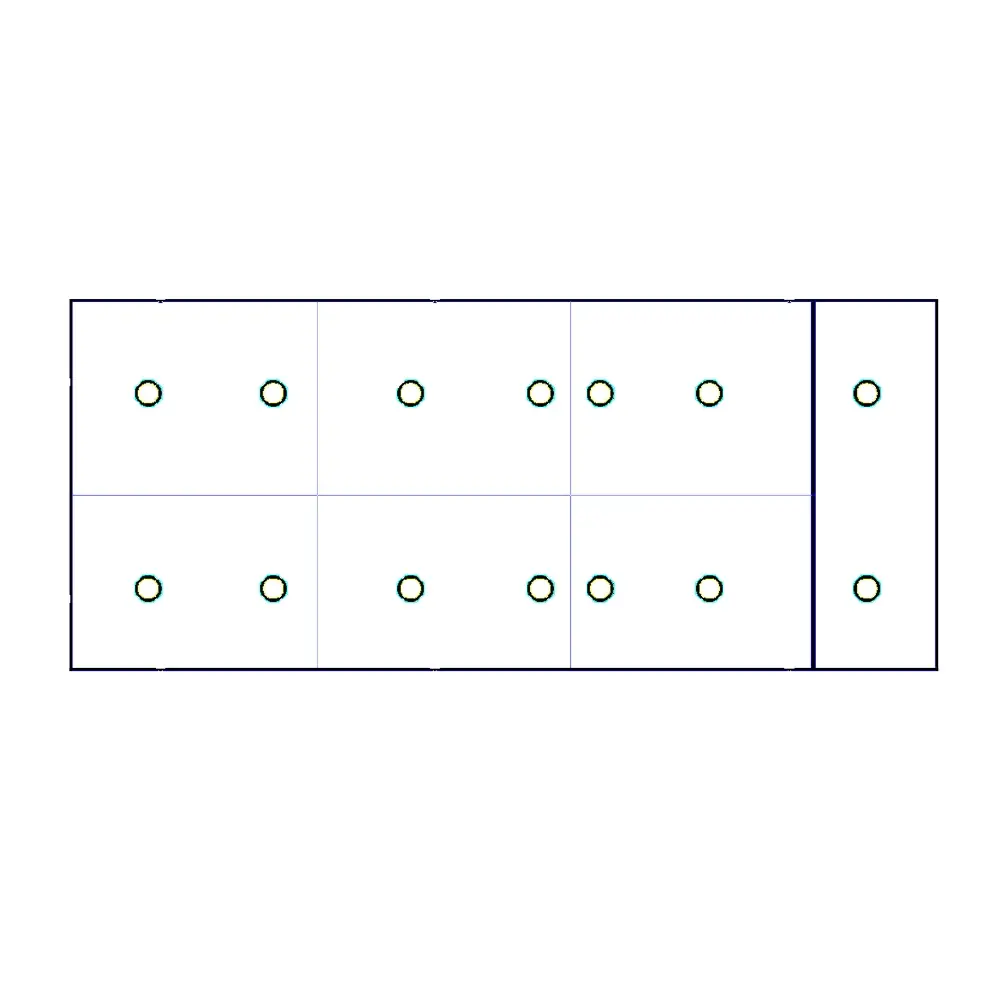

Mesa partition
Seven partition vacuum adsorption table,the suction distribution is more uniform,and the small plate is not easy to deviate.

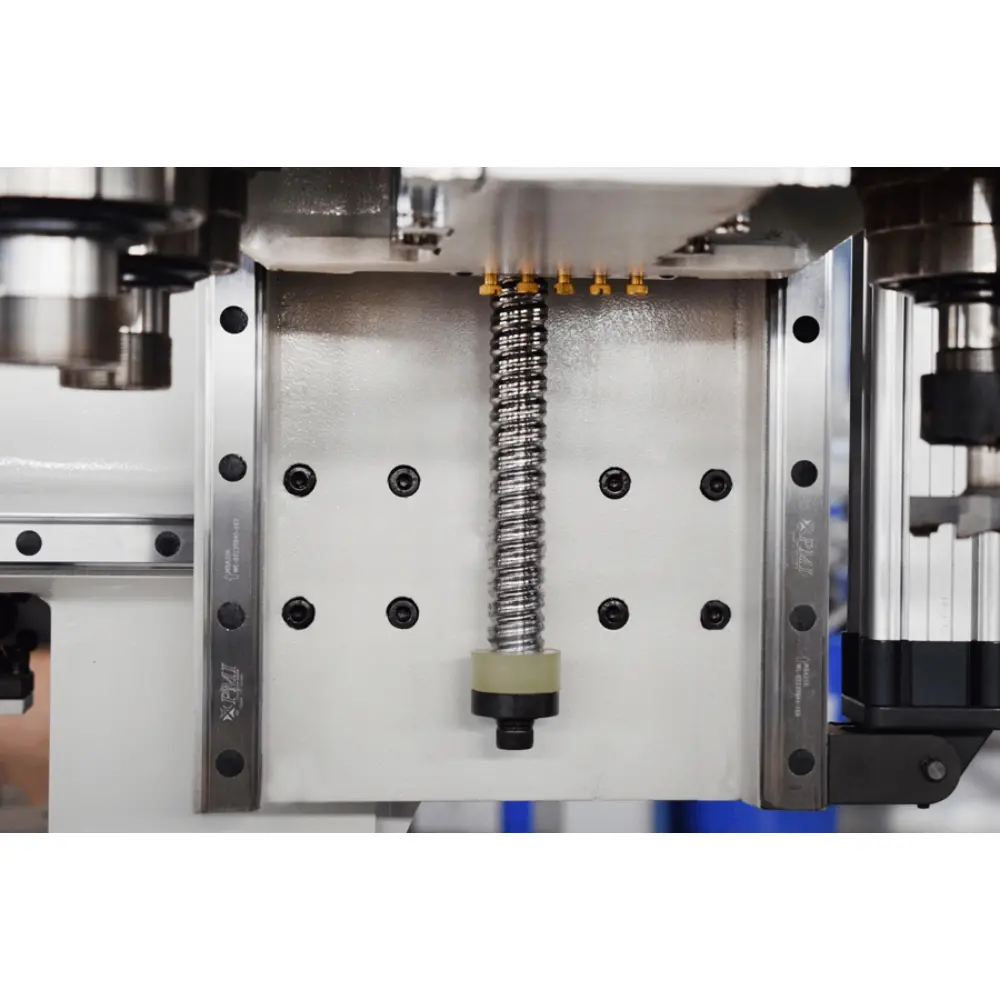

Motion mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.

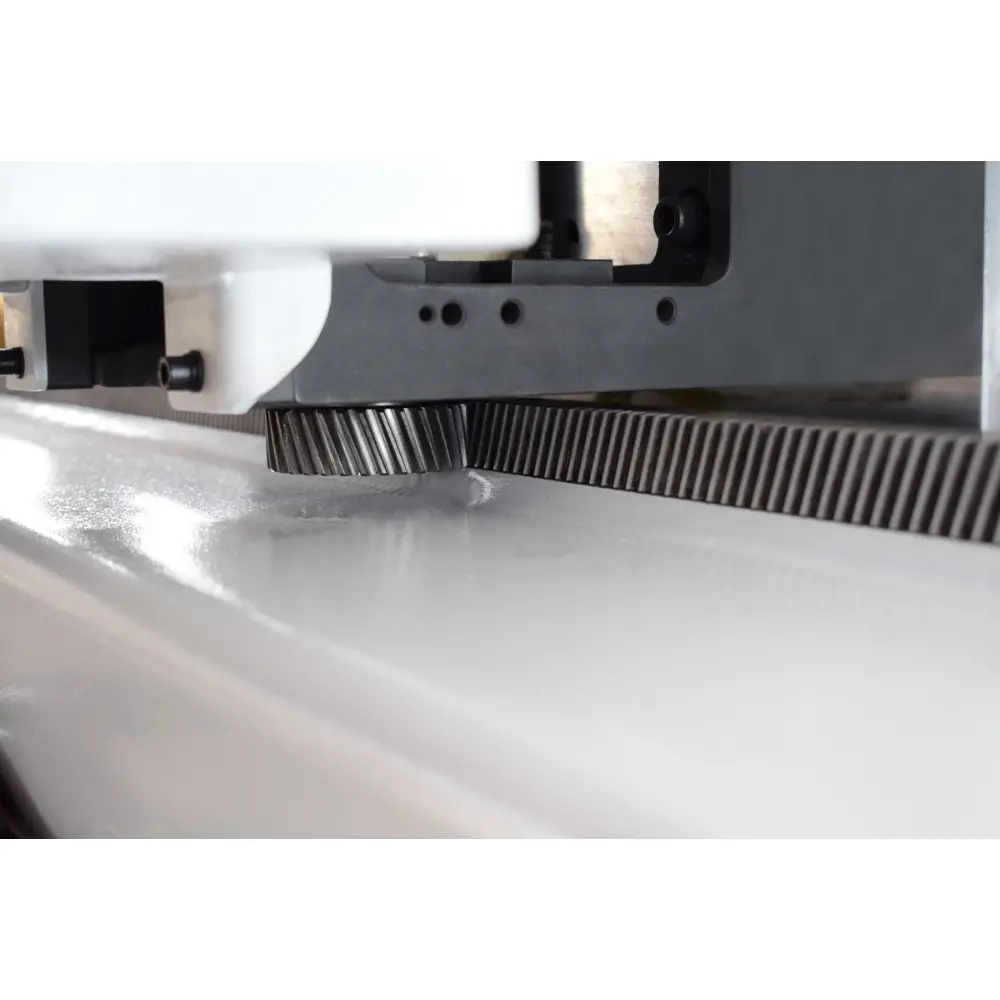

Motion mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack.

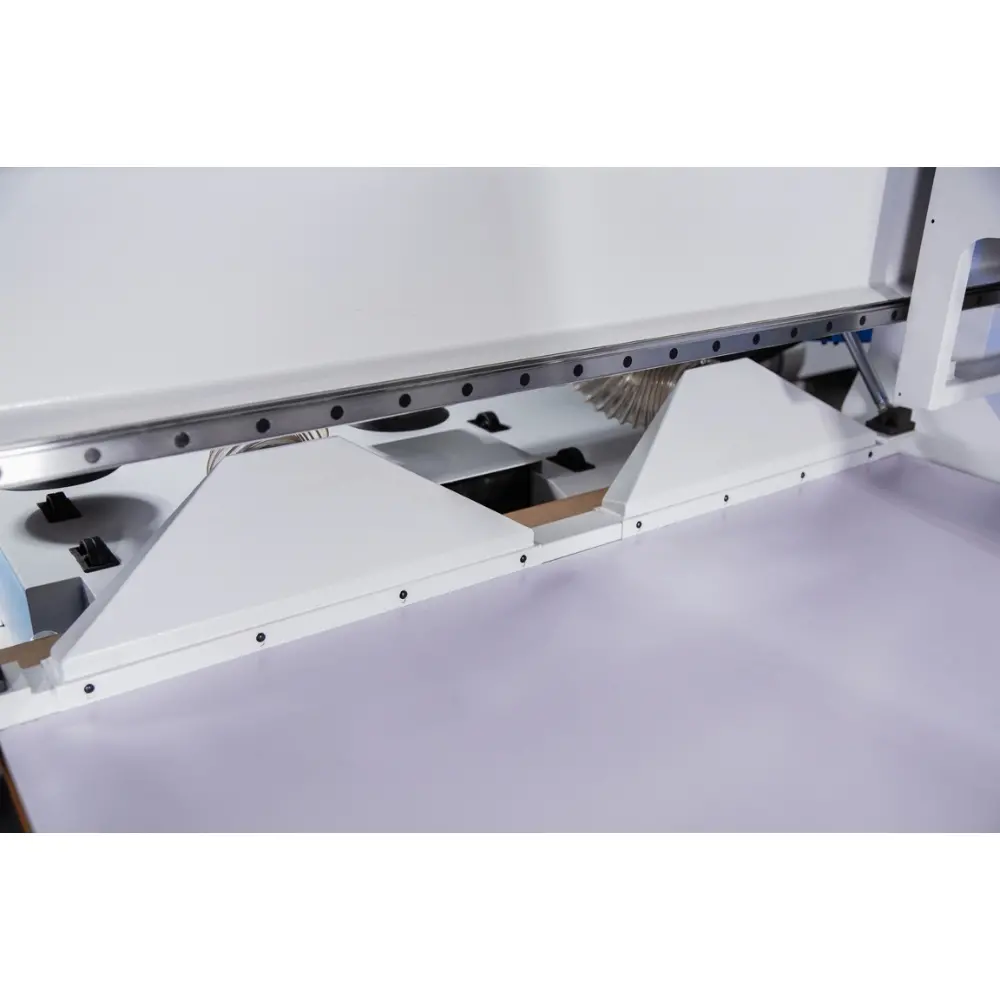

Pushing mechanism
Equipped with pusher,automatic pushing and unloading.

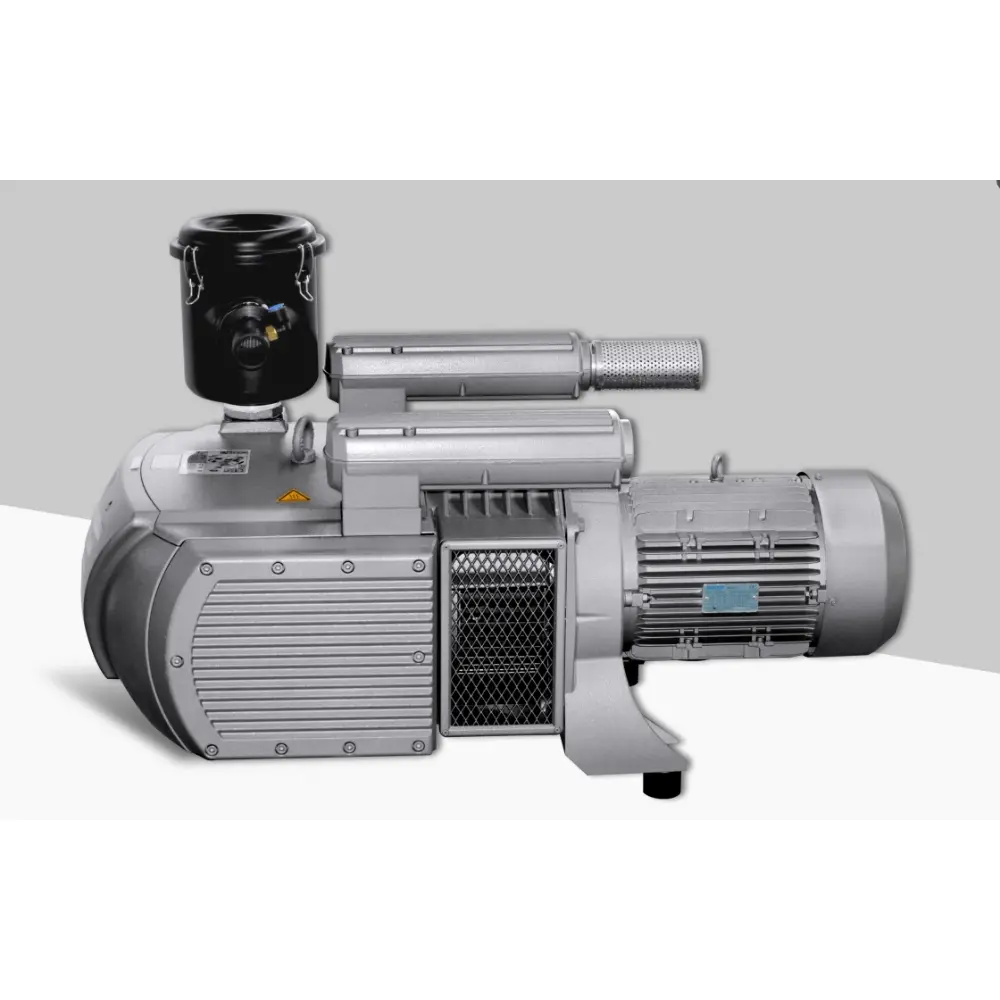

Becker Vacuum Pump
Dry air-cooled Becker pump with 244m³/ H capacity which ensures strong vacuum suction and prevents small board deviation.2 pcs of vacuum pump equiped for cnc with large table to ensure for stronger vacuum suction.

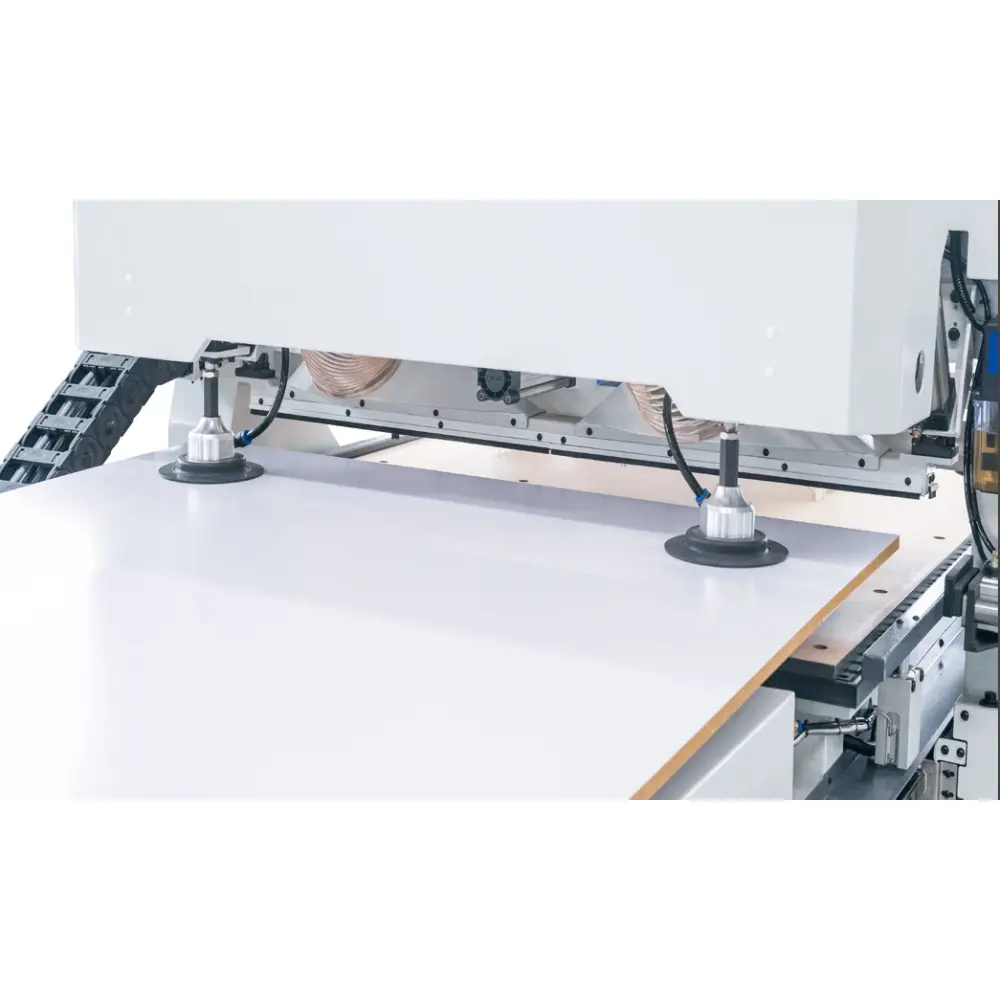

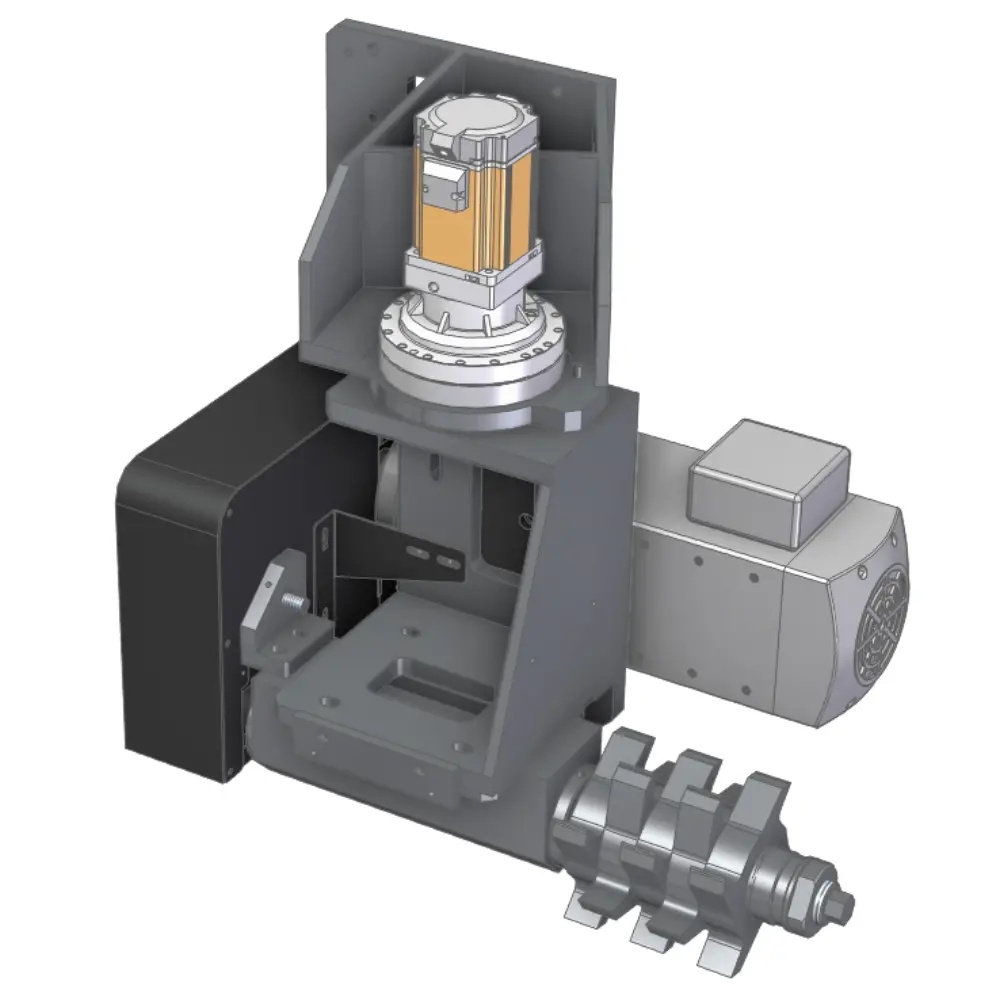

Grab mechanism
Standard configuration grab mechanism，automatic，loadingWorkpiece automatic alignment.

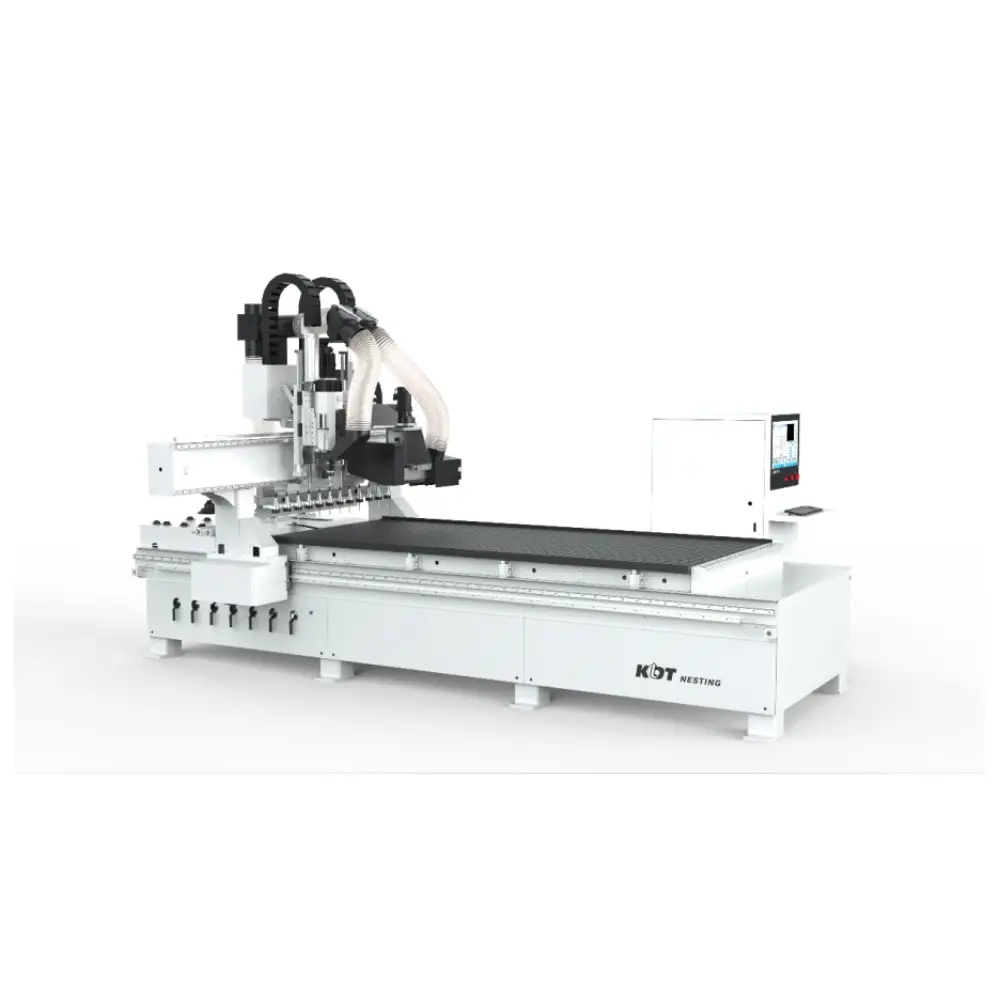

| KN-2409JL | |
|---|---|
| Domestic package size | Length * width * height: 4400*2600*2400(mm) |
| Oversea package size | Length * width * height: 4500*2320*2450(mm) |
| Equipment weight | 3000kg |
| Operating system | LNC |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| 7.5KW*1 | |
| Numbers of Tools changers | 12 Linear ATC |
| Working table size | 2850*1260mm |
| Effective working size | 2850*1260*60mm (Pressure Roller Optional: 2850*1260*40mm) |
| Max speed X/Y/Z (m/min) | 100/100/30m/min |
| Vacuum Capacity | 244m³/h |
| Gross power | 29kW |
