Spindle configuration
9kW high-power spindle, improving cutting efficiency

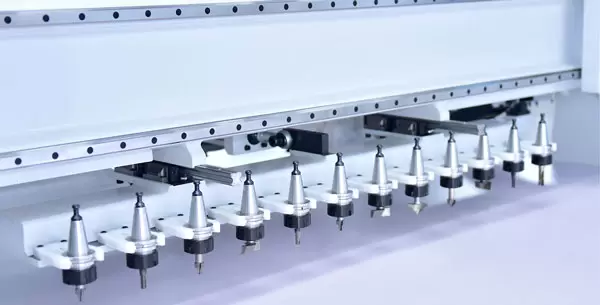

Tool library configuration
12 straight row tool warehouses, automatic tool-change, suitable for panel furniture production

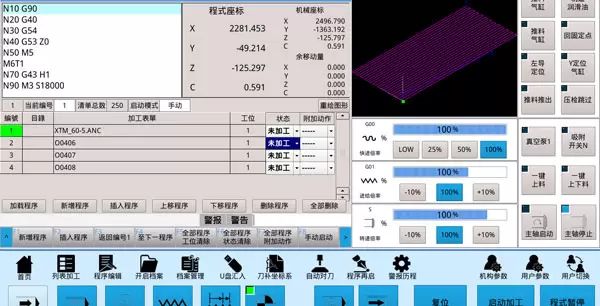

Operating system
Leading Numerical Controller System, strong anti-interference and scalability

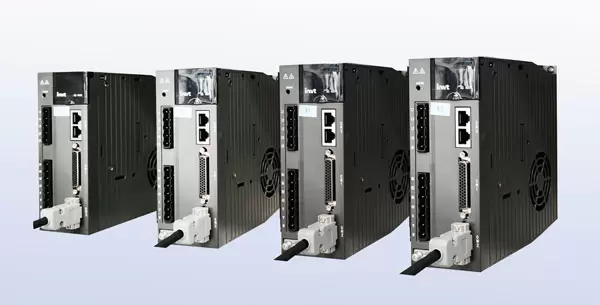

Drive system
1.5kW absolute value servo drive, no need to return to zero when starting, fast speed and high efficiency
Mesa partition
Seven partition vacuum adsorption table, the suction distribution is more uniform, and the small plate is not easy to deviate

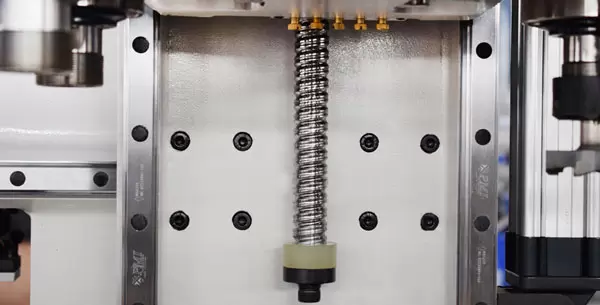

Kinematic mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.
Kinematic mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack
Pusher mechanism
Equipped with pusher, automatic pushing and unloading
Grab mechanism
Standard with gripper, automatic, loading Workpiece automatic alignment
Protective cover design and various safety detection and alarm devices protect the safety of operators

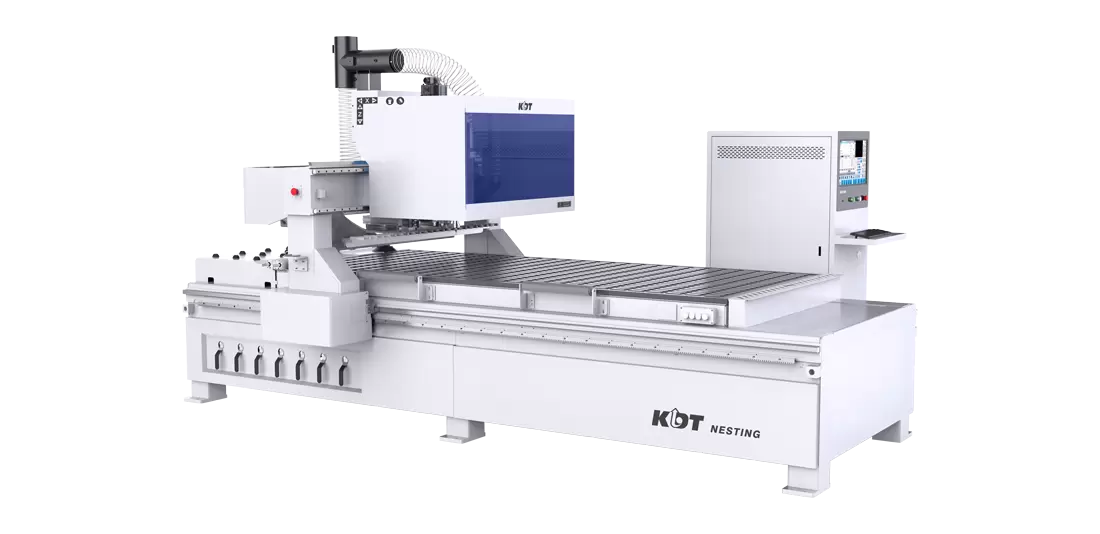

| KN-2410NL | |
|---|---|
| Domestic package size | Length * width * height: 4400*2200*2300(mm) |
| Oversea package size | Length * width * height: 5160*2200*2450(mm) |
| Equipment weight | 2500kg |
| Operating system | LNC |
| Drive system | Absolute servo |
| Spindle | Single spindle |
| Spindle power | 9kW spindle |
| Drill Head | none |
| Numbers of Tools changers | 12 fold Linear ATC |
| Working table size | 3100*1260mm |
| Effective working size | 3100*1220*40mm（Pressure Roller Optional: 3100*1220*40mm） |
| Max speed X/Y/Z m/min | 80/80/30m/min |
| Vacuum Capacity | 250 m³/h |
| Gross power | 22.5kW |
