Smart Machining Centers
KN-5510P
FEATURES

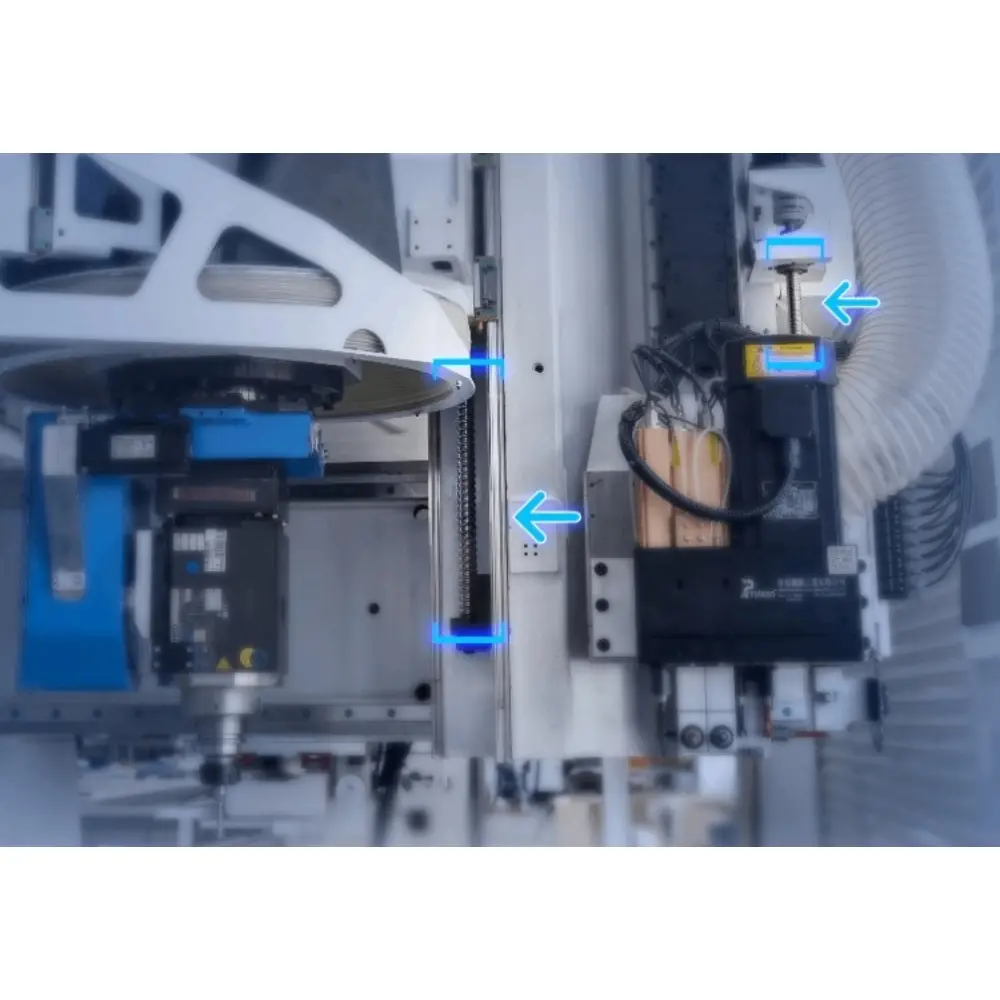

Operating units
The spindle and drill set are upgraded with independent screw rods, which do not interfere with each other's actions, have fast process connection, and high processing efficiency.

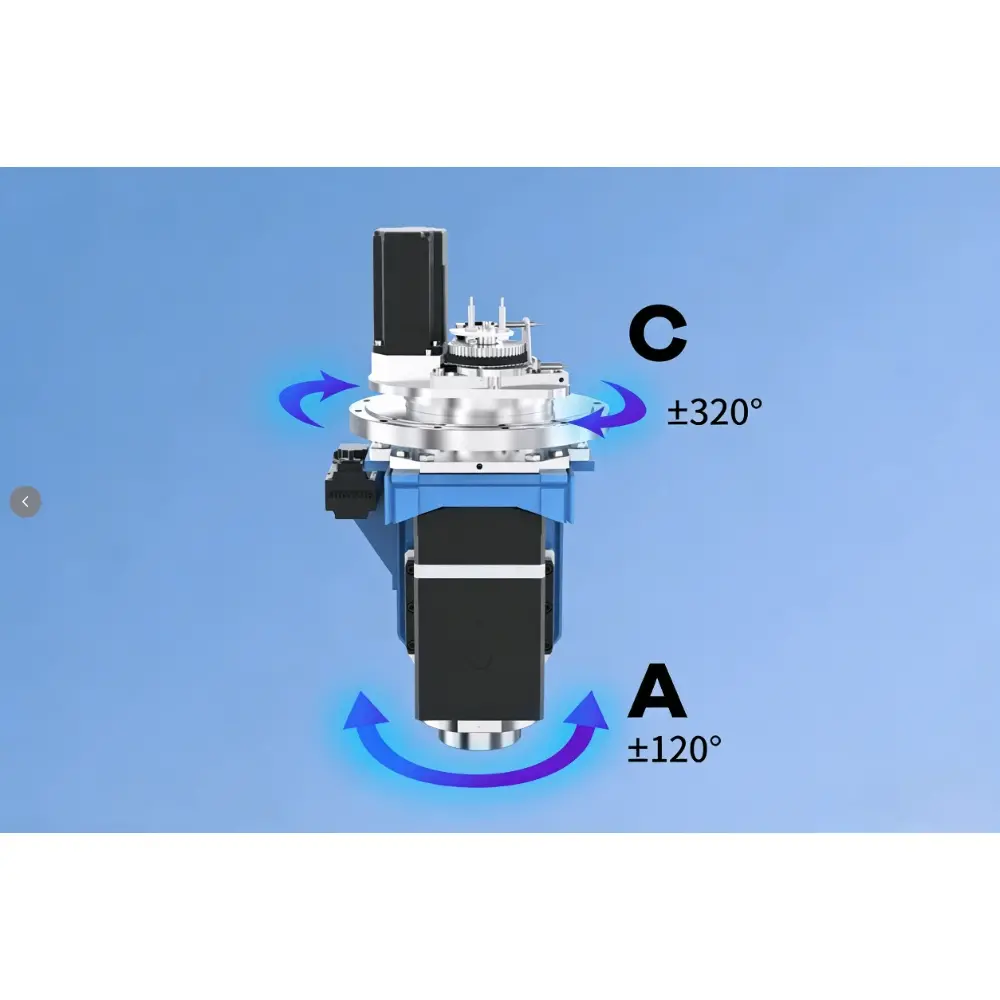

Spindle
High-precision five-axis head, equipped with 12 kW high-power water-cooled
motorized spindle.

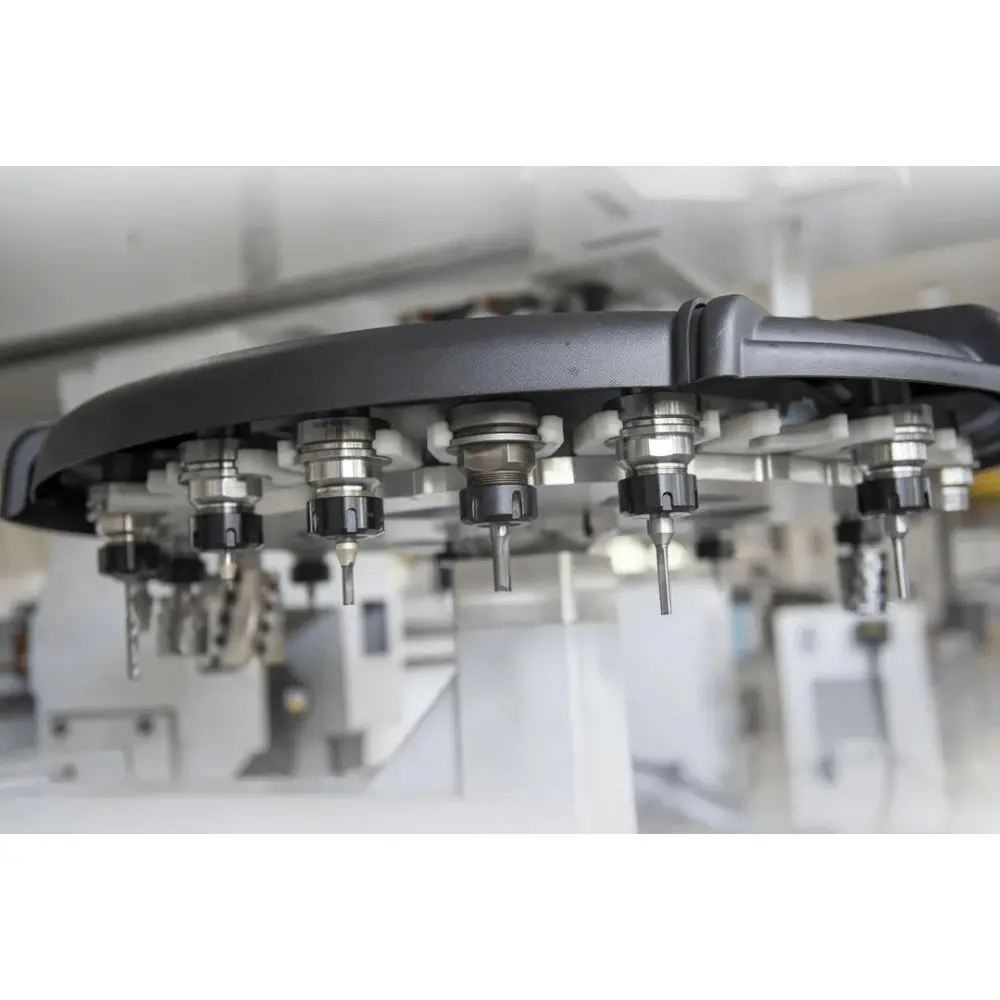

Tools Magazine
Standard configured 22 pcs servo rotary tool magazine+ 5 liner tool magazine.

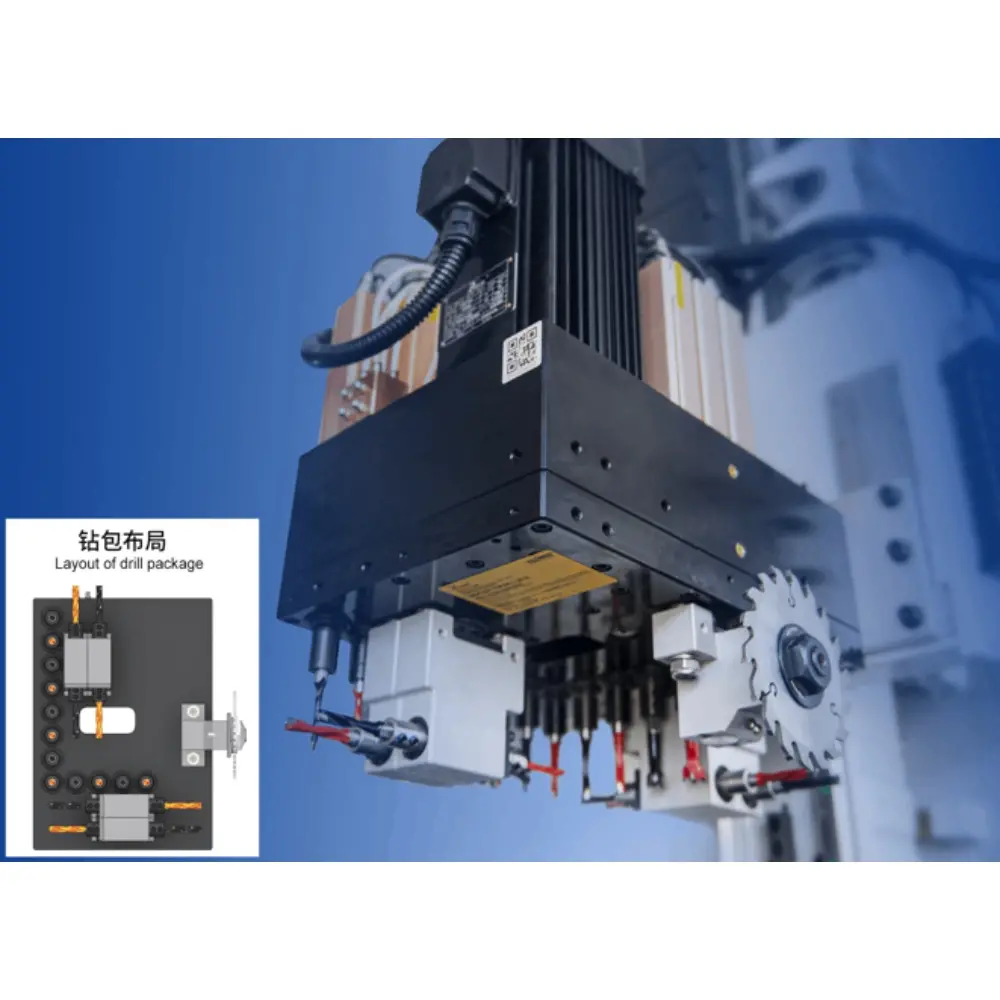

Drill Head
Drill sets: 12 vertical +8 horizontal +1 saw blade ,realizes efficient drilling and grooving.

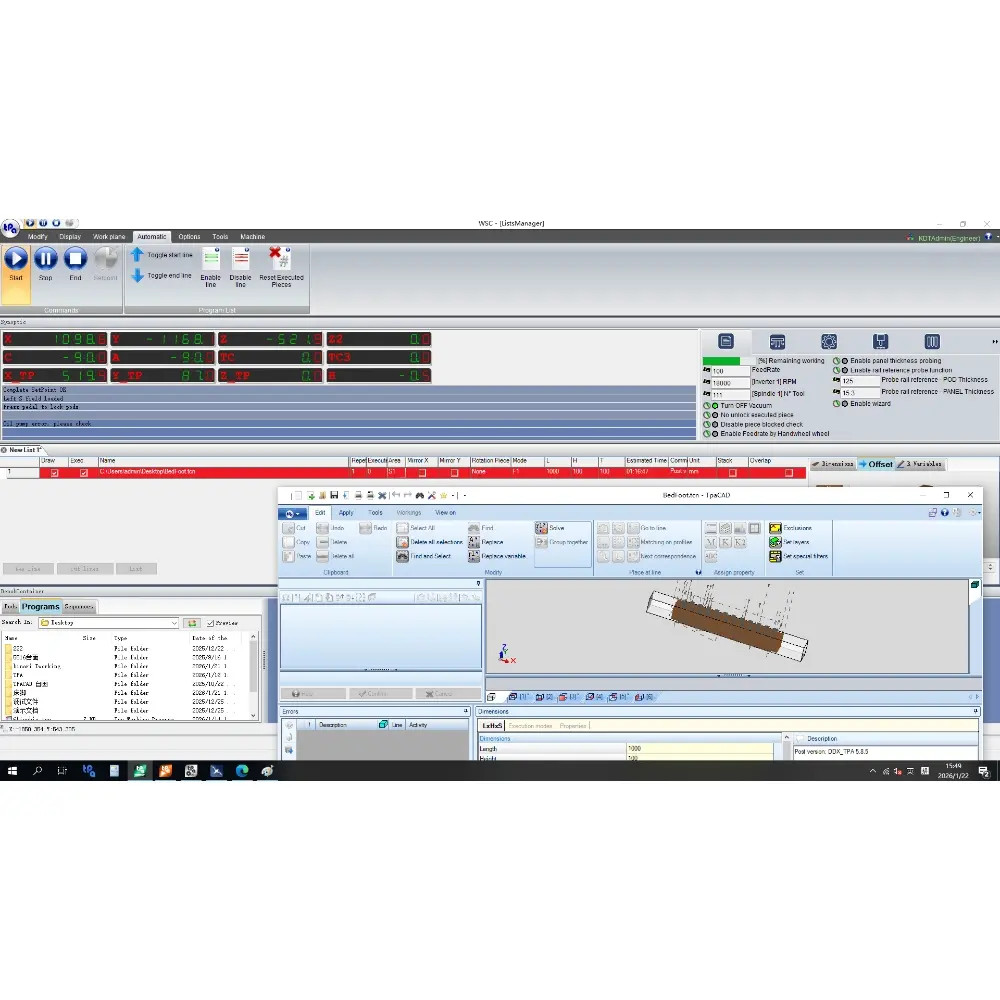

Control System
TPA control system, built-in graphic operation.

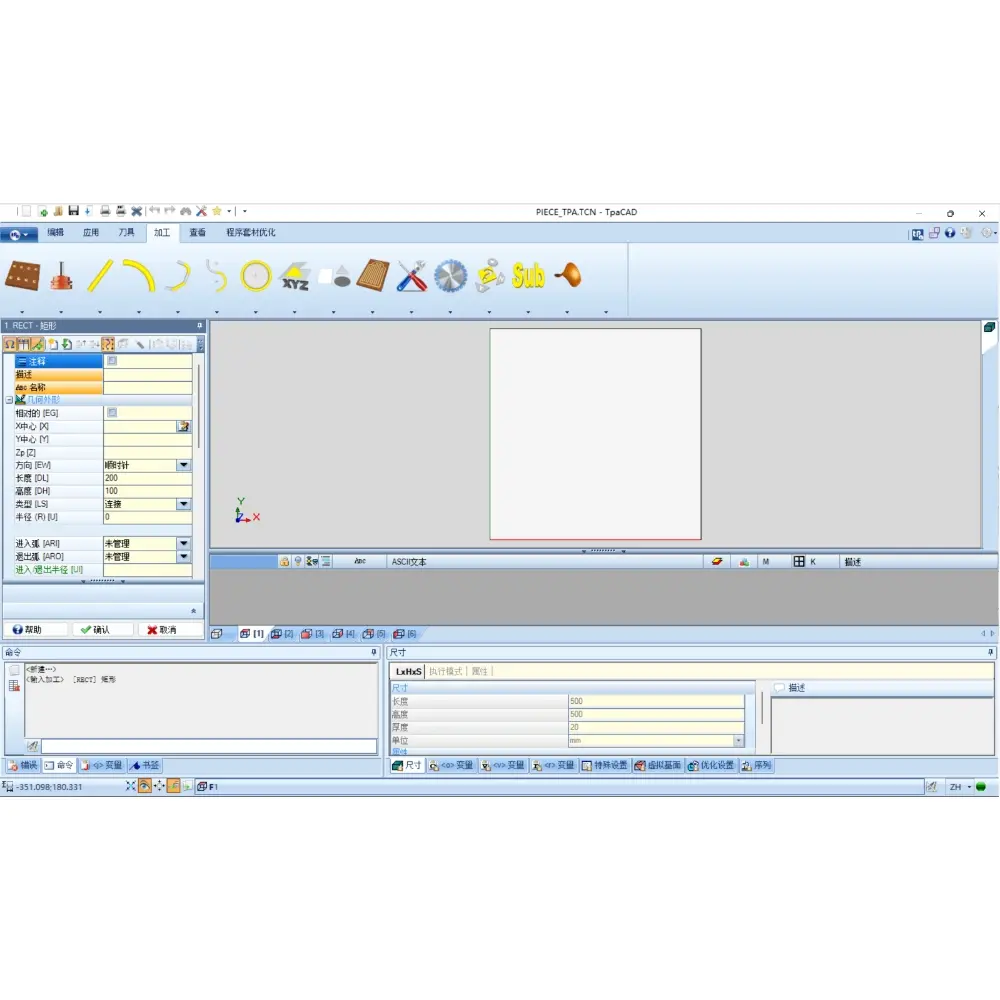

TPA CAM Software
The TPA system comes with built-in graphic programming, compatible with 3-axis / 4-axis machining, enabling efficient docking with equipment.

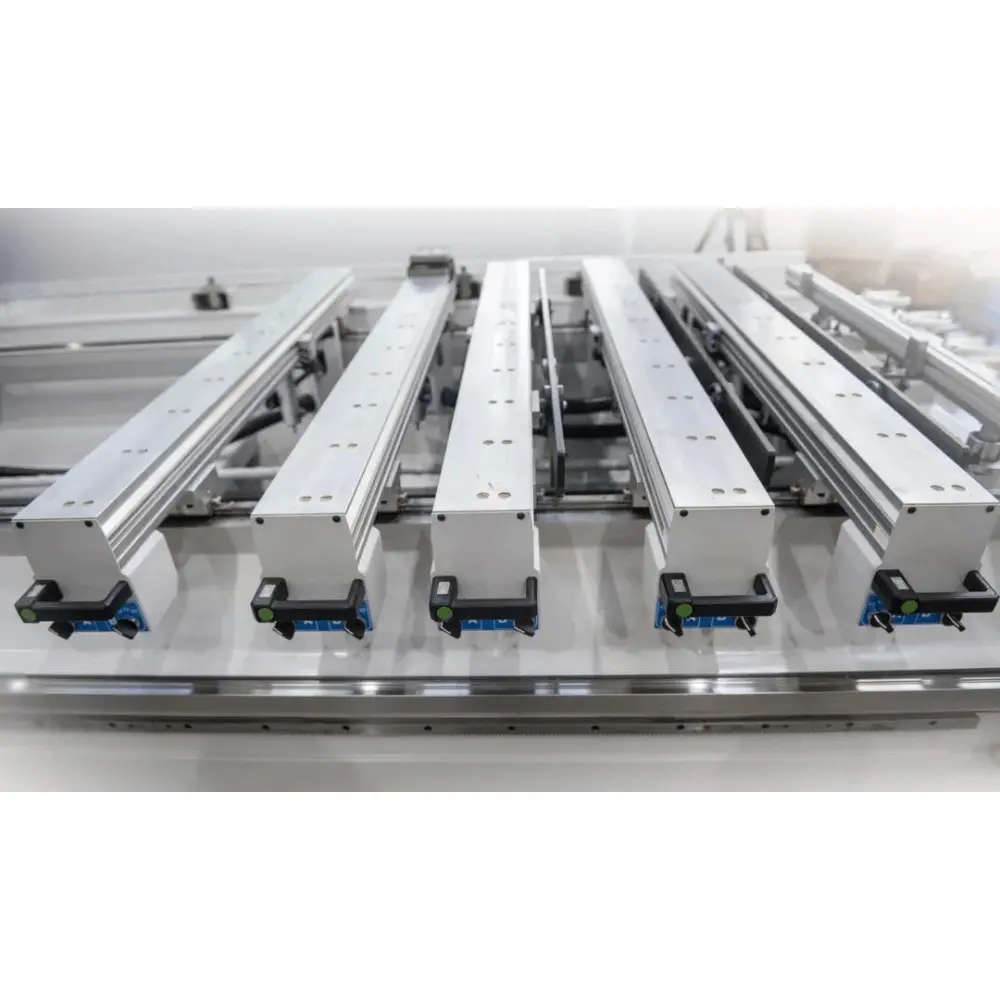

Pod&Rail Tables
6 sets of movable bridge frames, equipped with Gemman Schmalz suction
cups, allow free combination and flexible configuration, enabling fast loading
and unloading of workpieces.

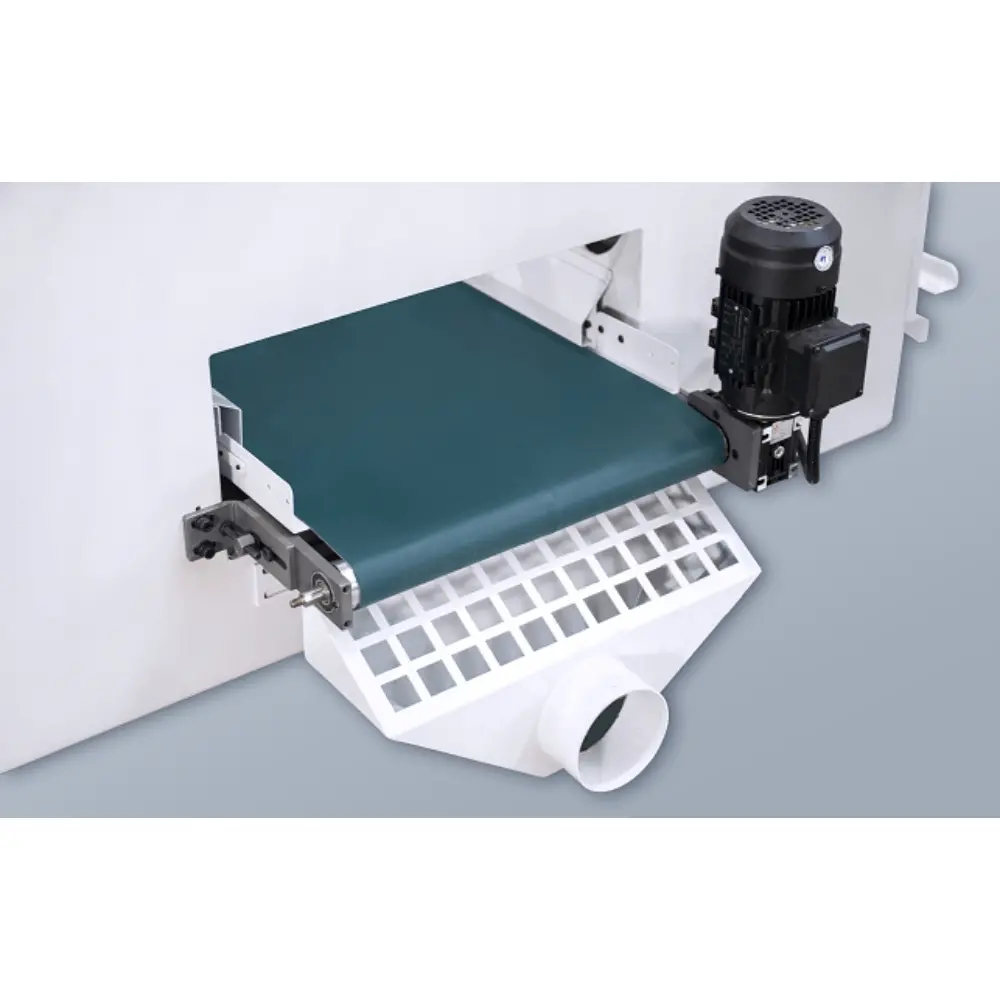

Dust Collection System
Dust and chips automatically collects and removes.

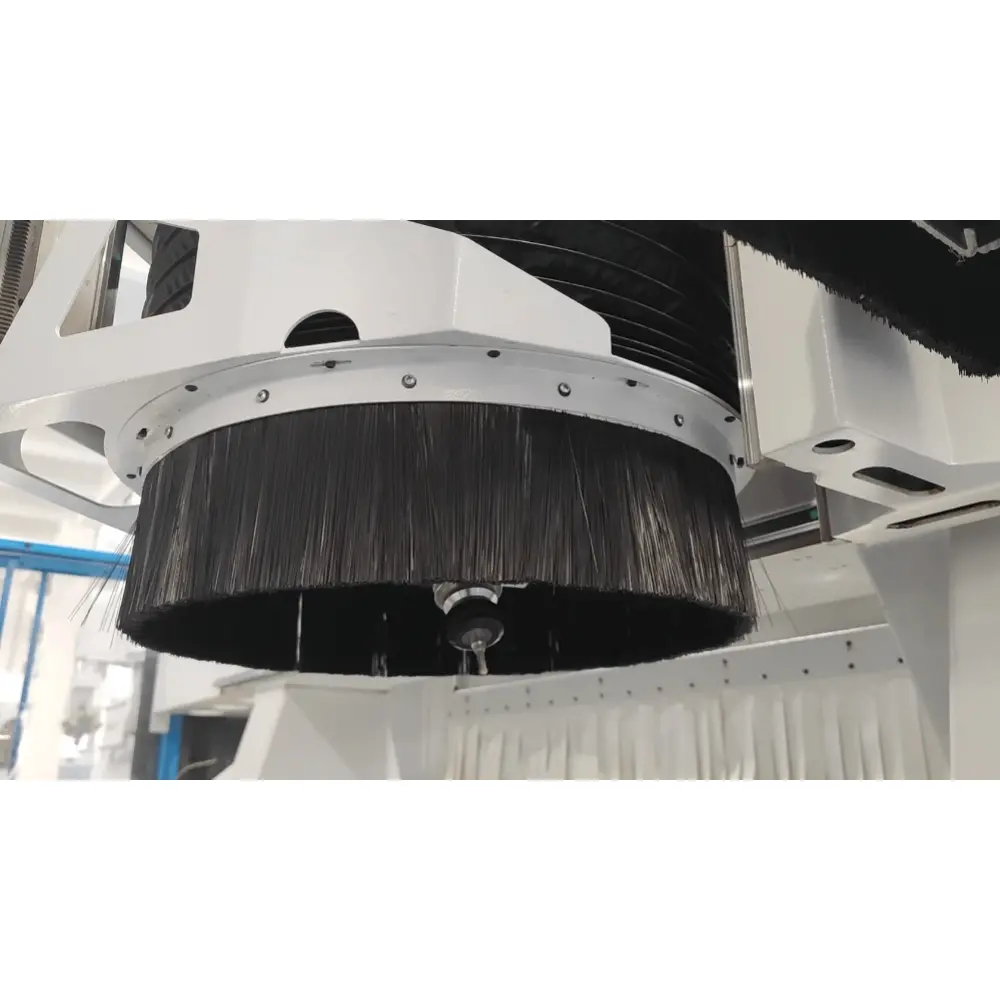

Flexible servo vacuuming
According to the height and angle of the spindle tool, intelligent positioning
vacuuming.

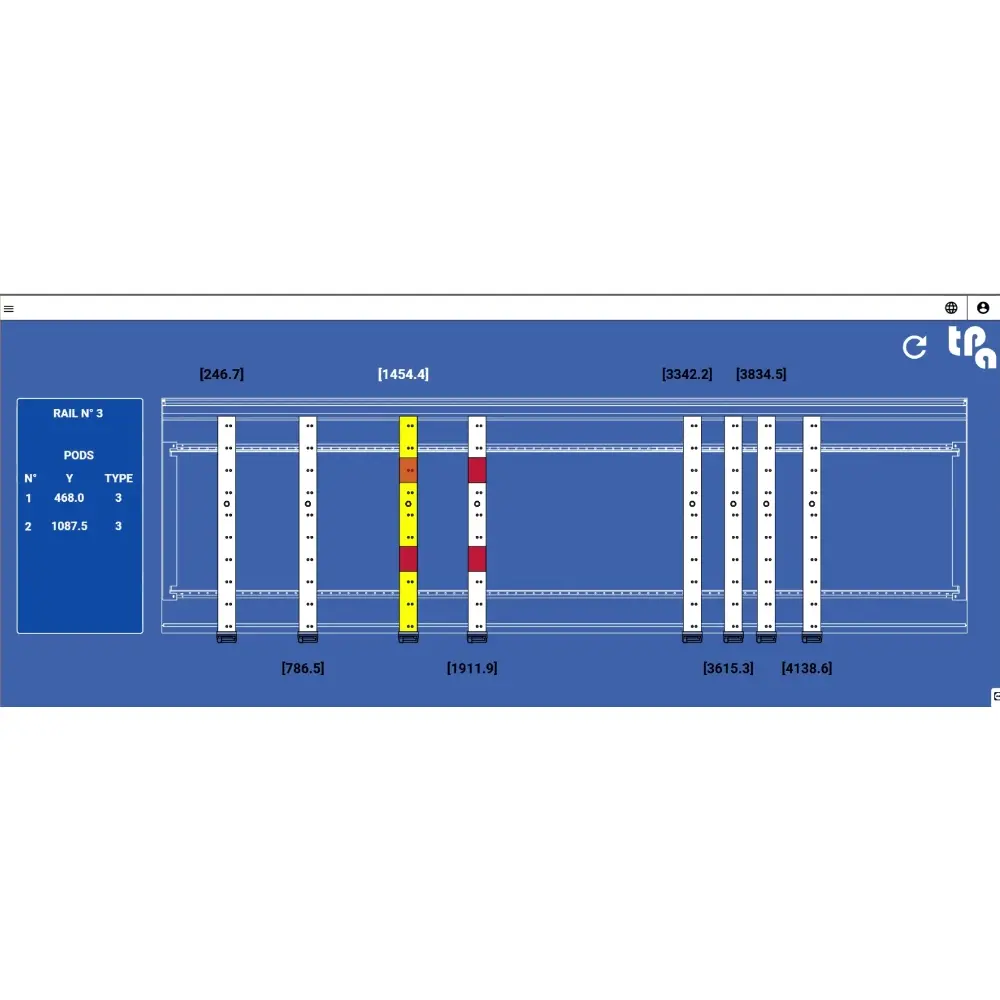

Laser positioning
Suction tray bridge laser positioning,accurate position, fast speed.

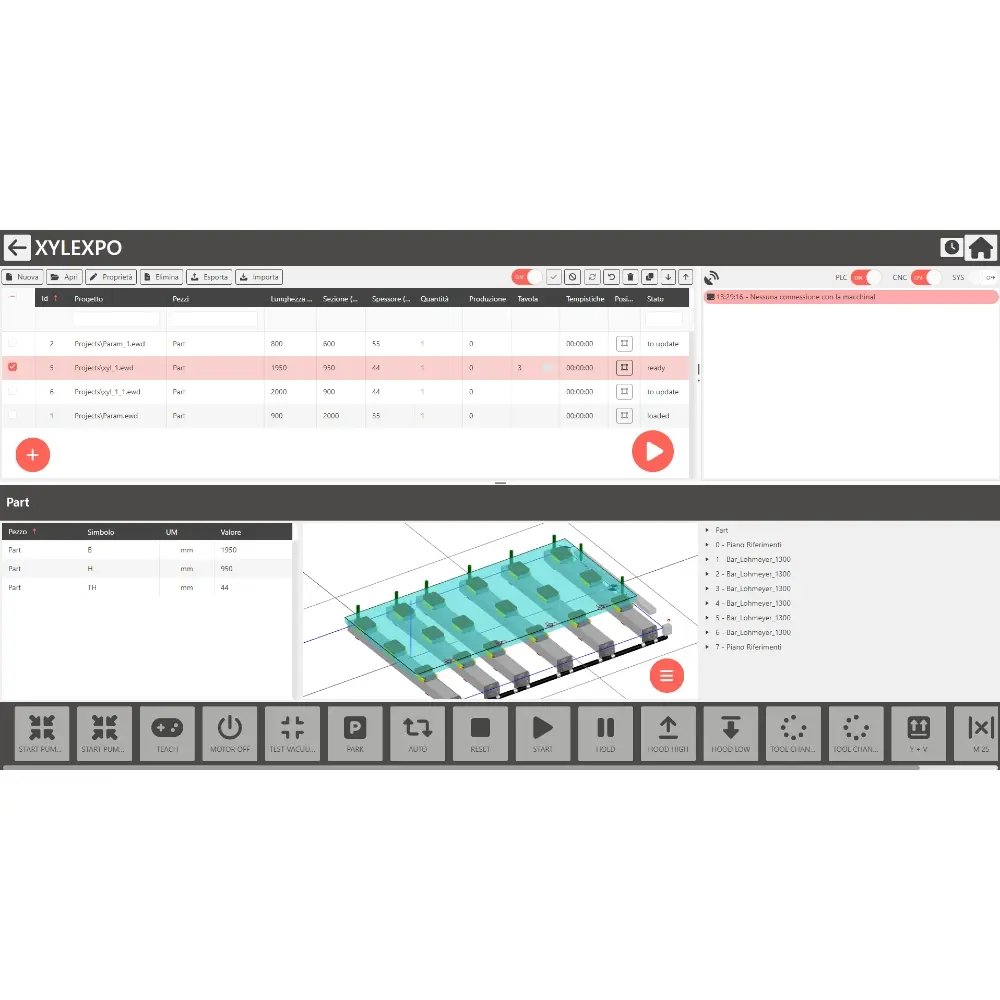

DDX Machining Software
Optional:Five-axis linkage programming and simulation, optimized machining paths, and efficient equipment integration.
TECHNICAL SPECIFICATIONS
| KN-5510P | |
|---|---|
| Domestic Packing size | L*W*H:5900*2320*2500(mm) |
| Export Packing Size | L*W*H:5900*2320*2500(mm) |
| Weight | 6500kg |
| Effective working size (mm) | 3250×1500×200 |
| Vacuum Capacity | 244 m³/h |
| Drive system | INVT |
Max.moving speed X/Y/Z1/Z2/B/C | 80/80/25/25(m/min) 90(°/s) |
| Drill Head | 12V+8H+1S |
| Operating system | TPA |
| Spindle | HSK-F63 |
| Spindle power (standard) | 12kW |
| Type of ATC | Servo Rotary+linear |
| Numbers of Tools changers | 22 pcs Rotary+5 pcs Linear ATC |
| Working Pressure | 0.65MPa |
| Dust extraction volume | 4347 m³/h |
| Total Power | 30.5KW |
