KN-2710L
KDT high quality machining center is applicable to the nesting of custom furniture.Compatible with various machining data that generated by the 3rd party's Optimized software, easy for operation.
MORE
Smart Machining Centers
KN-2409DL
FEATURES

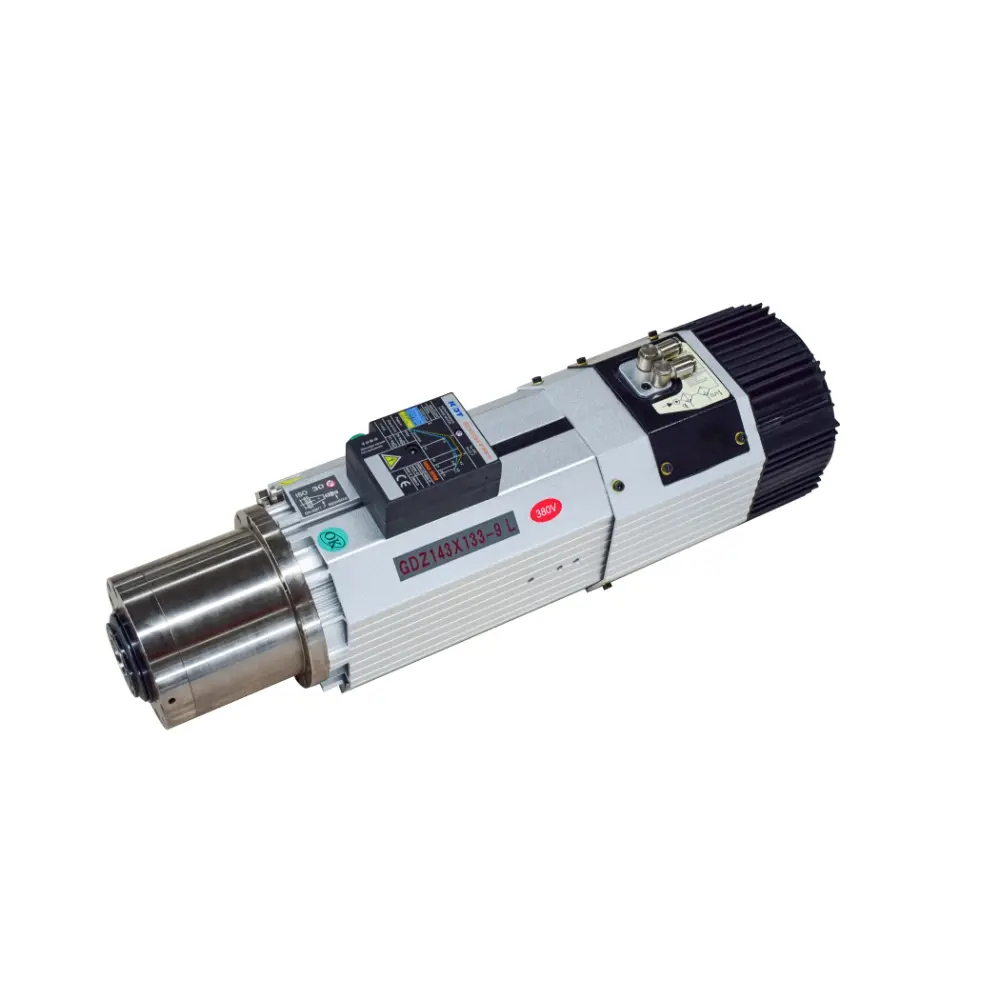

Spindle configuration
9kW high-power spindle, improving cutting efficiency.

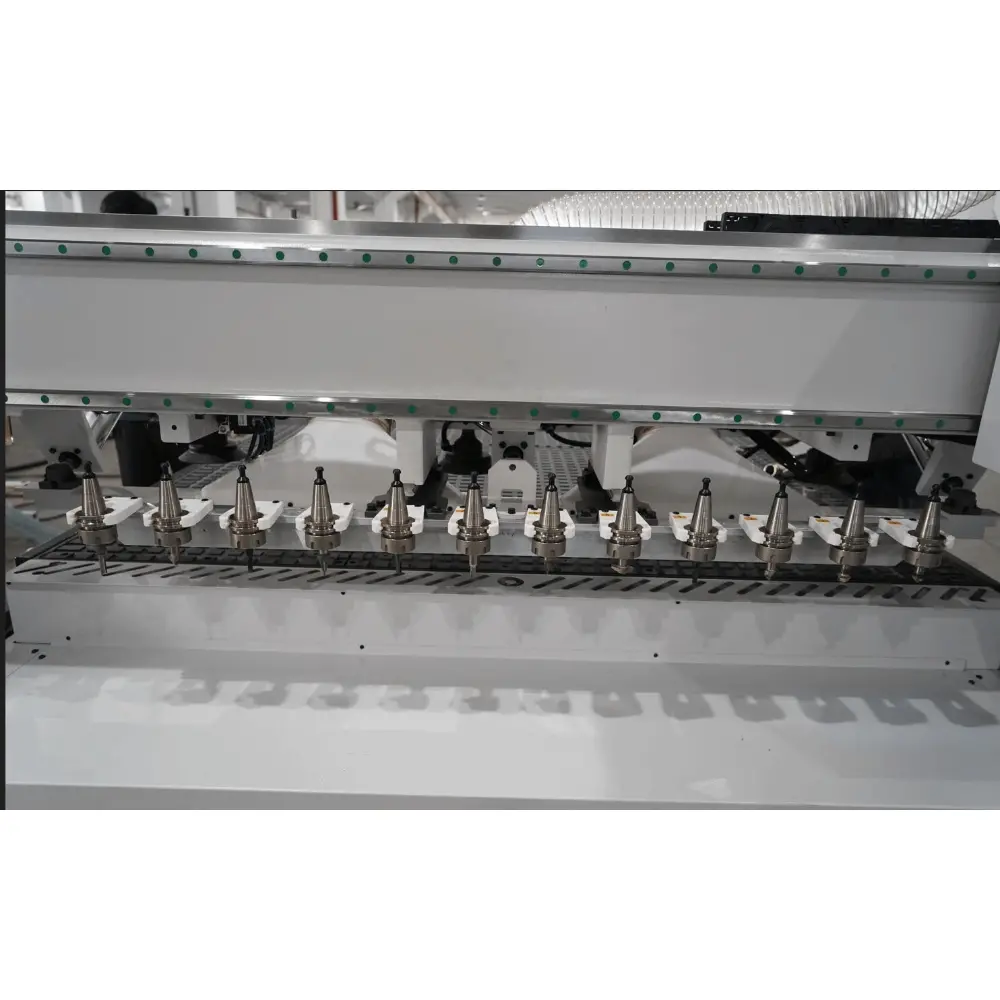

ATC configuration
12 -position linear tools magazine (8pcs tools holder deliver with machines) automatic tool-change,suitable for panel furniture production.

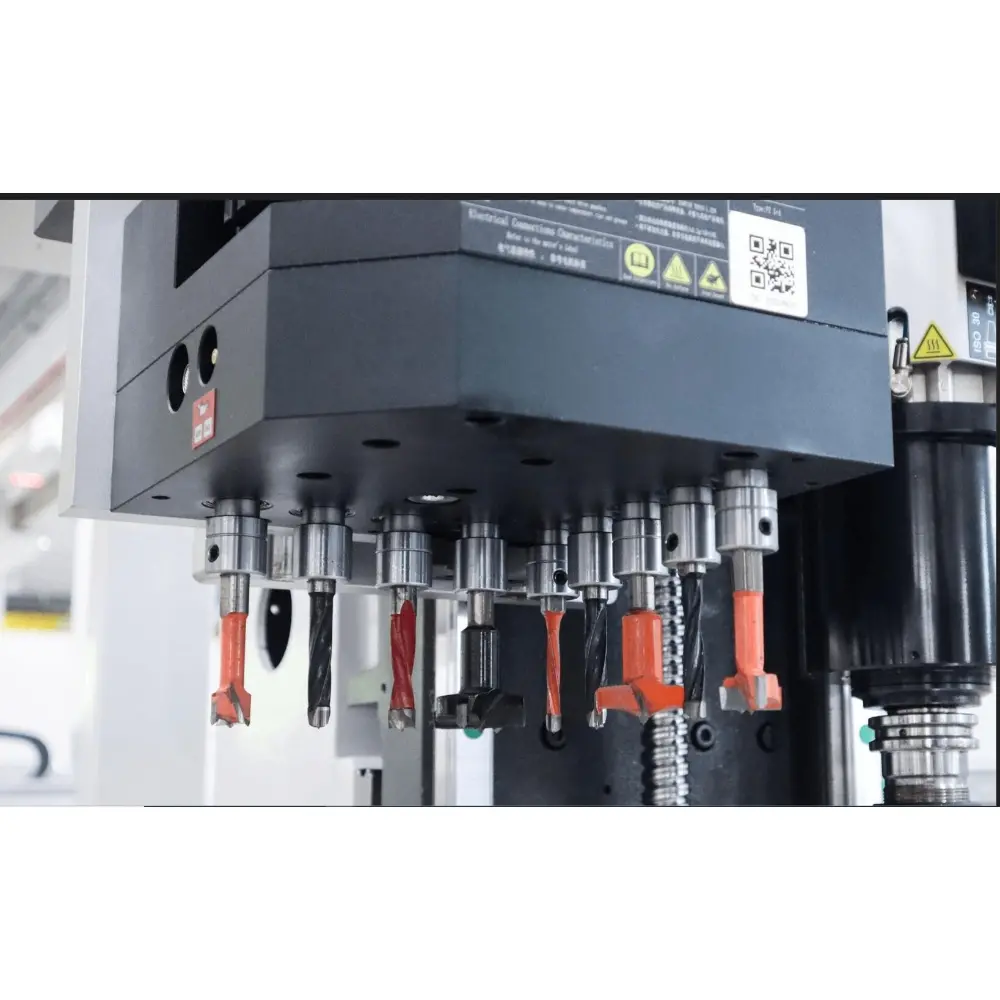

Drill Head
10V drilling head,to realize efficient work.

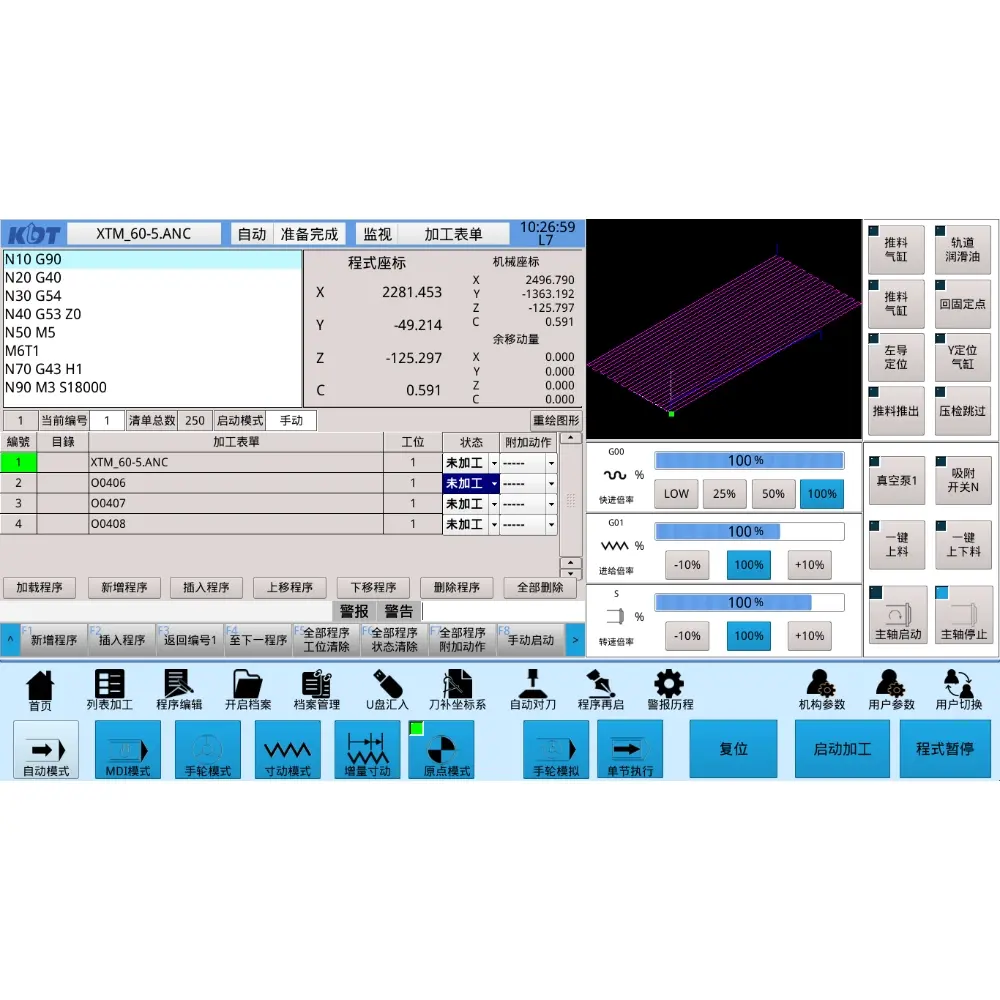

Operating system
Leading Numerical Controller System,strong anti-interference and scalability.

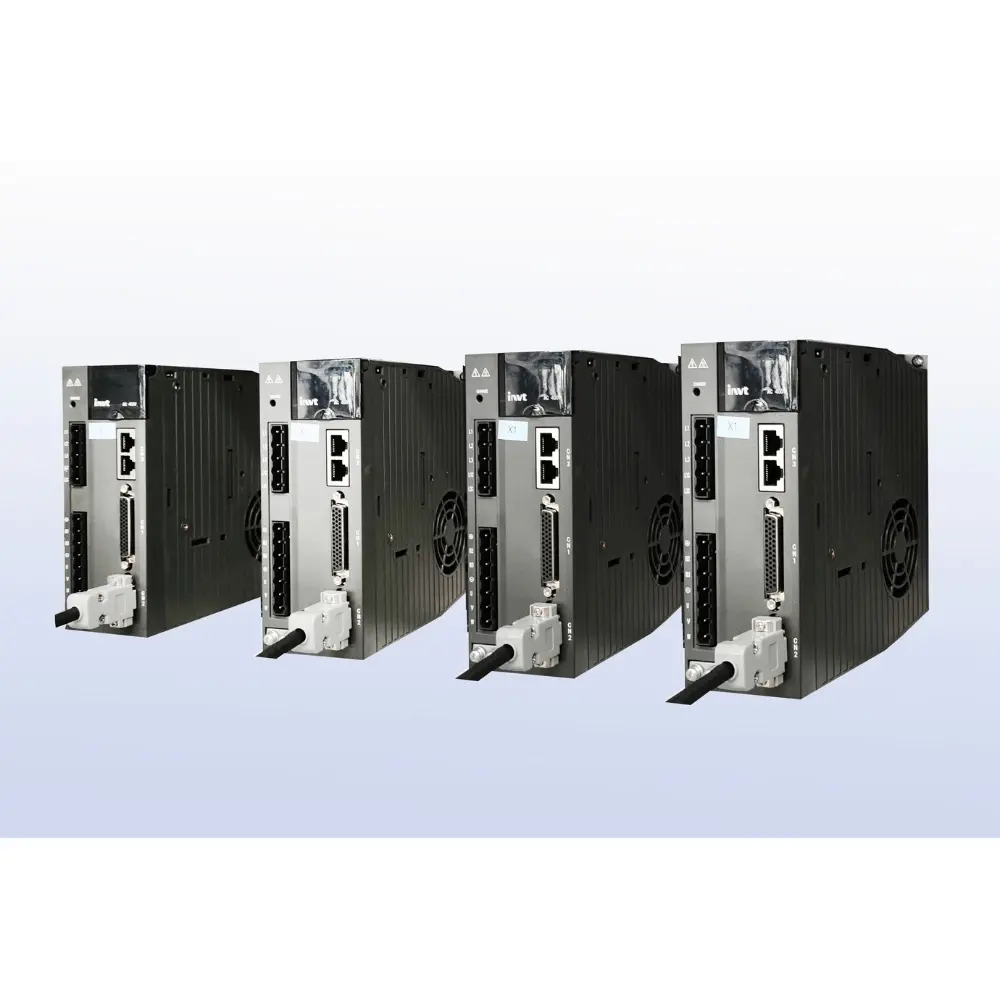

Drive system
1.5kW absolute value servo drive,no need to return to zero when starting, fast speed and high efficiency.

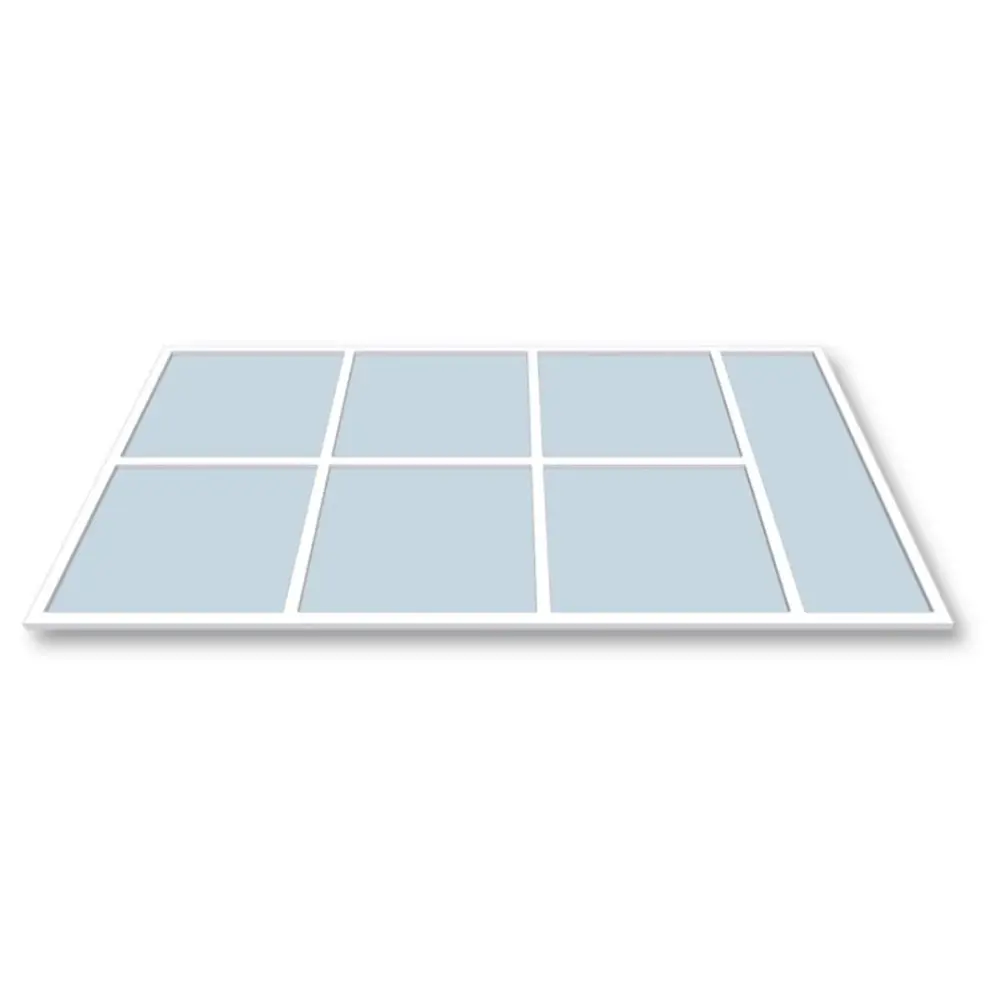

Table Vacuum zone
7 vacuum partition,the suction distribution is even and strong,and the small plate is not easy to deviate.

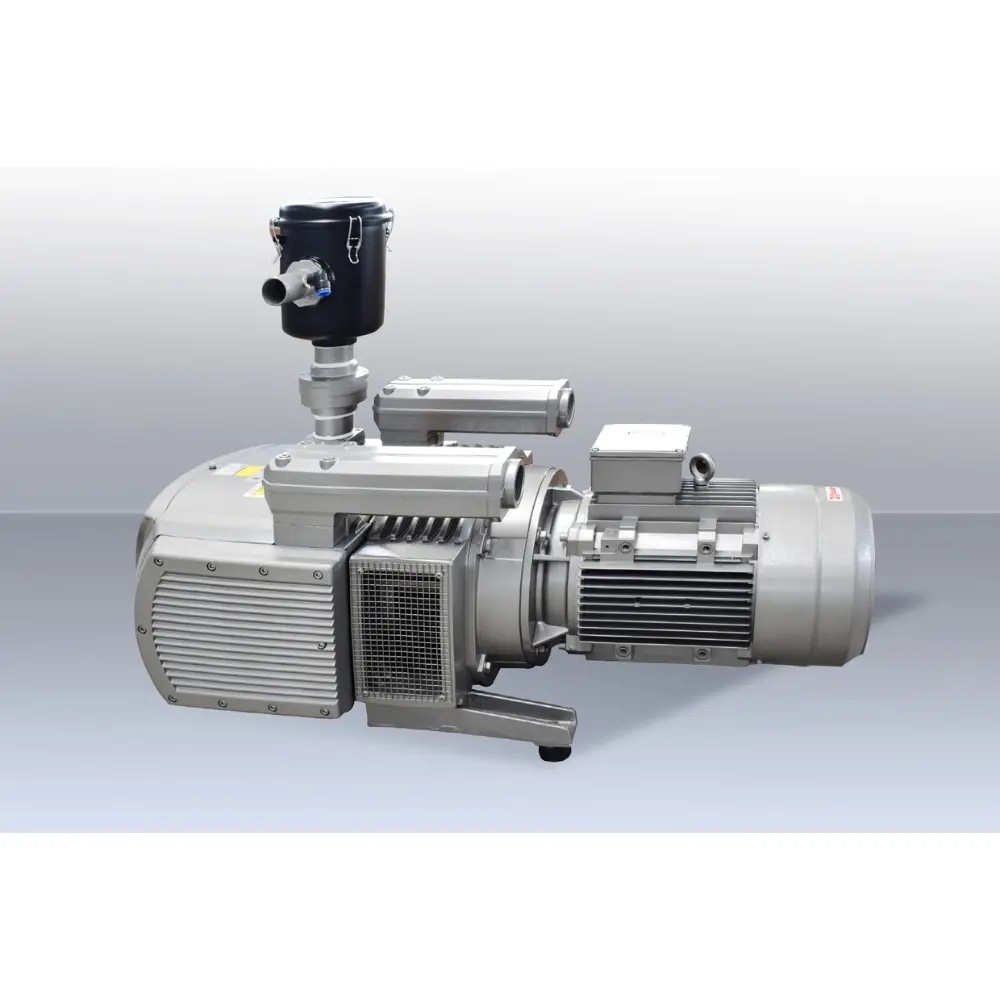

Vacuum Suction

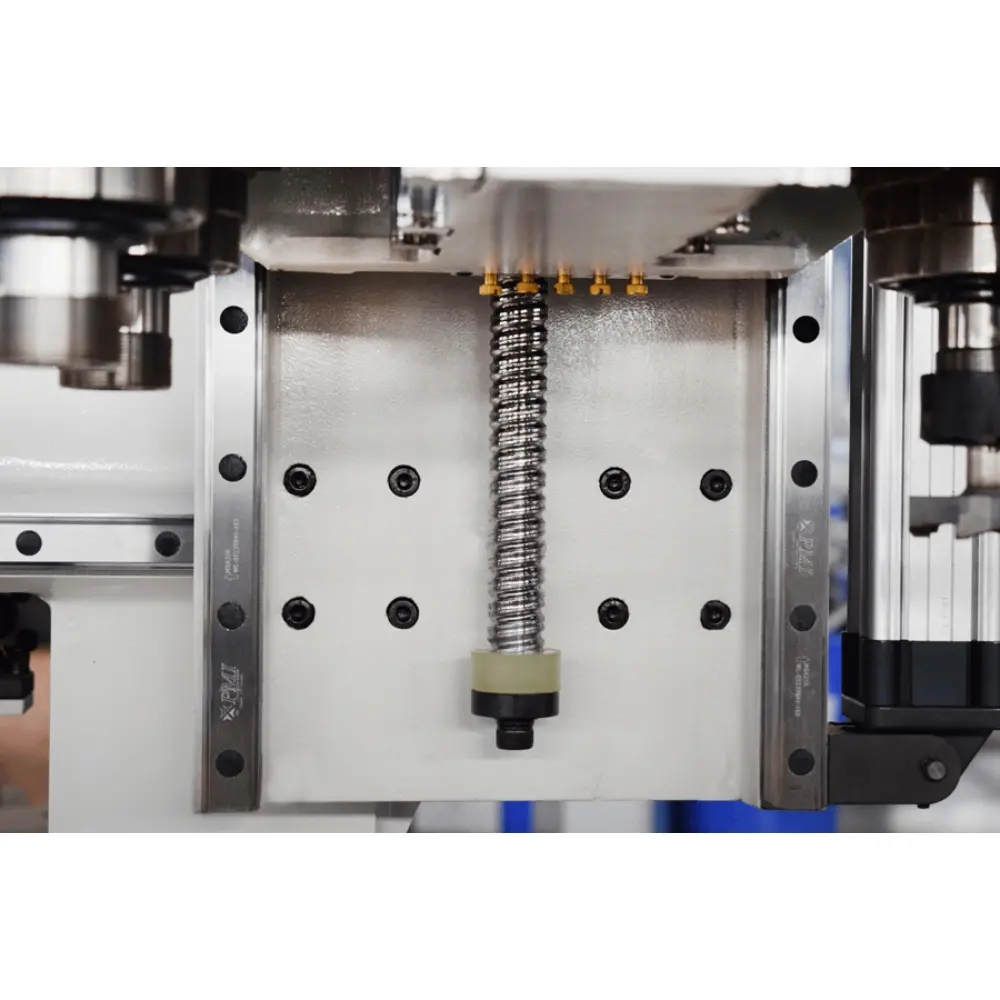

Transmission mechanism
Transmission mechanism:z-axis adopts ball screw,with high movement precision and compact structure.

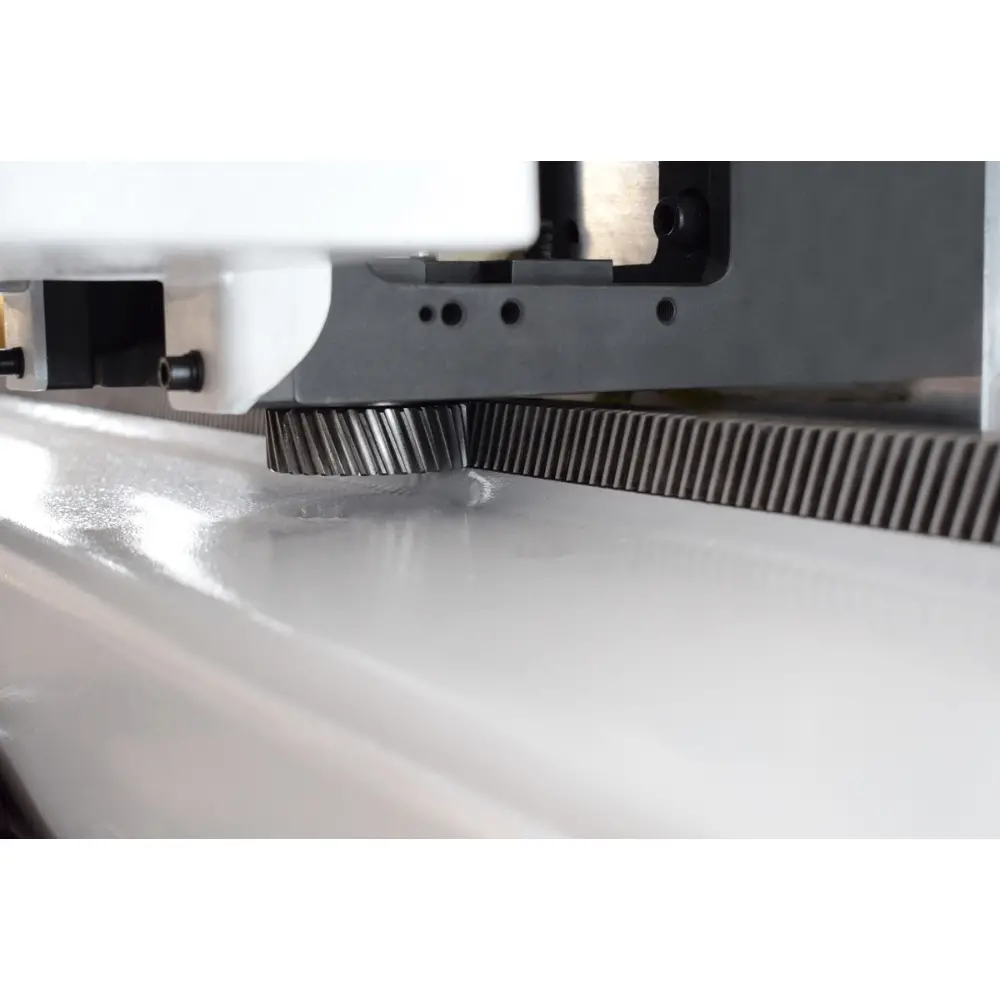

Motion mechanism
X/Y axis adopts high-precision helical gear rack,ensuring a higher accuracy.

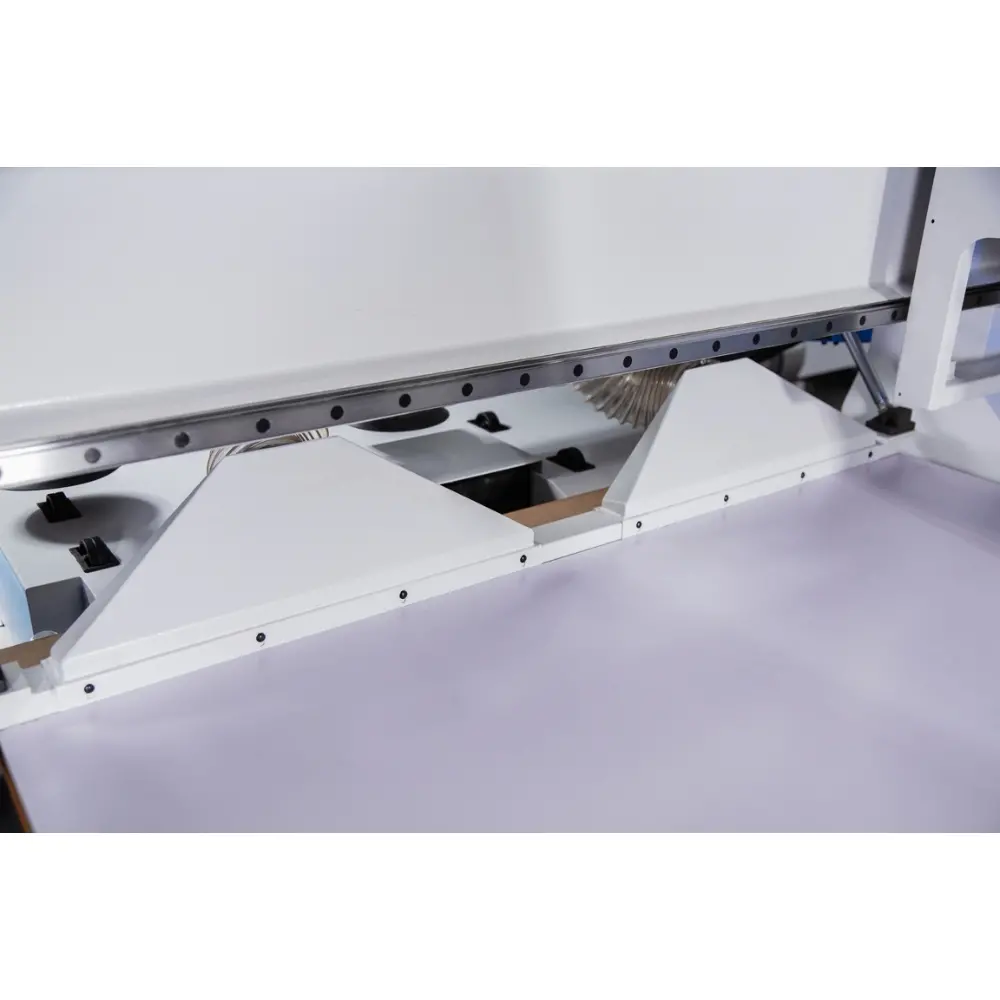

Pusher mechanism
Equipped with pusher,automatic pushing and unloading.

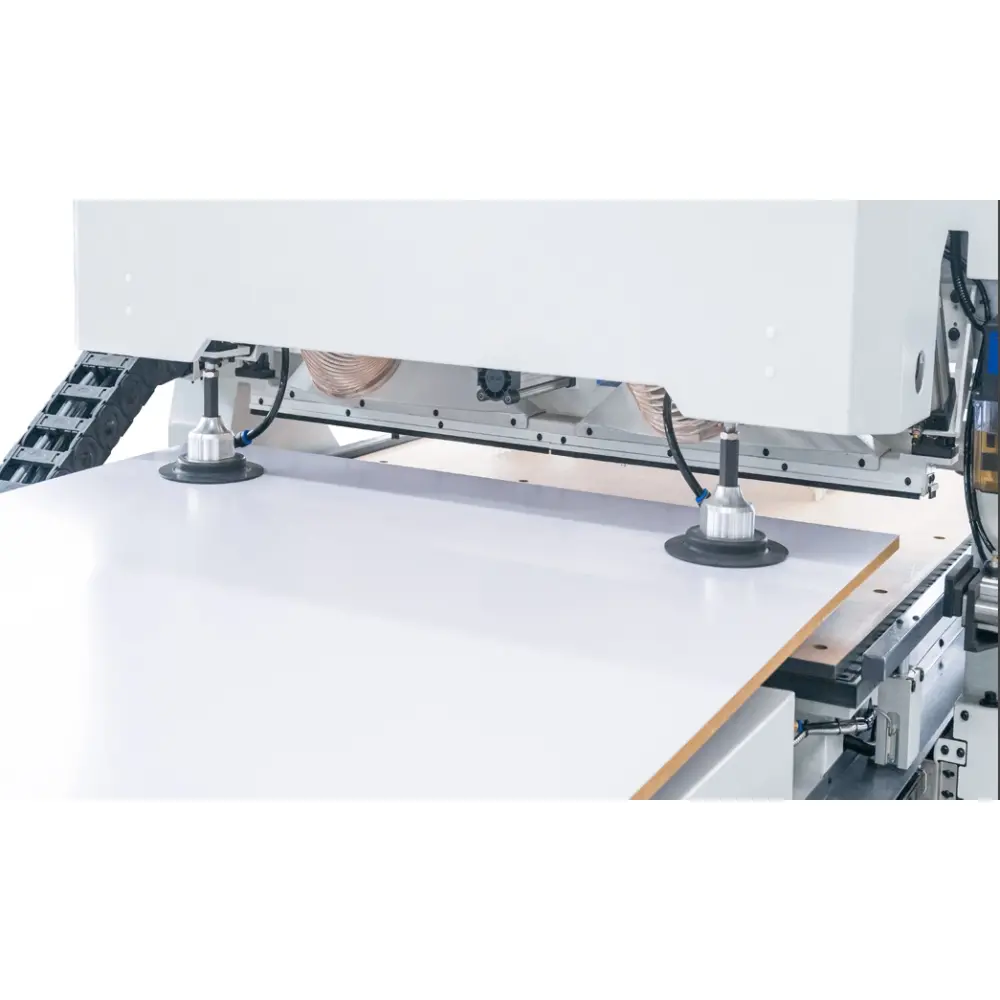

Gripper mechanism
Standard with gripper,automatic,automatic feed to process.

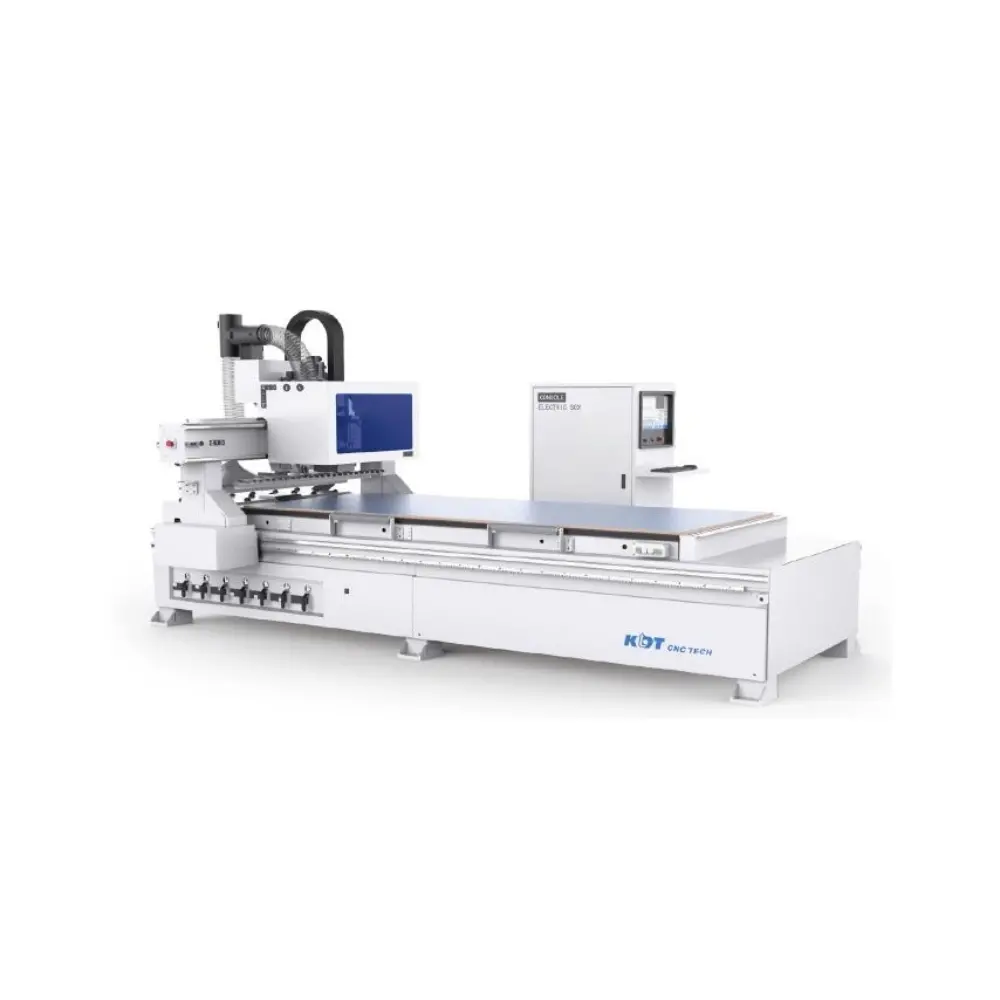

Spindle cover design
Protective cover design and various safety detection and alarm devices protect the safety of operators.
TECHNICAL SPECIFICATIONS
| KN-2409DL | |
|---|---|
| Domestic package size | Length * width * height: 4000*2200*2500(mm) |
| Oversea package size | Length * width * height: 4100*2230*2450(mm) |
| Equipment weight | 2300kg |
| OS | LNC |
| Driven system | INVT |
| Vacuum suction speed | 244m³/h |
| Vacuum chamber | 7 |
| Processing size | 2850mm*1260mm*60mm (Pressure Roller Optional: 2850*1260*40mm) |
| Spindle | 9kW |
| Drill | 10V |
| Tool magazine | 12 |
| Suction inlet | ∅141mm*1 |
| Power | 22.7kW |
| Overall size | L*W*H=3980mm*2160mm*2450mm |
| Max moving speed | X axis: 100(m/min); Y axis: 100(m/min); Z axis: 30(m/min) |
| Air pressure | 0.65MPa |
