KN-2409DL
MORE
Smart Machining Centers
KN-2609DL
FEATURES

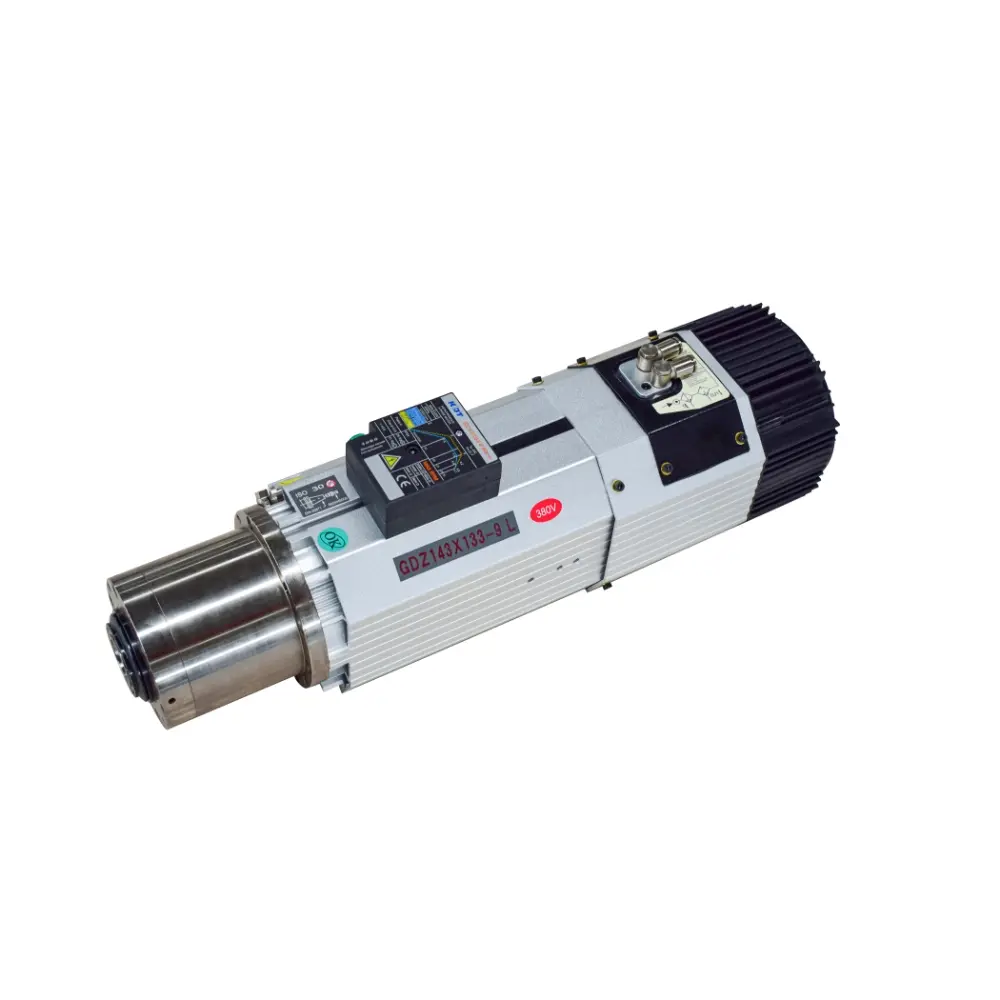

Spindle configuration
9kW high-power spindle， improving cutting efficiency.

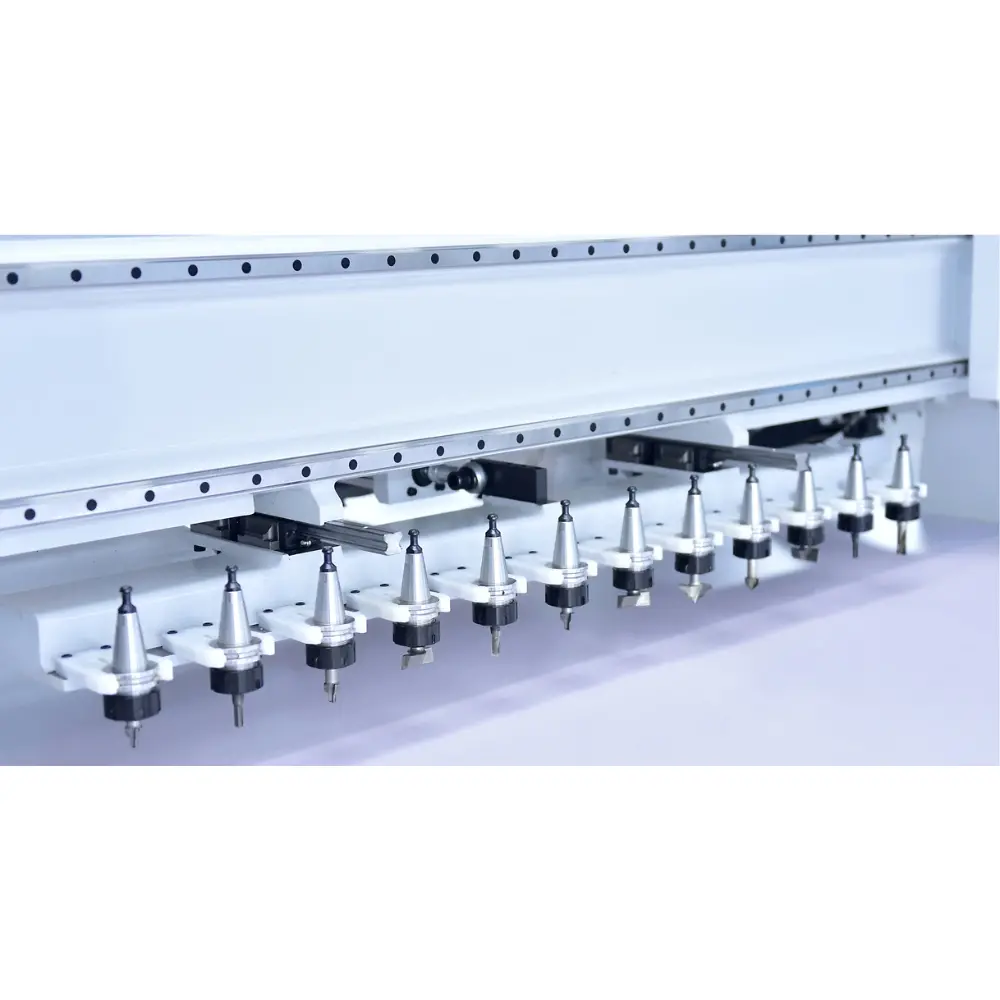

Tool library configuration
12 fold linear ATC ,automatic tool-change，suitable for panel furniture and doors production.

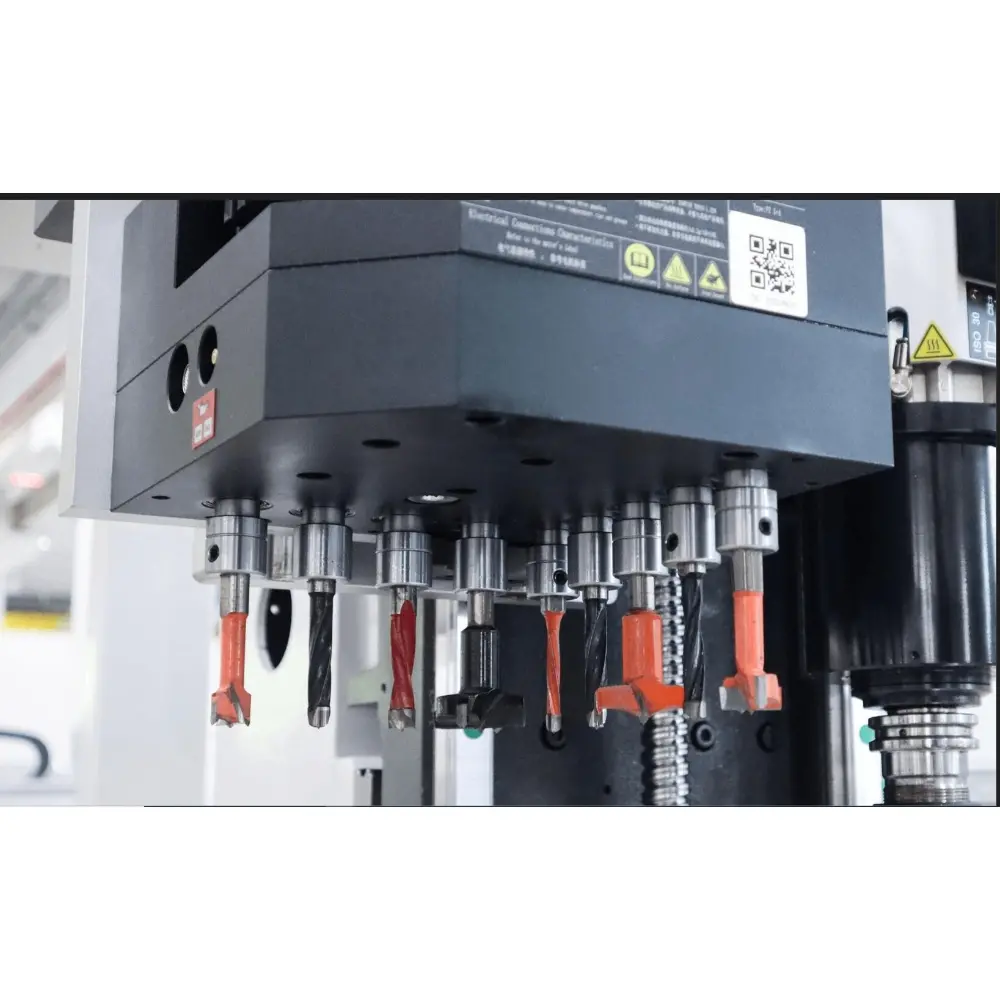

Drill Head
10V drilling head for D model,stonger pressure on drilling enures stable drill and drill depth, to realize efficient work.

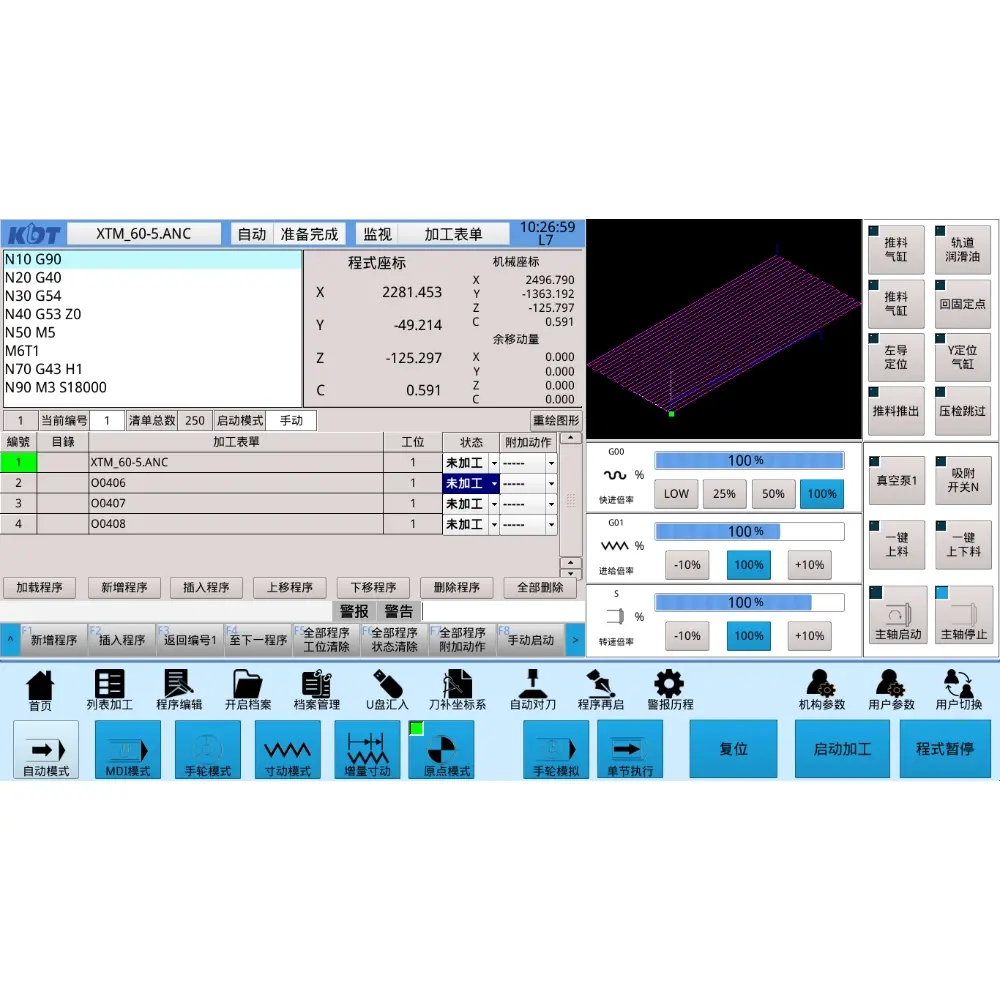

Operating system
Leading Numerical Controller System，strong anti-interference and scalability.

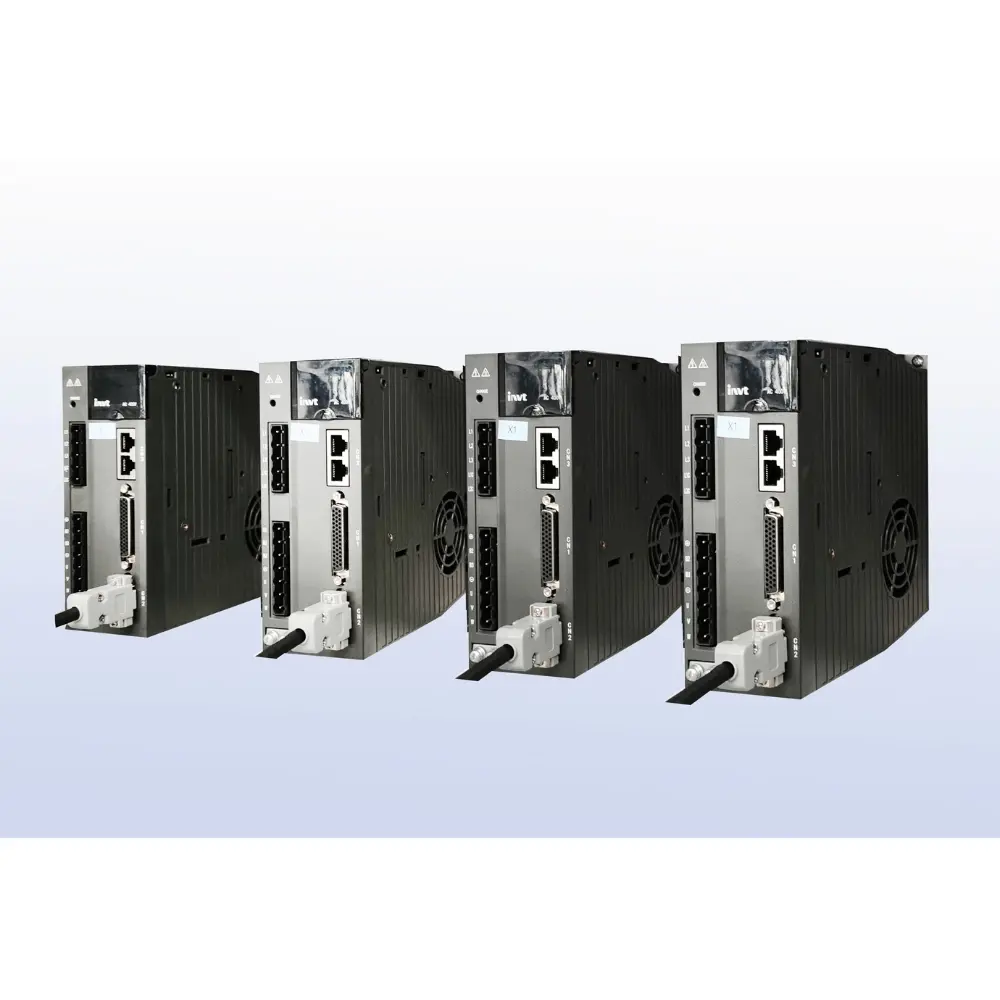

Drive system
1.5kW absolute value servo drive, no need to return to zero when starting, fast speed and high efficiency.

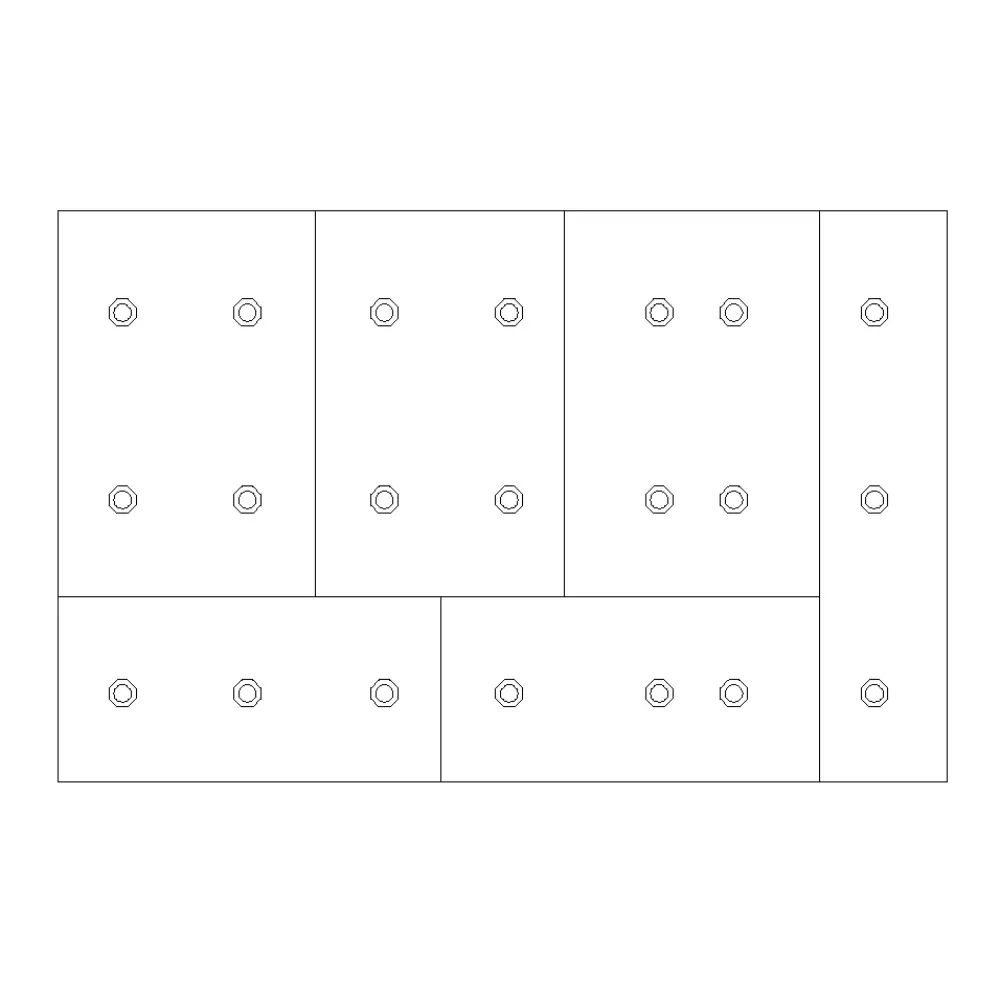

Mesa partition
Six partition vacuum adsorption table，the suction distribution is more uniform，and the small plate is not easy to deviate.

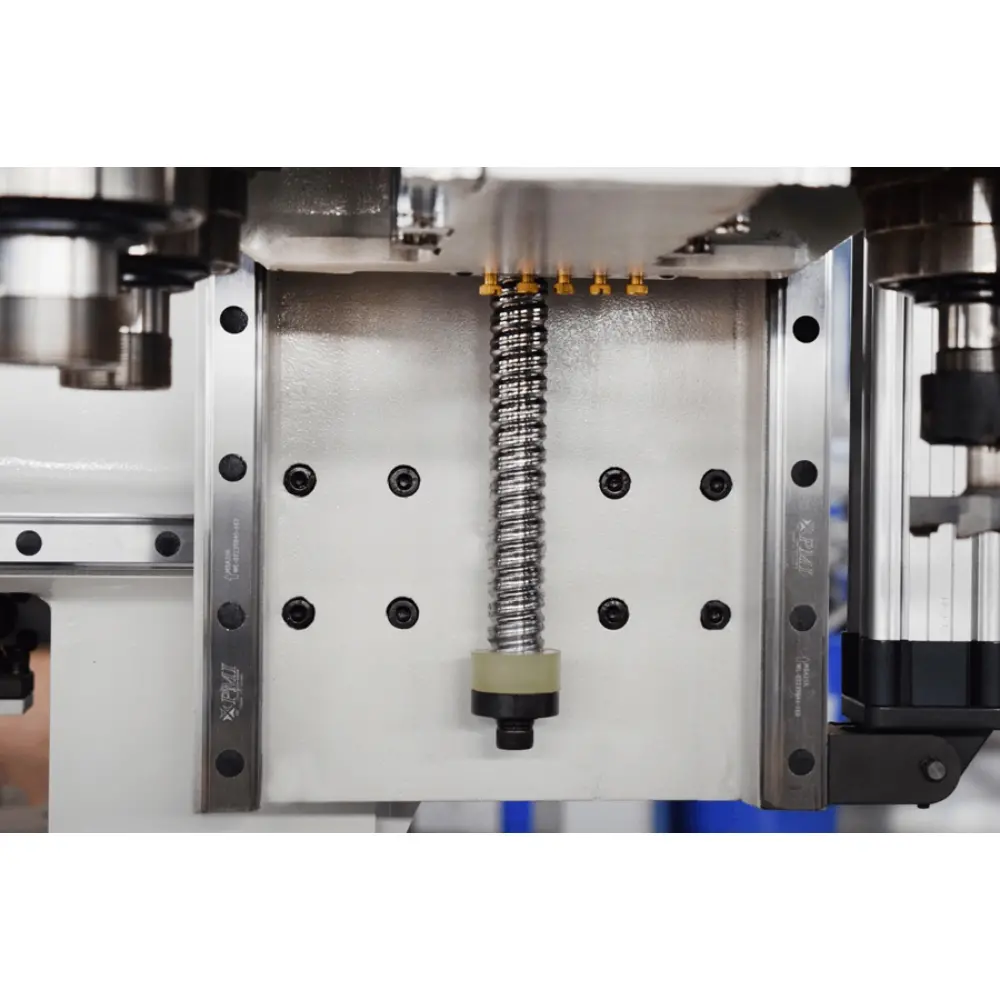

Kinematic mechanism
Transmission mechanism: z-axis adopts ball screw, with high movement precision and compact structure.

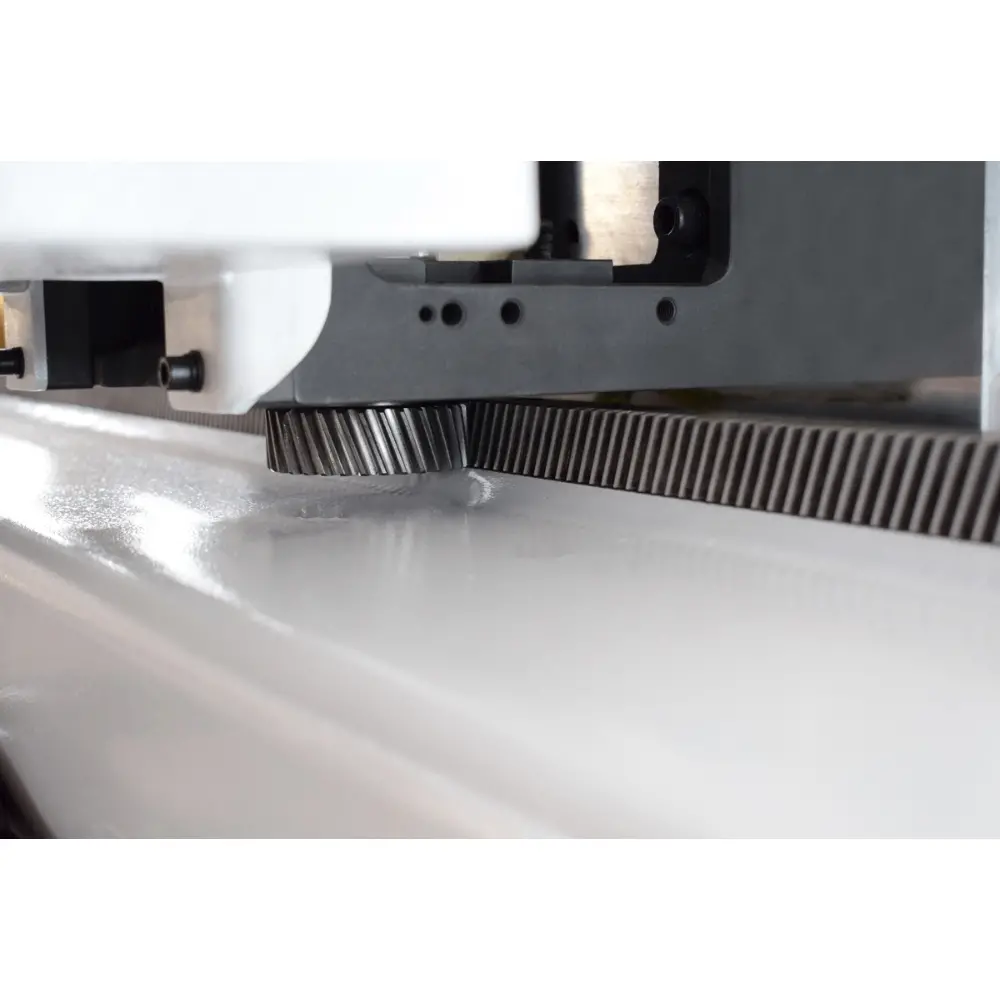

Kinematic mechanism
Transmission mechanism: X/Y axis adopts high-precision helical gear rack .

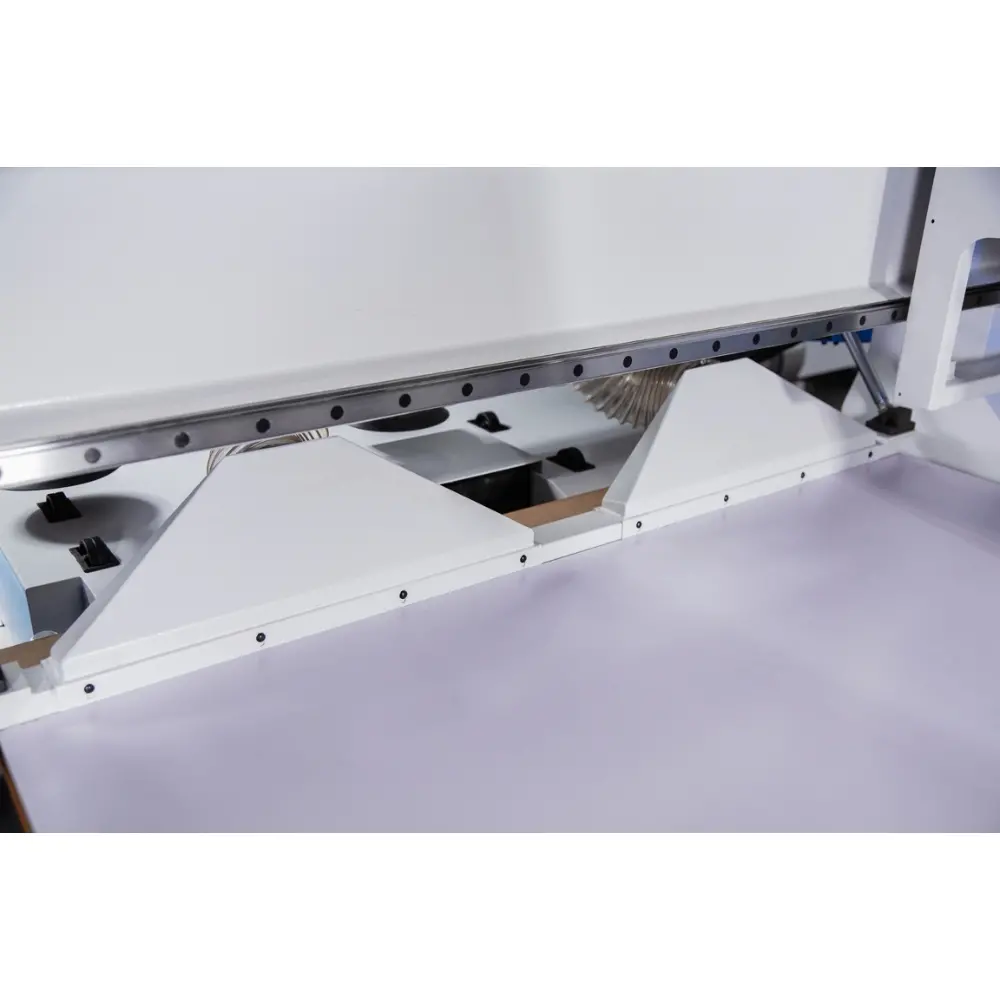

Pushing mechanism
Standardly Equipped with pusher，automatic pushing and feeding out workpiece.

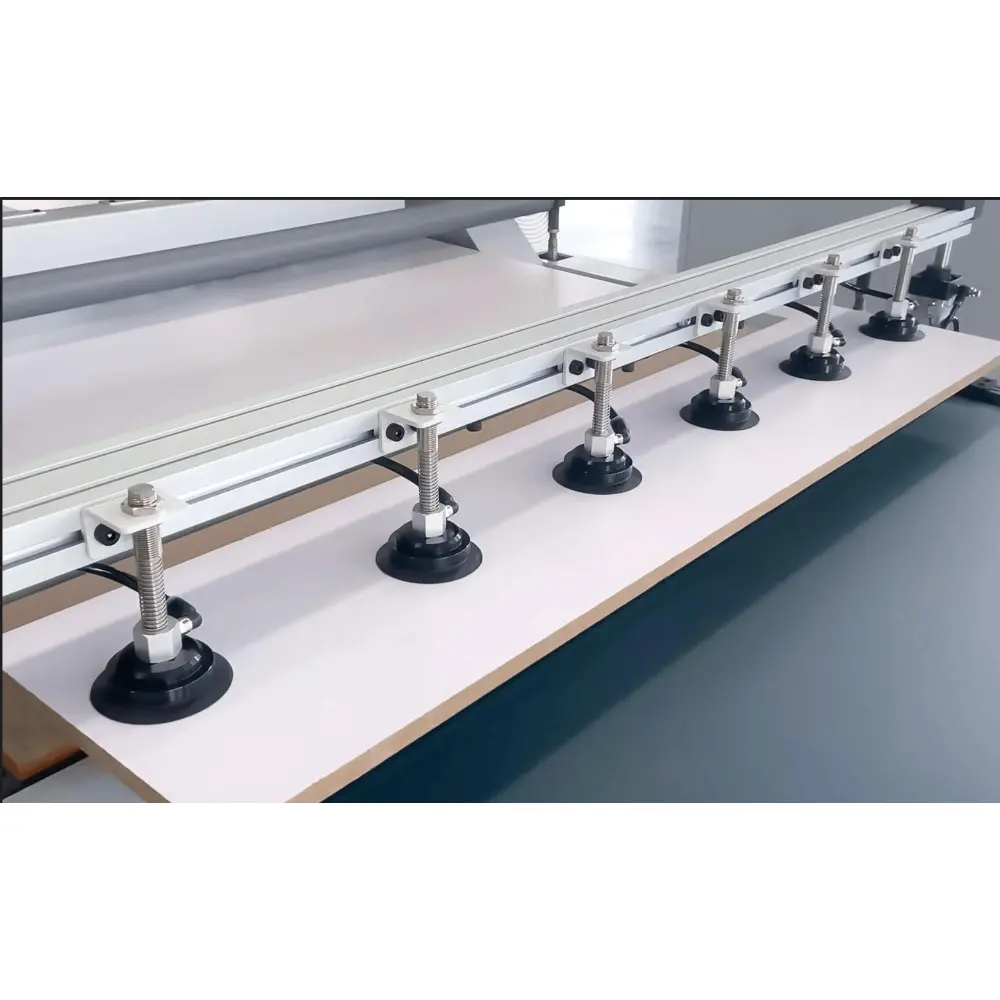

Grab mechanism
Standard with gripper, automatic，loadingWorkpiece automatic alignment.

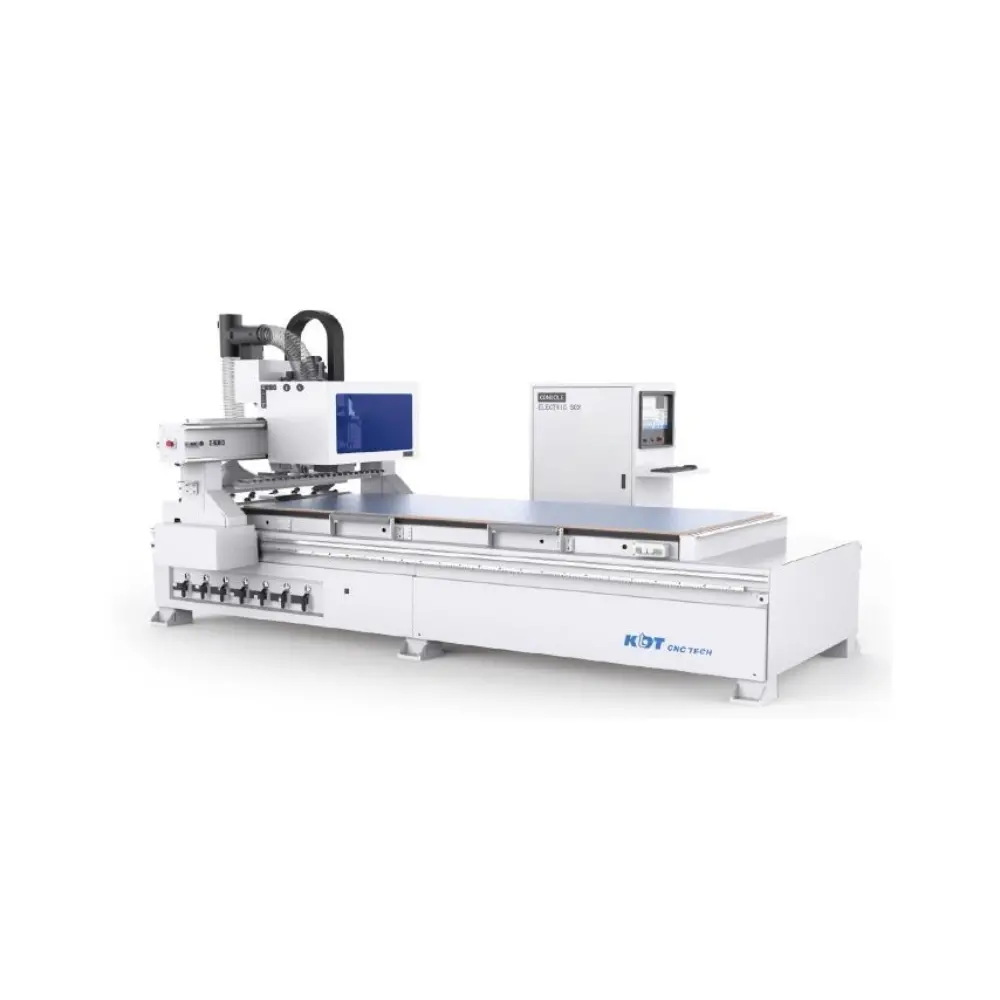

Spindle shield design
Protective cover design and various safety detection and alarm devices protect the safety of operators.

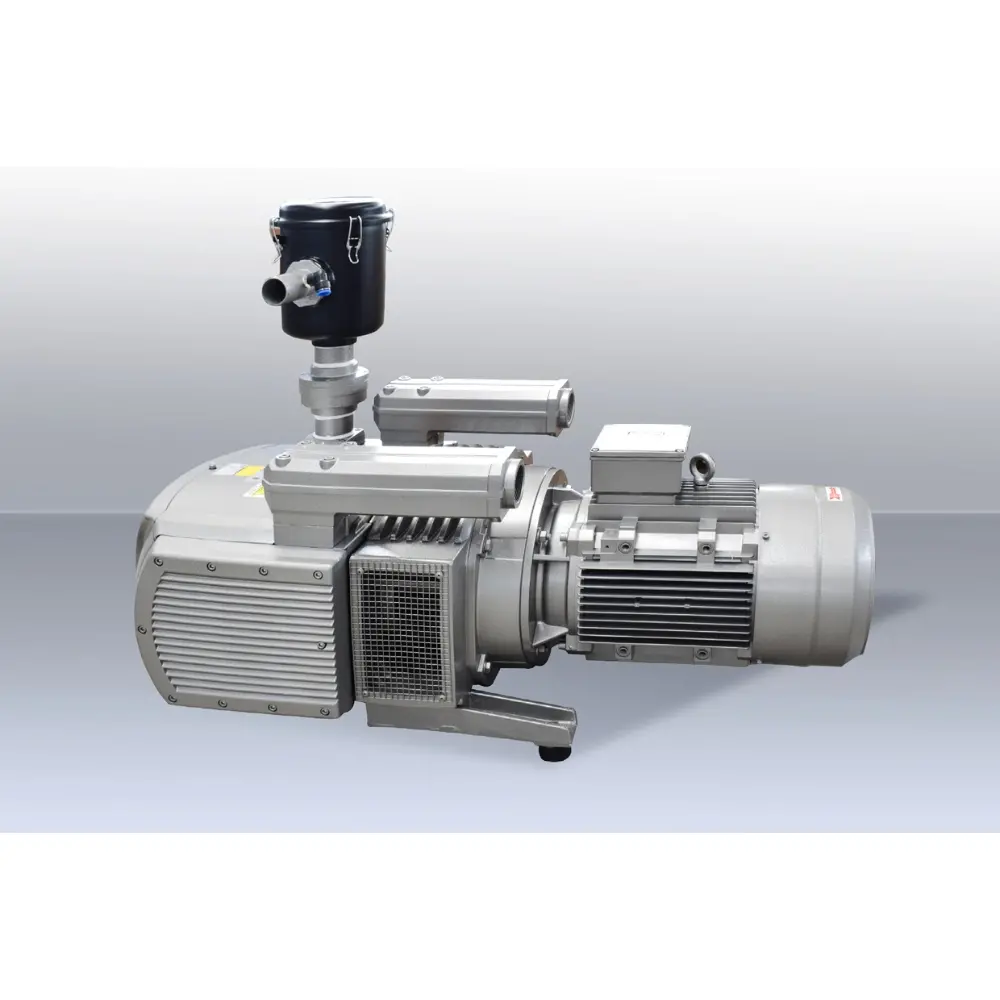

Standard with vacuum pump, friendly for enviroment and easy for maintenence.
TECHNICAL SPECIFICATIONS
| KN-2609DL | |
|---|---|
| Packing size | L×W×H=5600L×2320W×2400H |
| Gross weight | 3000kg |
| OS | LNC |
| Driven system | INVT |
| Vacuum suction speed | 500m³/h |
| Vacuum chamber | 6 |
| Processing size | 2850mm×1860mm×60mm (Pressure Roller Optional: 2850×1860×40mm) |
| Spindle | 9kW |
| Drill | 10V |
| Tool magazine | 12 |
| Suction inlet | ∅141mm×1 |
| Power | 28.2kW |
| Overall size | L×W×H=3980mm×2890mm×2450mm |
| Max displacement speed | X axis: 80(m/min); Y axis: 80(m/min); Z axis: 30(m/min) |
| Air pressure | 0.65MPa |
