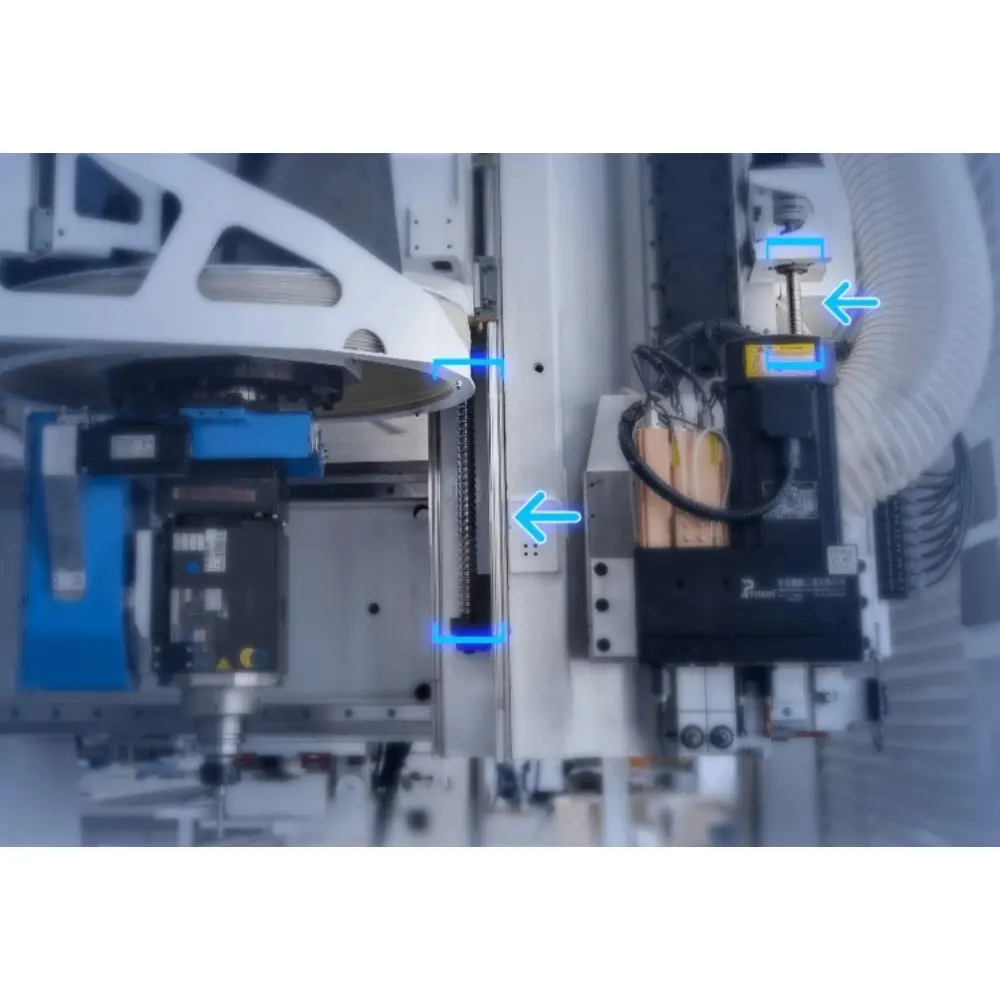

Operating units
The spindle and drill set are upgraded with independent screw rods, which do not interfere with each other's actions, have fast process connection, and high processing efficiency.

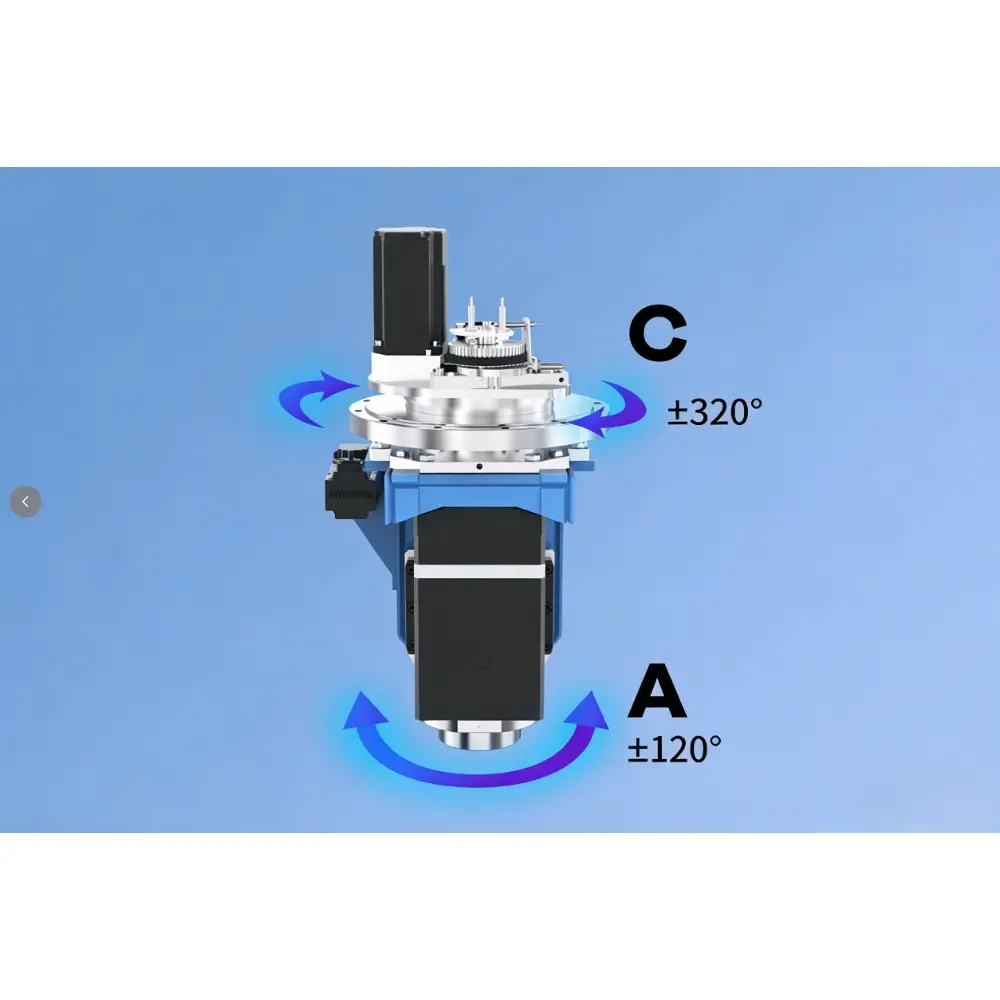

Spindle
High-precision five-axis head, equipped with 12 kW high-power water-cooled motorized spindle.

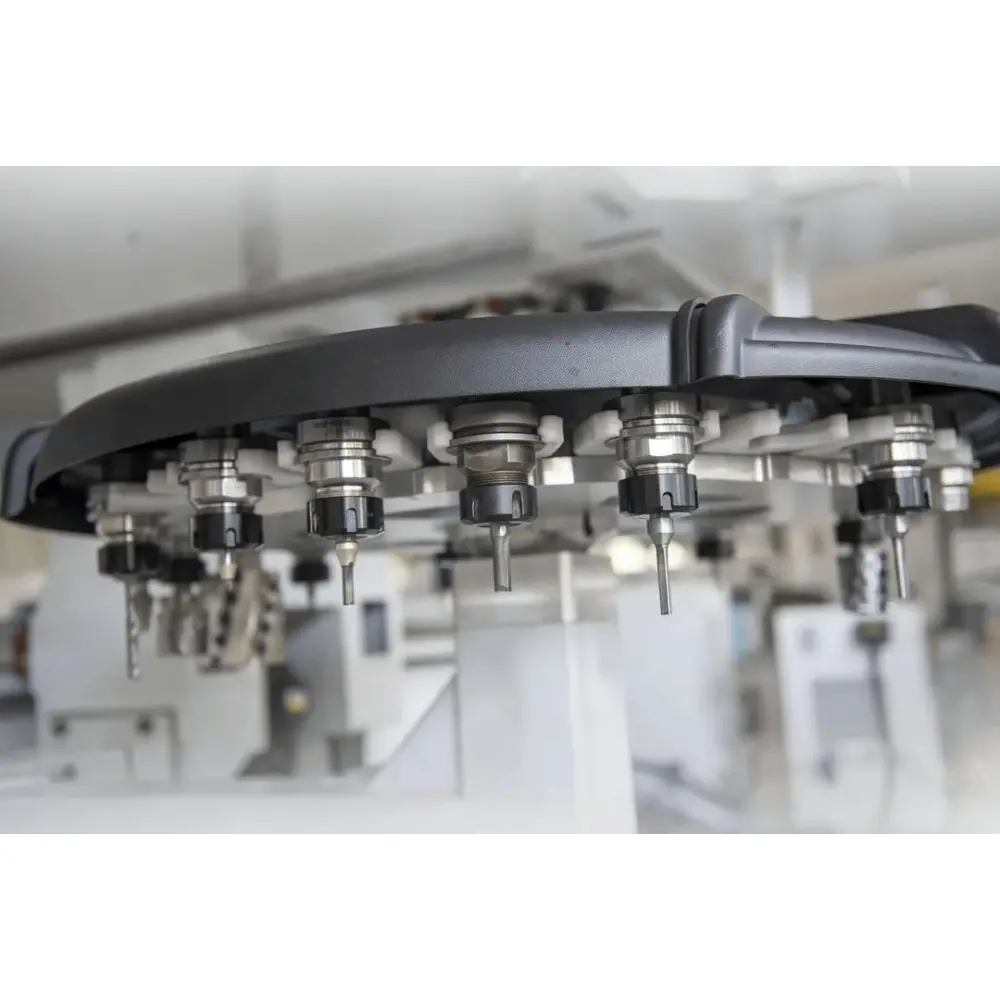

Tools Magazine
Standard configured 22 pcs servo tool magazine+16pcs servo tool magazine + 5 liner tool magazine+1 blade magazine, totally 44pcs.

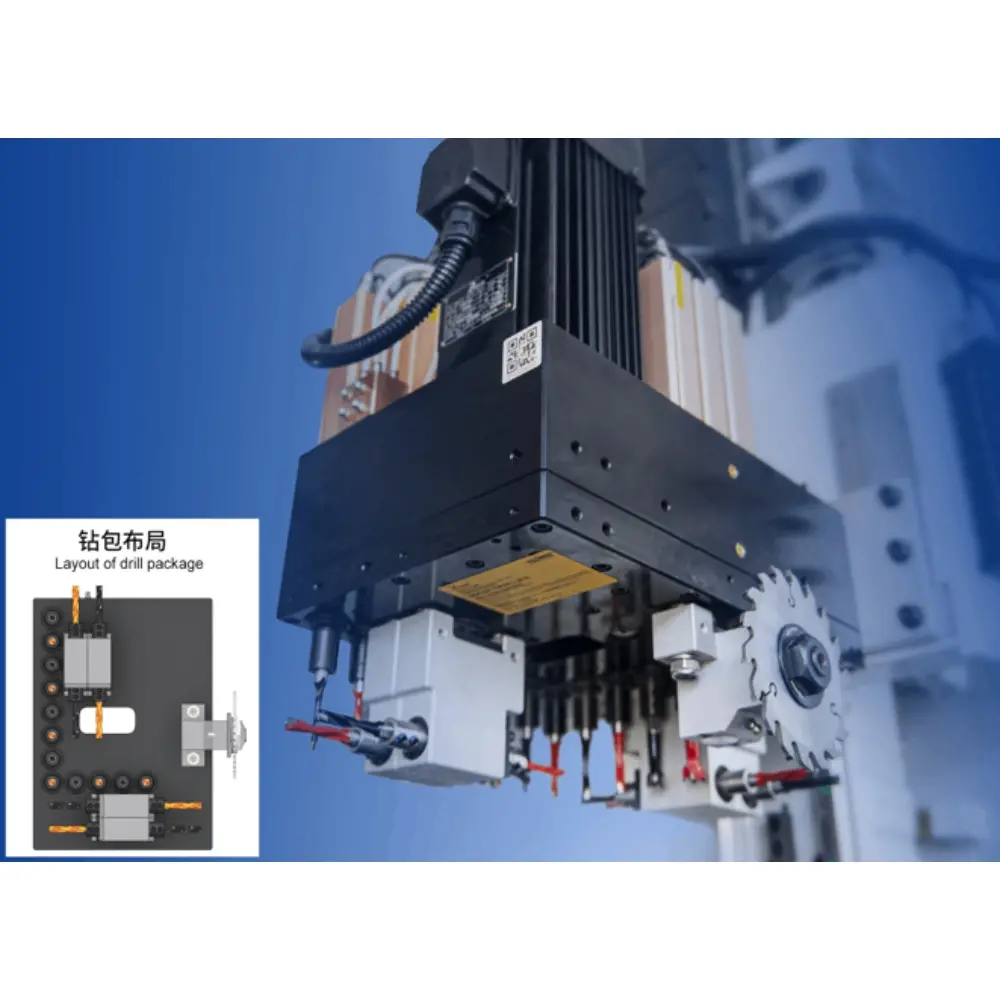

Drill set
Configured multi-functional drilling head(12 vertical+8Horizontal+1 saw), realizing efficient drill and slot.

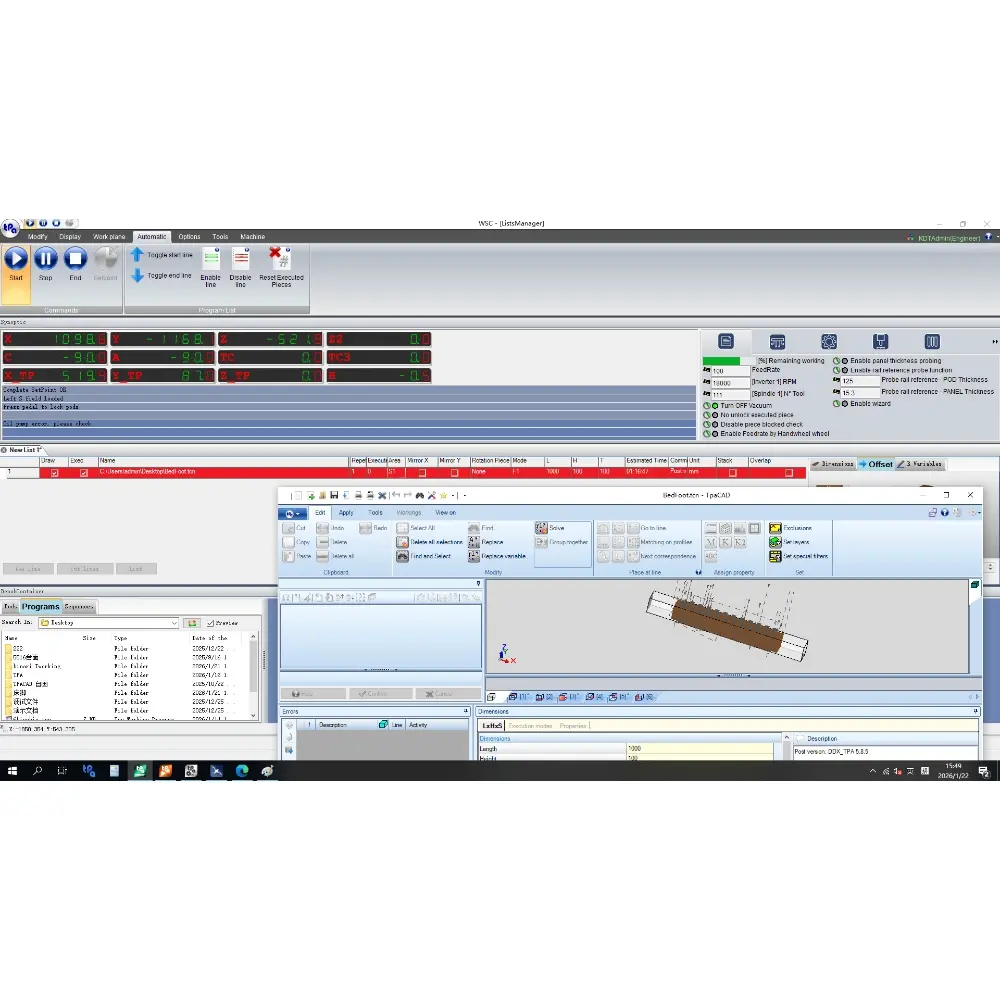

Control System
TPA control system, integrated operation, drawing function in one.

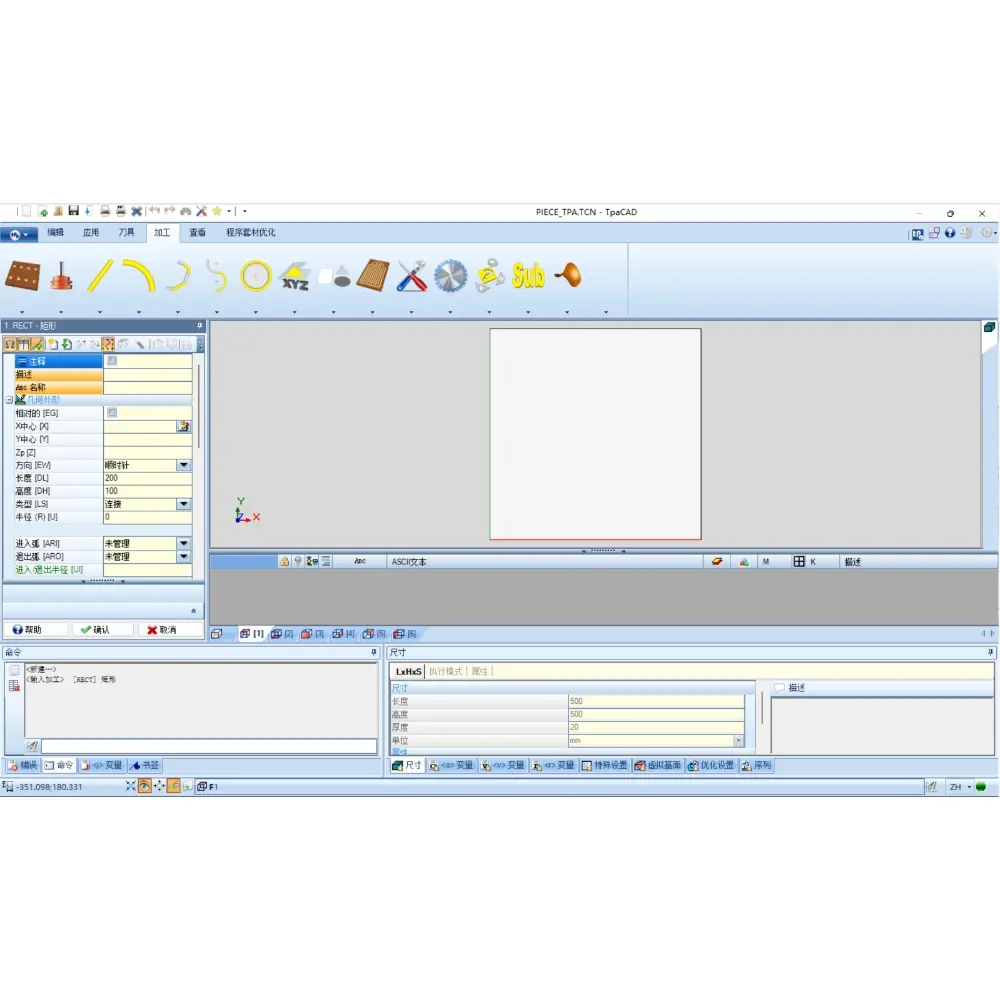

TPA CAM Software
The TPA system comes with built-in graphic programming, compatible with 3-axis / 4-axis machining, enabling efficient docking with equipment.

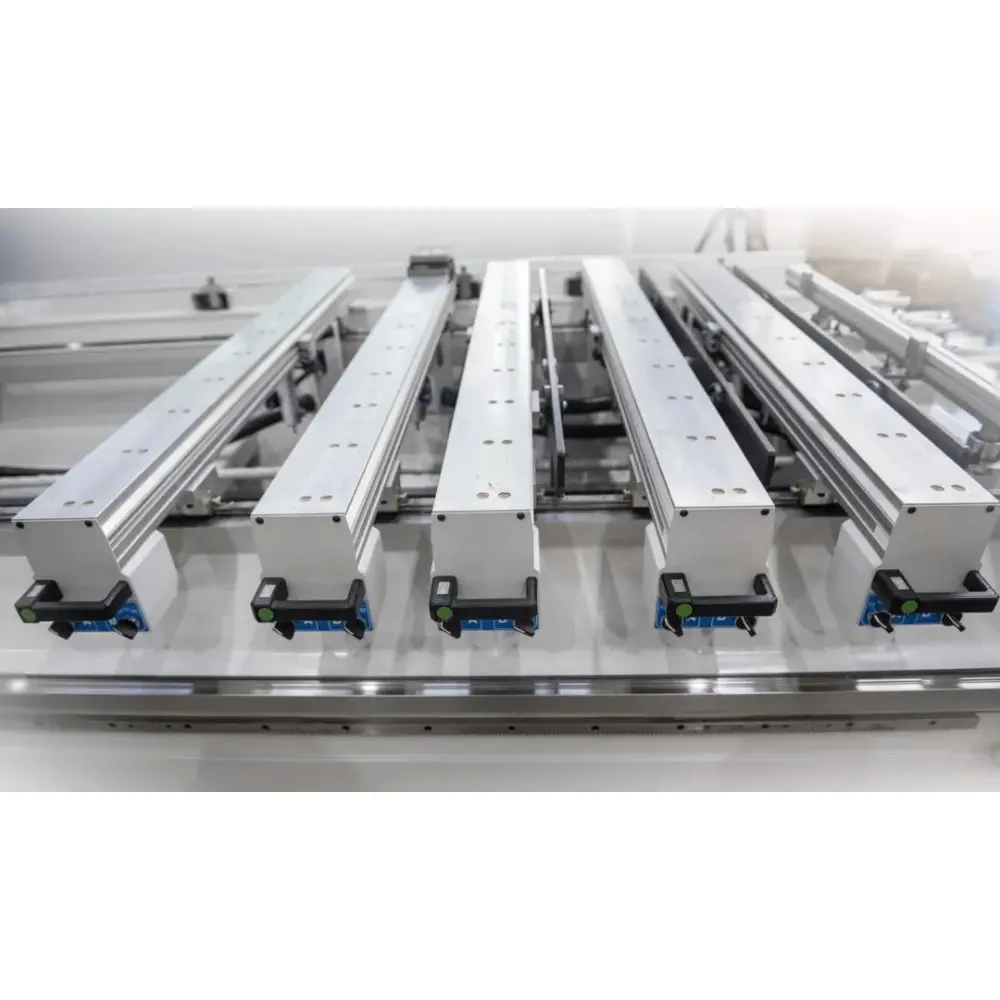

High rigid bridge
8 sets of movable bridge frames, equipped with German Schmalz suction cups, allow free combination and flexible configuration, enabling fast loading and unloading of workpieces.

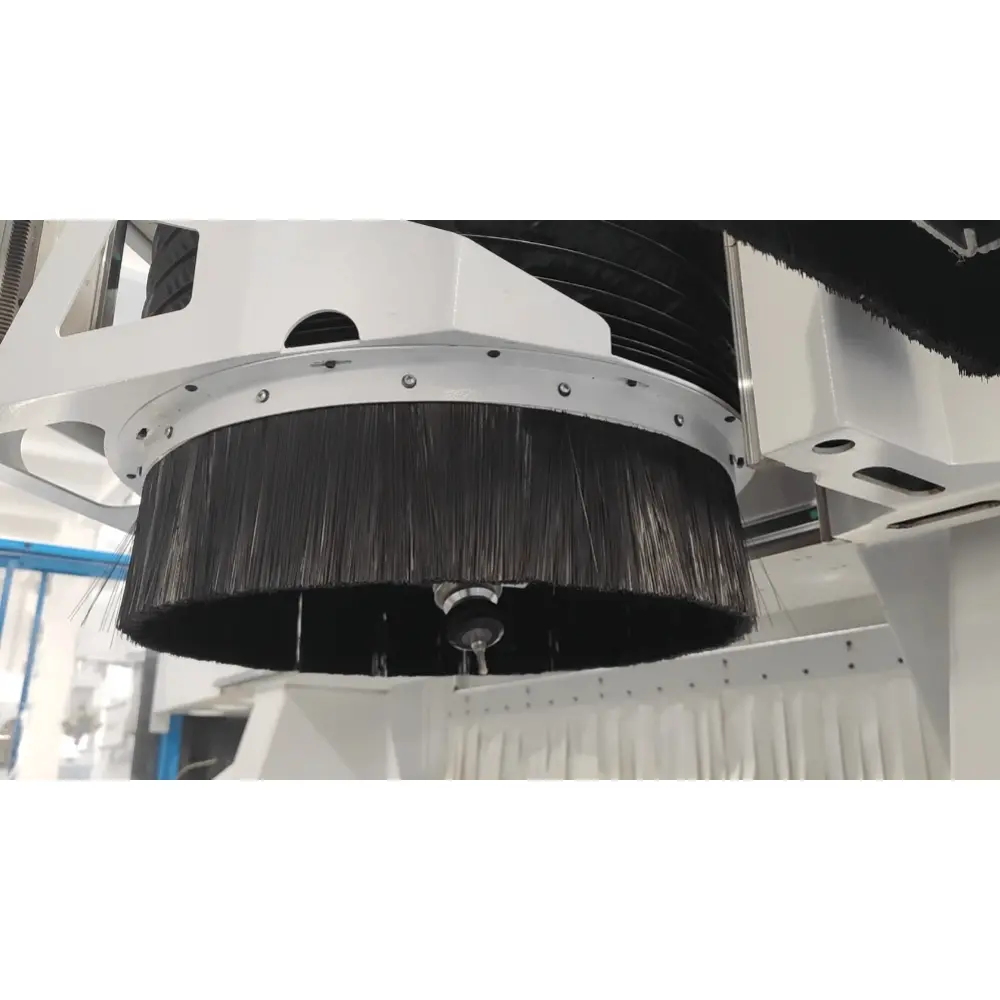

Flexible servo vacuuming
According to the height and angle of the spindle tool, intelligent positioning vacuuming.

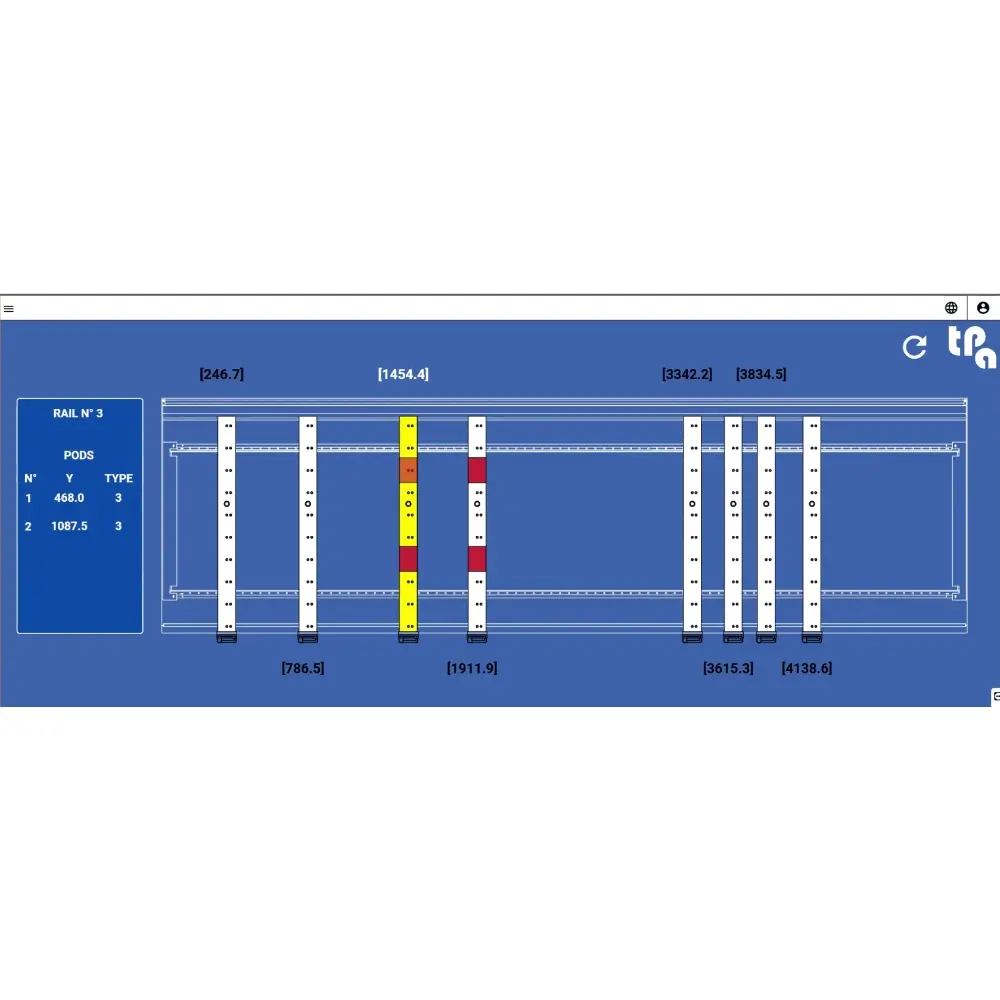

Laser positioning
Suction tray bridge laser positioning, accurate position, fast speed.

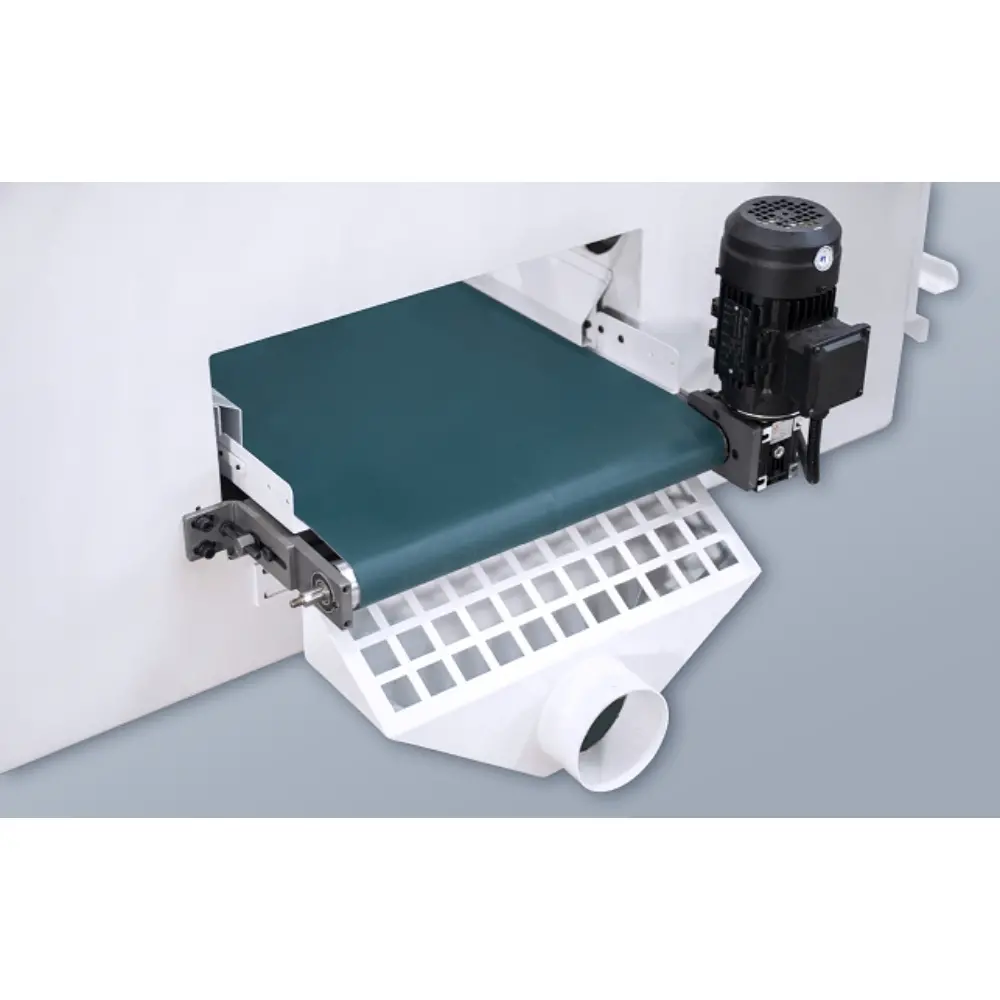

Dust Collection System
Dust and chips automatically collects and removes.

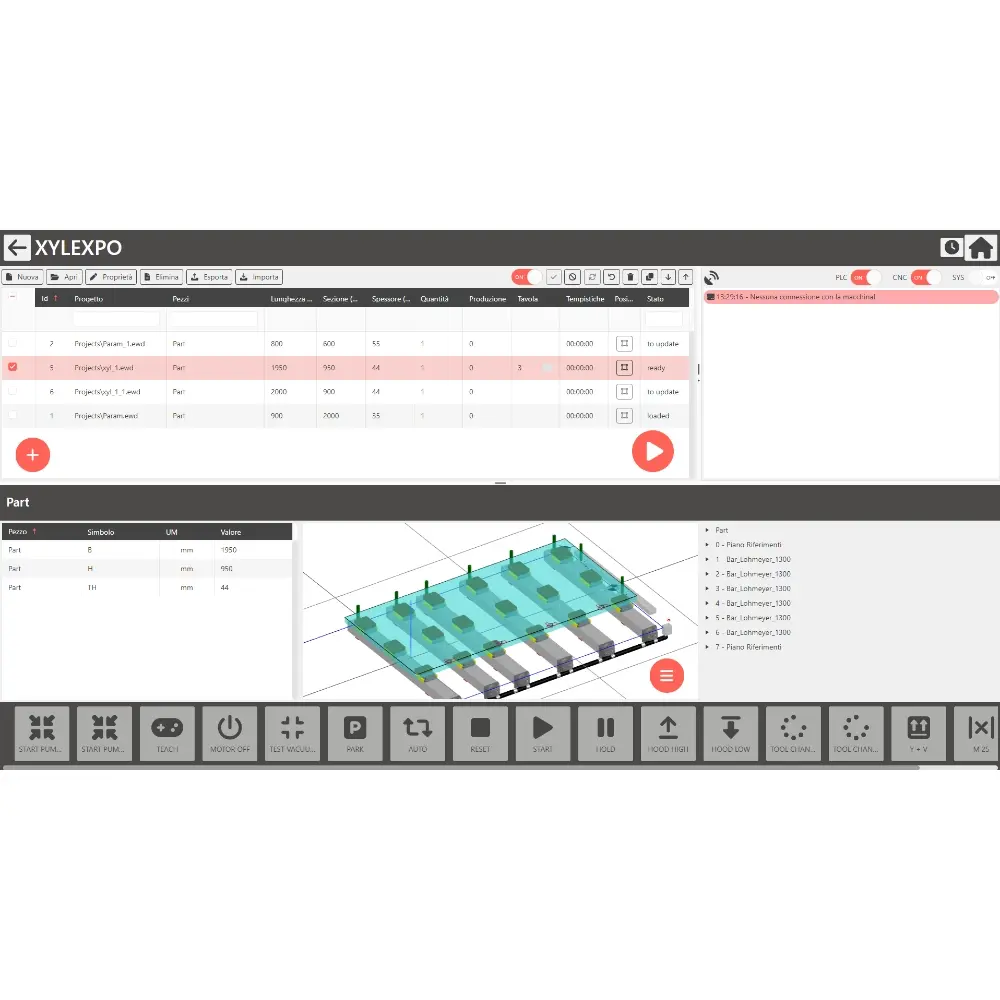

Optional:DDX Machining Software
Five-axis linkage programming and simulation, optimized machining paths
and efficient equipment integration.
| KN-5516P | |
|---|---|
| Domestic Packing size | L*W*H:7800*2320*2500(mm) |
| Export Packing Size | L*W*H:7800*2320*2500(mm) |
| Weight | 7000kg |
| Effective working size (mm) | 5150×1500×200 |
| Vacuum Capacity | 244 m³/h |
| Drive system | INVT |
Max.moving speed X/Y/Z1/Z2/B/C | 80/80/25/25(m/min) 90(°/s) |
| Drill Head | 12V+8H+1S |
| Operating system | TPA |
| Spindle | HSK-F63 |
| Spindle power (standard) | 12kW |
| Type of ATC | Servo Rotary+linear |
| Numbers of Tools changers | 22 pcs Rotary+16 pcs rotary +5 pcs Linear ATC+1 blade magazine |
| Working pressure | 0.65MPa |
| Dust extraction volume | 4347 m³/h |
| Total Power | 30.8kW |
