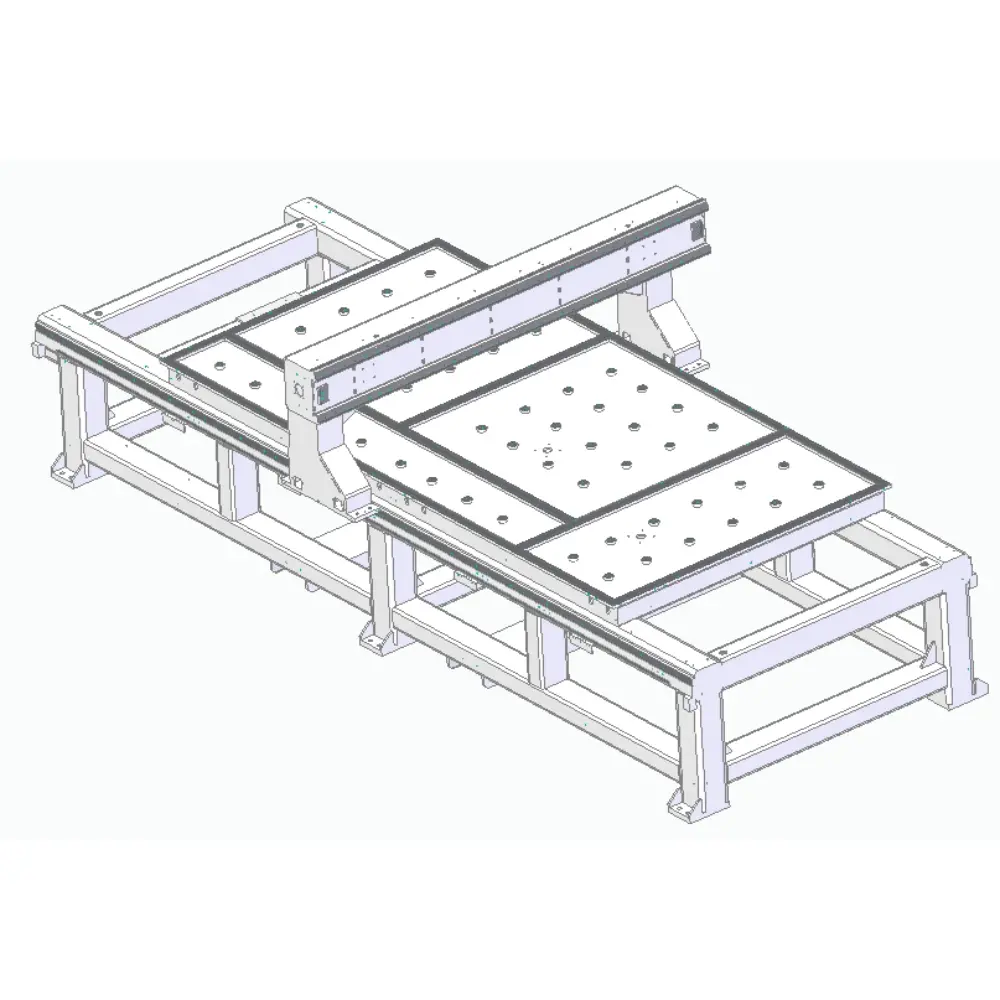

Vacuum chanmber,Rigid frame
The machine frame with annealing treatment ensures stable and reliable running;Specified vacuum tables guarantee stronger absorption.

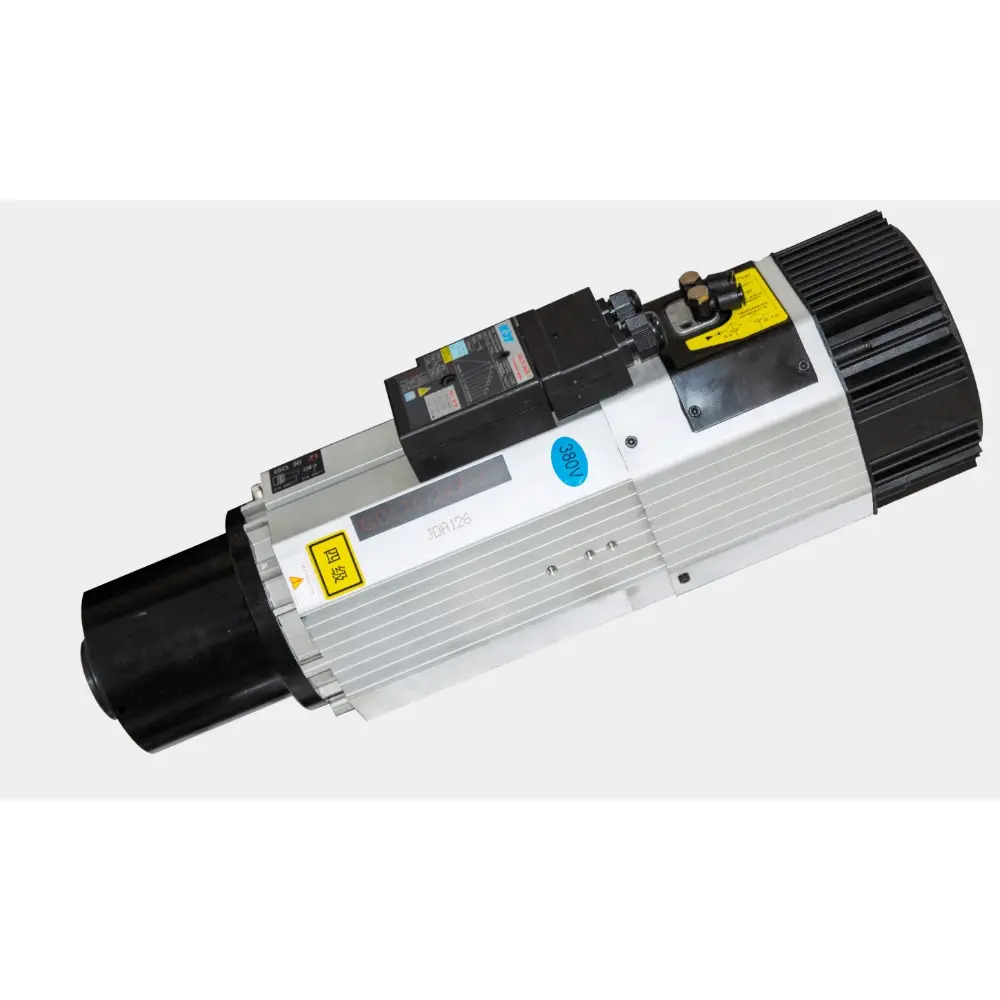

Spindle
12KW ISO30 spindle，High power，high accuracy and long service life.

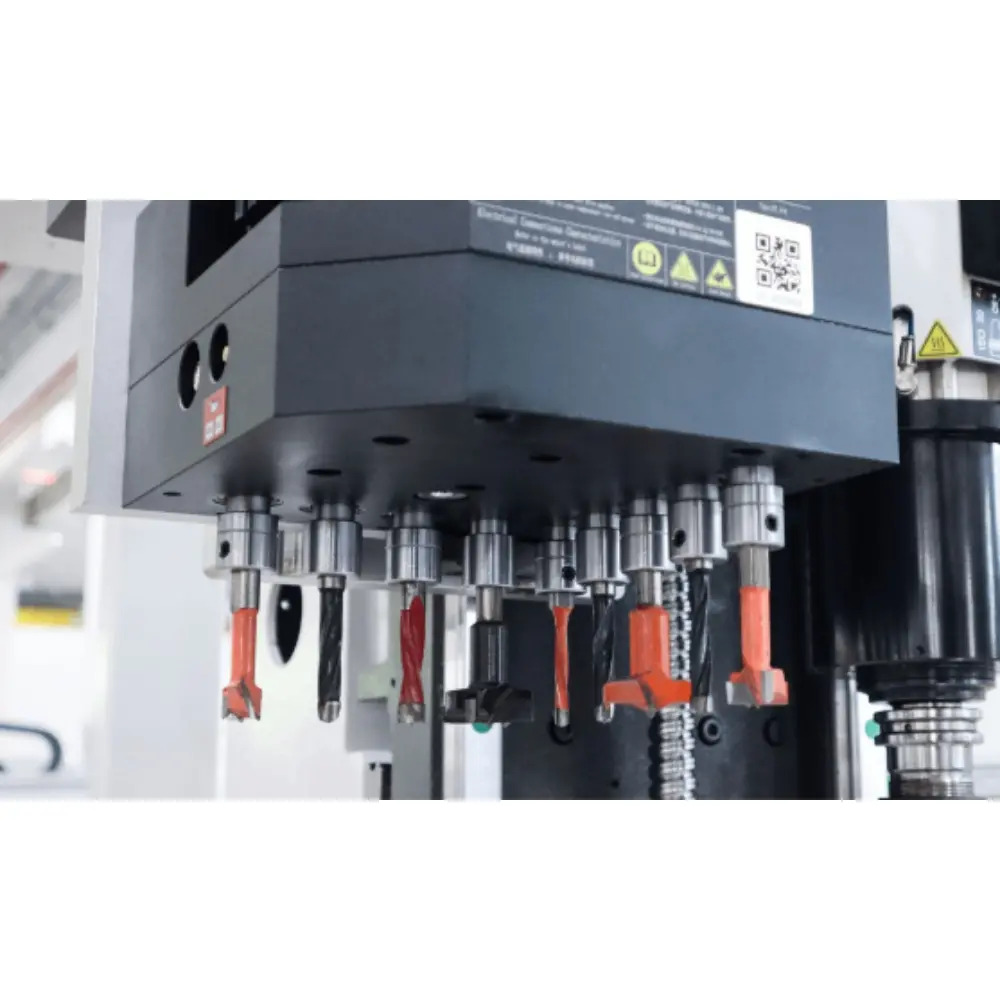

Drill Head
10V drilling head for D model,stonger pressure on drilling enures stable drill and drill depth, to realize efficient work.

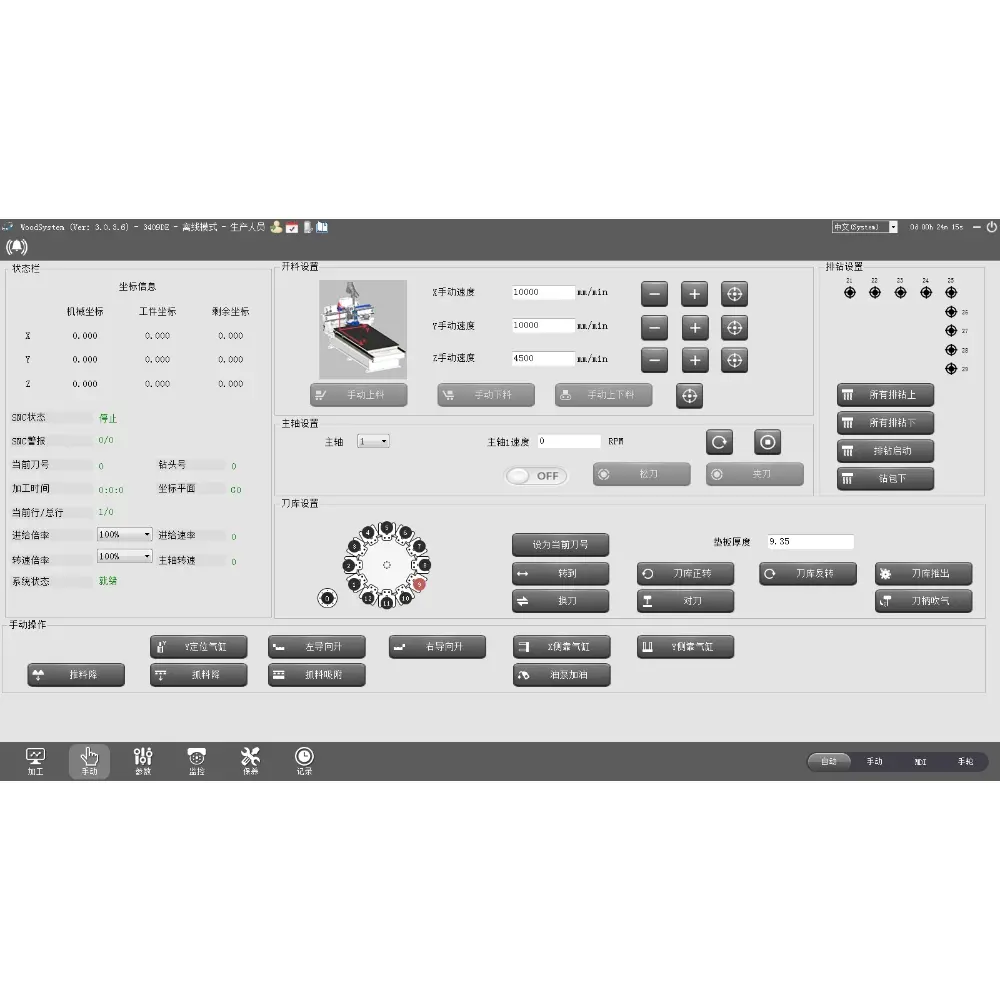

Control System
Delta bus control system; Intutitve control panel, easy operation, fast reponse,and high position accuracy;Available for remote control, convenence in maintenenc and management;built in graphic software,fast drawing and optimized path simulation.

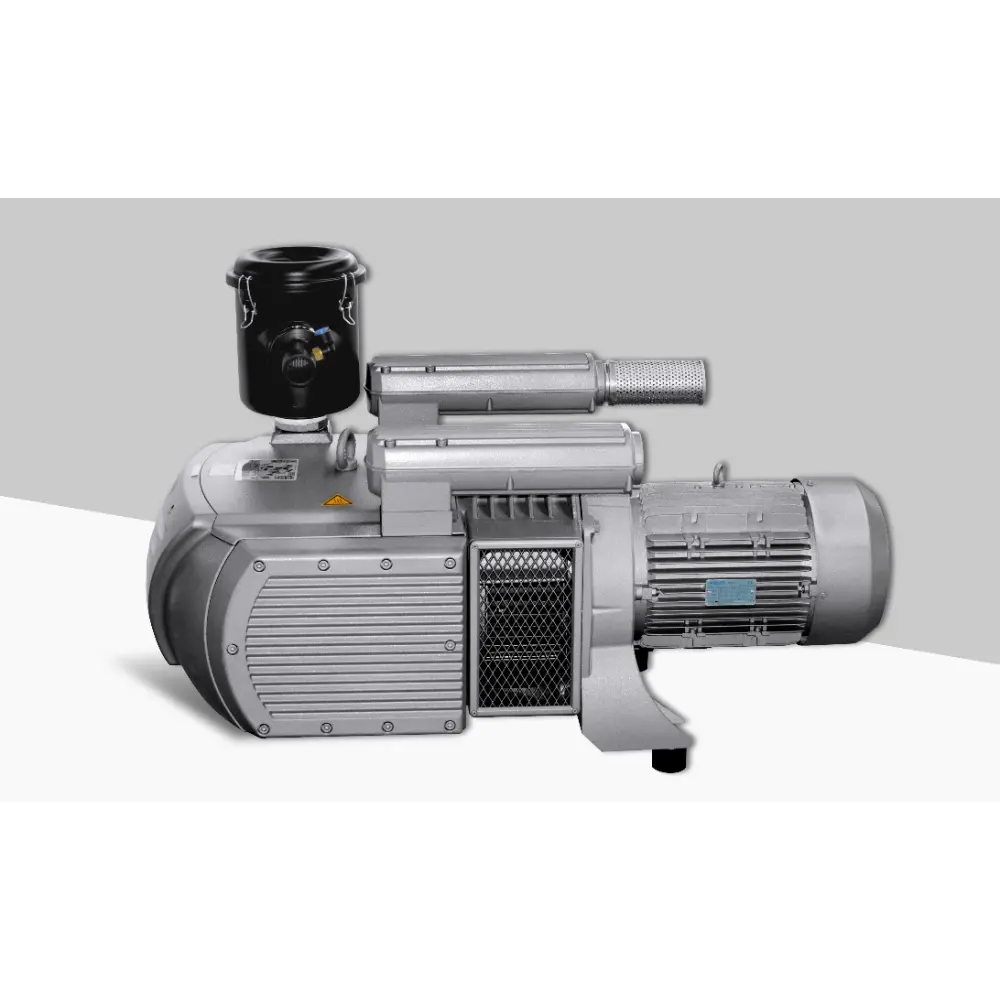

Vacuum pump
Dry air-cooled Becker pump with capacity 244m3/H which ensures strong vacuum sution and prevents small board deviation.

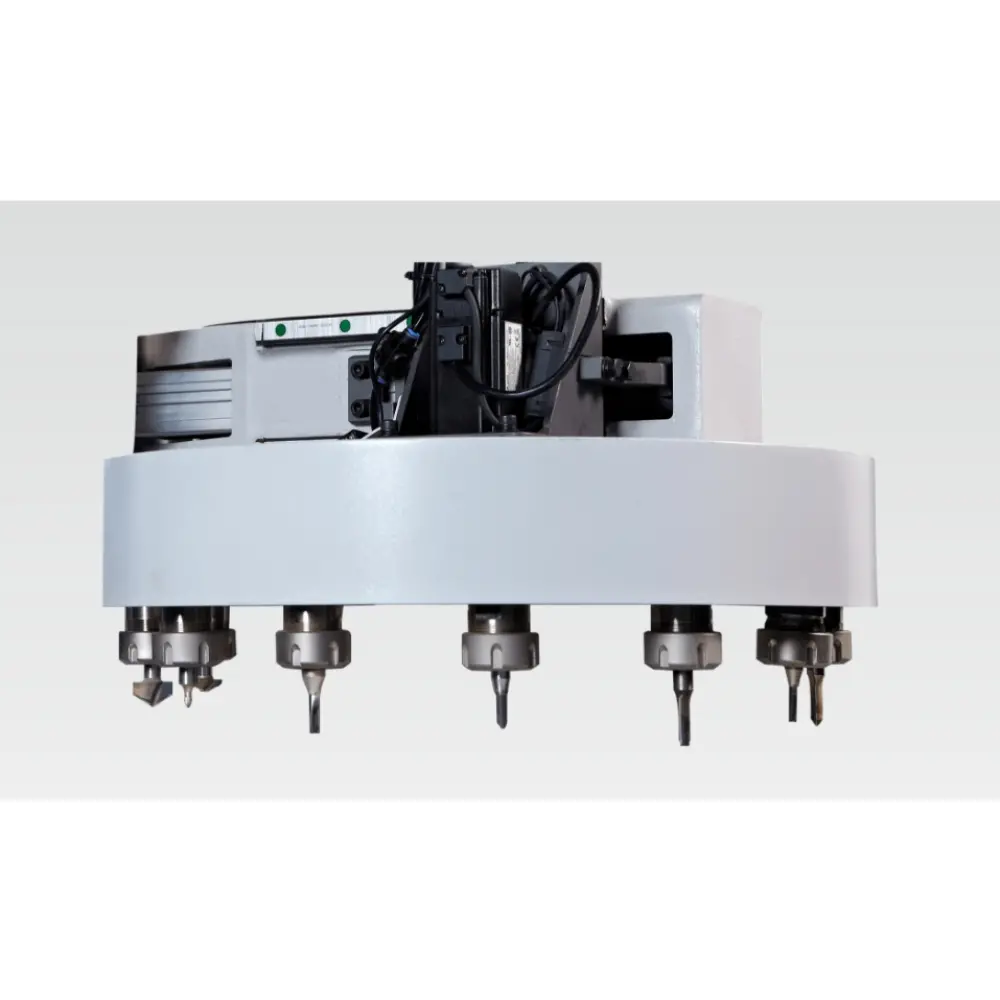

Tools Changers
12-post rotary ATC ,quick changeover and high accuracy and stability.

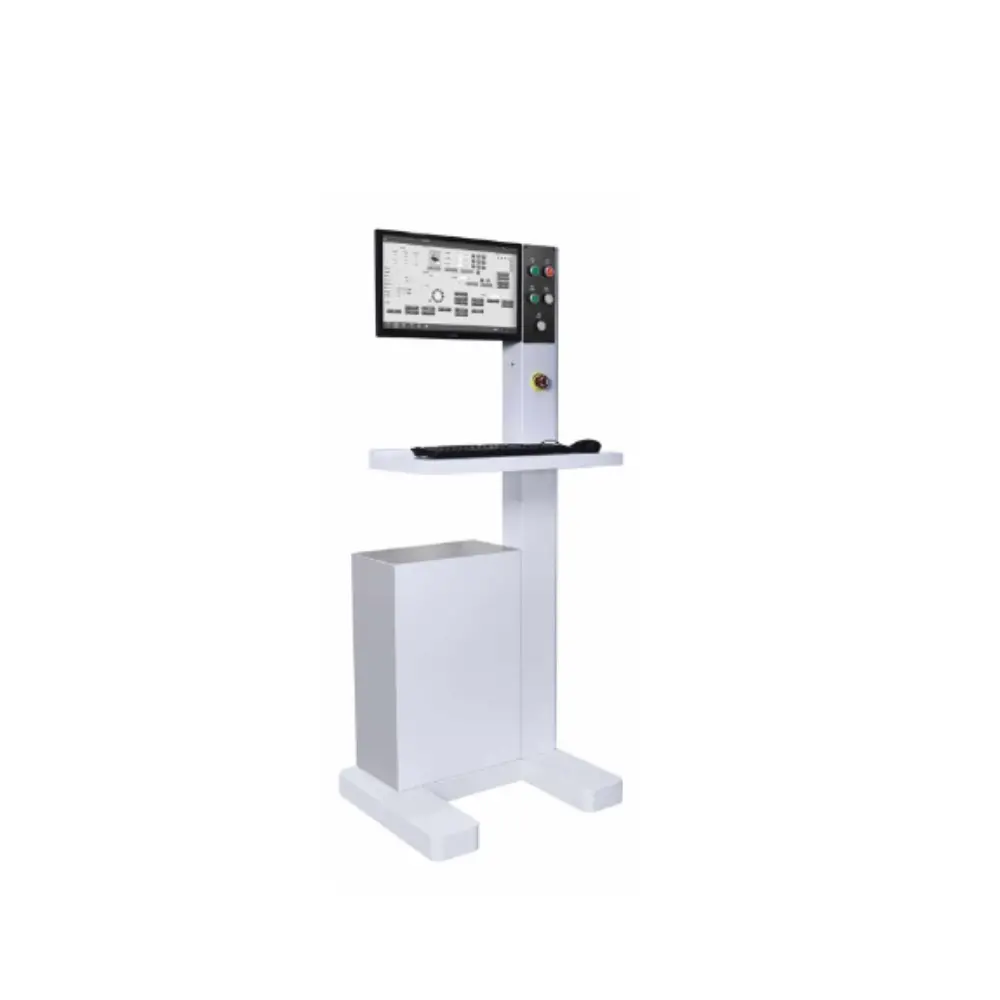

Movable Control Panel
Control panel is movable at any position, convenient for operation.

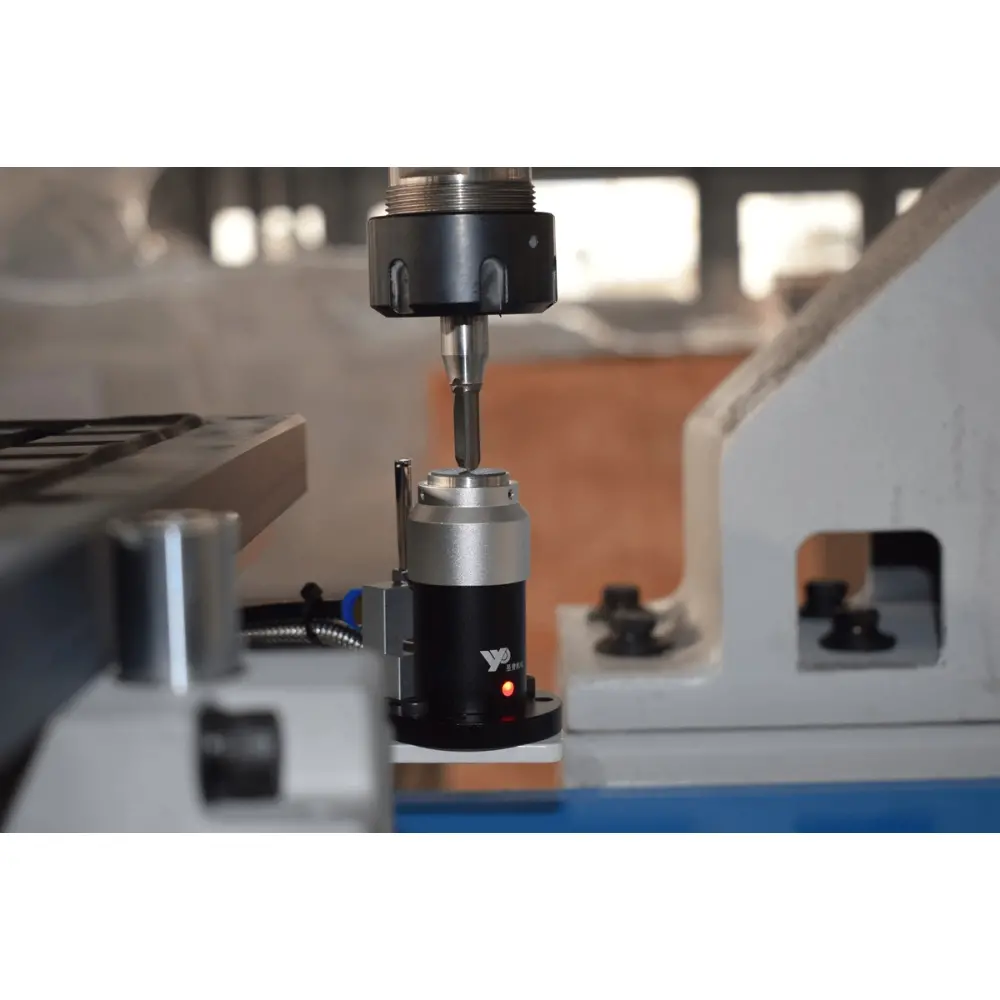

Tools Pre-setter
High precision in tools measurement.

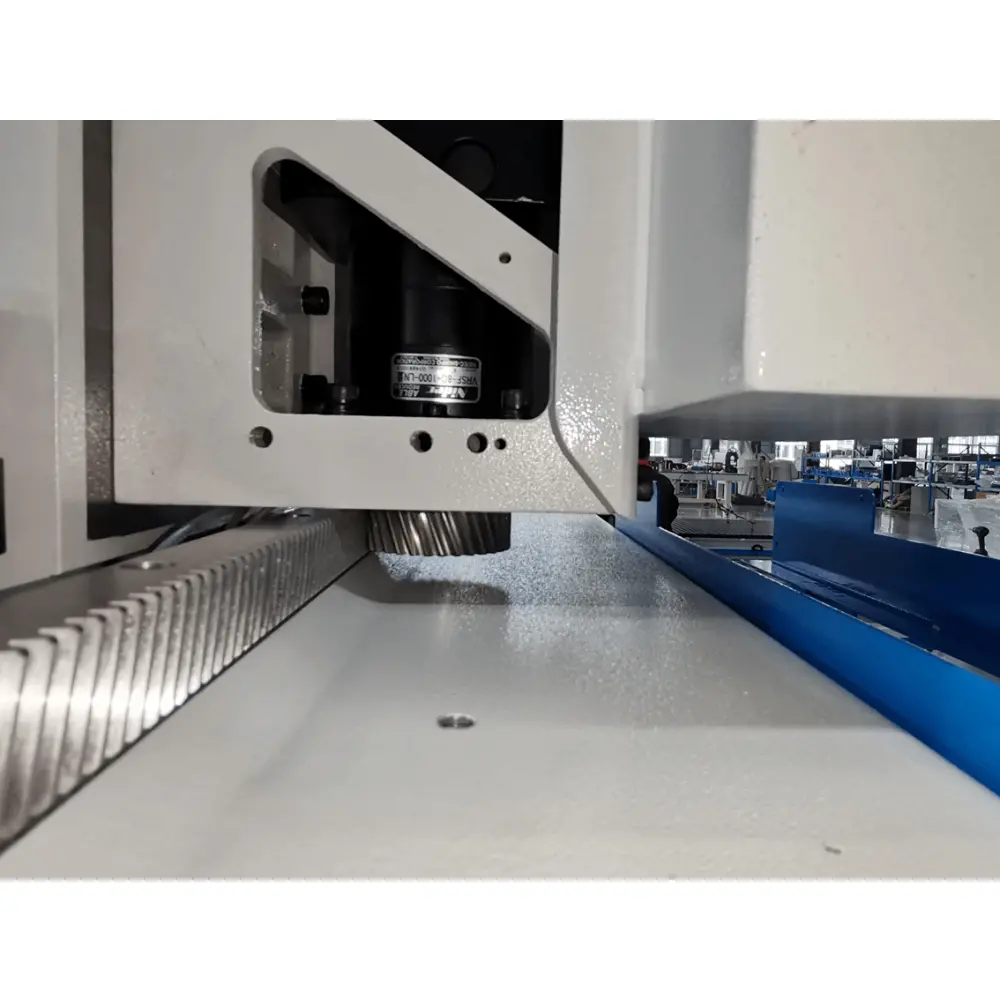

Motion Machanism
X/Y axis transmits along helical gear&rack ,high accuracy and stable run.

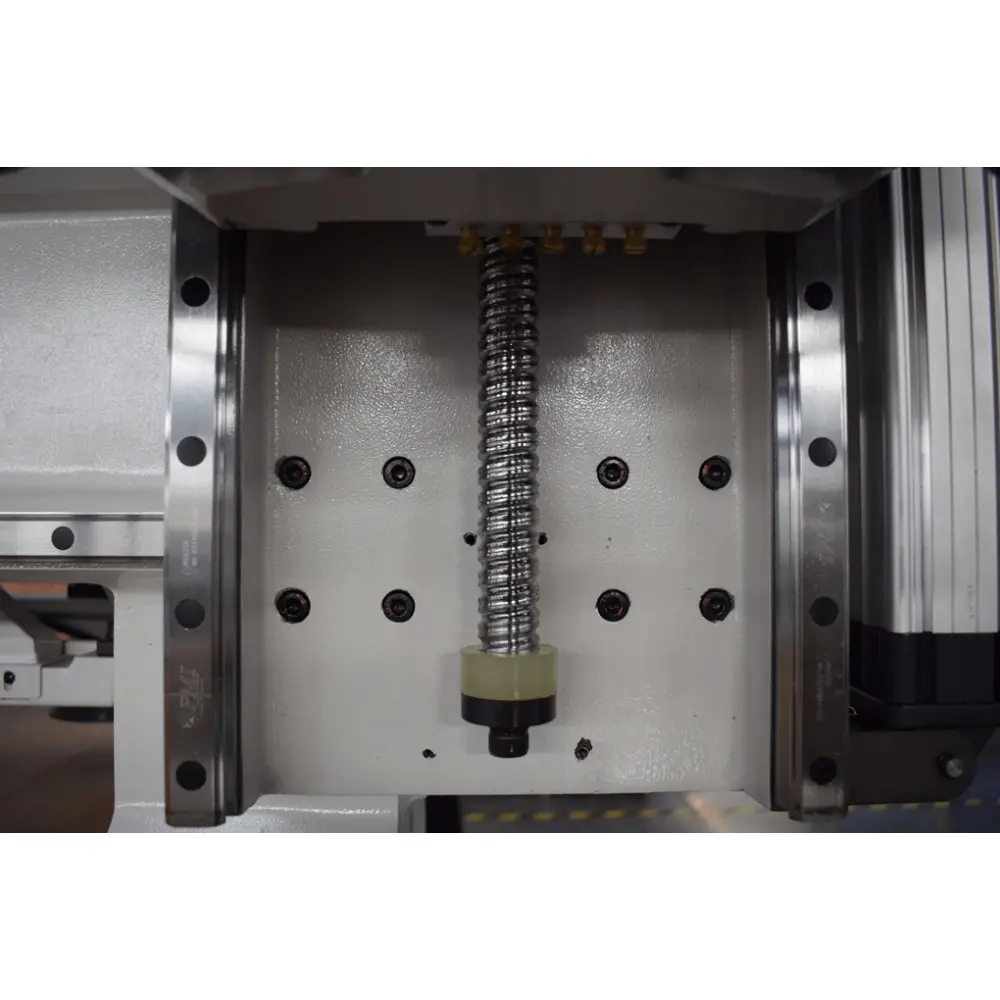

Transmission Machanism
Z axis is driven by ball screw,high precession in motion and compact structure.

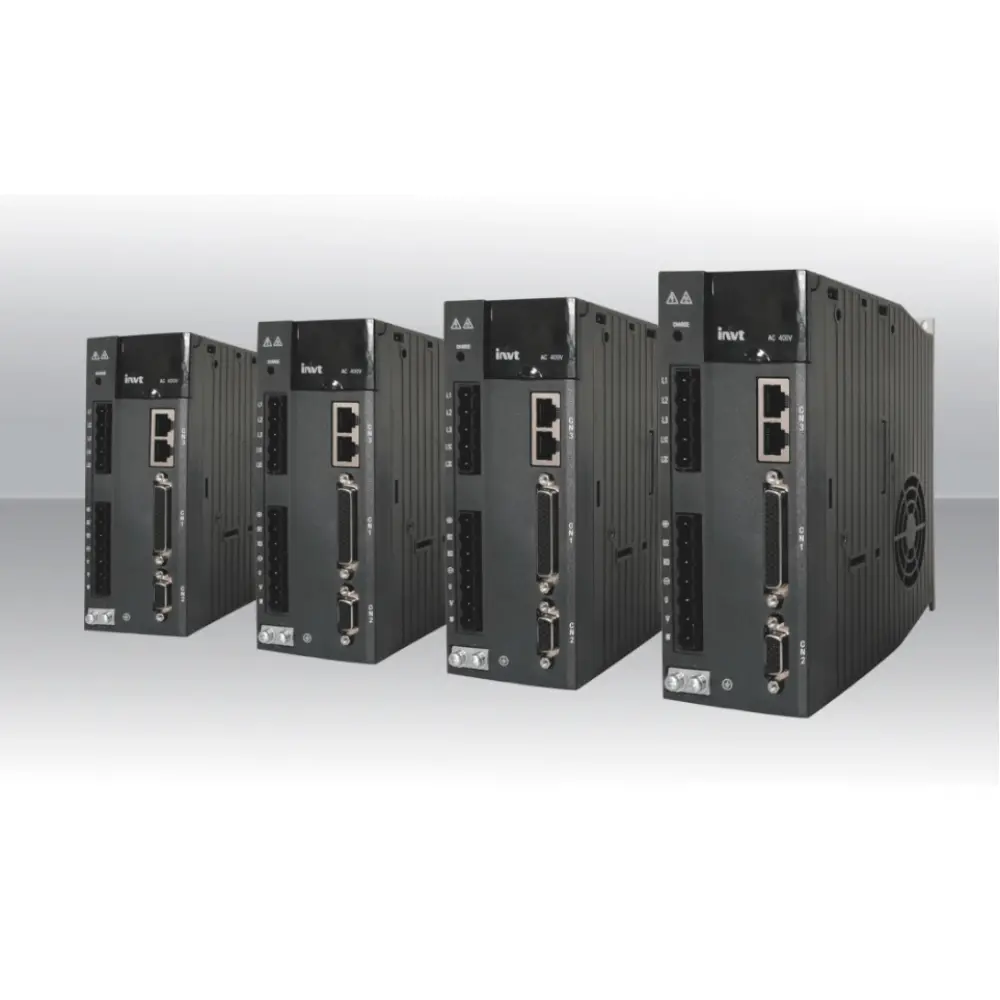

Servo Drive
1.5kW High power high performance Servo Motor equiped, max.speed up to 80m/min.

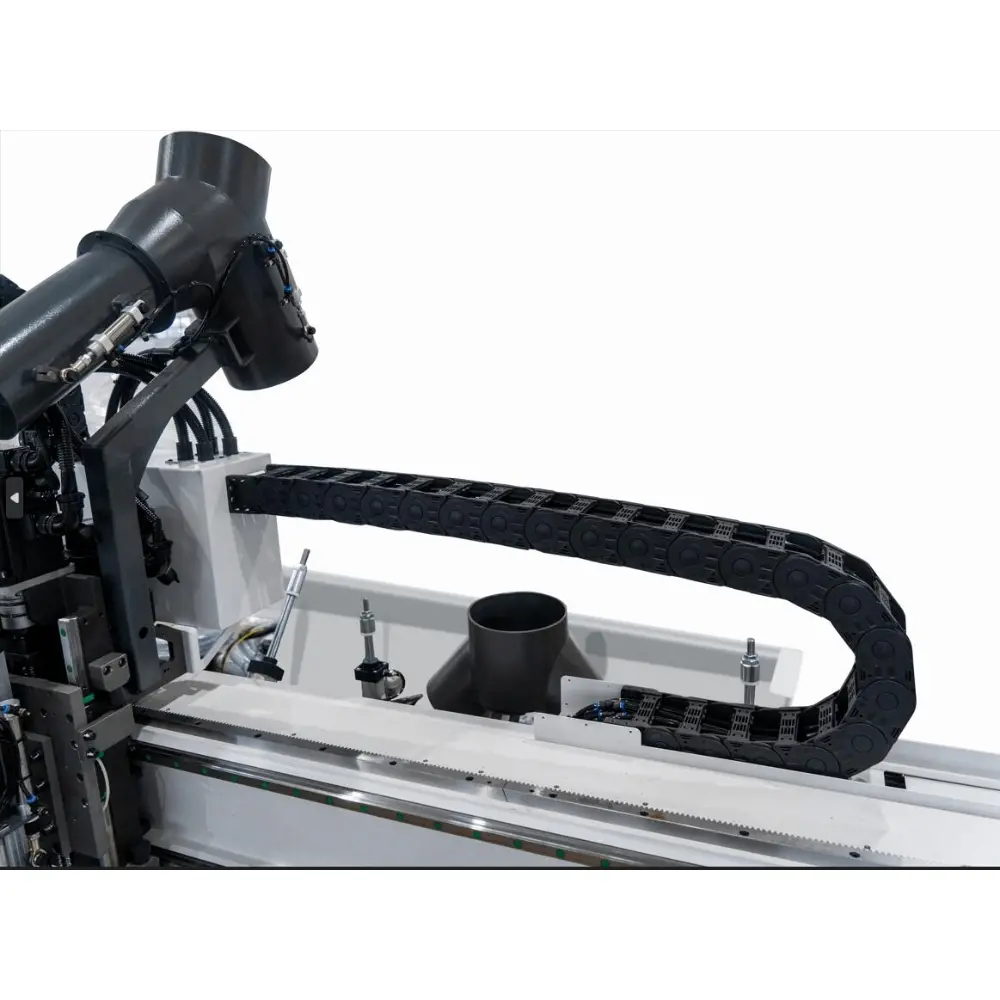

Imported Cable
Imported Cable guarantee high quality, ensures stable run and durable service.

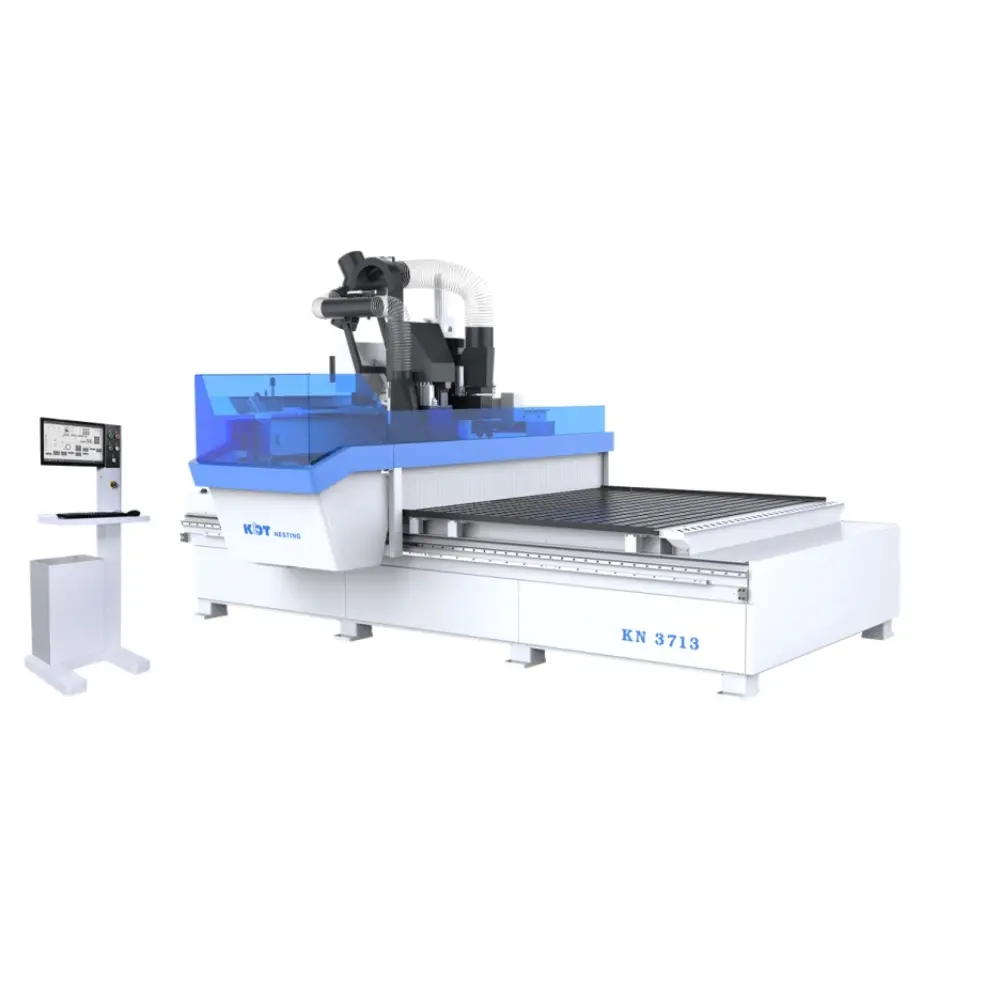

| KN-3612DE | |
|---|---|
| Domestic packing size | L*W*H: (Machine) 5100*2500*2300(mm) (Vacuum) 1300*1500*800 (mm) |
| Export Packing Size | L*W*H:5750*2330*2300(mm) |
| Weight | 4500kg |
| Operating system | Delta |
| Drive system | INVT |
| Vacuum Capacity | 2*244 m³/h |
| Vacuum zone | 4 |
| Effective working size | 3700mm*1830mm*80mm (Pressure Roller Optional: 3700*1830*40mm) |
| Spindle | 12kW(ISO-30) |
| Drilling head | 10V |
| Numbers of Tools changers | 12 fold |
| Size&QTY of Dust Hood | Φ200mm*1 |
| Total Power | 31.6 kW |
| Overall Size | |
| Max.moving speed | X: 80 (m/min); Y: 80 (m/min); Z: 30 (m/min) |
| Working pressure | 0.65 Mpa |
