Smart Machining Centers

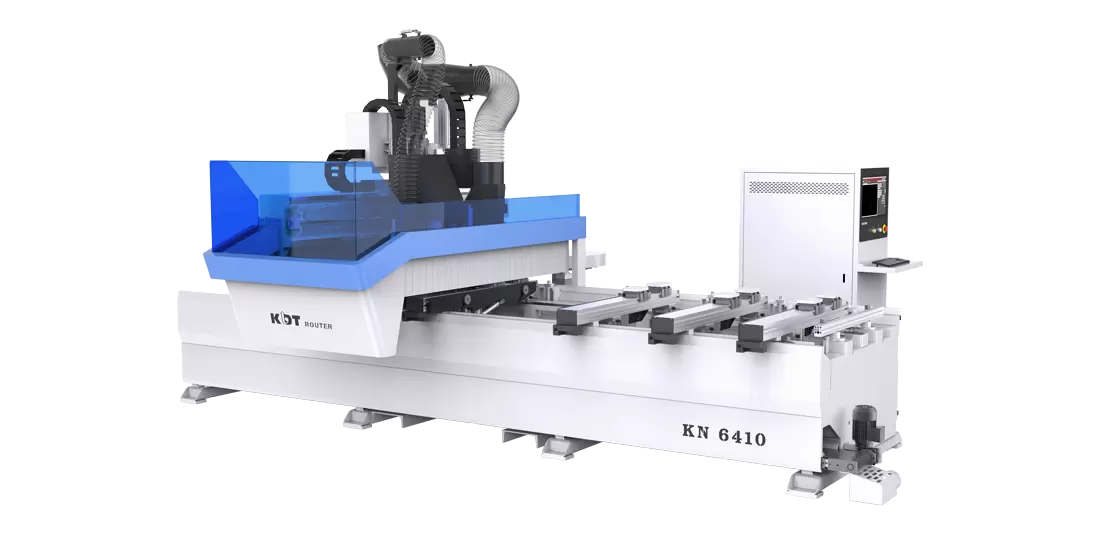

KN-6410NC
FEATURES
TPA Control system
The Italian T.P.A. control system integrates operational controls and graphic drawing capabilities in a single unit
Spindle
12kW high-power spindle
Drill Head
12V 8H 1S, continuous drilling according to demands, efficient work achieved
C axis
Standard with a C-axis, can be used with various angle heads to achieve special processes such as bevel cutting and 45° inclined lamino and so on
Precision Tool Touch Off
The tool setting is more accurate and the efficiency is more improved

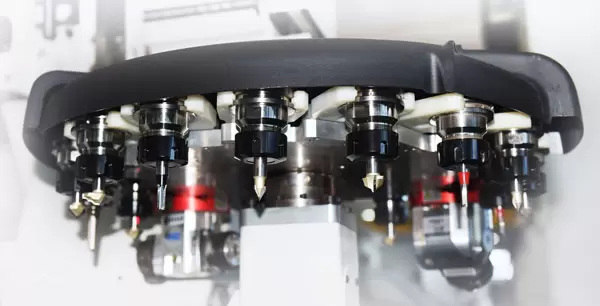

Tool Magazine
16-position rotary auto tool change which can change tools accurately and quickly, it can fulfill the needs of multi-process tool changes

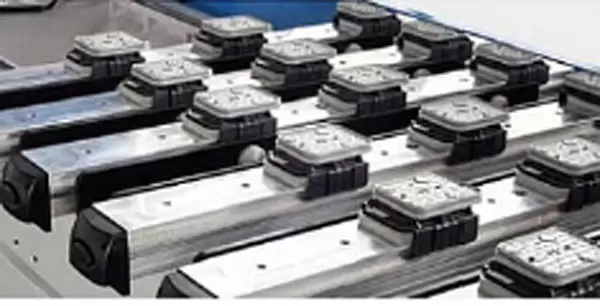

Pod&rail table bridge
6 sets of Pod&rail table bridge, free and flexible combination of fast loading and unloading parts
Automatic conveying and dust removal system
Improve dust removal effect and facilitate maintenance
Automatic lubrication system
Automatic lubrication of the transmission mechanism to ensure the long-term stable operation of the equipment
TECHNICAL SPECIFICATIONS
| KN-6410NC | |
|---|---|
| Domestic Packing size | L*W*H:5800*2310*2350(mm) |
| Export packing size | L*W*H:5800*2310*2350(mm) |
| Weight | 5000kg |
| Effective working size | 3250mm*1250mm*200mm |
| Min.working size | (L*W)：320mm*90mm |
| Vacuum Capacity | 129 m³/h |
| Drive system | INVT |
| X/Y/Z Max.Moving speed | X: 80m/min; Y: 75m/min; Z: 30m/min |
| Drill Head | 12V8H1S |
| Operating system | TPA system |
| Spindle | HSK-F63 |
| Spindle power (standard) | 12kW |
| Type of ATC | Servo magazine |
| Numbers of Tools changers | 16 |
| Working station | Double working stations |
| Working pressure | 0.65MPa |
| Dust extraction volume | 2660 m³/h |
| Total power | 24kW |
