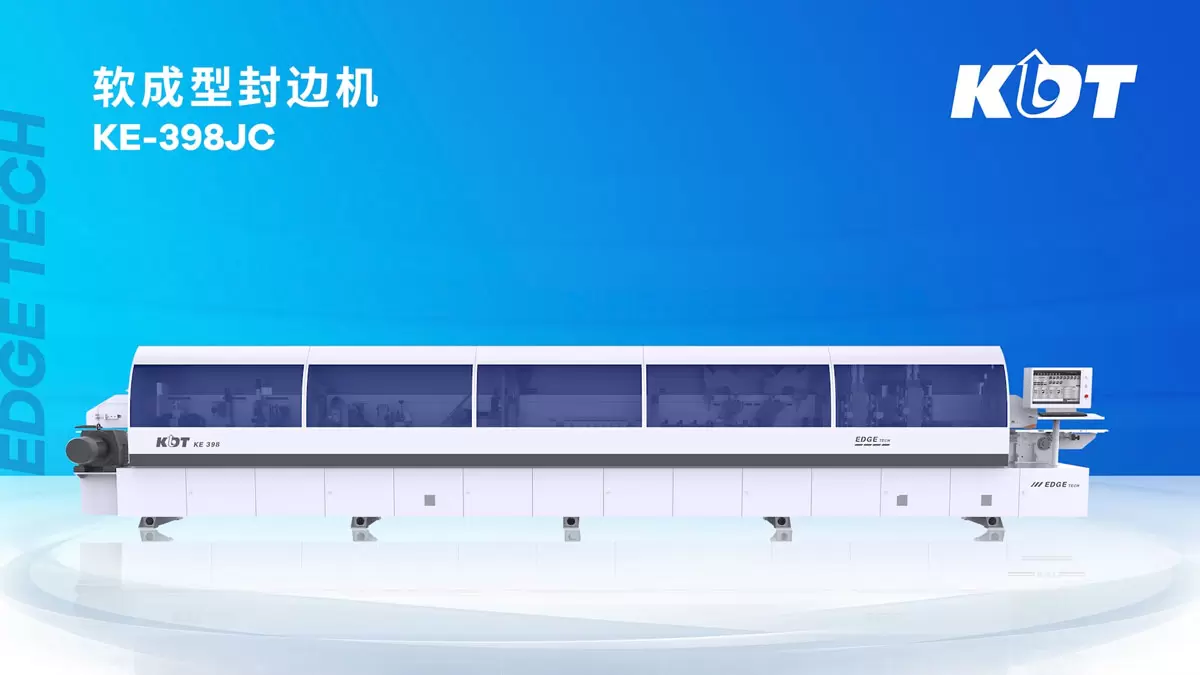

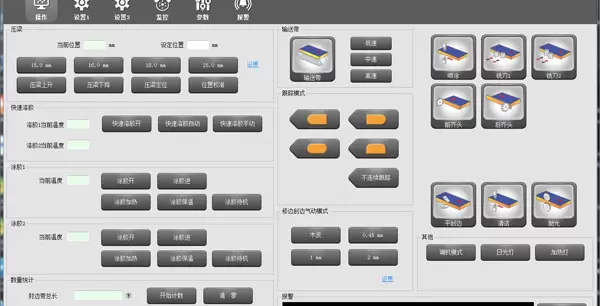

PC Intelligent Control System
Equipped with a 19.1-inch touch screen, it features a user-friendly interface for clear image display and simple, convenient operation. Fault information is displayed visually through images and text, providing an intuitive understanding of the fault and troubleshooting methods, making maintenance easier.

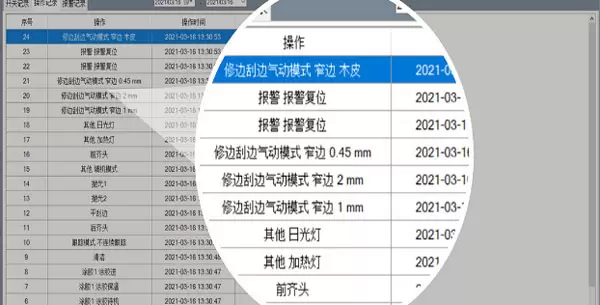

Data Collection
Real-time recording of equipment operation information, equipped with a data acquisition interface port.

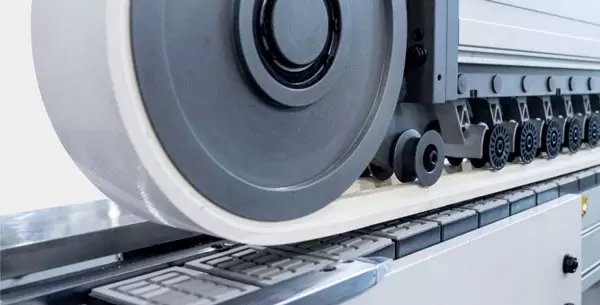

Track pressing material
To ensure the stability of wood board conveyance to the greatest extent, the processing and coordination precision of each process is high;
Pre-milling mechanism
Equipped with a standard 40mm milling cutter, it utilizes a dual-cutter system to refine ripple marks, burrs, or non-perpendicularity resulting from material cutting, achieving a superior edge banding effect. This ensures a tighter fit between the edge banding strip and the panel, enhancing overall integrity and aesthetics.

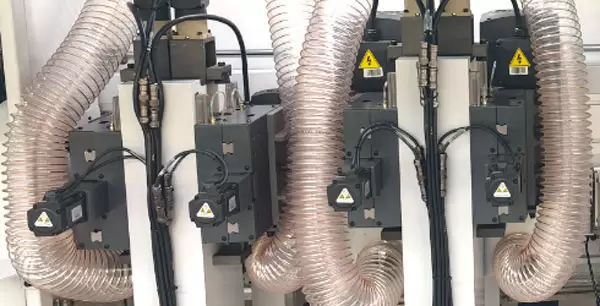

Servo-controlled rough and fine milling mechanism for molding
With four servo motors controlling the up-down and front-back movements, the tool height and feed position are precisely controlled. The dual tool position design allows for one-click switching between different shapes. The combination of rough and fine milling ensures the accuracy of the shape, resulting in a milled surface free of burrs and granular feel.
Servo chamfering mechanism
Servo control allows for one-click switching between different sheet heights, ensuring precise edge rounding.

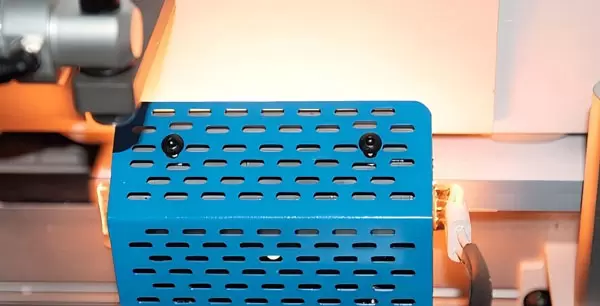

Preheating device
Preheating the board makes it easier for the glue to adhere; instantaneous heating upon board contact reduces energy consumption and enhances edge bonding efficiency.

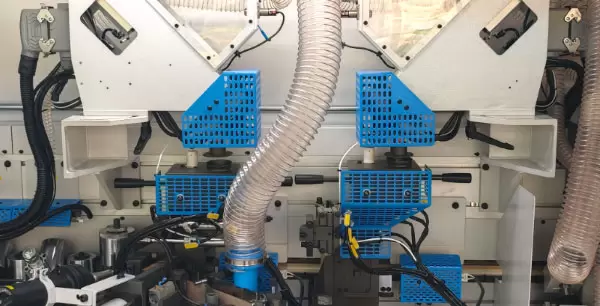

Panel gluing + Belt gluing
Intelligent switching based on different shapes saves glue and achieves better gluing effects.

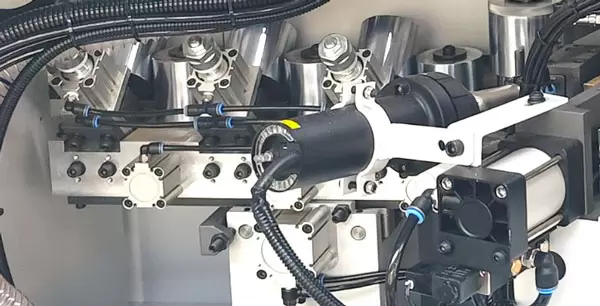

Integrated oblique and straight pressing and bonding
The inclined and straight wheels are arranged in a crosswise manner to ensure the pressing effect on the inclined and straight surfaces. The inclined and straight edges are pressed and can be switched with one key.

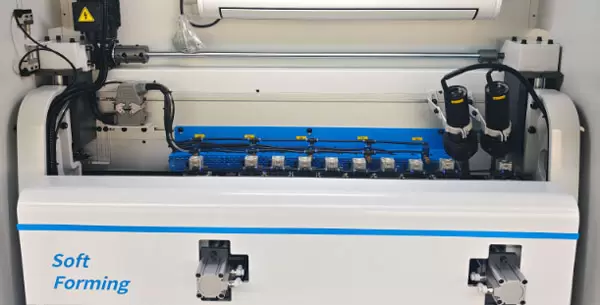

Servo-controlled molding and lamination
Servo control allows for one-click switching between different plate heights. With fully pneumatic precision in advancing and retracting, it can process various shapes. Multiple sets of baking lights and hot air guns provide heating, while nozzles cool down and constant temperature air conditioning ensures the edge strips are fully softened.
Edge-band cross-cutting mechanism
Cut the edge banding on the upper side of the board to reduce the allowance for rough trimming.

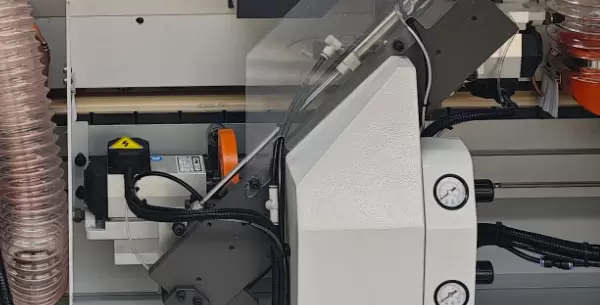

Leveling mechanism
Quickly cut the front and rear edge banding, process efficiently, and effectively enhance the processing quality.

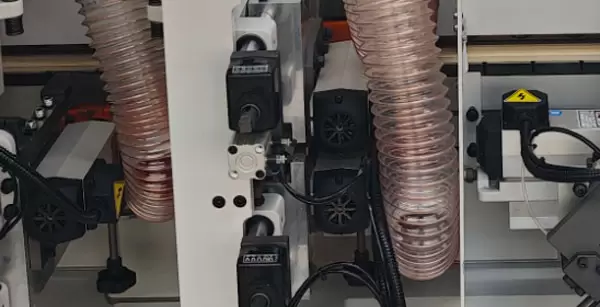

Flat and rough trimming mechanism
Trim the excess edge banding protruding from the upper and lower surfaces of the wood board, ensuring that the upper and lower edges of the edge banding align flush with the upper and lower surfaces of the wood board.
Servo trimming mechanism
Based on different designs, servo control and precise contouring trimming are employed to create rounded corners on the upper and lower edges of the sealing tape, resulting in a more perfect effect.
Servo edge scraping mechanism
Based on different designs, servo control and precise contour scraping eliminate the wavy marks produced during trimming and cutting, making the board more aesthetically pleasing.
Servo-controlled flexible flat scraping mechanism
Based on different designs, servo control is used to precisely contour and remove excess glue lines, enhancing the quality of edge banding.

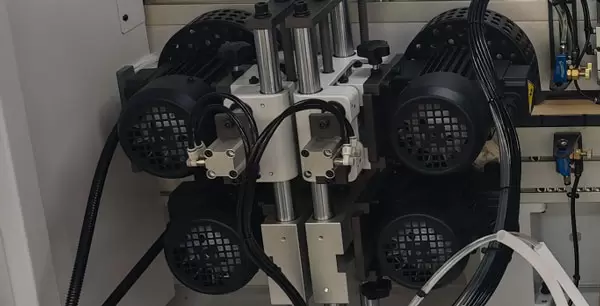

Contour polishing mechanism
Based on different shapes, contour polishing is applied to the upper surface for a more perfect effect. The cotton polishing wheel removes the residual glue and debris on the upper and lower surfaces of the board, making the edge-sealed board cleaner and smoother.
Demolding and cleaning mechanism
Apply cleaning agent to the upper and lower surfaces of the board, and use a polishing mechanism to clean the residual glue and debris on both surfaces. A layer of release agent can be sprayed on the upper and lower surfaces of the board to be edge-sealed, effectively preventing the hot melt adhesive from spilling and staining the board surface during the edge-sealing process.
Electric grease pump
Based on the machine's operating time, the guide rail is automatically lubricated at set intervals, eliminating the need for manual lubrication.

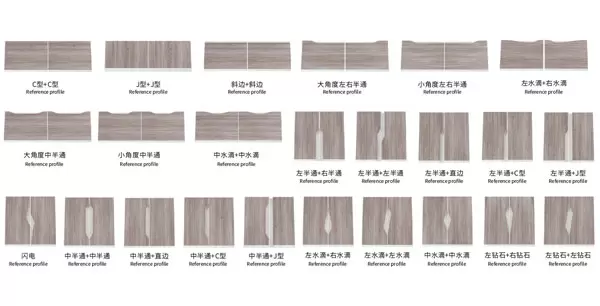

Handle shape diagram
| KE-398JC | |
|---|---|
| Feeding Speed | 8(m/min) |
| Tape Thickmess | 0.5-0.6(J. Type C)mm 0.45-1.0(Slant edge, straight edge) mm |
| Panel Thickness | 18-25 mm |
| Min.Panel Size | Straight edge:120*100mm Partial diamond, droplet shaped:350*100mm Half J-shaped, middle J-shaped, straight J/C, oblique edge:300*100mm |
| Total Power | 62.37 kW |
| Overall Size | 10291L*990W*1830H mm |
| Size & OTY of Dust Hood | Ф125*13 |
