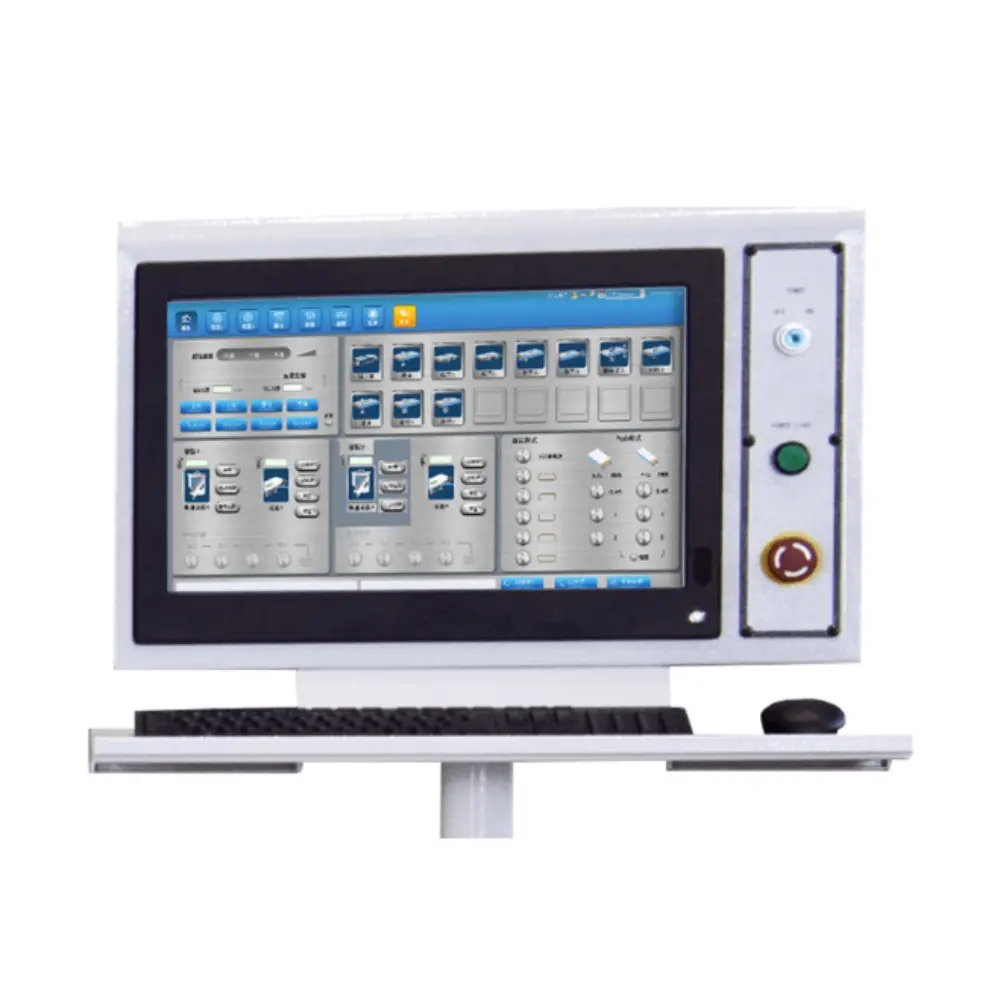

PC-based control system
The HMI touchscreen is clear and user-friendly and displays system faults in graphics and text for quick troubleshooting.

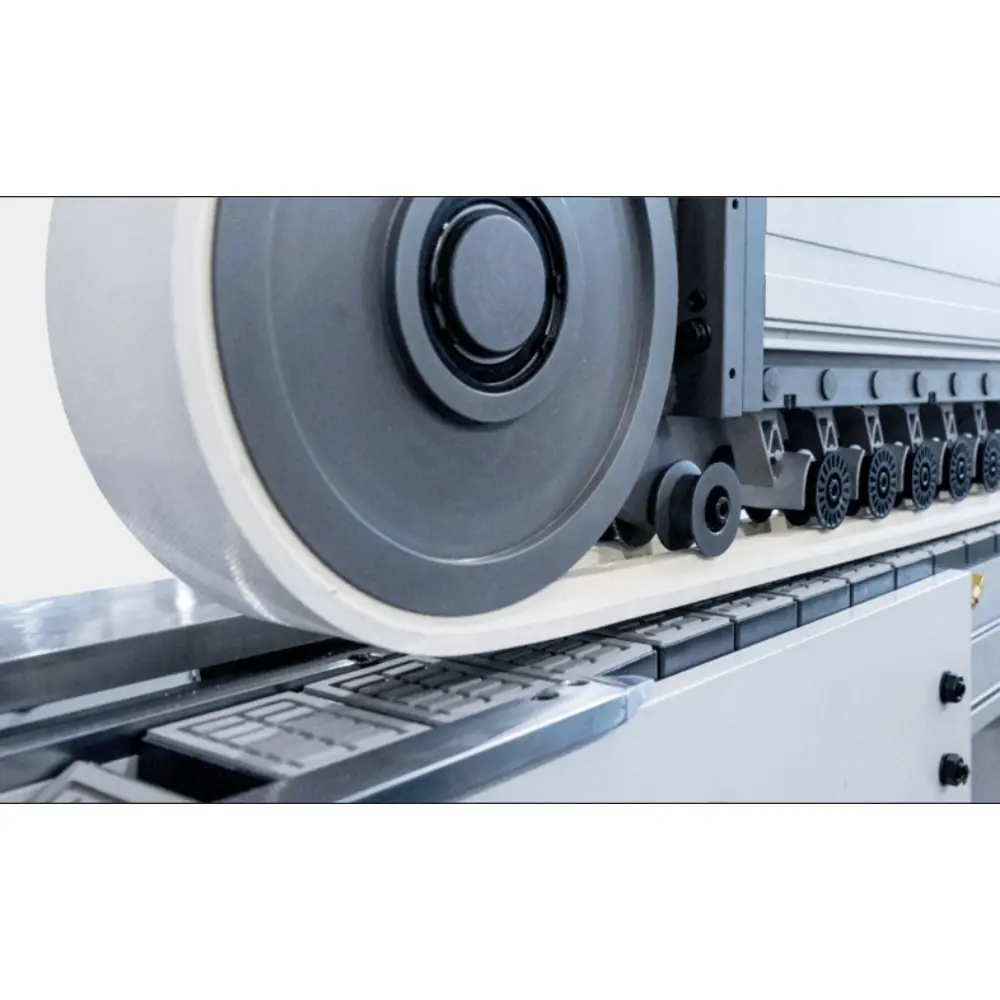

Pressure beam with V-belt
Maintain a large contact area on the panel for firm clamping and stable conveyance.

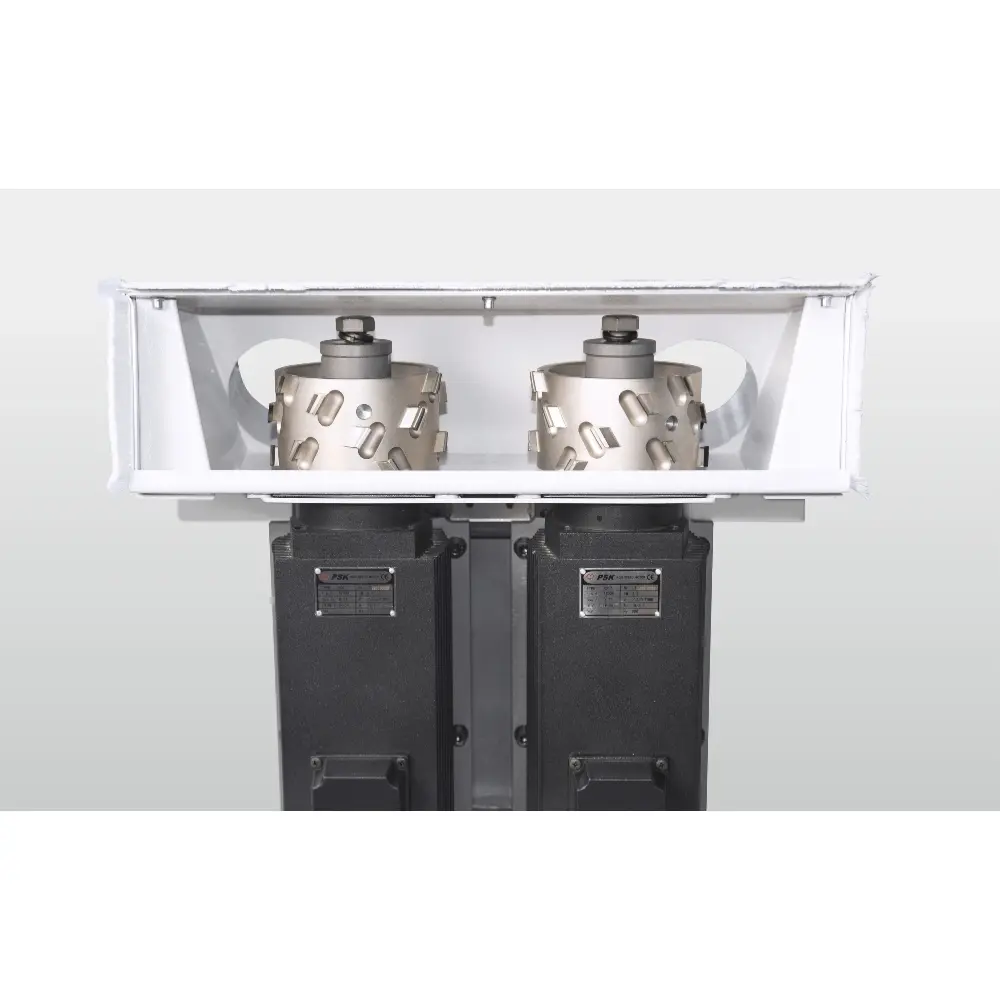

Pre-milling unit
Dual 40mm milling cutters eliminate waviness, burrs, and uneven surfaces to deliver smooth edges for tight tape bonding.

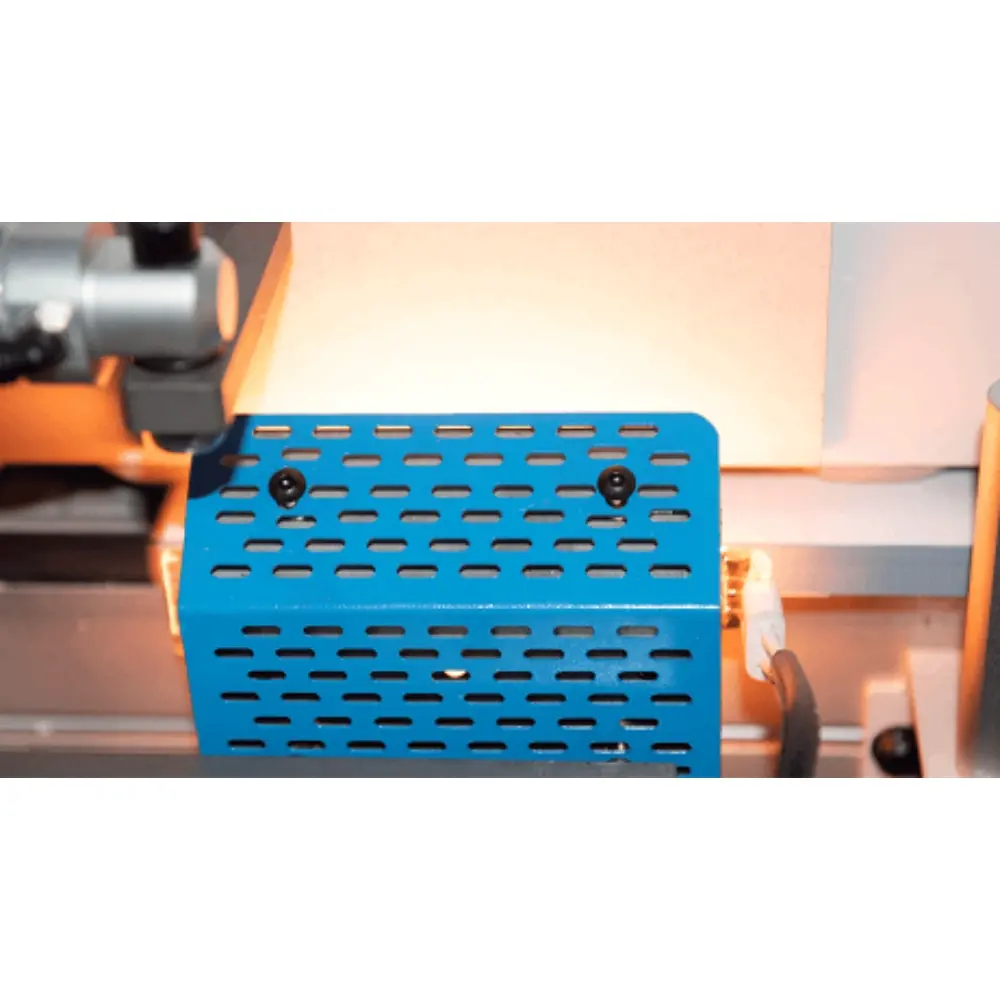

Pre-heating unit
Pre-heat the panel edge to enhance tape bonding.

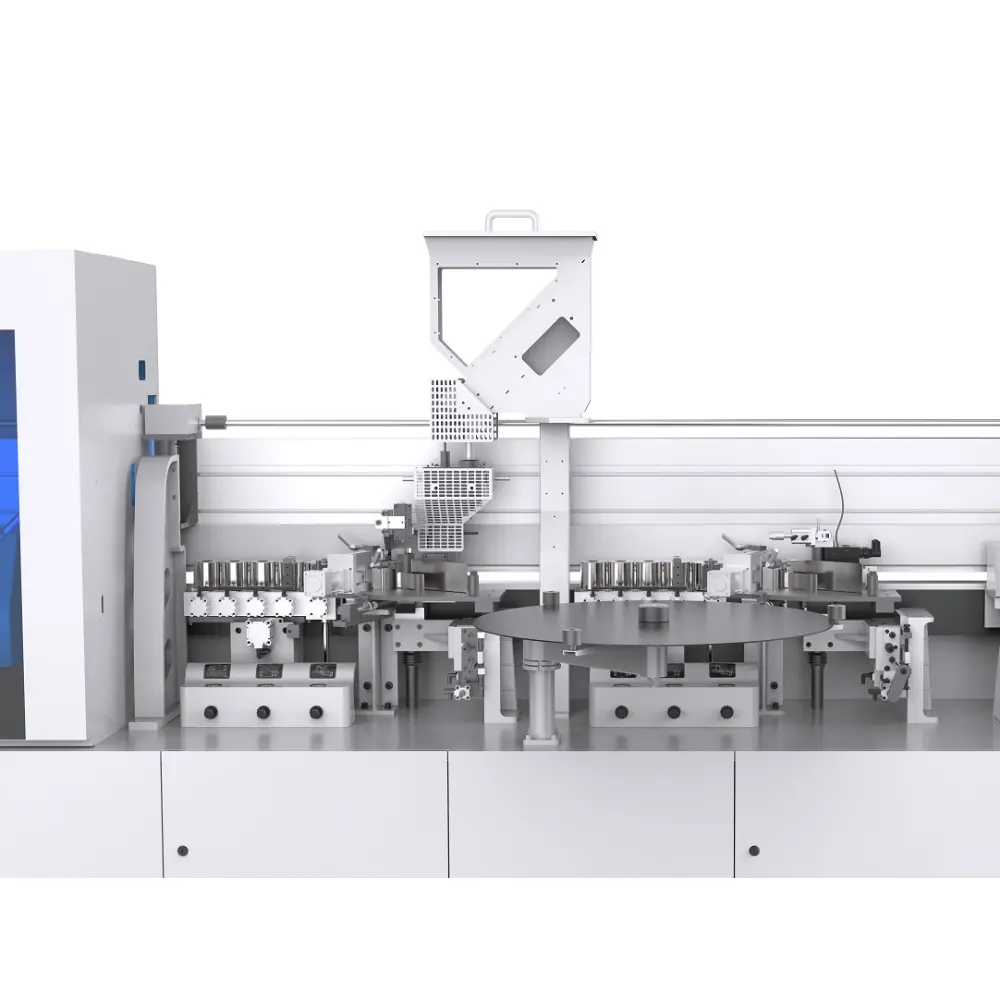

No-clean dual-color PUR glue pot + upper melting unit
Dual gluing systems enable fast switching between multiple glue types.

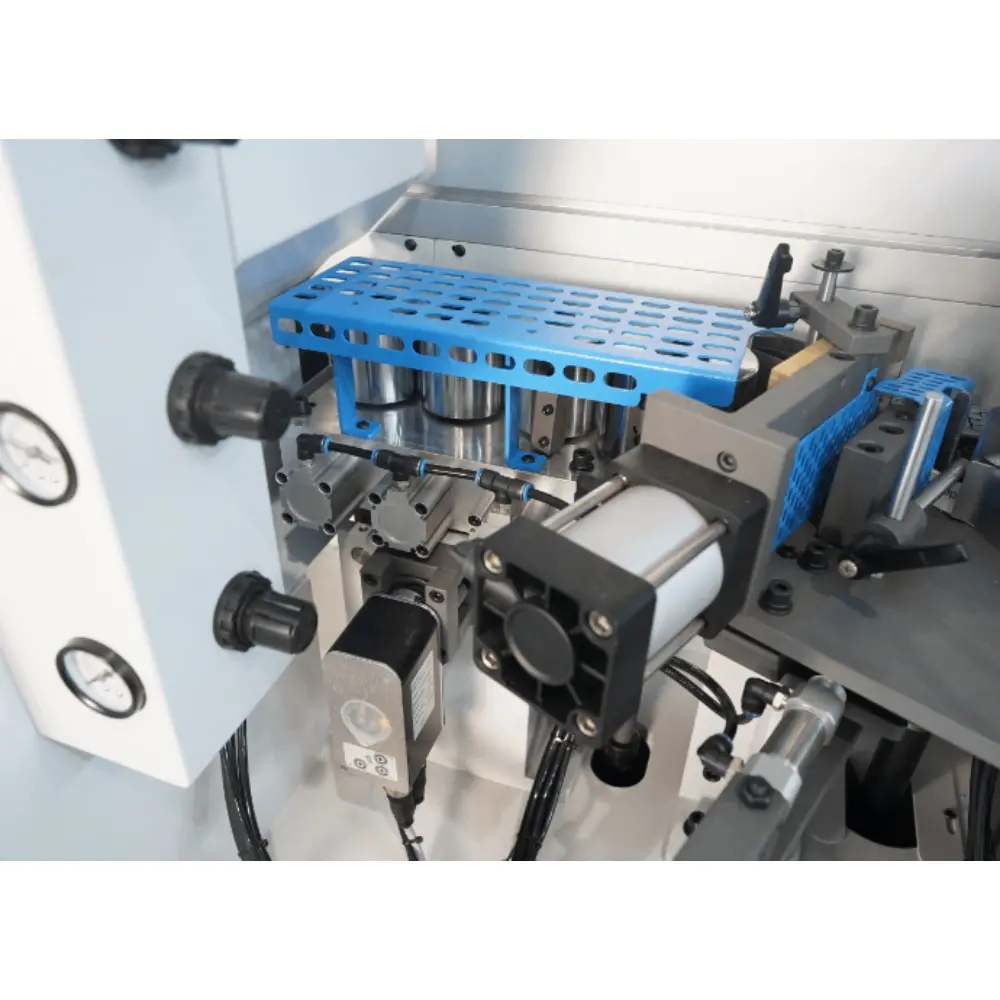

Auto-positioning pressing unit
Automatically adjust the pressing position based on tape thickness, reducing impact on the panel while ensuring effective pressing.

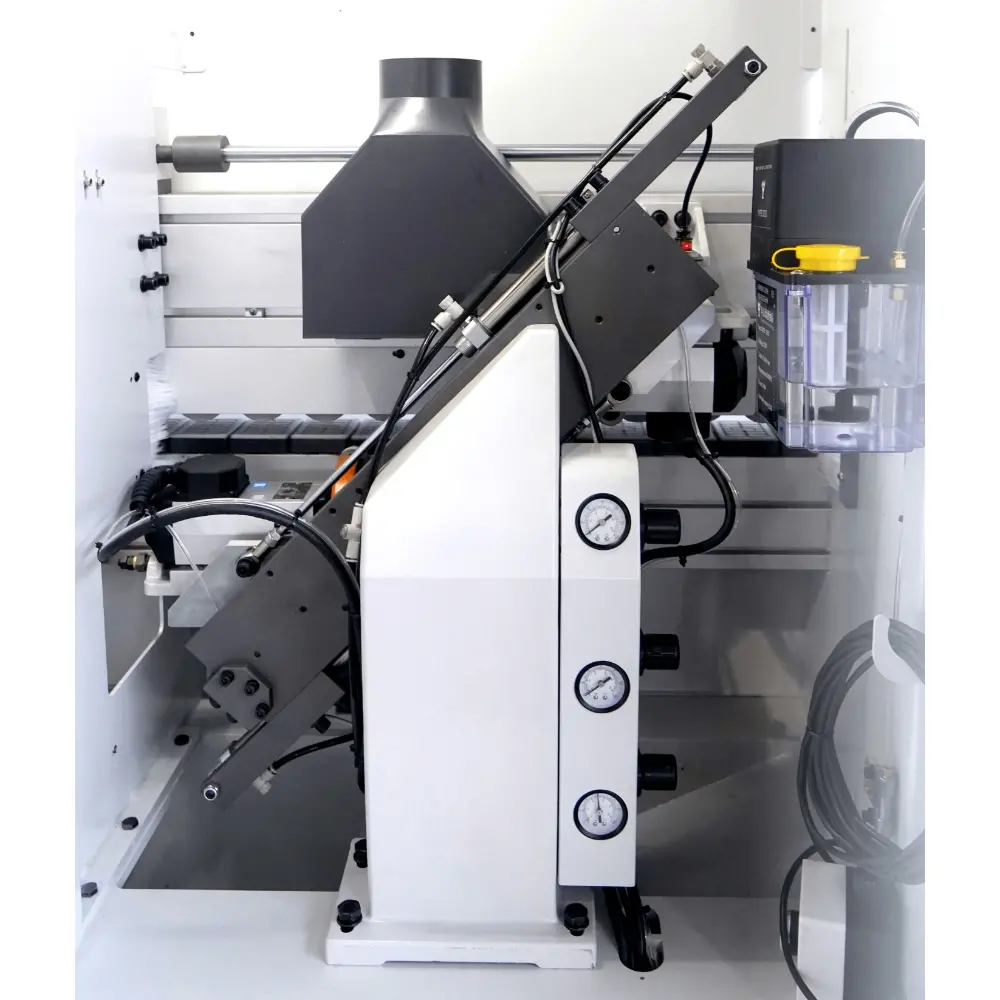

End cutting unit
Two cutters slide along a precision linear guide rail to cut the tape at the front and rear ends of the panel, and an auto lubrication system ensures smooth operation and a longer service life of the unit.

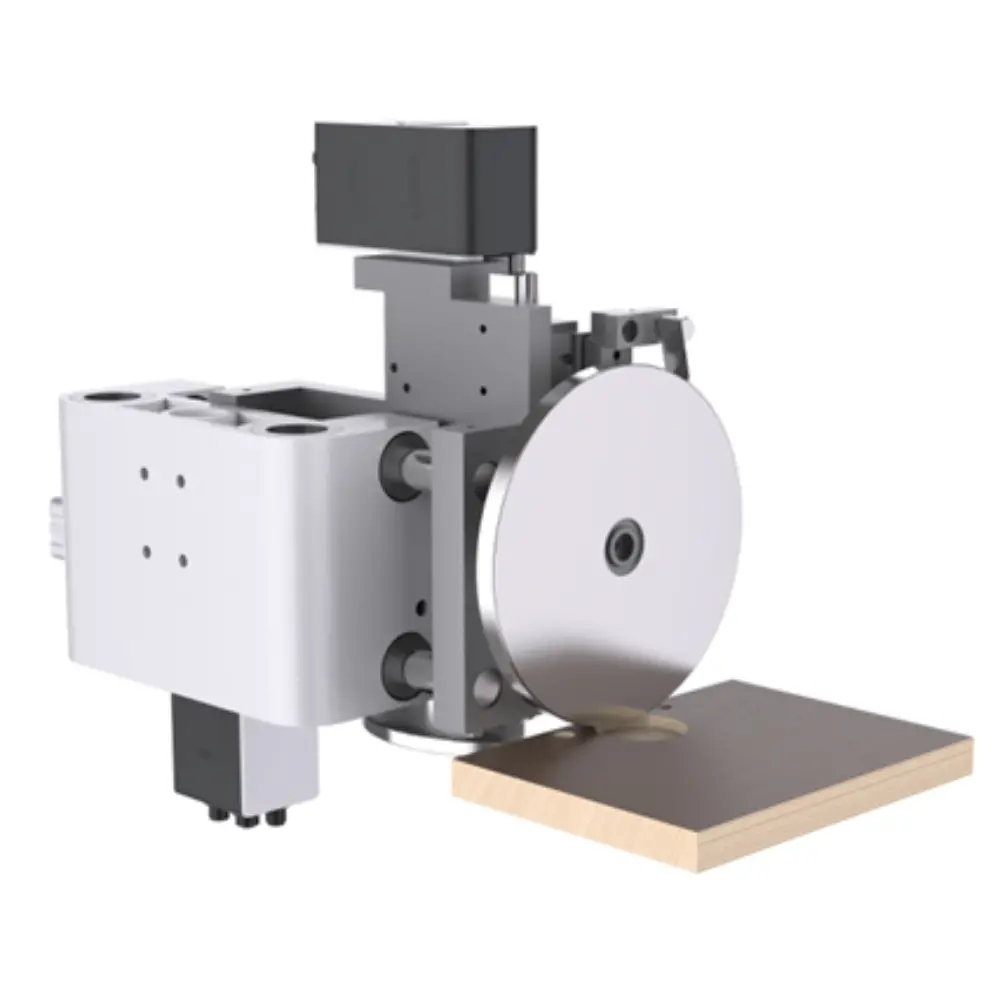

Auto-positioning trimming unit
Equipped with an R1.5 cutter, a motor for intelligent horizontal and vertical positioning of the cutter based on tape thickness, and a disc-type hinge hole avoidance device for smooth processing of panels with hinge holes.

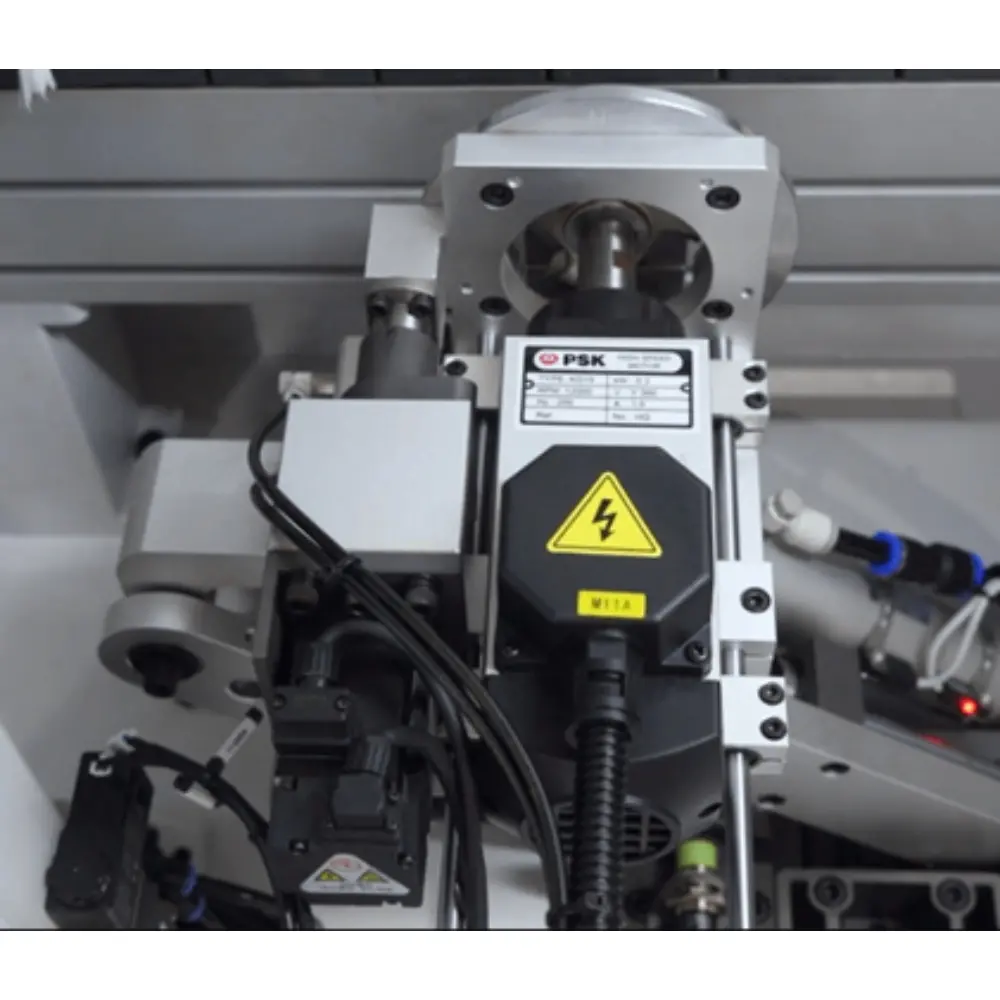

Servo corner rounding unit
Dual cutters are freely switchable according to tape thickness, with easy operation and stable performance.

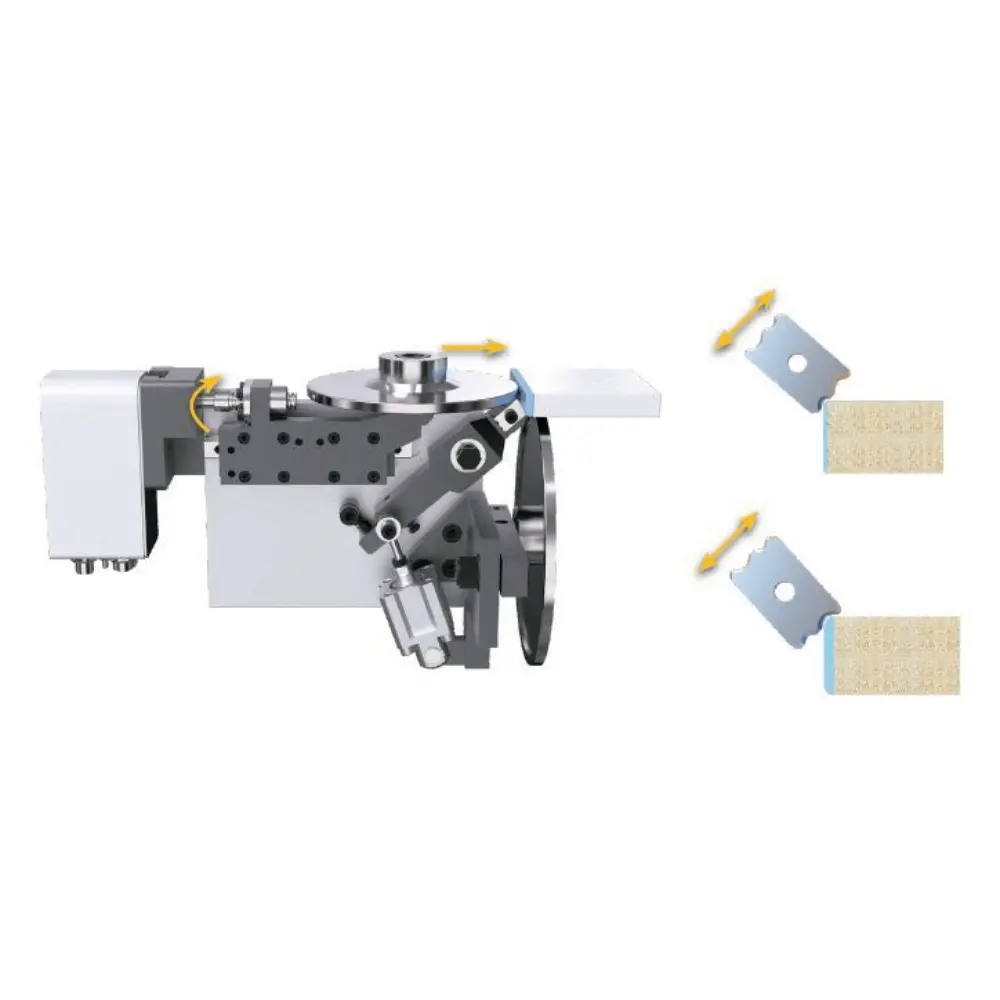

Auto-positioning scraping unit
It can pneumatically switch between R1 and R1.5 cutters, with motors for intelligent horizontal and vertical positioning of the cutters based on tape thickness, and a disc-type hinge hole avoidance device for smooth processing of panels with hinge holes.

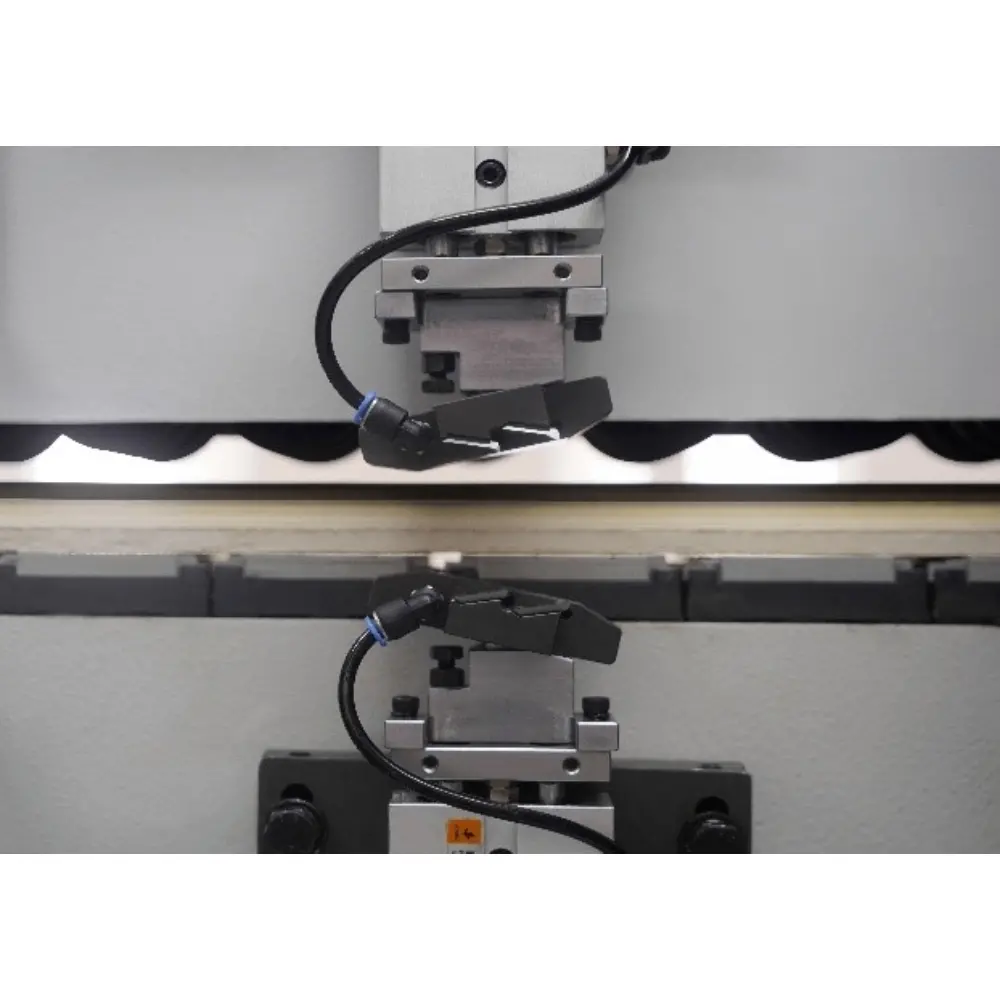

Flexible flat scraping unit
A self-adaptive flat scraping unit with a flexible contour follower closely tracking the edge contour for precise scraping.

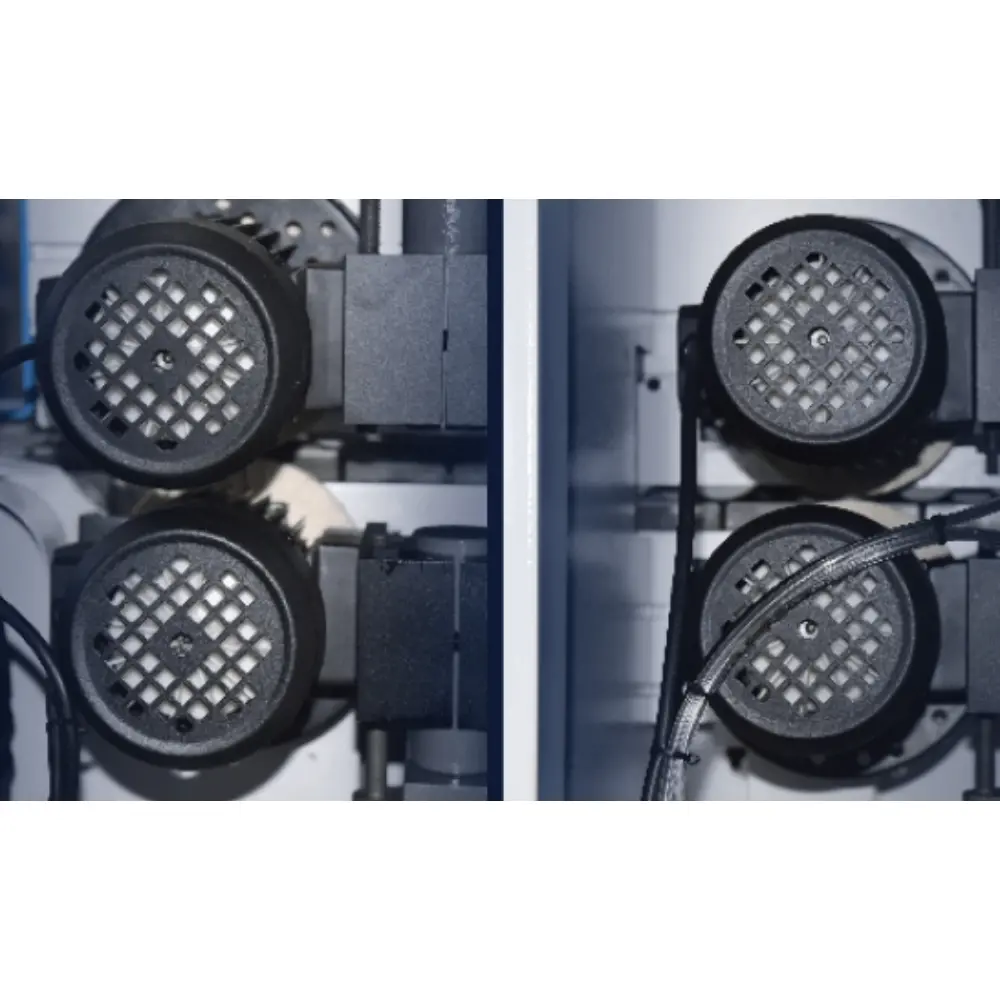

Dual buffing units
Cotton buffing wheels efficiently clean the top and bottom of the finished panel for a smooth and clean finish.

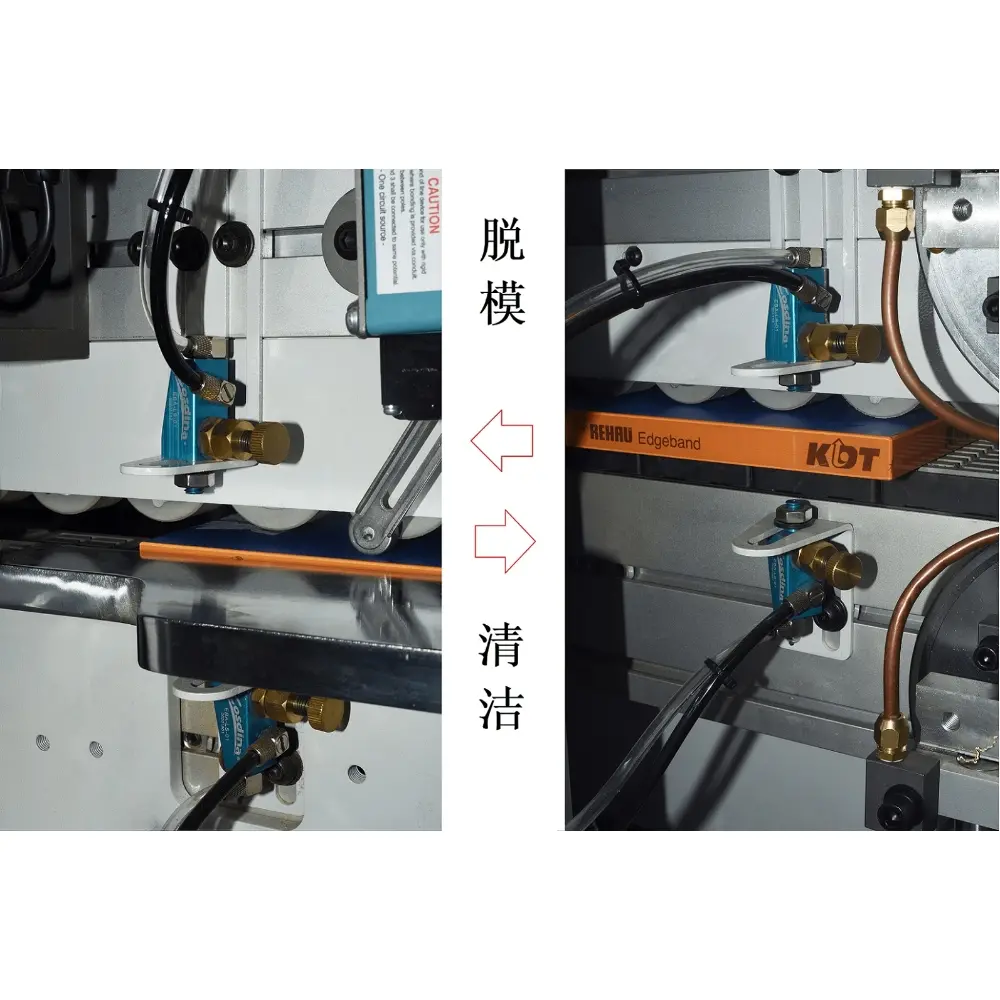

Release agent & cleaning units
Spray release agent to the panel’s top and bottom surfaces to prevent glue overflow from sticking, and spray cleaning agent to assist the buffing unit in clearing glue residue and debris.
| KE-712GBSUT(40) | |
|---|---|
| Export packing size | 8872L*1200W*1960H |
| Feed speed | 15-24m/min |
| Tape thickness | 0.4-3mm |
| Panel thickness | 8-60mm |
| Min. panel size (4-side edge banding) | 40×300mm |
| Power (kW) | 28.27 |
| Overall size (mm) | 8800L*960W*1815H |
| Dust outlet size & qty | 5×φ125+2×φ100 |
| Dust extraction airflow (m³/h) | 6230 |
| Air pressure (MPa) | 0.6 |
