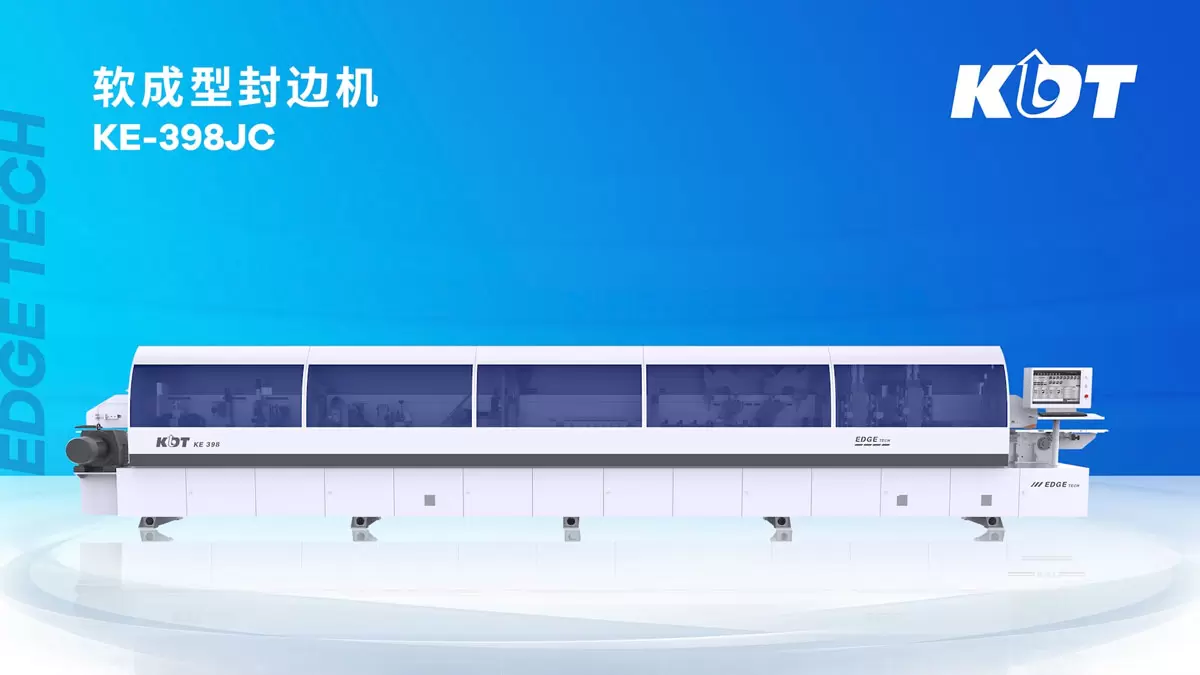

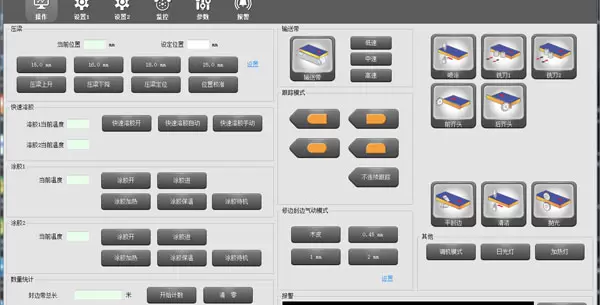

PC Intelligent Control System
Equipped with a 19.1-inch touchscreen, the human-machine interface offers clear images and simple, convenient operation. Fault information is displayed visually and textually, clearly showing the problem and troubleshooting methods, facilitating maintenance.

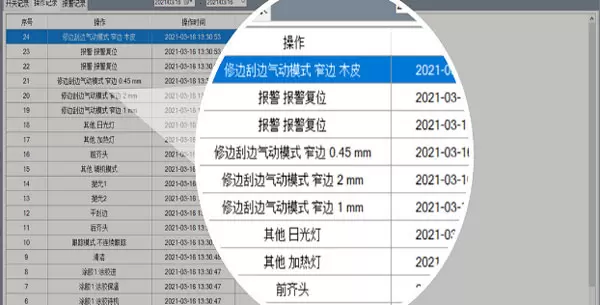

Data Acquisition
Records equipment operation information in real time and has a data acquisition interface port.

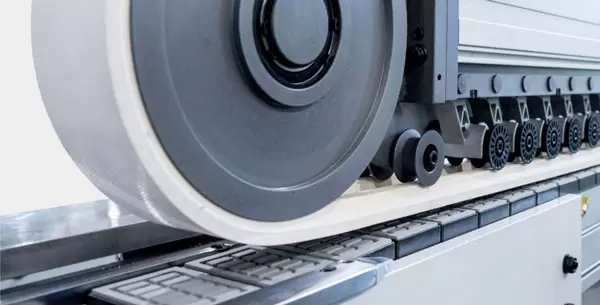

Crawler Material Handling
Maximizes the stability of wood board conveying, ensuring high precision in each processing step.
Pre-milling Mechanism
Standard configuration includes 40mm milling cutters. Utilizing dual milling cutters, it further refines ripples, burrs, and non-perpendicularity issues after initial cutting, achieving better edge banding. This results in a tighter fit between the edge banding strip and the board, improving overall integrity and aesthetics.

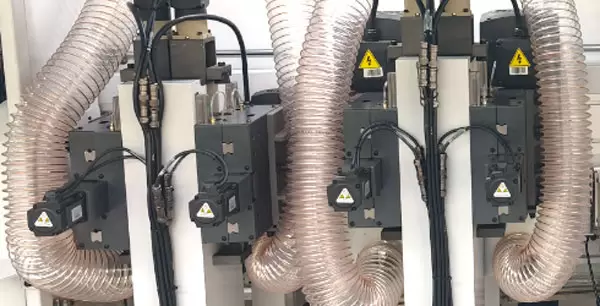

Servo-controlled Rough and Finish Milling Mechanism
Four servos (up/down, forward/backward) precisely control the cutter height and feed position. The dual-cutter design allows for one-button switching between different shapes. The combination of rough and finish milling ensures shaping accuracy, producing burr-free and grain-free milled surfaces.
Servo-controlled Chamfering Mechanism
Servo control allows for one-button switching between different board heights, precisely rounding edges and corners.

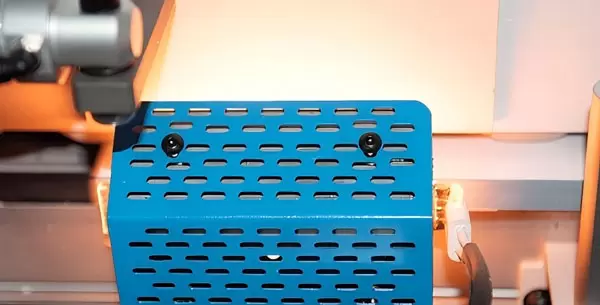

Preheating Device
Preheating the boards makes adhesive application easier; instant heating upon contact with the board reduces energy consumption and improves edge banding results.

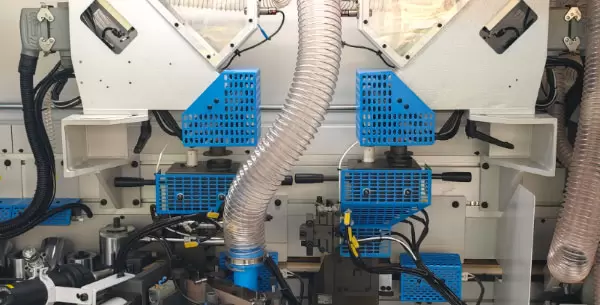

Board Glue Application + Strip Glue Application
Intelligent switching based on different shapes saves glue and improves application quality.

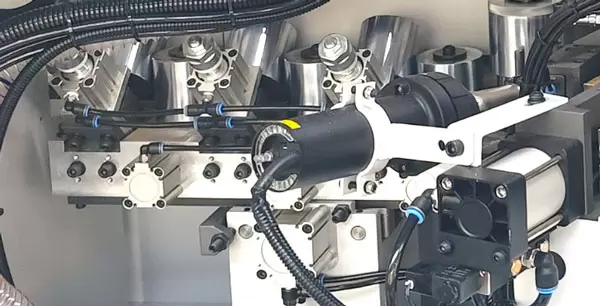

Integrated Bevel and Straight Edge Pressing
Cross-arranged bevel and straight rollers ensure effective bevel and straight edge pressing; one-button switching allows for bevel and straight edge pressing.

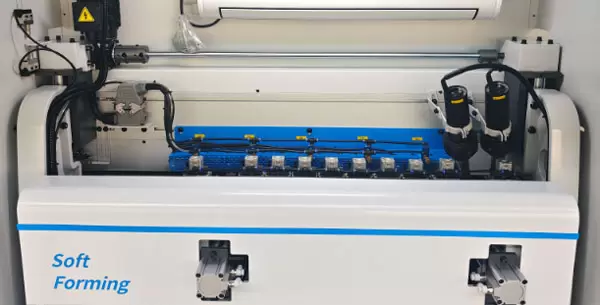

Servo Forming Pressing
Servo control allows one-button switching between different board heights; fully pneumatic precision advance and retreat control processes different shapes; multiple heating lamps and hot air guns + nozzle cooling + constant temperature air conditioning ensure thorough softening of the edge banding.
Edge Banding Cross-Cutting Mechanism
Cuts excess edge banding on the top edge of the board, reducing rough finishing allowance.

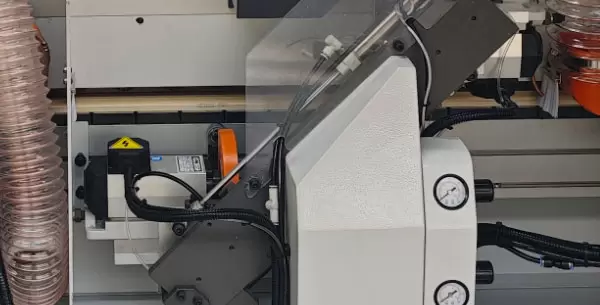

End-Clearing Mechanism
Quickly cuts the front and rear edge banding for efficient processing and improved quality.

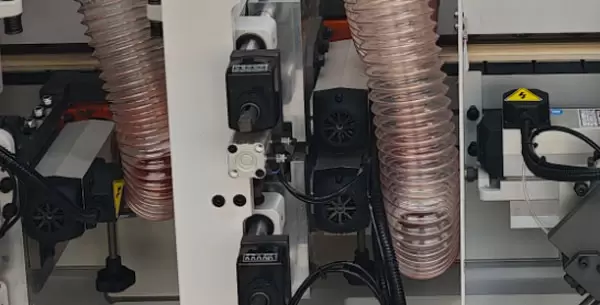

Flat Rough Finishing Mechanism
Removes excess edge banding protruding above the top and bottom surfaces of the board, ensuring the edges are flush with the board's surface.
Servo Trimming Mechanism
Based on different shapes, servo control enables precise contour trimming, creating rounded corners at the top and bottom edges of the edge banding for a more perfect finish.
Servo Scraping Mechanism
Based on different shapes, servo control enables precise contour scraping, eliminating wavy marks generated during trimming and making the board more aesthetically pleasing.
Servo Flexible Flat Scraping Mechanism
Based on different shapes, servo control enables precise contour removal of excess glue lines, improving edge banding quality.

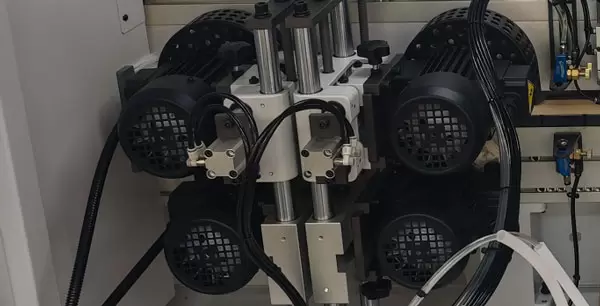

Contour Polishing Mechanism
Based on different shapes, contour polishing of the upper surface results in a more perfect finish. Cotton polishing wheels remove excess glue and debris from both sides of the board, making the edge banding cleaner and smoother.
Demolding and Cleaning Mechanism
A cleaning agent is sprayed onto the top and bottom surfaces of the board, working in conjunction with the polishing mechanism to remove excess glue and debris. A layer of release agent can be sprayed onto the top and bottom of the board to be edge banded to effectively prevent hot melt glue from overflowing and staining the board surface during edge banding.
Electric Grease Pump
Automatically lubricates the guide rails based on machine operation time, eliminating the need for manual lubrication.
Handle Design Diagram
| KE-398JC | |
|---|---|
| Domestic packing size | 10291L*990W*1822H |
| Export packing size | 10344L*1200W*1822H |
| Feed speed | 8m/min |
| Tape thickness | Bevel edge: 0.45-1.2mm; Straight edge: 0.5-0.6mm |
| Tape thickness (Special shape) | 0.5-0.6mm |
| Panel thickness | 18-25mm |
| Min. panel size (Straight edge) | 120×100mm |
| Min. panel size (Special shape) | 300×100mm |
| Power (kW) | 62.37 |
| Overall size (mm) | 10291L*990W*1830H |
| Dust outlet size & qty | φ125*12 |
| Dust extraction airflow (m³/h) | 10000 |
| Air pressure (MPa) | 0.6 |
