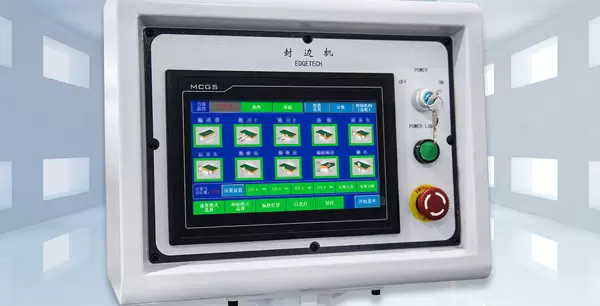

10-inch touch screen, intelligent temperature control
The device can be set with a heat preservation function, which automatically switches to a shutdown heat preservation state when it is running idle. This feature saves energy, reduces the carbonization of glue, and is highly efficient and energy-saving.
Pressure beam positioning system
Quickly switch between processing plates of different thicknesses, reduce machine adjustment time, and improve efficiency
Track pressing mechanism
The large pressing contact area achieves a better panel pressing effect, ensuring high-speed conveying stability and improving edge bonding quality.
Pre-milling mechanism
The large-diameter diamond cutter head, equipped with a motor power of 3.7 kW and a maximum pre-milling height of 40 mm, utilizes a dual milling cutter to rework ripple marks, burrs, or non-perpendicularity caused by the initial cutting process, aiming to achieve a superior edge banding effect. This ensures a tighter fit between the edge banding strip and the board, enhancing both the integrity and aesthetics of the overall product. The milling surface size is ≥120 mm
Two-color PUR glue pot
Equipped with a standard PUR dual-color glue pot; it meets the need for automatic color switching, achieves intelligent glue dispensing through an automatic sensing device, and eliminates the need for cleaning the glue pot, thus saving glue and improving production efficiency.

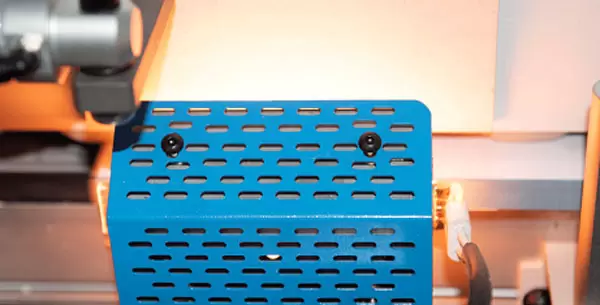

Preheating device
Preheat the plate to enhance the bonding effect between the plate and the edge band.

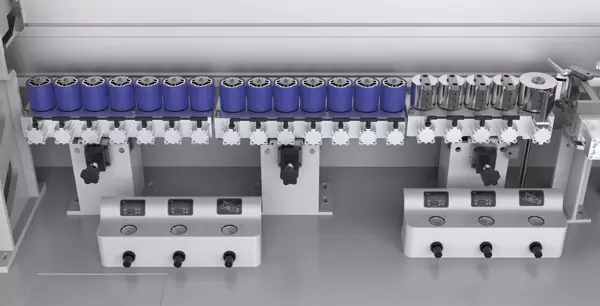

Pressing and bonding mechanism
One set of five-wheel pressing and two sets of seven-wheel pressing. Strongly press the edge band to enhance the bonding effect between the aluminum honeycomb, board, and edge band.
Front and rear flush mechanism
Through precise linear guide rail movement, the excess edge banding at the ends of the panel is cut off, ensuring a flat and smooth cut surface.

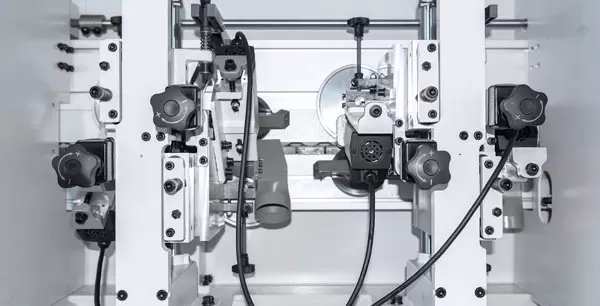

Rough and Fine Repair Institutions
Trim off the excess edge banding protruding from the upper and lower surfaces of the wood board, ensuring that the upper and lower edges of the edge banding align flush with the upper and lower surfaces of the wood board.

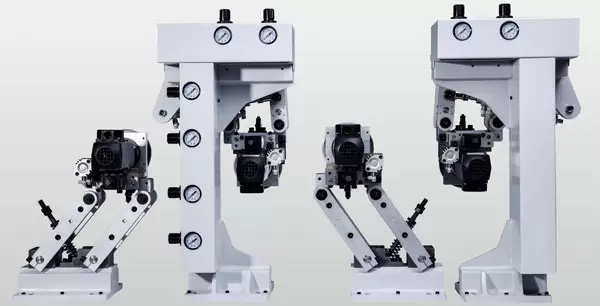

Quick Track Trimming Mechanism
Four sets of high-frequency motorized motors are employed to achieve stable and faster edge trimming with contouring and rounded corners for the edge banding.
Tracking and trimming
It can achieve various chamfering and deburring processes.

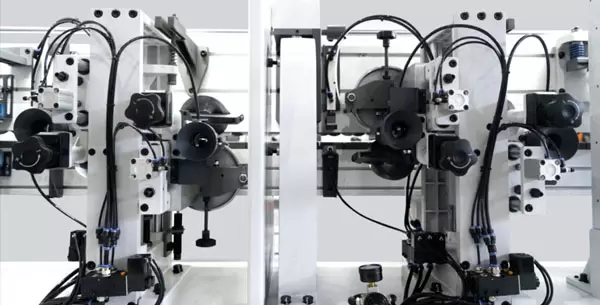

Double scraping edge mechanism
It is used to eliminate the ripple marks caused by the non-linear motion of trimming, making the upper and lower parts of the board smoother and tidier.
Flexible flat scraping edge mechanism
Adaptive flat scraping edge, with a flexible template closely fitting the board, ensures a more perfect edge sealing

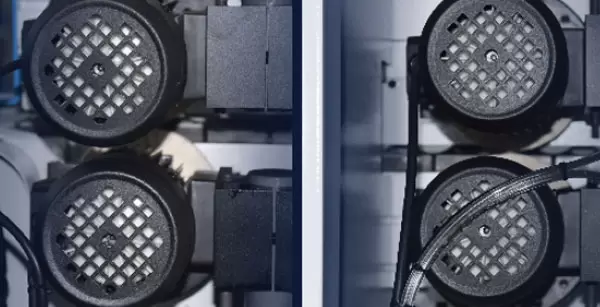

Double polishing mechanism
The cotton polishing wheel cleans the boards after edge banding, removing the residual glue and debris on the upper and lower surfaces of the boards, making the boards cleaner and smoother after edge banding.
Electric grease pump
Based on the machine's operating time, automatically inject oil into the guide rail at regular intervals to enhance the equipment's service life and stability

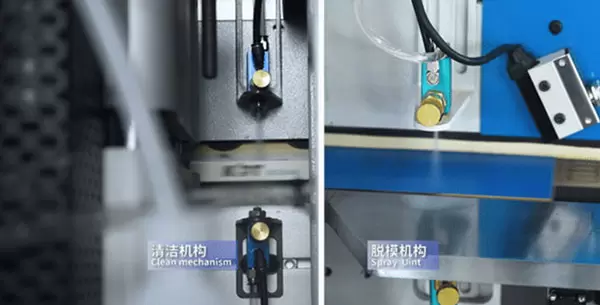

Demolding and cleaning mechanism
Apply glue on both the upper and lower surfaces of the isolation board to prevent the spilled glue from sticking to the board surface, making it easier to clean in subsequent processes; remove any residual glue to keep the board surface clean.

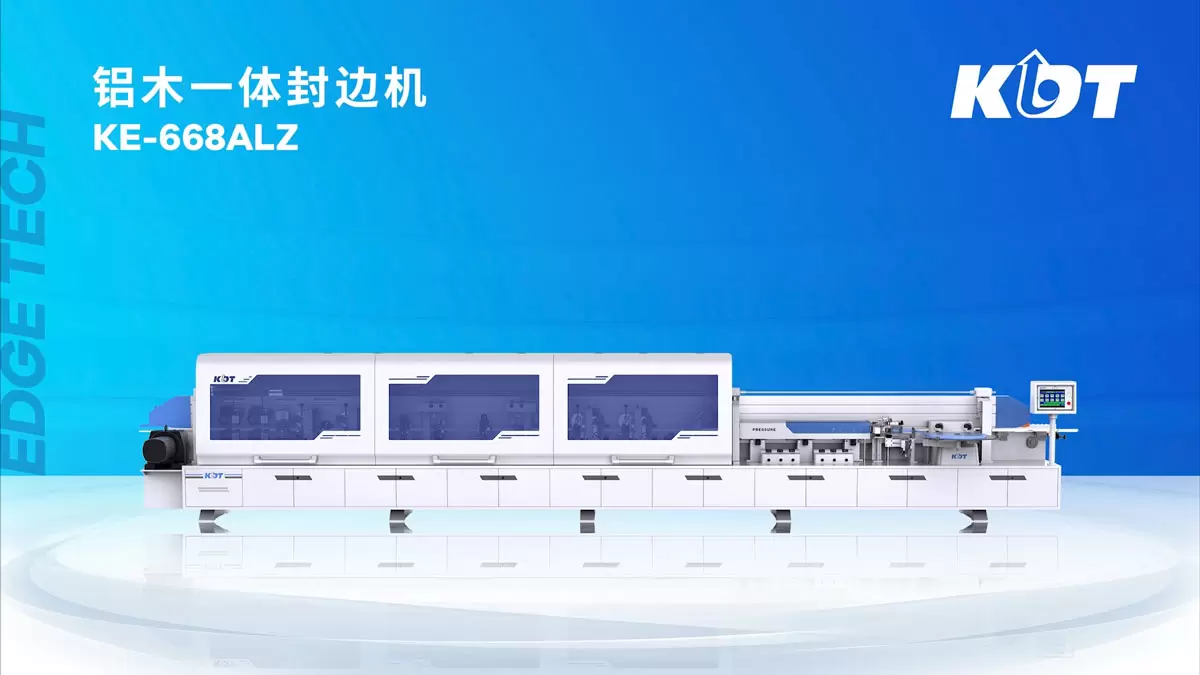

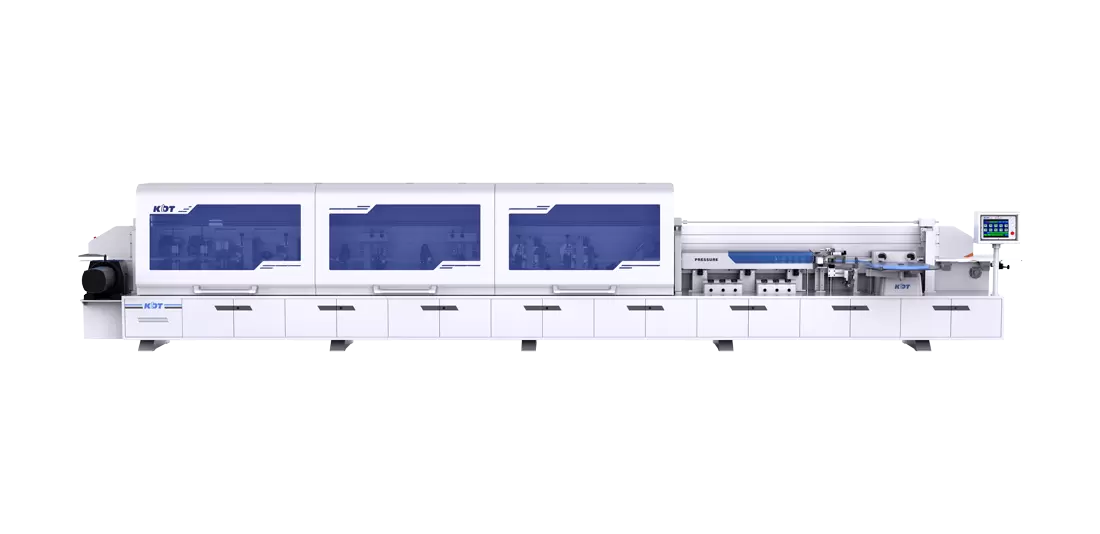

| KE-668ALZ | |
|---|---|
| Domestic packing size | 10292L*990W*1730H |
| Export packing size | 10345L*1200W*1730H |
| Feed speed | 15-24m/min (Aluminum honeycomb panel: 15m/min) |
| Tape thickness | 0.4-3mm (Aluminum honeycomb panel: 1.2-3mm) |
| Panel thickness | 9-60mm |
| Panel length | ≥120mm |
| Panel width | ≥60mm |
| Min. panel size (Edge banding on long side) | 120*60 |
| Power (kW) | 24.26 |
| Overall size (mm) | 10292L*990W*1730H |
| Dust outlet size & qty | φ100*2 + φ125*7 |
| Dust extraction airflow (m³/h) | 6180 |
| Air pressure (MPa) | 0.6 |
