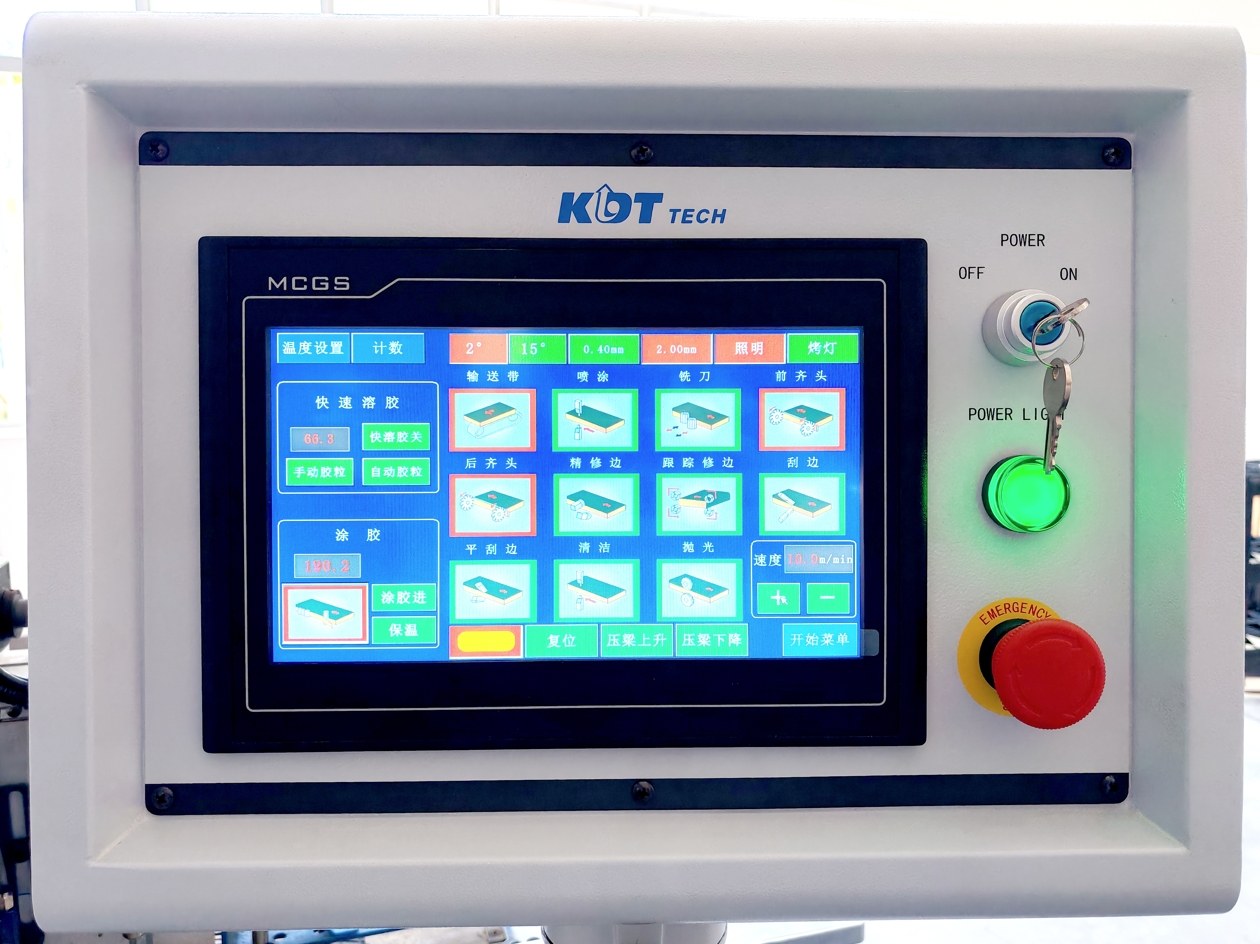

10-inch touchscreenThe machine can be set to automatically switch to standby when idle, saving power and maintaining glue temperature to prevent glue carbonization.

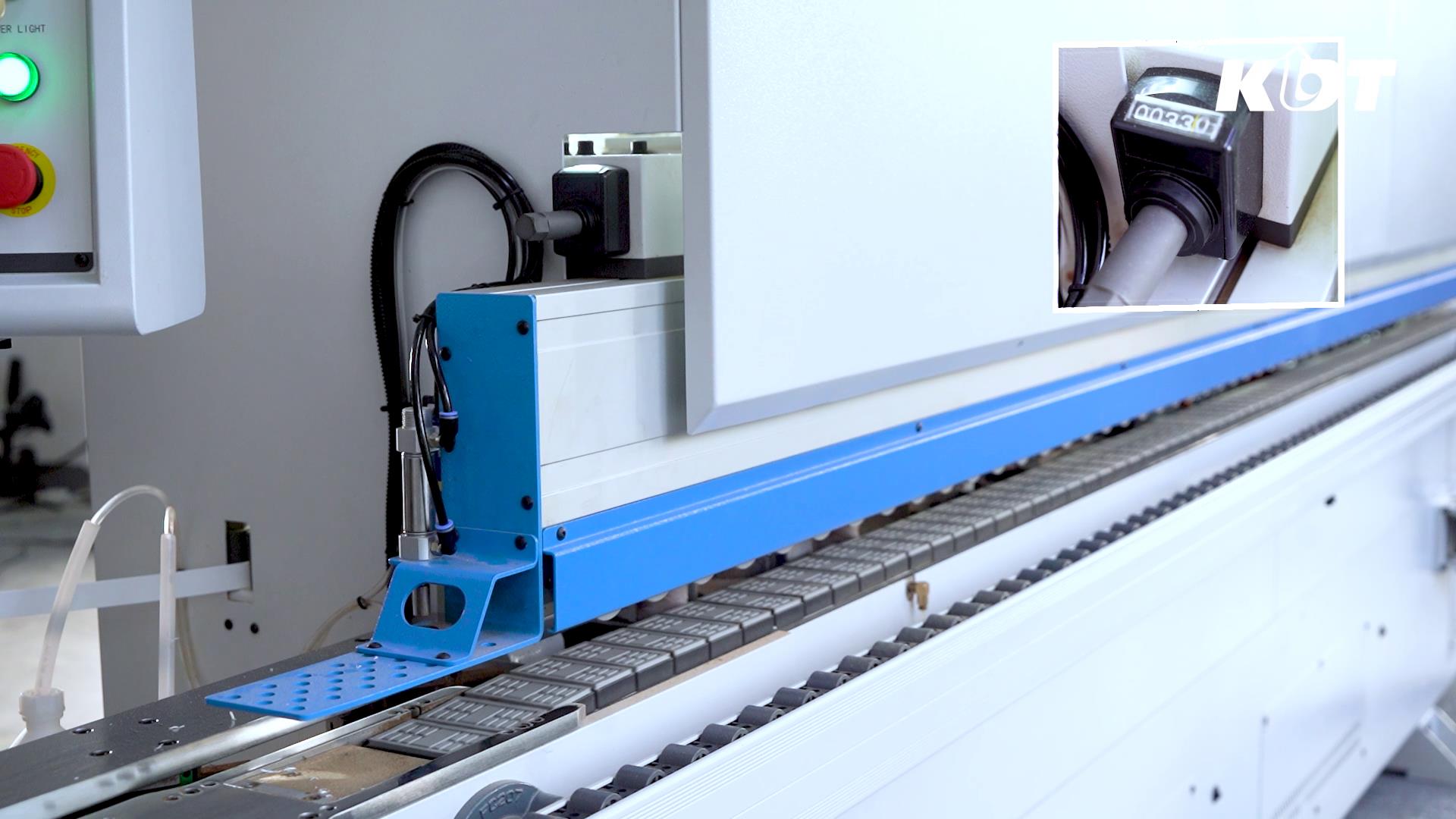

Pressure beam positioning systemAutomatically adjust the pressure beam height based on panel thickness, saving setup time for higher efficiency.

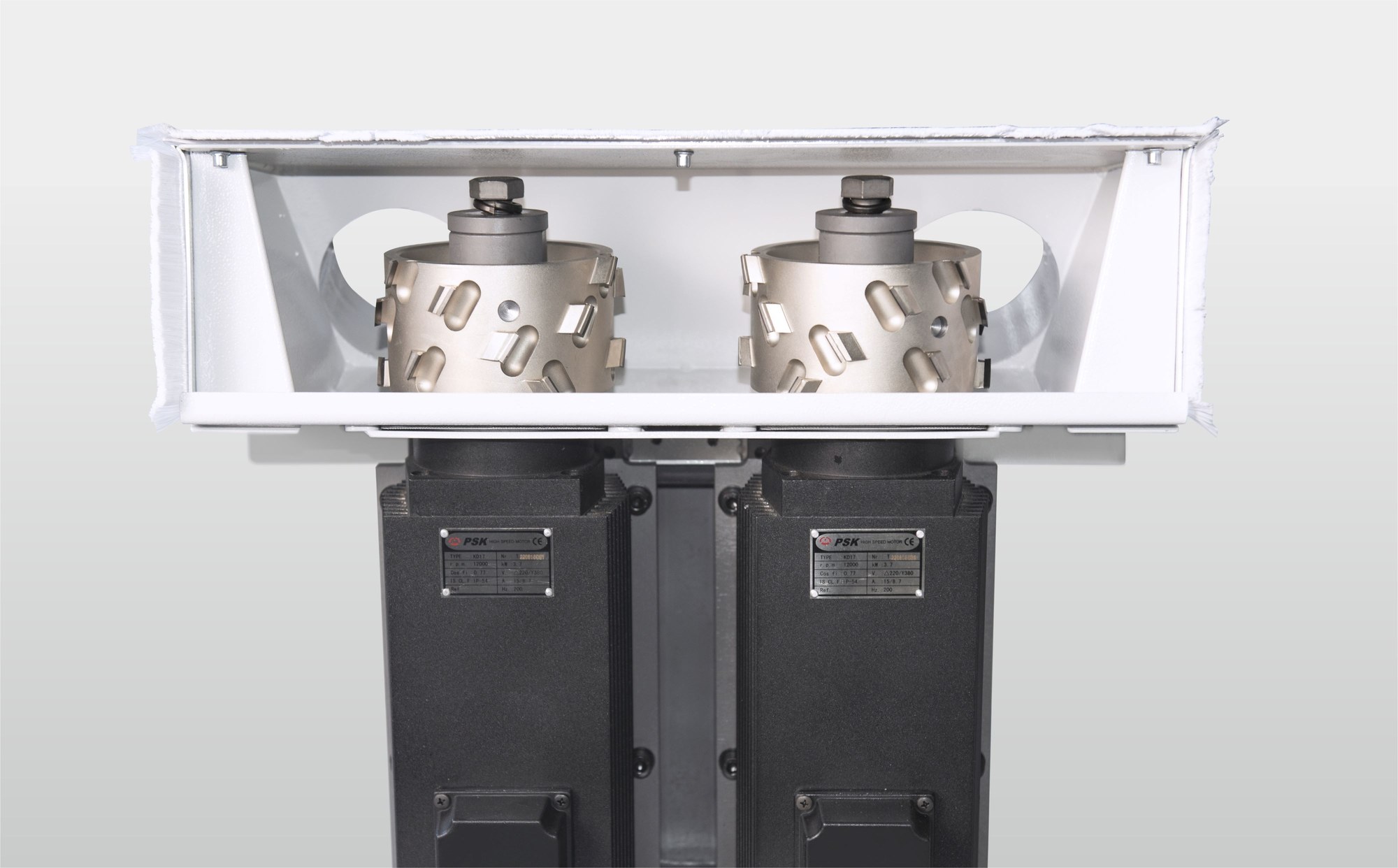

Pre-milling unitDiamond milling cutters and dual 2.0kW motors deliver smooth milled surfaces for tight tape adhesion. Pre-milling edge length ≥ 120 mm.

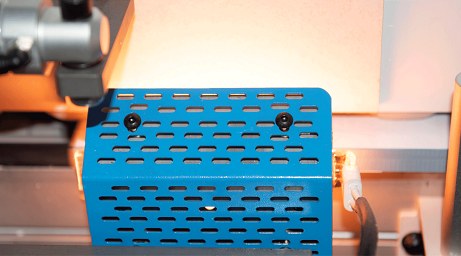

Pre-heating unitPre-heating the panel enhances tape bonding. It heats the panel instantly on contact, reducing energy consumption.

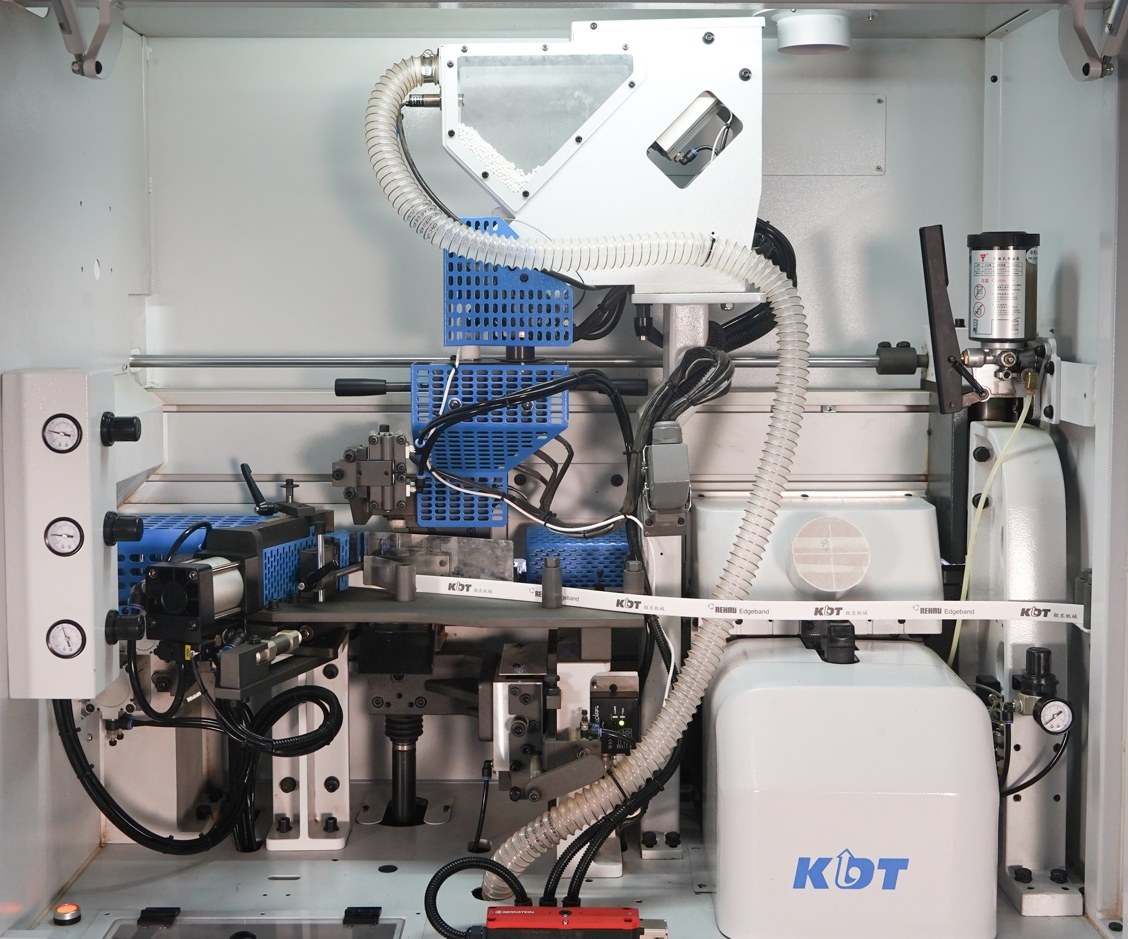

Upper melting unitIt supports pre-melting and automatic feeding of glue pellets, and can automatically clean the glue roller.

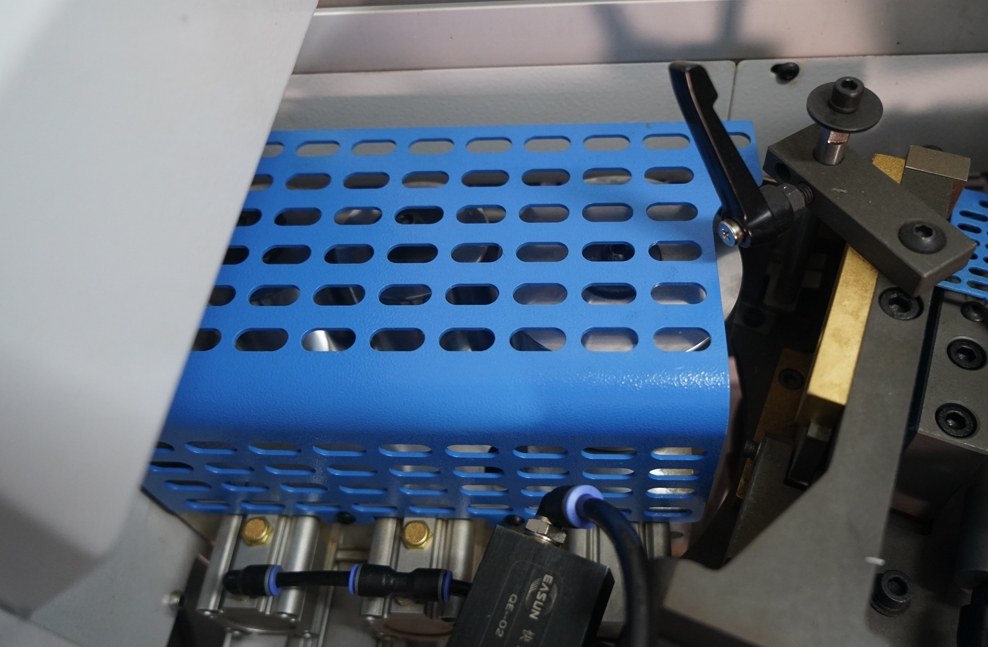

3-roller pressing unitIt allows pneumatic switching between two tape thicknesses.

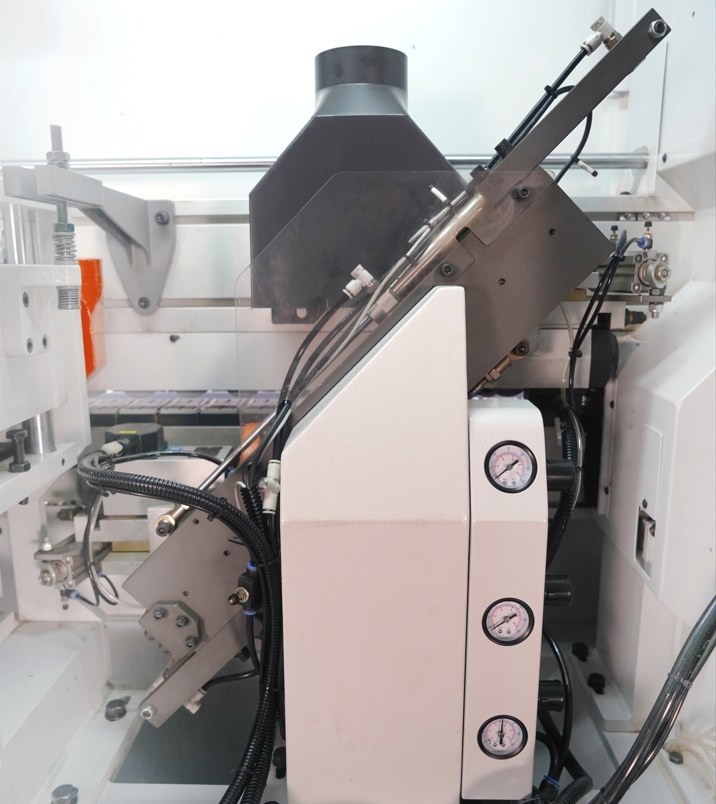

Pneumatic end cutting unitIt allows pneumatic switching between 2° and 15° angles.
Auto lubrication system for end cutting unitEnsure smooth operation and a longer service life of the end cutting unit.

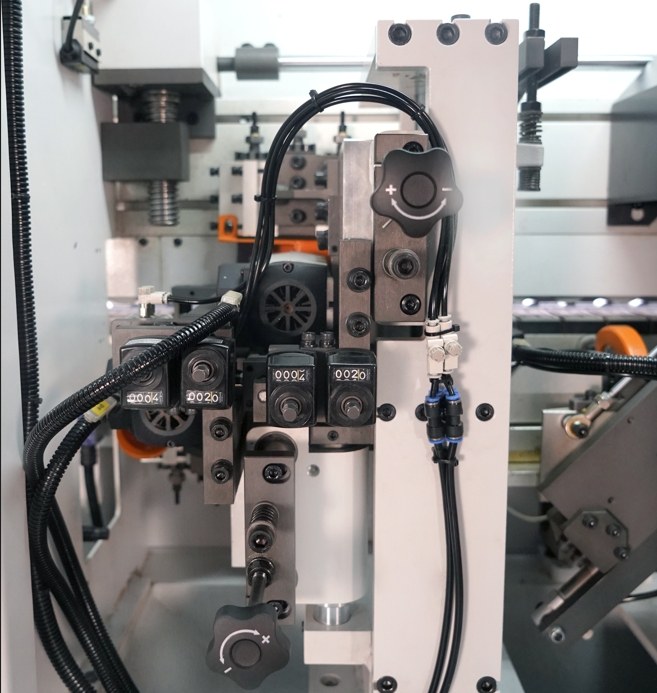

Pneumatic fine trimming unitIt features diamond cutters, a hinge hole avoidance device, pneumatic control, and flexible switching for two tape thicknesses.

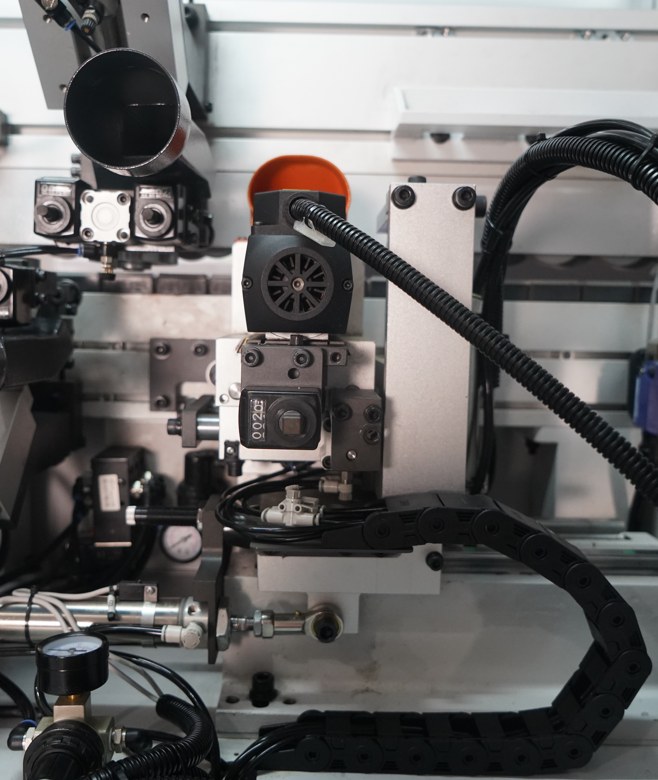

Corner rounding unitIt is a single-head corner rounding unit that can round tape corners for four edge profiles.

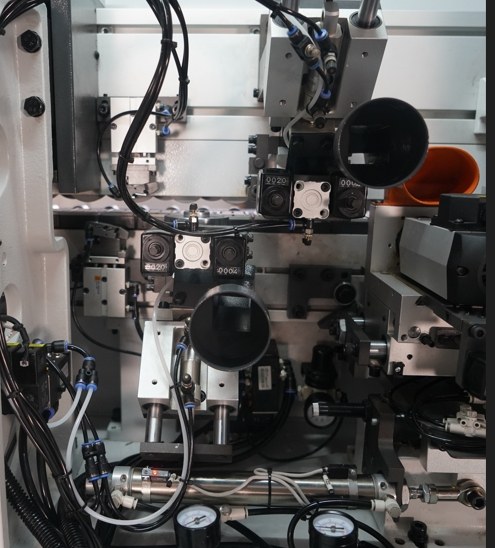

Pneumatic scraping unitIt features a hinge hole avoidance device, pneumatic control, and flexible switching for two tape thicknesses, with an air nozzle and a dust hood for dust collection.

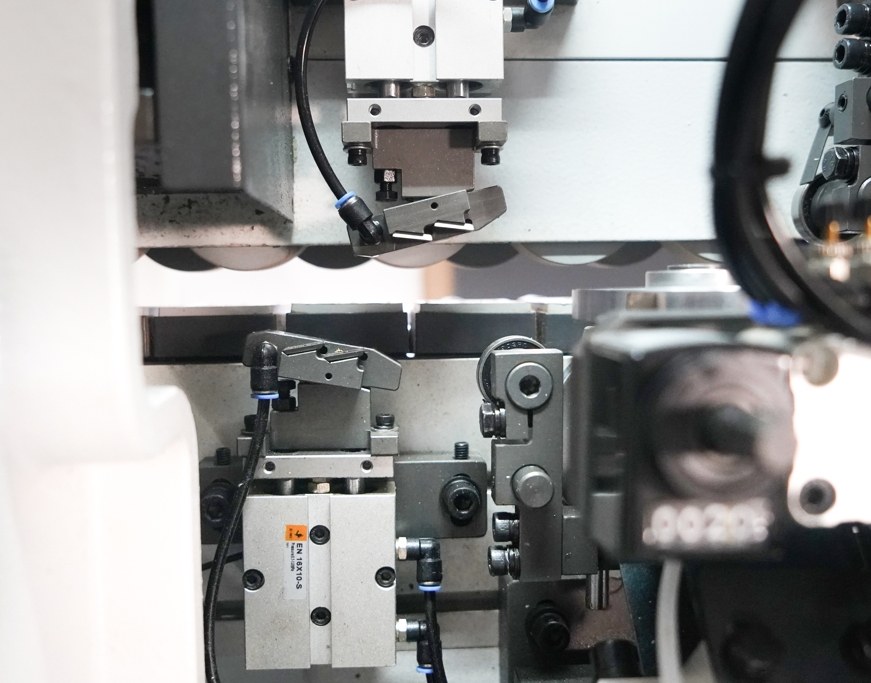

Flexible flat scraping unitRemove excess glue lines to ensure optimal edge banding quality.

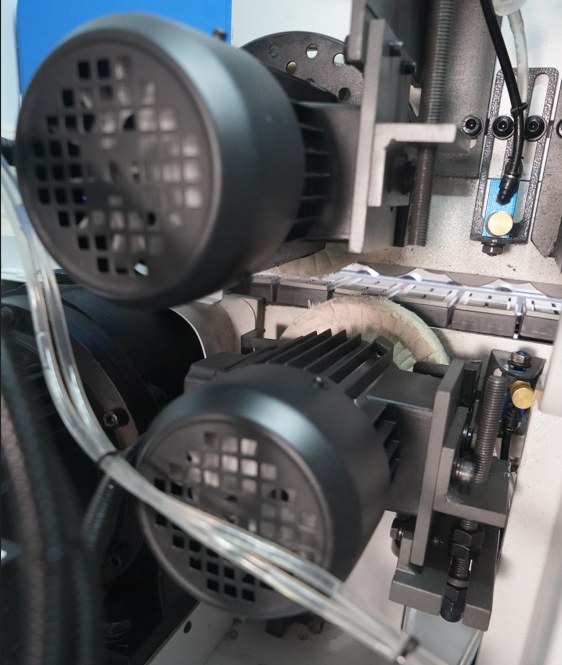

Buffing unitRemove tape burrs and glue residue to ensure smooth and clean edges.

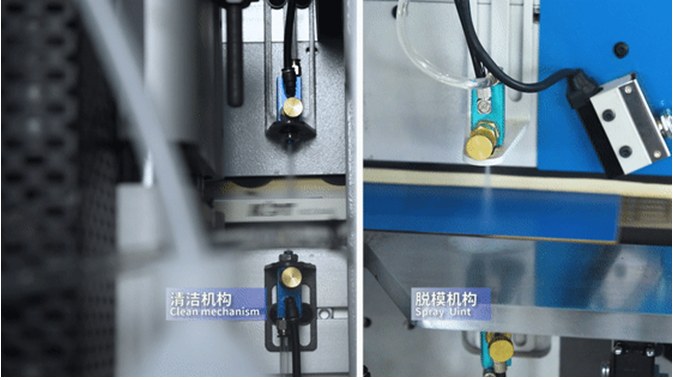

Release agent and cleaning unitsThe release agent prevents glue overflow from adhering to the panel’s top and bottom surfaces, facilitating the subsequent cleaning process, while the cleaning unit removes glue residue to keep panel surfaces clean.

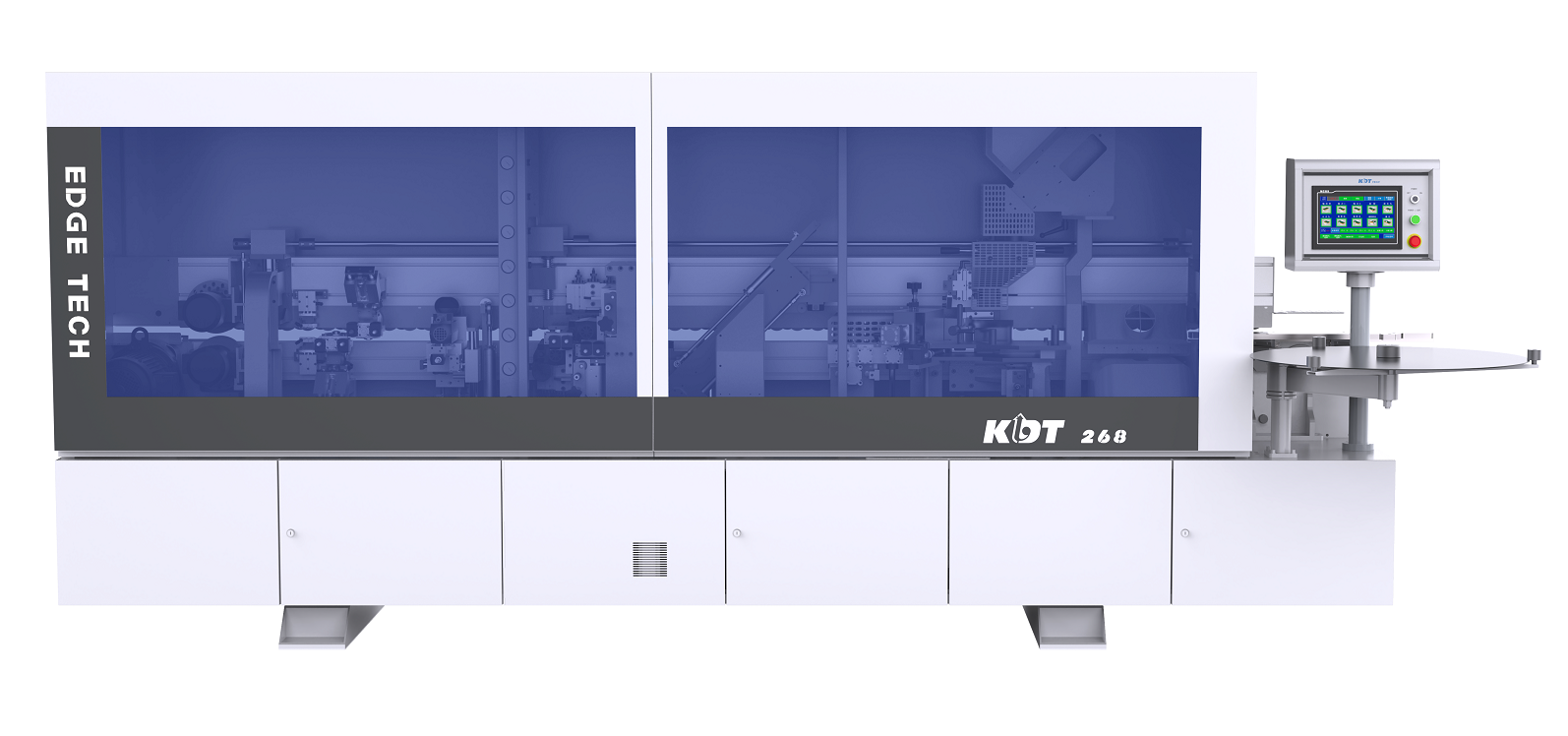

| KE-268JSA | |
|---|---|
| Domestic packing size | 4230L*860W*1750H |
| Export packing size | 4283L*1000W*1790H |
| Feed speed | 8-12m/min (stepless regulation, corner rounding speed: 8m/min) |
| Tape thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Panel size | For panels 9-30mm thick, panel size≥90*120mm; For panels 30-60mm thick, panel size≥90*200mm (long-side edge banding);For panels 9-30mm thick, edge length for corner rounding≥150mm;For panels 30-60mm thick, edge length for corner rounding≥300mm. |
| Min. panel size | 90*120 mm |
| Power (kW) | 14.73 |
| Overall size (mm) | 4230L*860W*1750H |
| Dust outlet size & qty | φ125*5 |
| Dust extraction airflow (m³/h) | 5,860 |
| Air pressure (MPa) | 0.6 |
