Standard with PC control, configure operation software interface, real-time monitoring of equipment status and docking process statistics from factories.
Standard with CAM software, rapid drawing, panel replenish function and real-time labeled operation experience.
Position rail equipped with guide rail for unloading, making sure correct position.
Gripper unit fast and accurate positioning, automatic feeding, saving labor cost.

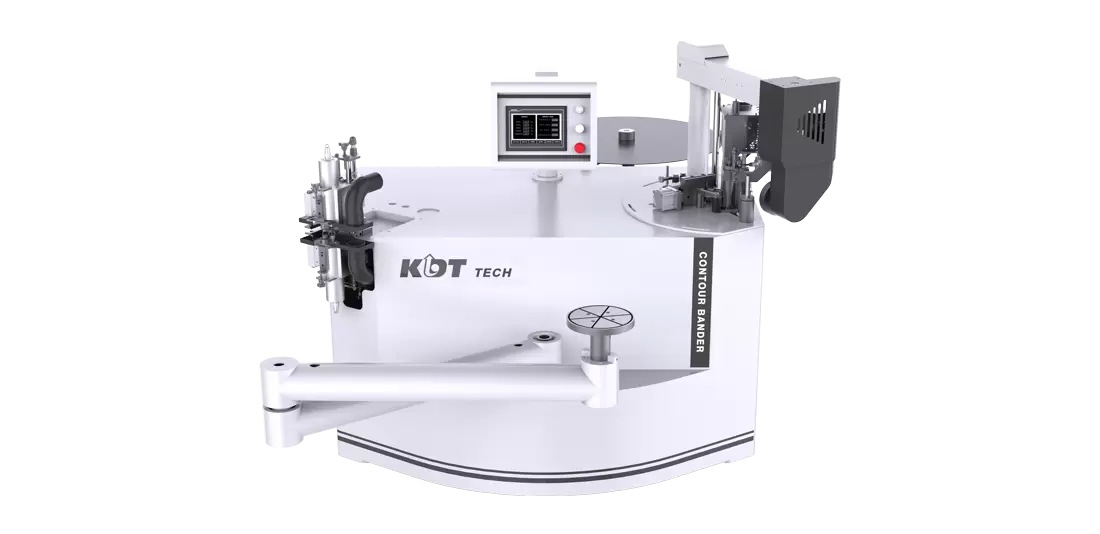

| KDT-305MC | |
|---|---|
| Feeding Speed | Manual edge banding:0-17(m/min) Automatic feeding and edge sealing:0-10(m/min) |
| Tape Thickness | 0.5-3 (mm) |
| Panel Thickness | <14(mm)Single sided trimming 14-70(mm)Up and down trimming |
| Band Width | Standard EVA glue pot:H<70(mm) Optional dual color PUR glue pot:H<55(mm) |
| Minimum radius ofinner arc | 20 (mm) |
| Total Power | 5.89 (kW) |
| Laser docking dimension | L(Straight edge)>400(mm) 2700(mm)>Diameter(Circular)>300(mm) |
| Processing scope | 2700(mm)>Diagonal>300(mm) Refer to special-shaped panel specs for details |
| Swing arm range dimensions | 4300L*4000W*1400H(mm) |
| Overall Size | 1890L*1170W*1400H(mm) |
