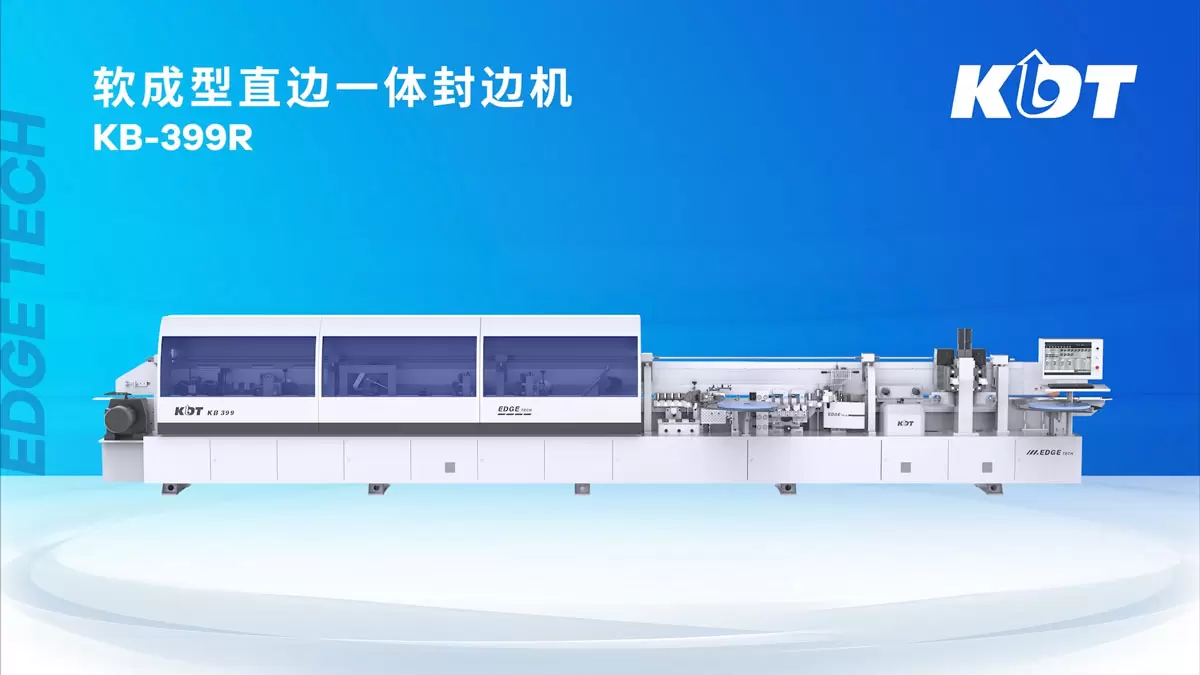

PC Intelligent Control System

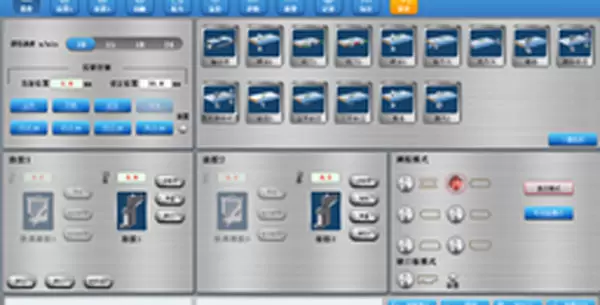

Equipped with a 19.1-inch touch screen, human-machine interface control, clear images, and simple and convenient operation. Fault information is displayed visually through images and text, reflecting the fault and troubleshooting methods, making maintenance easier.
Track pressing mechanism
Ensure the stability of the high-speed conveyor plate to avoid dust pollution on the plate conveying surface.
Selection of Shape and Process
One-click switching between special-shaped and straight edge processing, with five styles handled by one machine. Five styles, including straight edge, beveled straight edge, beveled arc, duckbill arc, and full arc, can be freely switched (full bevel is not available).
Servo-controlled contour milling mechanism
Equipped with 2 sets of 7.5kW milling cutter motors and 4 sets of positive and negative edge contouring milling cutters with different profiles. 4 sets of servo motors control the blade height and advancing/retracting position to ensure modeling accuracy.
Pre-milling mechanism
For straight-edge pre-milling, you can choose from any of our profile servo-controlled form milling cutters. For pre-milling with both positive and negative cutting edges, the third and fourth edges will not collapse during sealing.
Preheating device
Preheat the plate to enhance the bonding effect between the plate and the edge band.
Edge banding with groove function
Equipped with servo motor linkage to adjust the height of the edge banding groove, and a counter to adjust the depth of the edge banding groove, it is intuitive and convenient.
Servo-controlled forming and lamination
Servo control, one-click switching between different shapes, multiple sets of baking lights and hot air guns for heating, ensuring sufficient softening of the edge band.
Straight-edge pressing

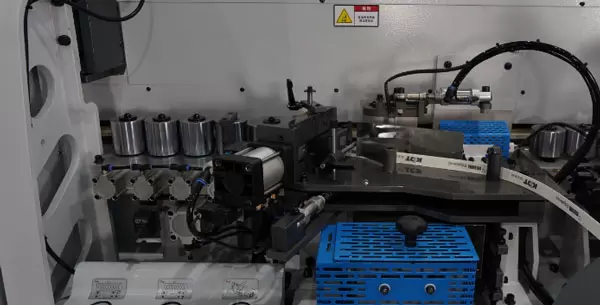

The dual-gluing and pressing mechanism is independently equipped with servo-controlled molding and pressing, as well as straight-edge gluing and pressing mechanisms, which are easy to adjust. It presses and seals the edge strips to ensure the pressing effect.
Front and rear flush mechanism

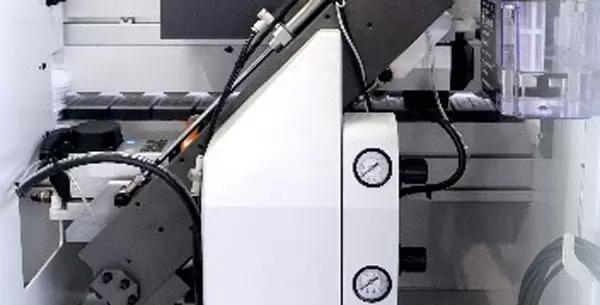

Through precise linear guide rail movement, the excess edge banding at the ends of the plate is cut off, ensuring a flat and smooth cutting surface. [Equipped with an automatic lubrication system] to ensure smooth operation of the trimming mechanism and improve the service life of the parts.
![<b>Front and rear flush mechanism</b><br/>Through precise linear guide rail movement, the excess edge banding at the ends of the plate is cut off, ensuring a flat and smooth cutting surface. [Equipped with an automatic lubrication system] to ensure smooth operation of the trimming mechanism and improve the service life of the parts.](/uploads/upload/20260821/260R11A51bW.webp)
Specialized Refinement Institution
Trim off the excess edge banding protruding from the upper and lower surfaces of the wood board, ensuring that the upper and lower edges of the edge banding align flush with the upper and lower surfaces of the wood board.
Straight Edge Refinement Institution
Trim the excess edge banding protruding from the upper and lower surfaces of the wood board, ensuring that the upper and lower edges of the edge banding align flush with the upper and lower surfaces of the wood board.
Straight edge and irregular shape integrated tracking mechanism
The flexible mode can reduce the impact on irregular plates and achieve contour trimming processes for various shapes.
Lower scraping mechanism

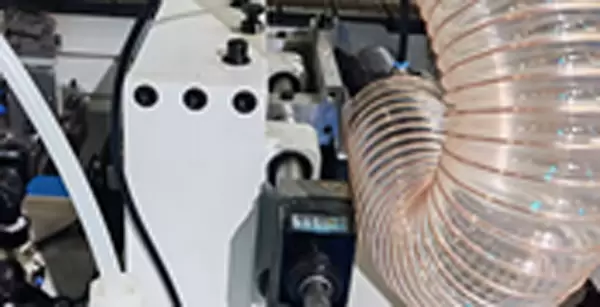

It is used to eliminate the ripple marks caused by the non-linear motion of trimming, making the upper and lower parts of the board smoother and tidier.
Straight edge scraping mechanism
It is used to eliminate the ripple marks caused by the non-linear motion of trimming, making the upper and lower parts of the board smoother and tidier.
Flexible flat scraping edge mechanism

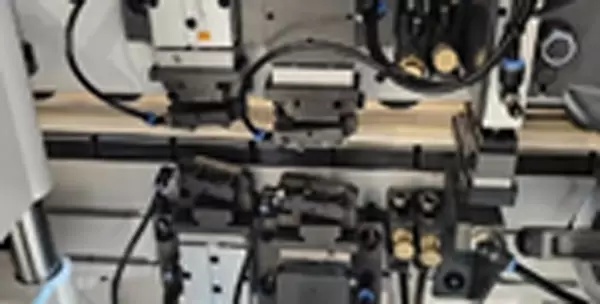

After scraping the edges, it effectively cuts the wire, removes excess glue lines, and improves the quality of edge sealing.
Polishing mechanism

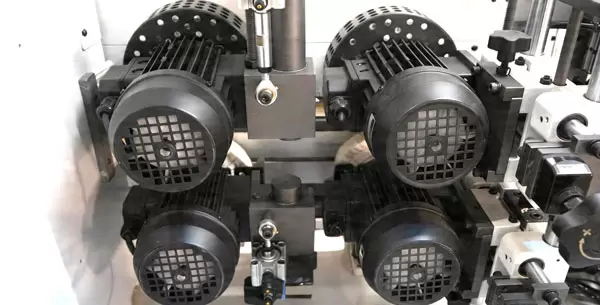

Eliminate the edge burrs of the edge banding and the residual glue between the edge banding and the wood board, resulting in a cleaner and smoother edge of the wood board.
Demolding and cleaning mechanism
Apply glue on both the upper and lower surfaces of the isolation board to prevent the spilled glue from sticking to the board surface, making it easier to clean in subsequent processes; remove any residual glue to keep the board surface clean.

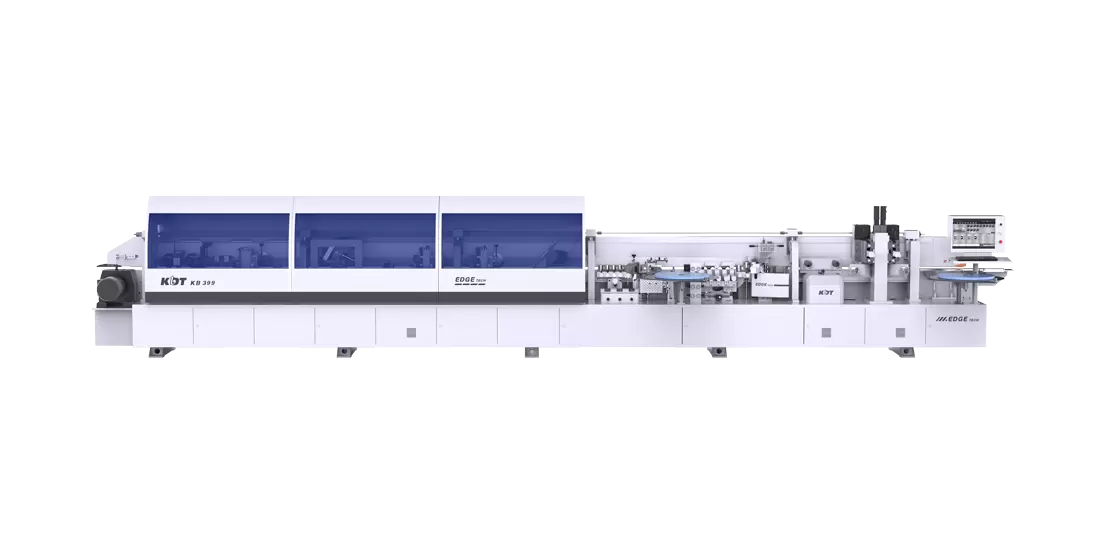

| KB-399R | |
|---|---|
| Domestic packing size | 10292L*990W*1830H |
| Export packing size | 10345L*1200W*1830H |
| Feed speed | Straight edge: 10, 15, 18, 24m/min Bevel straight edge, bevel arc, duckbill arc, full arc: 10m/min |
| Tape thickness | Straight edge: 0.4-3mm; Bevel straight edge, bevel arc, duckbill arc, full arc: 0.5-0.8mm |
| Panel thickness | Straight edge: 9-60mm; Bevel straight edge: 9-25mm; Duckbill: 9-22mm; Full & bevel arc: 9-20mm |
| Panel length | Straight edge: ≥150mm Bevel straight edge, bevel arc, duckbill arc, full arc: ≥300mm |
| Panel width | Straight edge: ≥90mm; Bevel straight edge, bevel arc, duckbill arc, full arc: ≥150mm |
| Min. panel size | Straight edge: 120*90 Bevel straight edge, bevel arc, duckbill arc, full arc: 300*150 |
| Power (kW) | 48.89 |
| Overall size (mm) | 10292L*990W*1822H |
| Dust outlet size & qty | φ126*10+φ50*1 |
| Dust extraction airflow (m³/h) | 11000 |
| Air pressure (MPa) | 0.6 |
