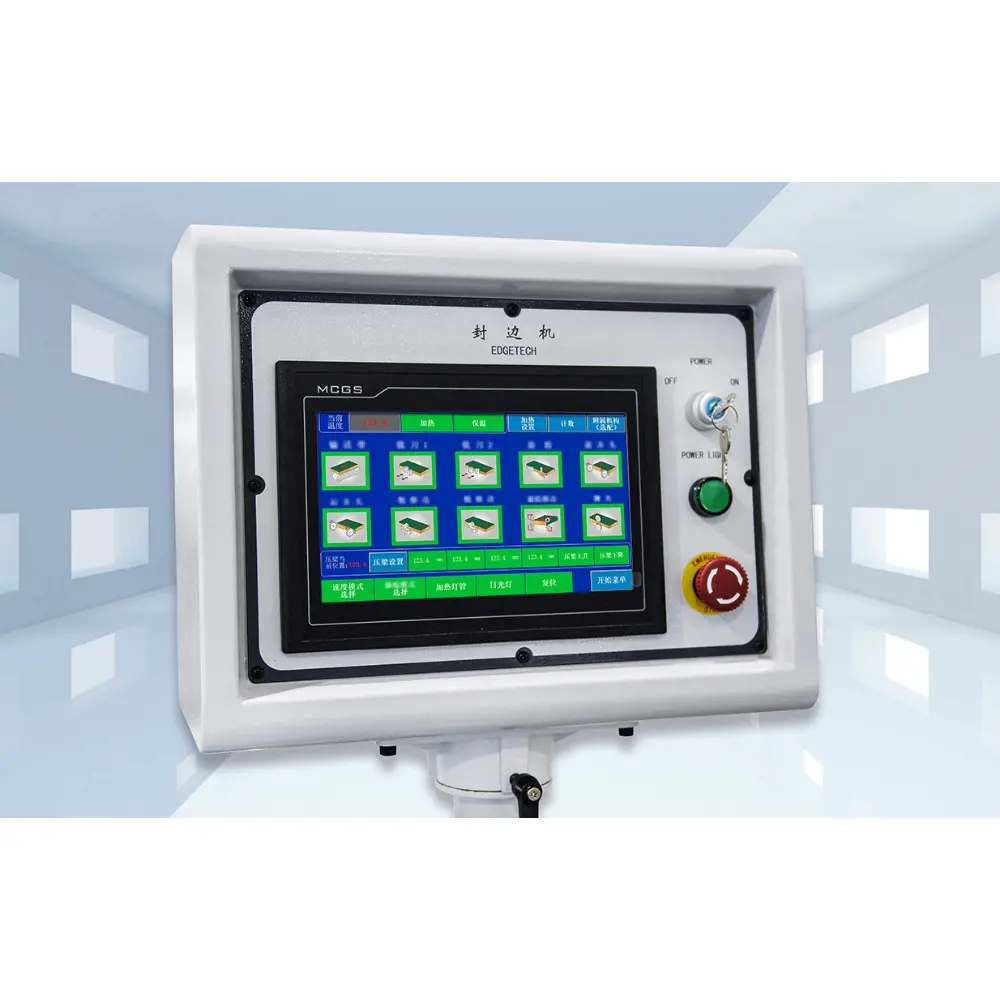

10-inch touchscreen
The machine can be set to automatically switch to standby when idle, saving power and maintaining glue temperature to prevent glue carbonization.

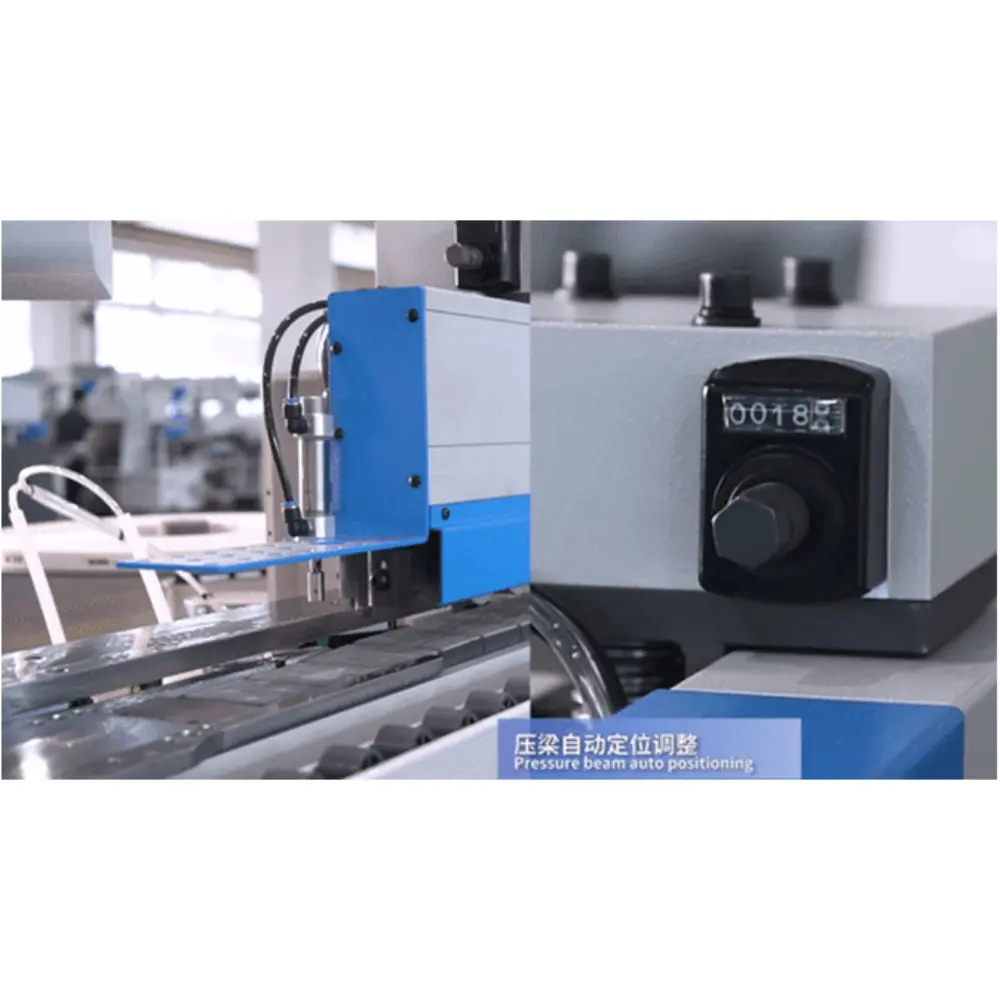

Pressure beam positioning system
Automatically adjust the pressure beam height based on panel thickness, saving setup time for higher efficiency

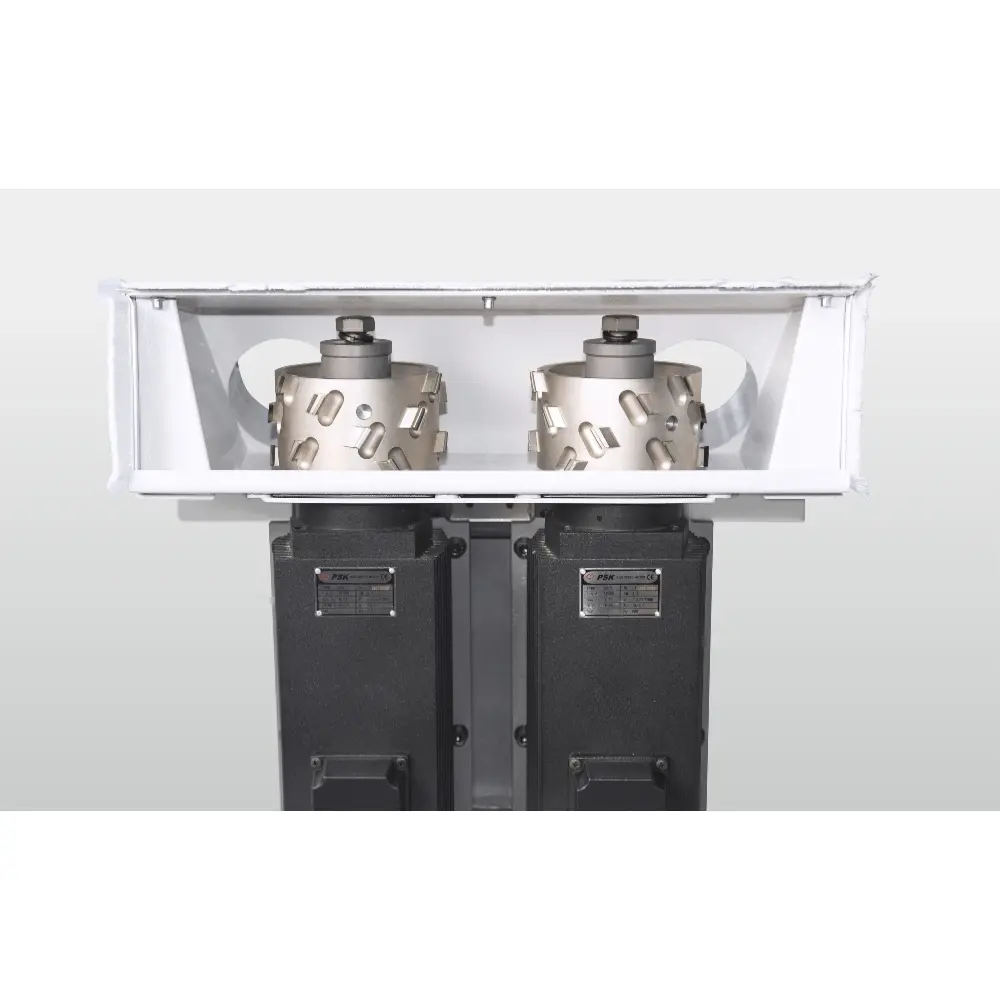

Pre-milling unit
Dual 40mm milling cutters eliminate waviness, burrs, and uneven surfaces to deliver smooth edges for tight tape bonding.

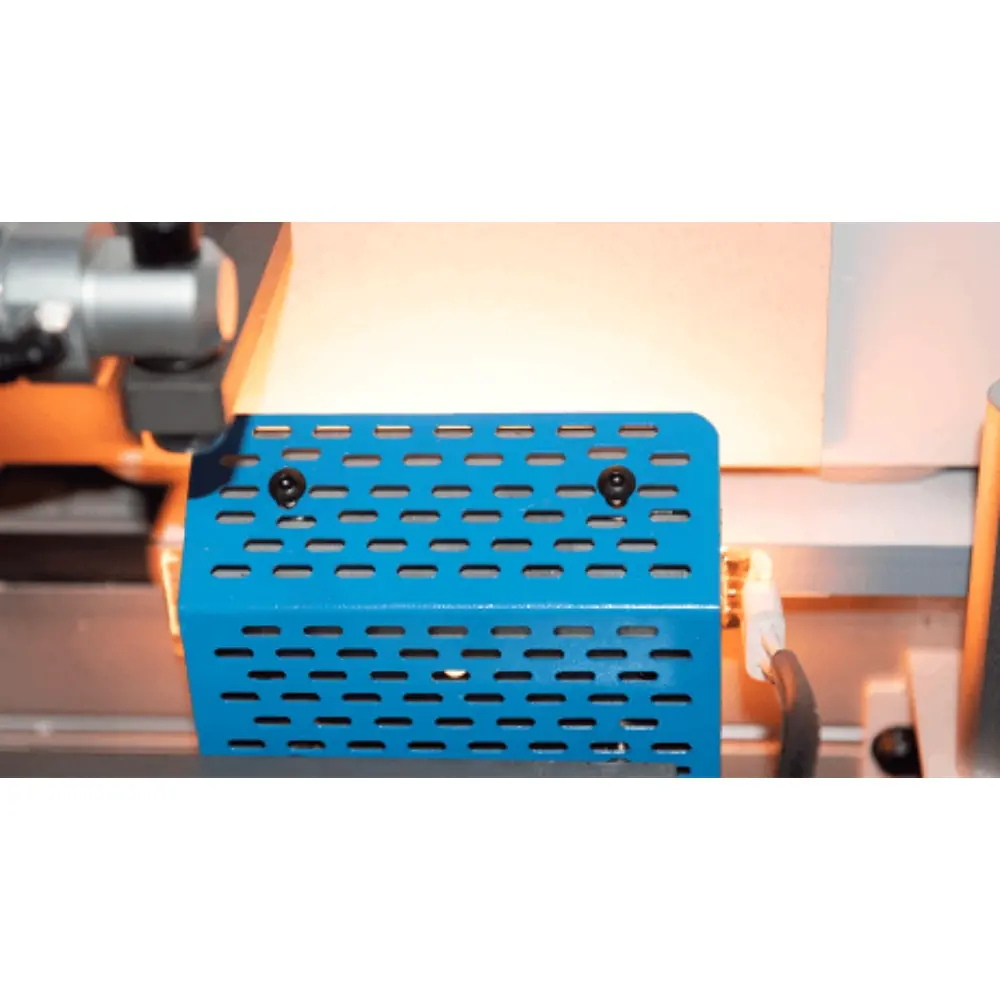

Pre-heating unit
Pre-heat the panel edge to enhance tape bonding.

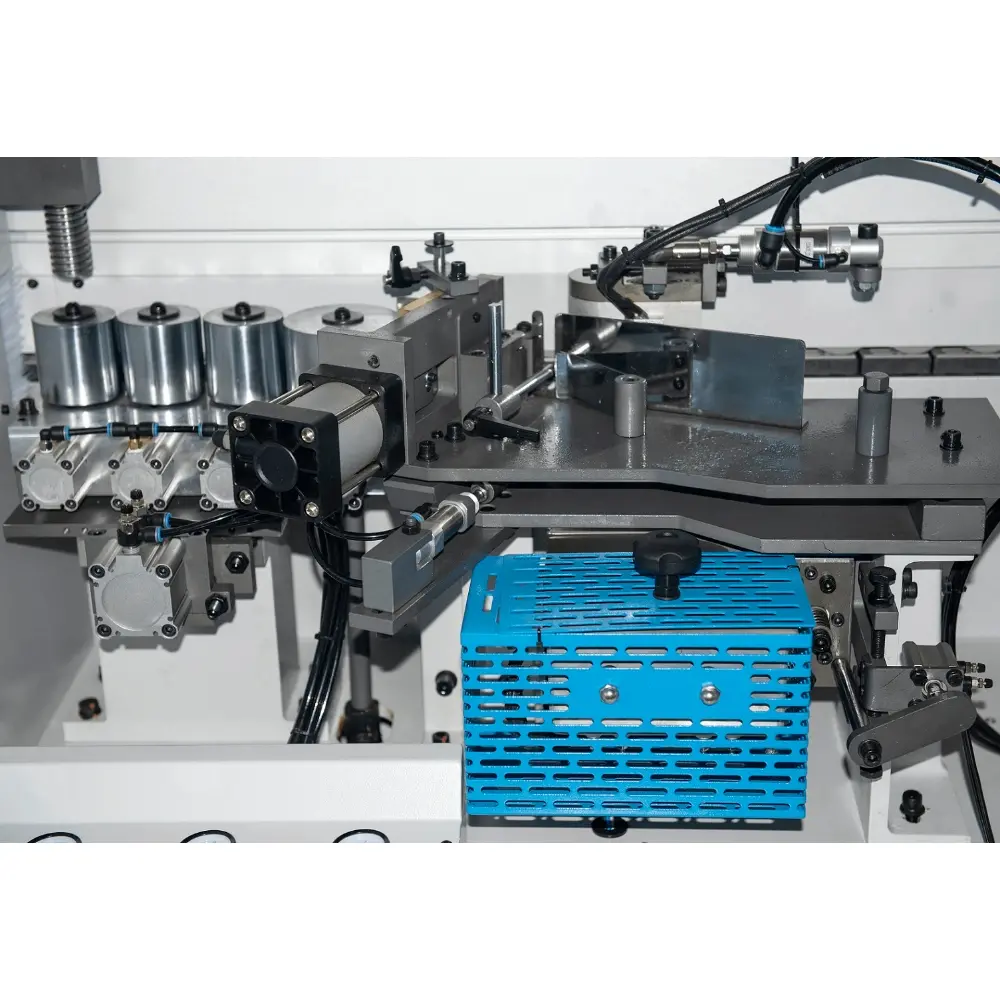

Gluing & pressing units
The gluing unit coats the panel edge with glue via a roller, while the pressing unit ensures firm bonding of the tape to the panel edge.

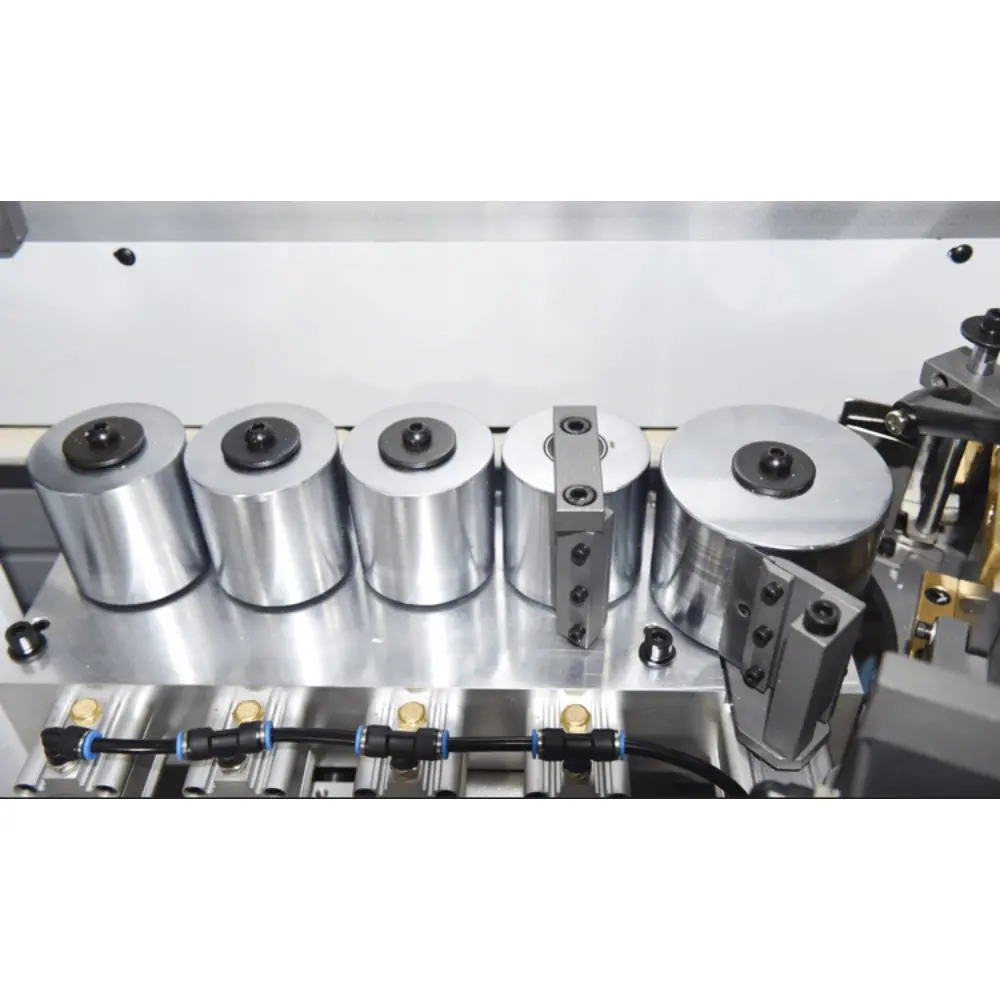

4-roller pressing unit
Pressure rollers flexibly press the tape against the panel edge for reliable bonding, with glue scrapers to clear glue residue for easier routine maintenance.

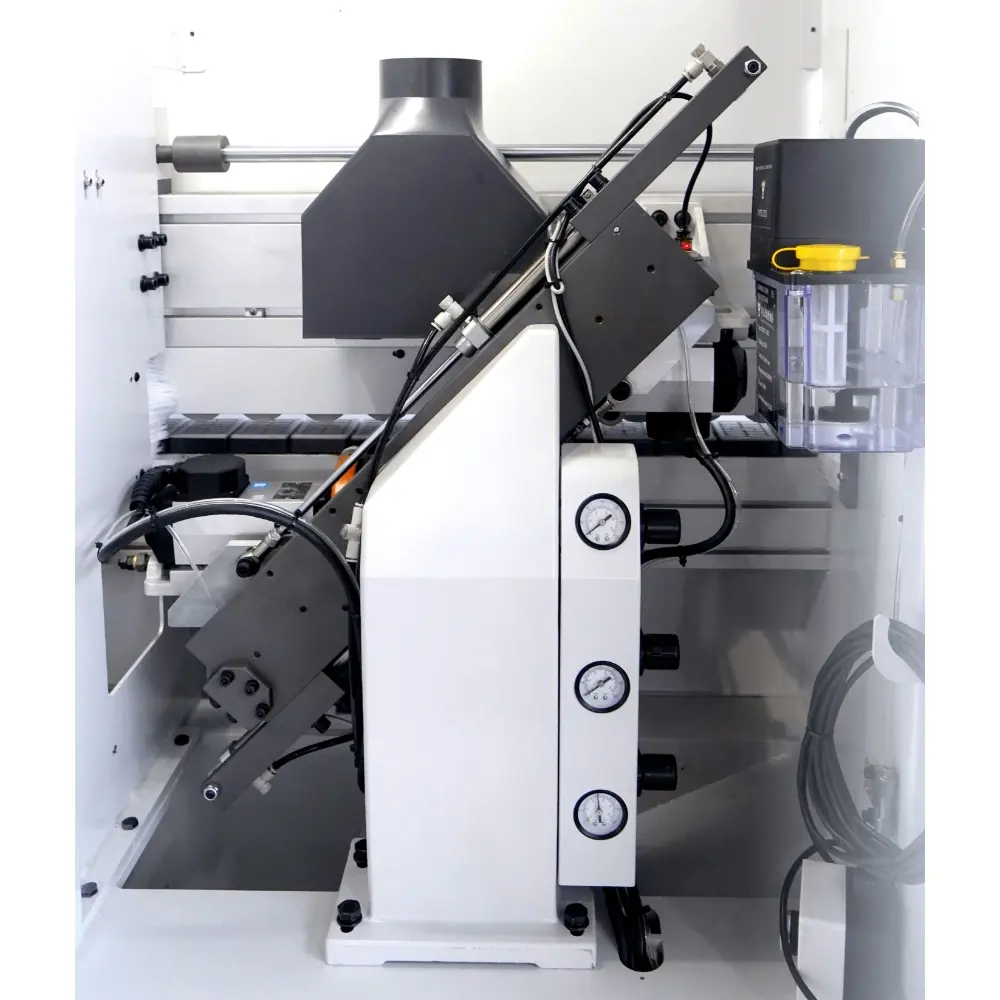

End cutting unit
Two cutters slide along separate guide rails to cut the tape at the front and rear ends of the panel, and an auto lubrication system ensures smooth operation and a longer service life of the unit.

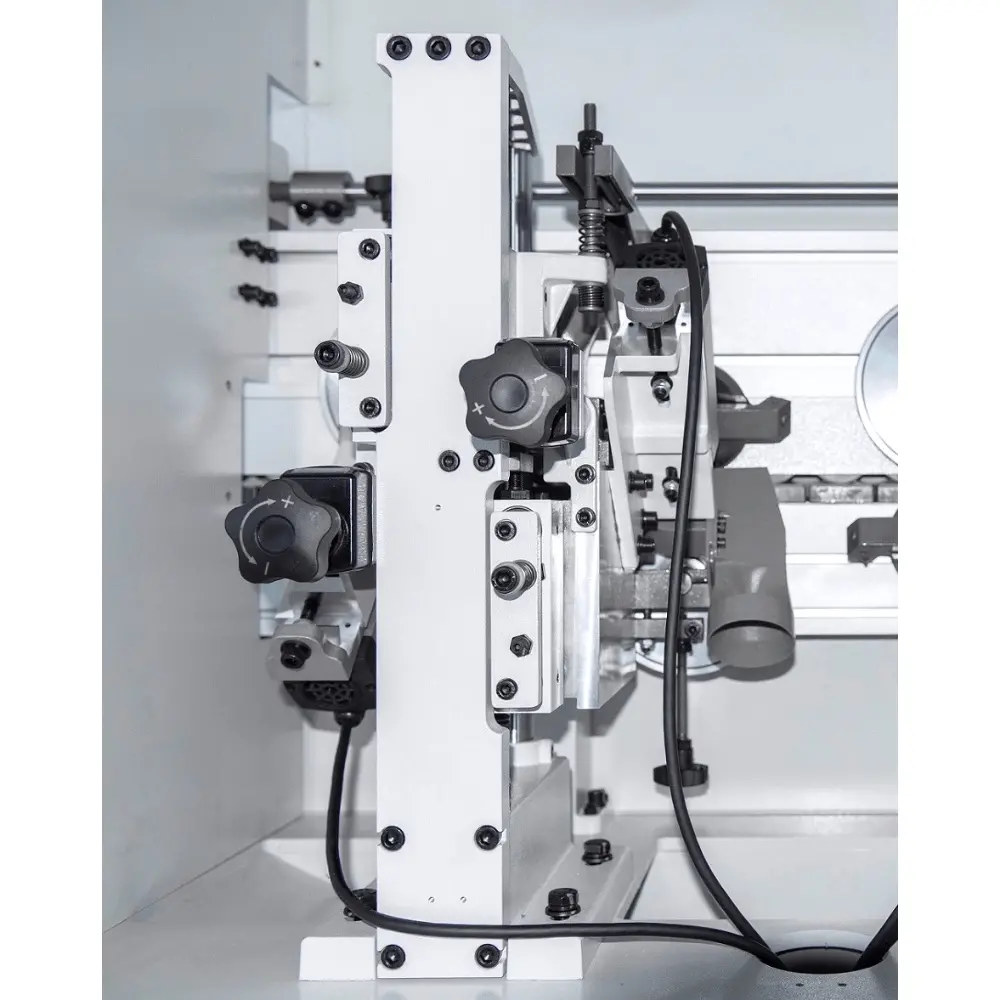

Fine trimming unit
Trim excess tape from the top and bottom of the panel to keep the tape flush with the edge.

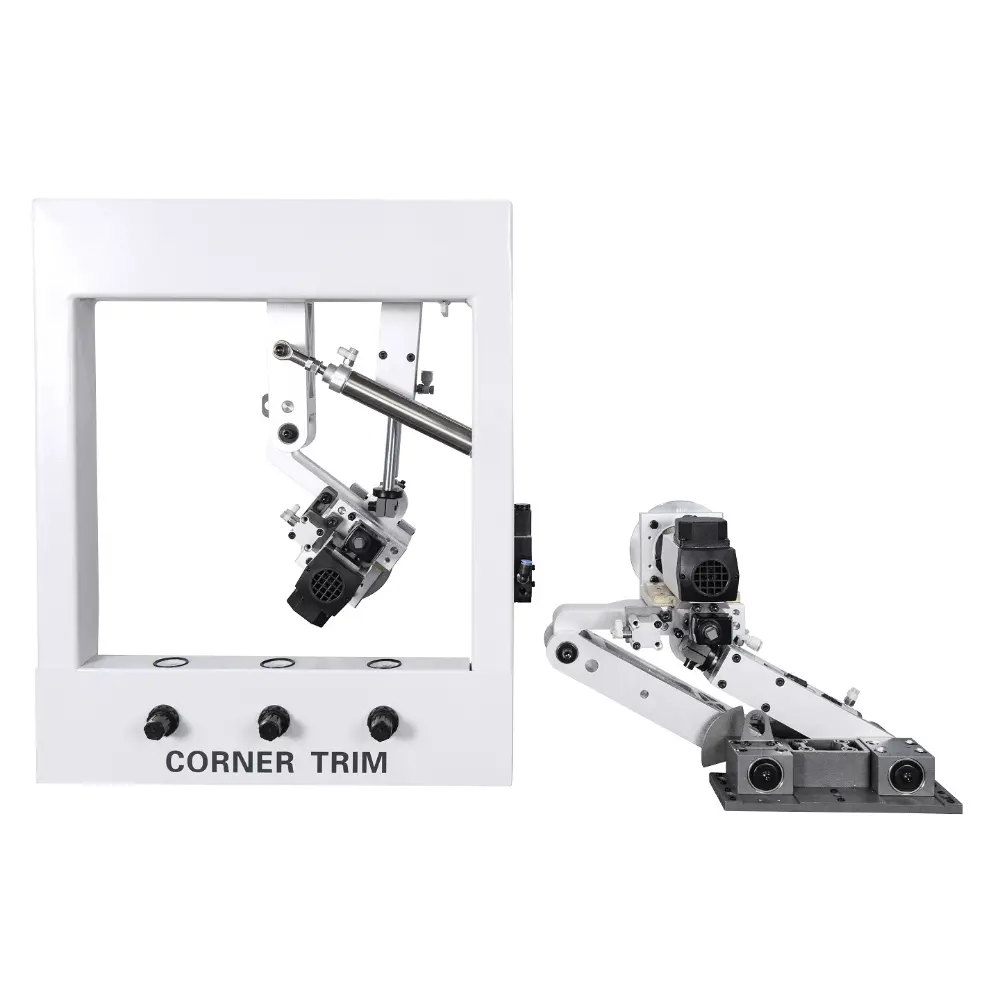

Corner rounding unit
Round the tape corners at both ends to ensure smooth and neat edges.

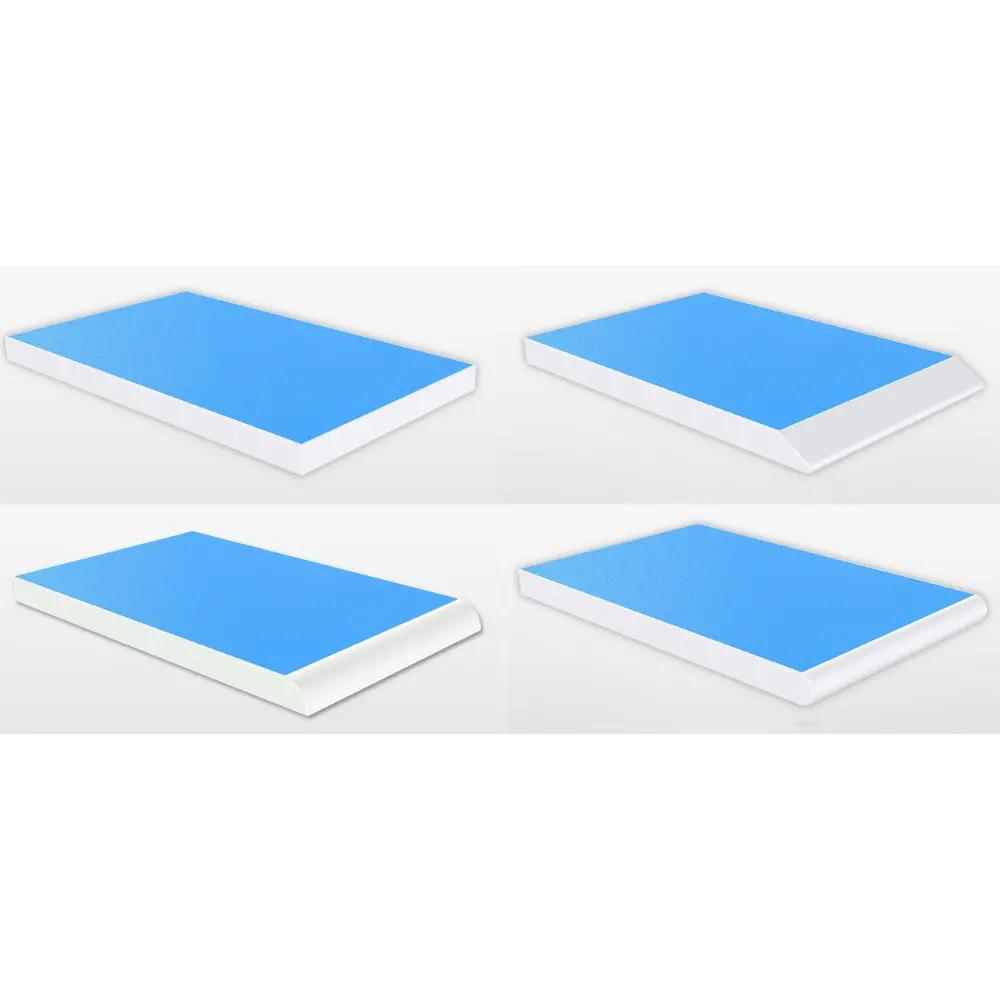

Corner rounding unit
Adapt to multiple edge profiles.

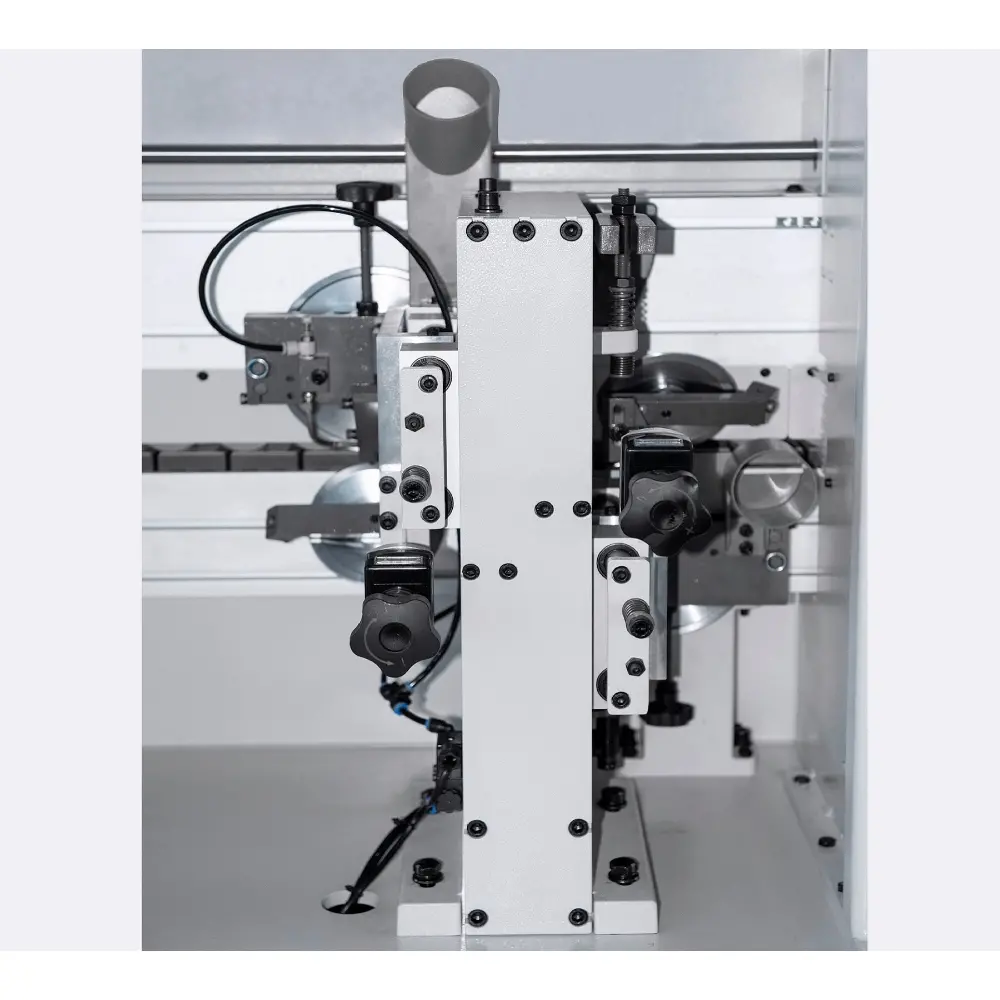

Scraping unit
Remove tool marks left by non-linear trimming to ensure the panel surfaces are smooth and clean.

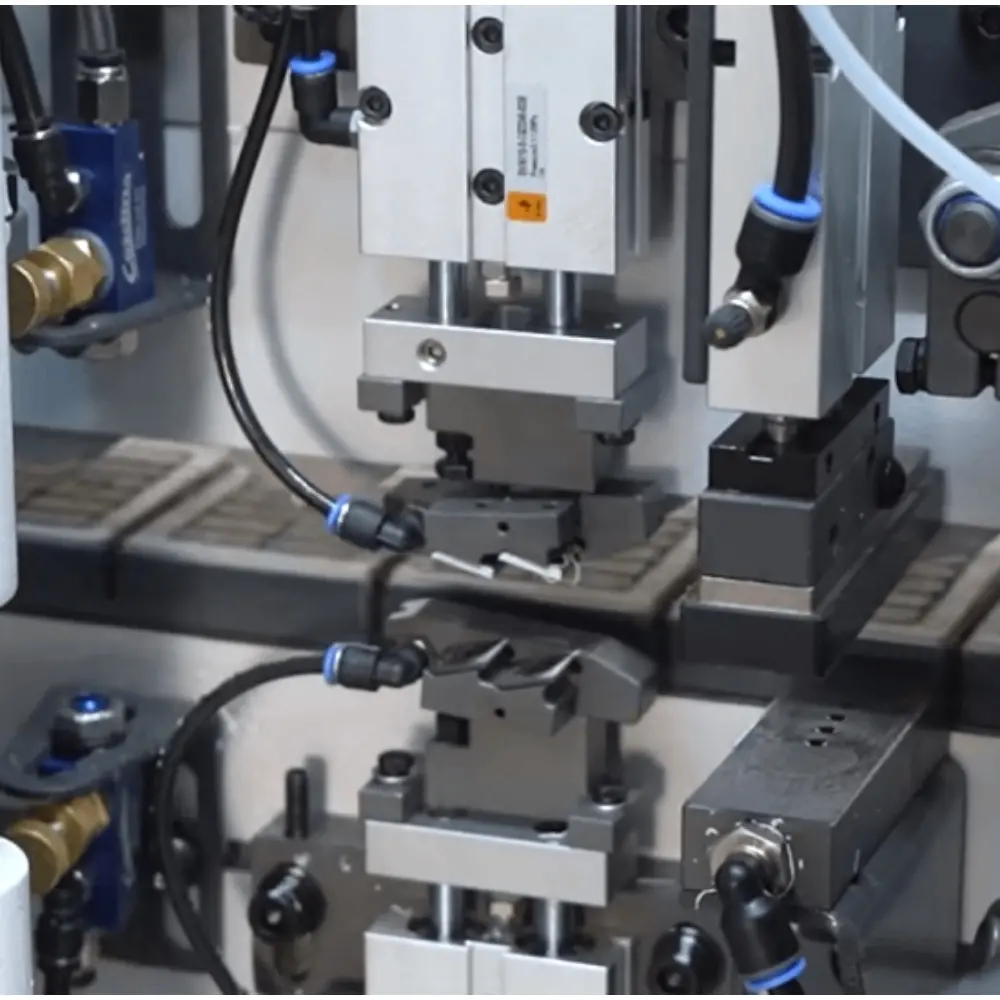

Flexible flat scraping unit
A self-adaptive flat scraping unit with a flexible contour follower closely tracking the edge contour for precise scraping.

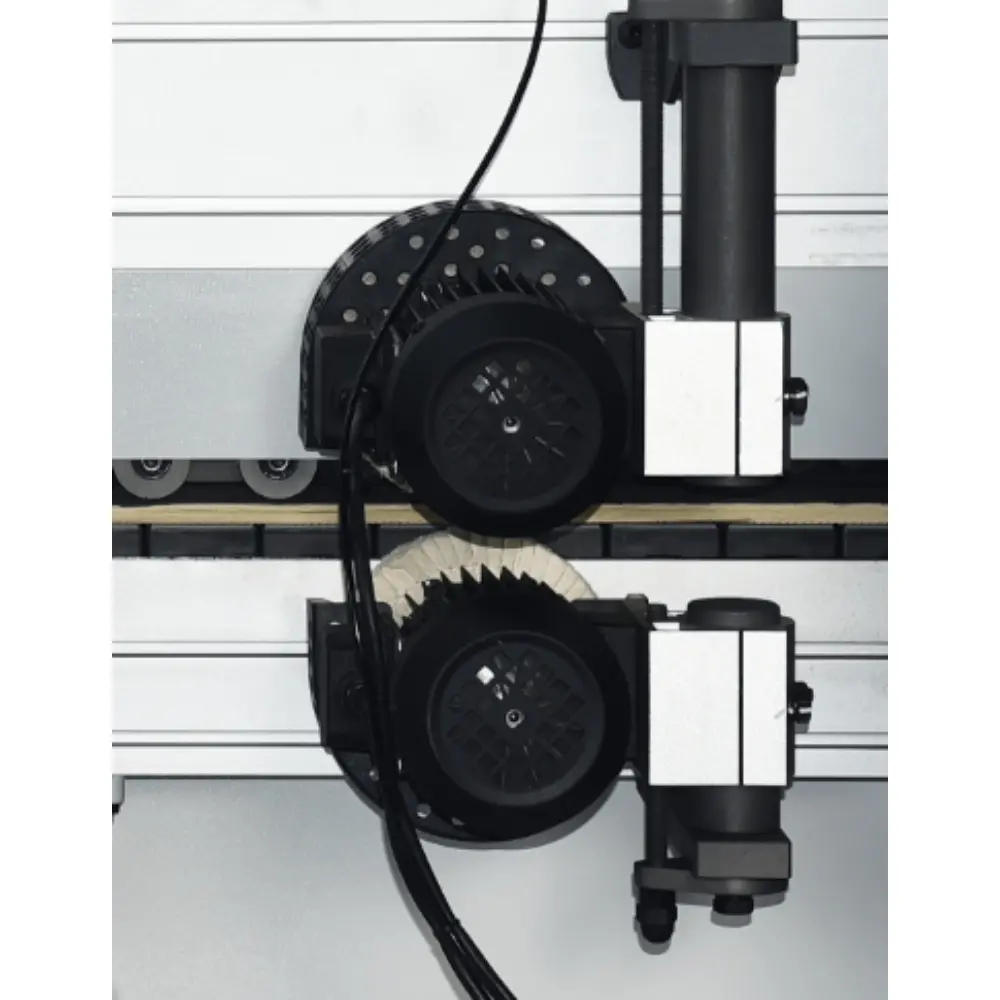

Buffing unit
Remove tape burrs and glue residue to ensure smooth and clean edges.

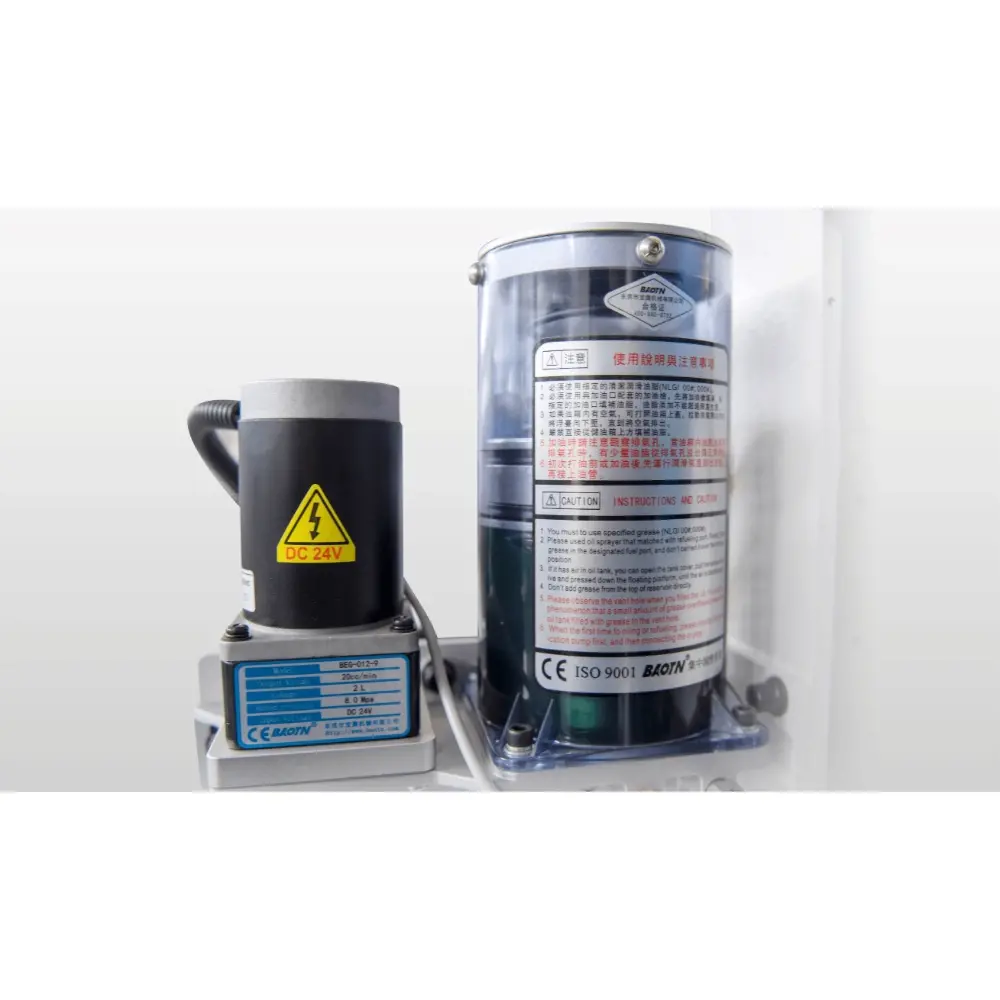

Electric grease pump
Automatically apply grease to the guide rails based on the machine's operating time without manual intervention.

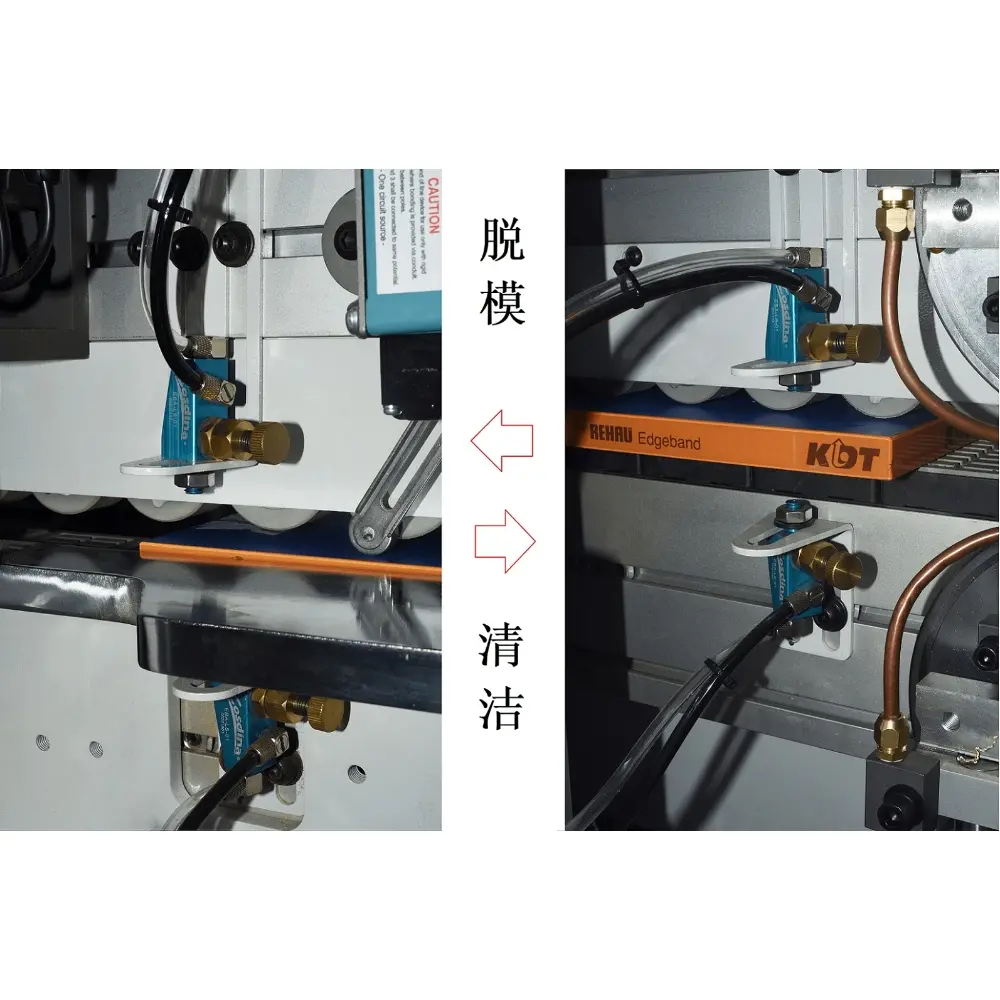

Release agent & cleaning units
Spray release agent to the panel’s top and bottom surfaces to prevent glue overflow from sticking, and spray cleaner to assist the buffing unit in clearing glue residue and debris.
| KE-665JS(40) | |
|---|---|
| Domestic packing size | 5850L*860W*1960H |
| Export packing size | 5925L*1000W*1960H |
| Feed speed | 15-24m/min |
| Tape thickness | 0.4-3mm |
| Panel thickness | 9-60mm |
| Min. panel size(4-side edge banding) | 40×300mm |
| Power(kW) | 19.95 |
| Overall size(mm) | 5850L×860W×1960H |
| Dust outlet size & qty | φ125×6 |
| Dust extraction airflow(m³/h) | 4900 |
| Air pressure (MPa) | 0.6 |
