Smart Edge Banding Machines

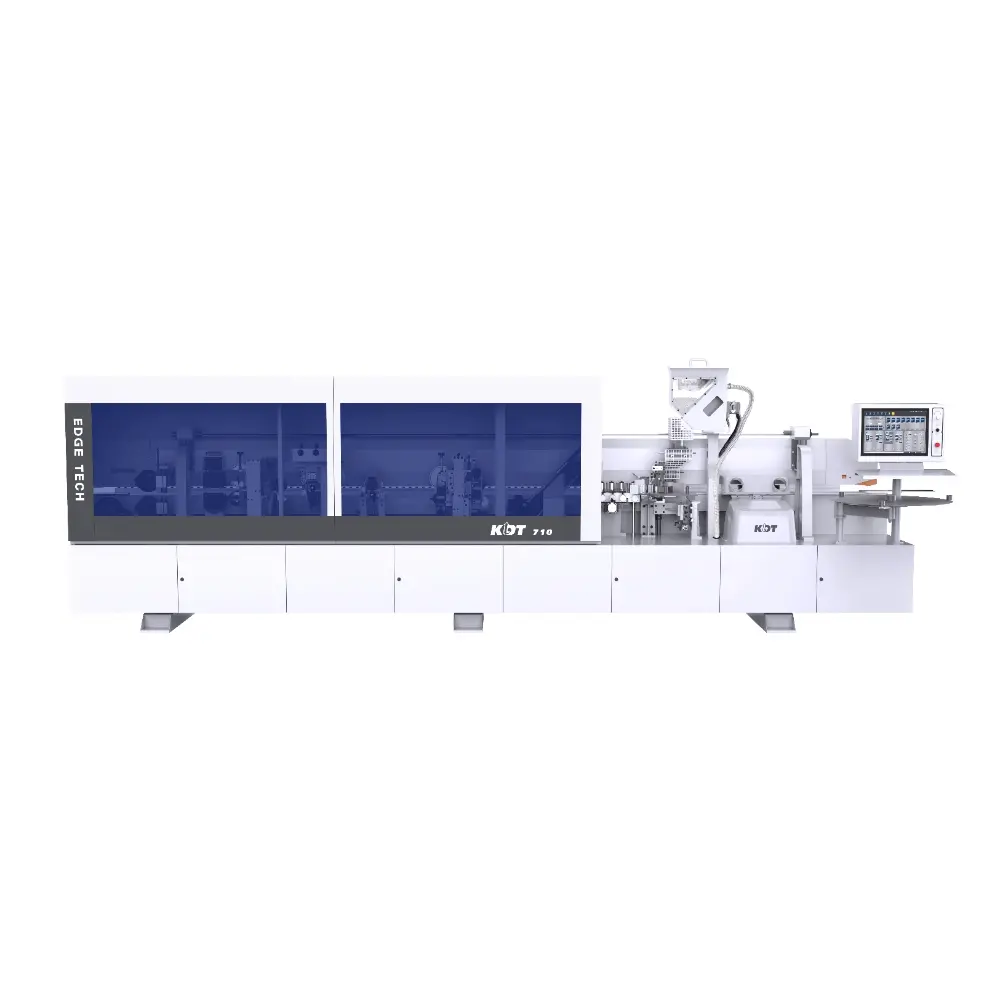

KE-710BT

Request a Quote
Dowload Pdf
FEATURES TECHNICAL SPECIFICATIONS RELATED PRODUCTS ONLINE MESSAGE

FEATURES

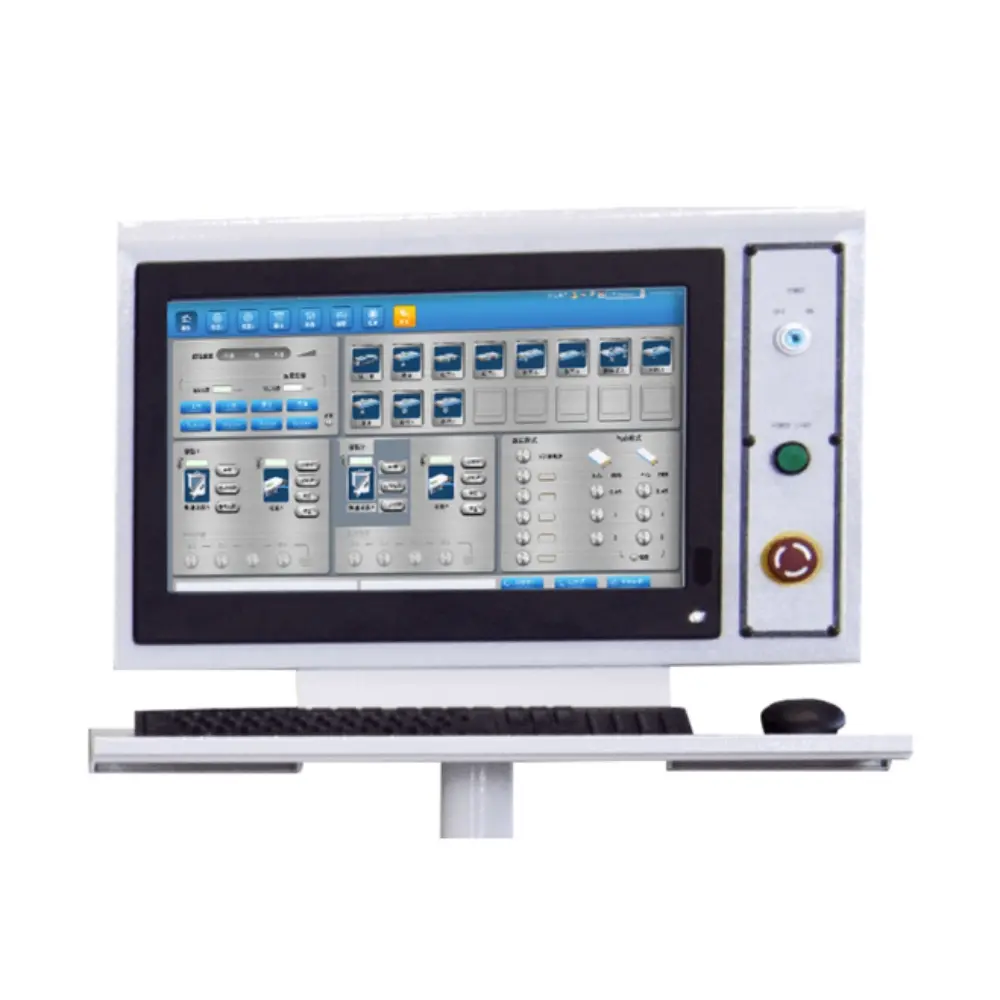

PC-based control system
The HMI touchscreen is clear and user-friendly and displays system faults in graphics and text for quick troubleshooting.

<b>PC-based control system</b><br/>The HMI touchscreen is clear and user-friendly and displays system faults in graphics and text for quick troubleshooting.

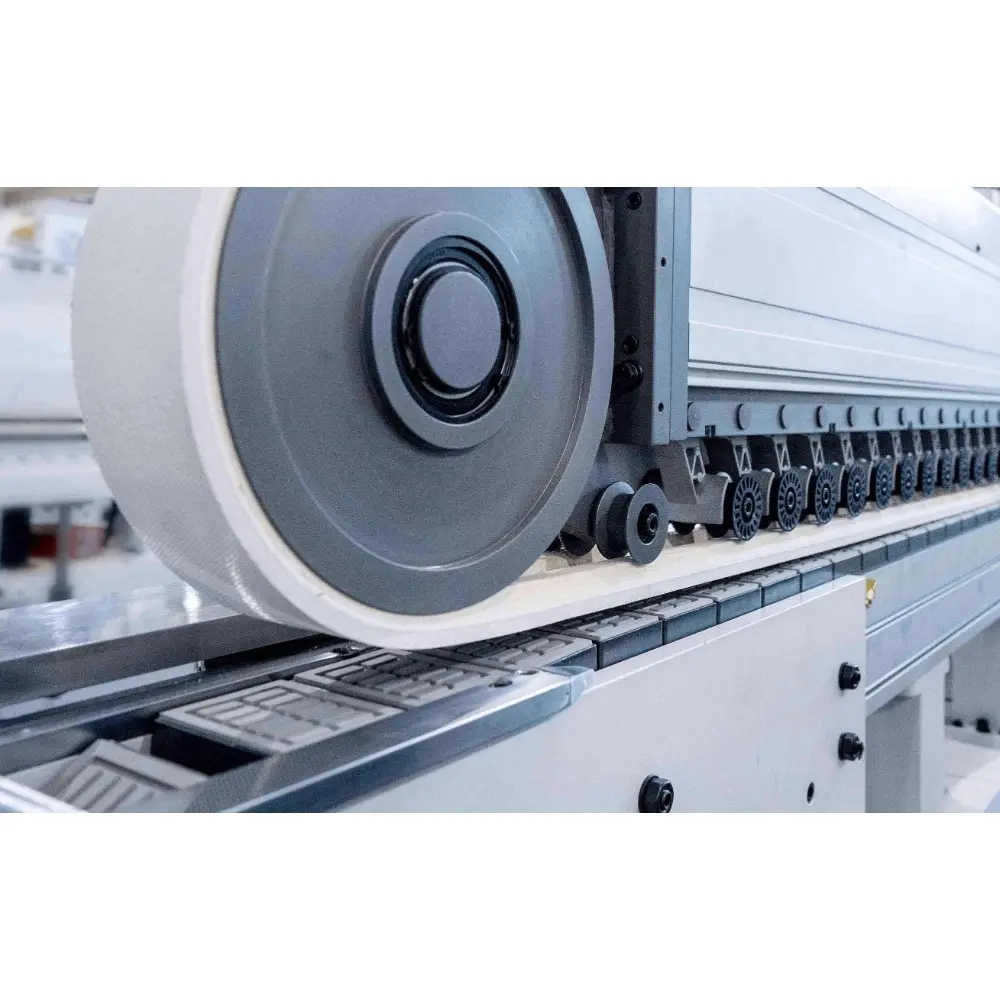

Pressure beam with V-belt
Maintain a large contact area on the panel for firm clamping and stable conveyance.

<b>Pressure beam with V-belt</b><br/>Maintain a large contact area on the panel for firm clamping and stable conveyance.

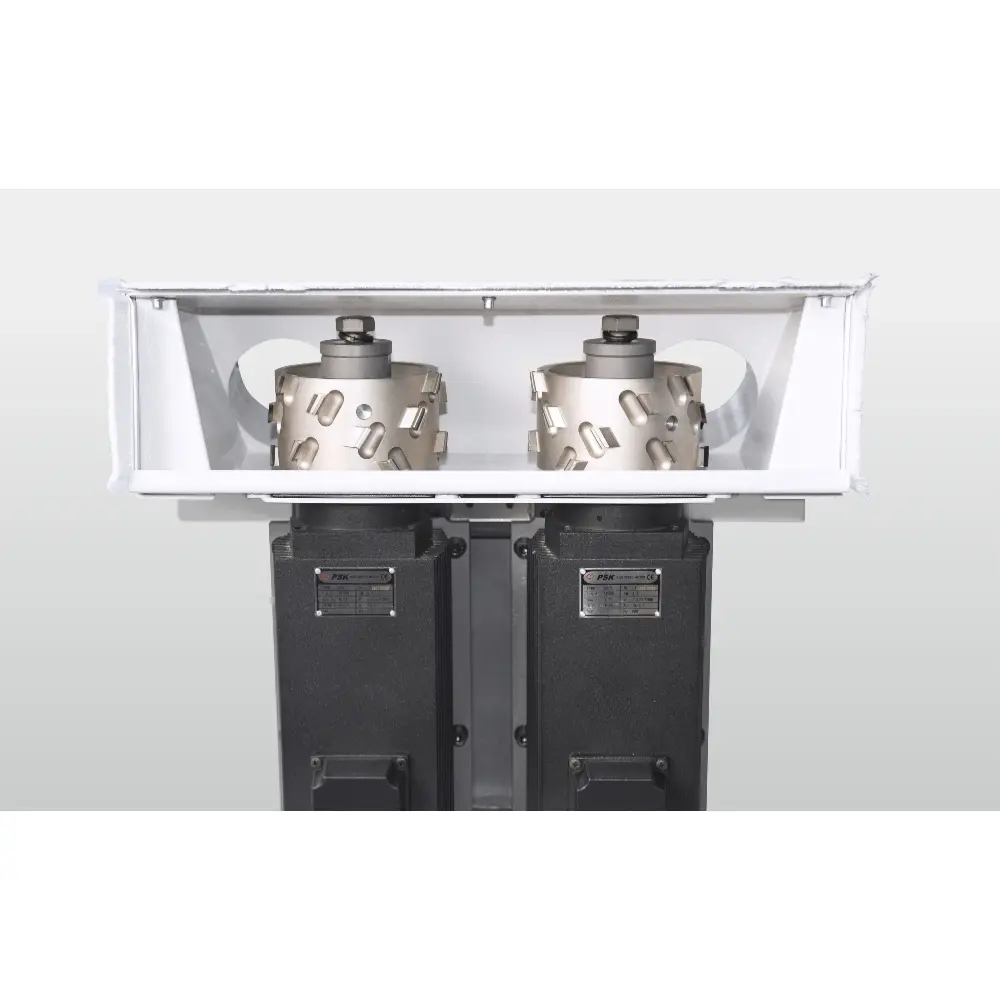

Pre-milling unit
Dual 40mm milling cutters eliminate waviness, burrs, and uneven surfaces to deliver smooth edges for tight tape bonding.

<b>Pre-milling unit</b><br/>Dual 40mm milling cutters eliminate waviness, burrs, and uneven surfaces to deliver smooth edges for tight tape bonding.

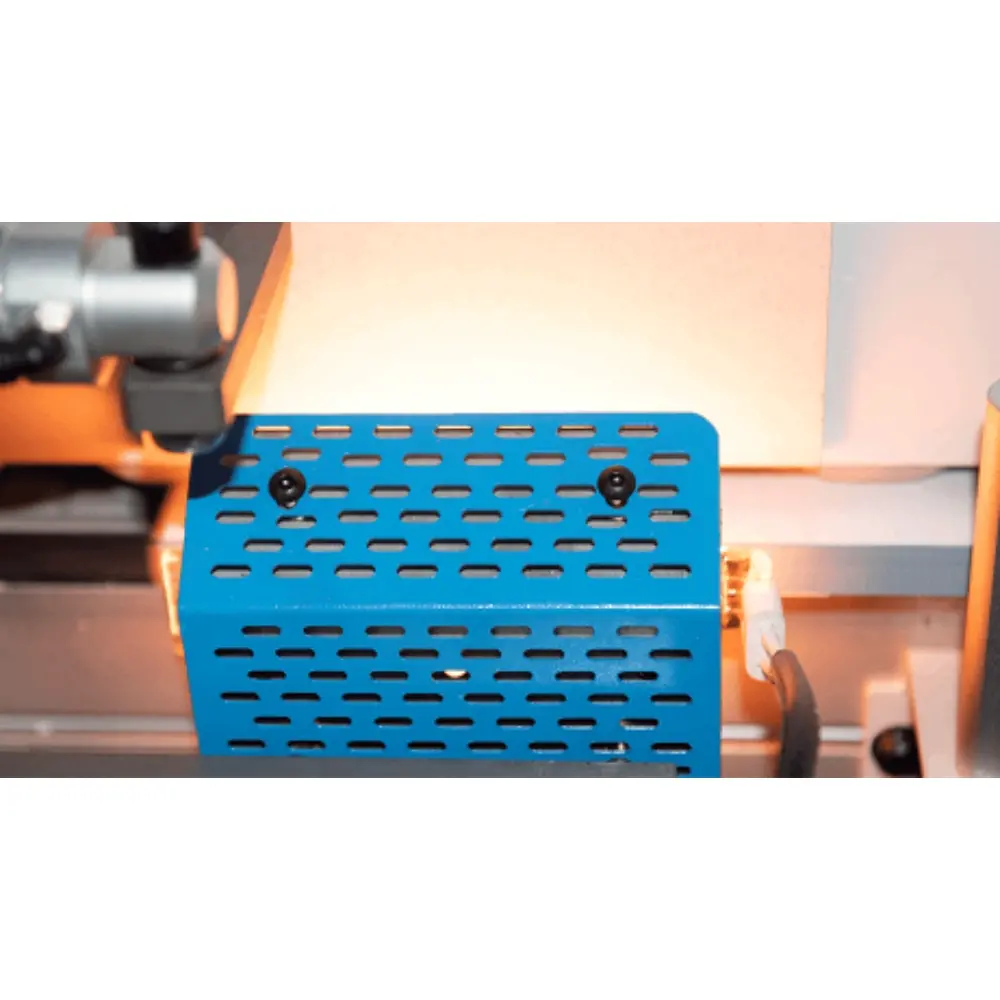

Pre-heating unit
Pre-heat the panel edge to enhance tape bonding.

<b>Pre-heating unit</b><br/>Pre-heat the panel edge to enhance tape bonding.

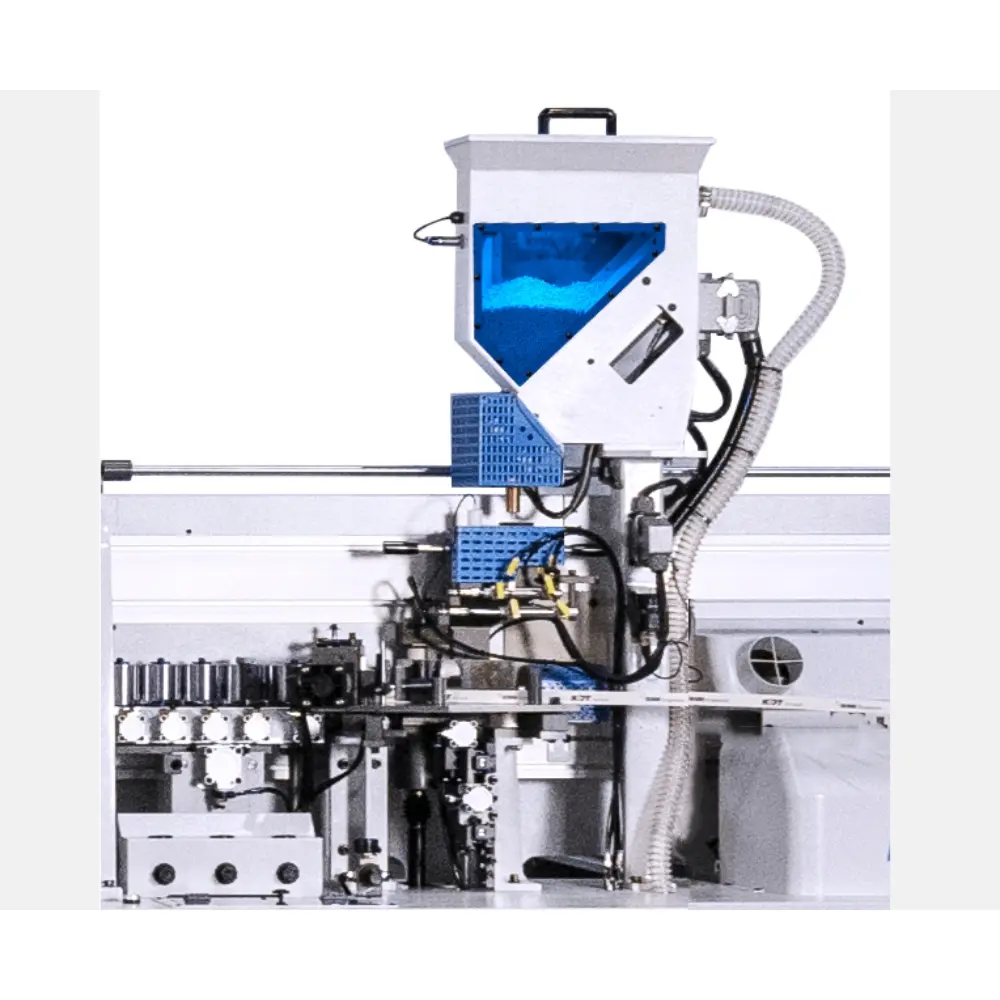

Upper melting unit
Quickly melt glue in as little as 15 minutes, allow fast applicator replacement (with a PUR connection port for flexible switching between EVA and PUR), and automatically pre-melt and feed glue pellets (5 kg storage capacity) for continuous glue supply.

<b>Upper melting unit</b><br/>Quickly melt glue in as little as 15 minutes, allow fast applicator replacement (with a PUR connection port for flexible switching between EVA and PUR), and automatically pre-melt and feed glue pellets (5 kg storage capacity) for continuous glue supply.

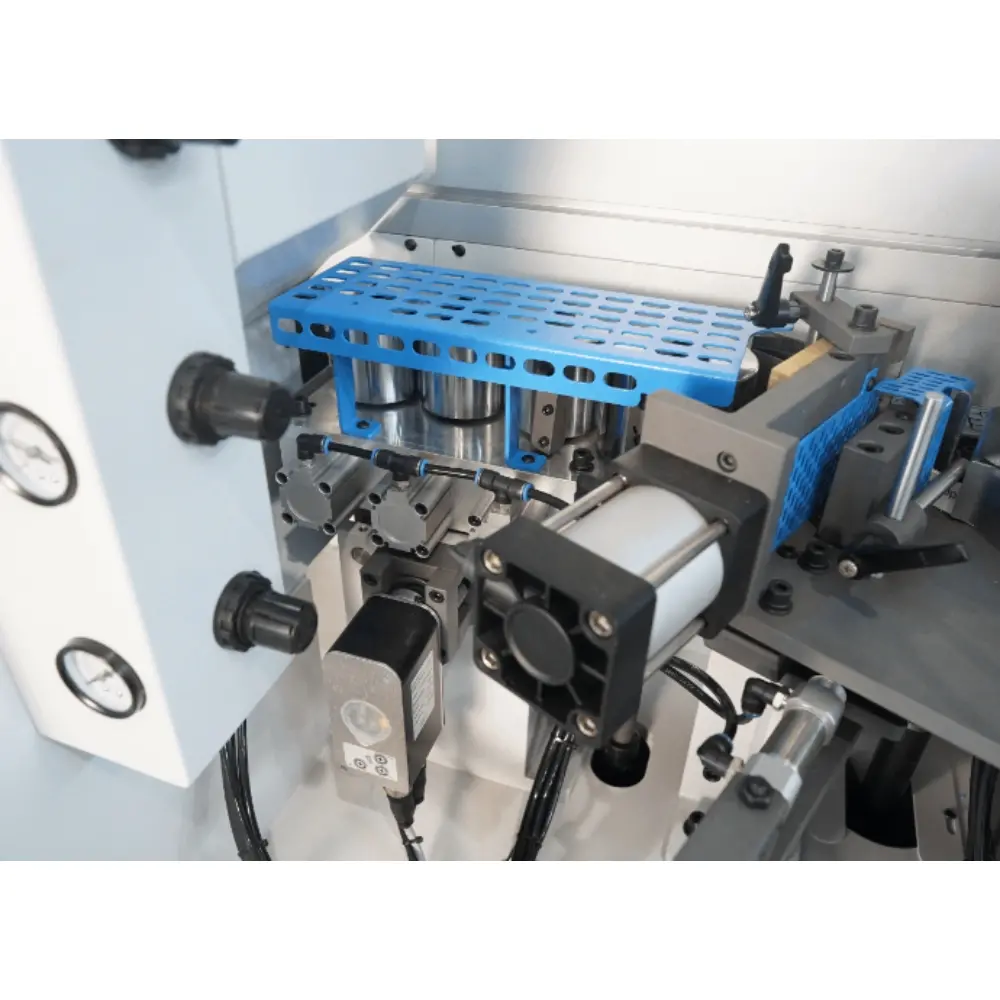

Auto-positioning pressing unit
Automatically adjust the pressing position based on tape thickness, reducing impact on the panel while ensuring effective pressing.

<b>Auto-positioning pressing unit</b><br/>Automatically adjust the pressing position based on tape thickness, reducing impact on the panel while ensuring effective pressing.

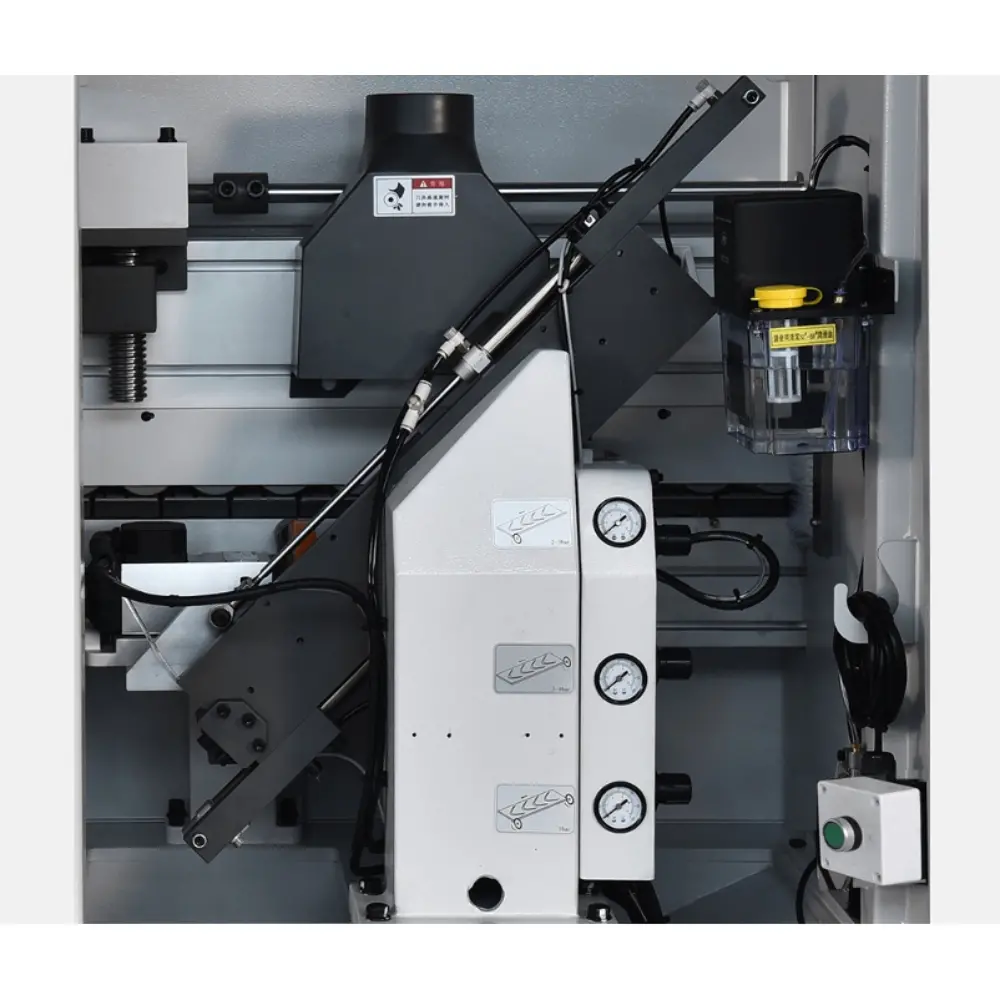

Pneumatic end cutting unit
Two cutters slide along a precision linear guide rail to cut the tape at the front and rear ends of the panel, and an auto lubrication system ensures smooth operation and a longer service life of the unit.

<b>Pneumatic end cutting unit</b><br/>Two cutters slide along a precision linear guide rail to cut the tape at the front and rear ends of the panel, and an auto lubrication system ensures smooth operation and a longer service life of the unit.

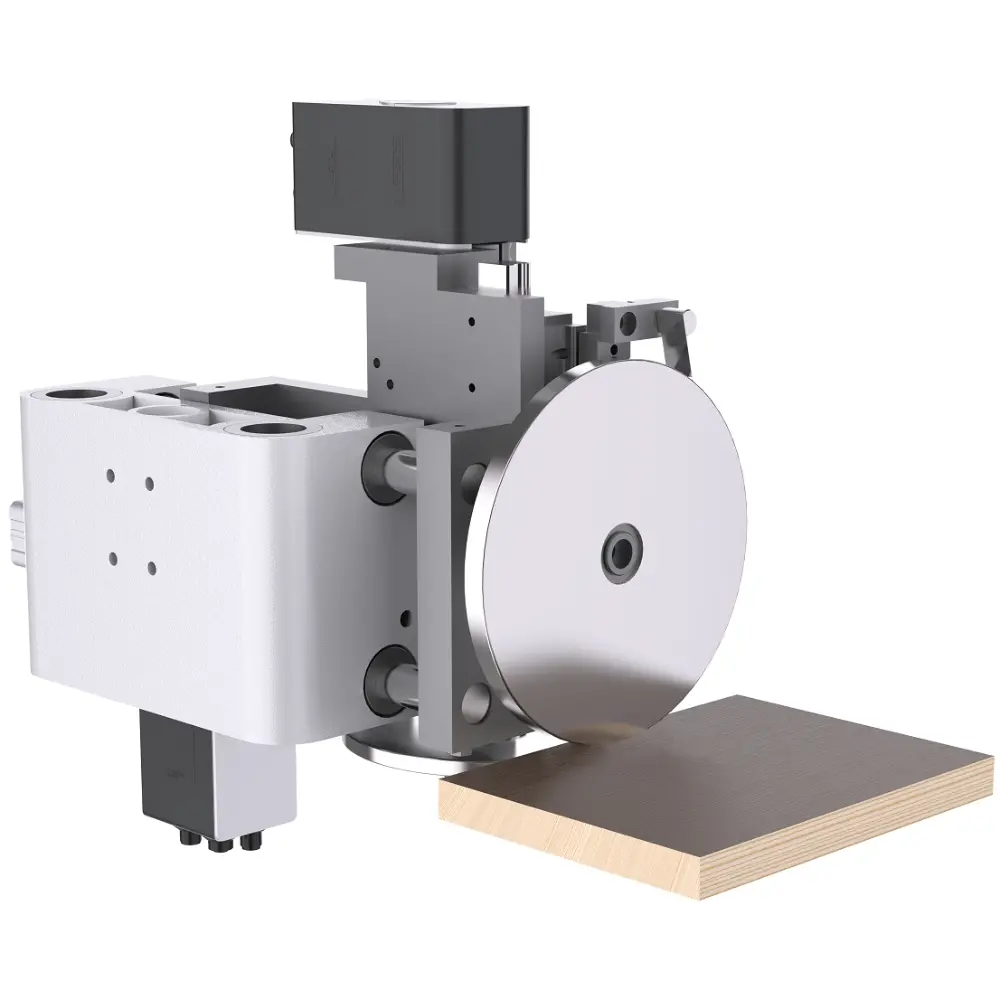

Auto-positioning trimming unit
Equipped with an R1.5 tool and a motor for intelligent horizontal and vertical positioning of the tool based on tape thickness, ensuring precise trimming for multiple edge profiles.

<b>Auto-positioning trimming unit</b><br/>Equipped with an R1.5 tool and a motor for intelligent horizontal and vertical positioning of the tool based on tape thickness, ensuring precise trimming for multiple edge profiles.

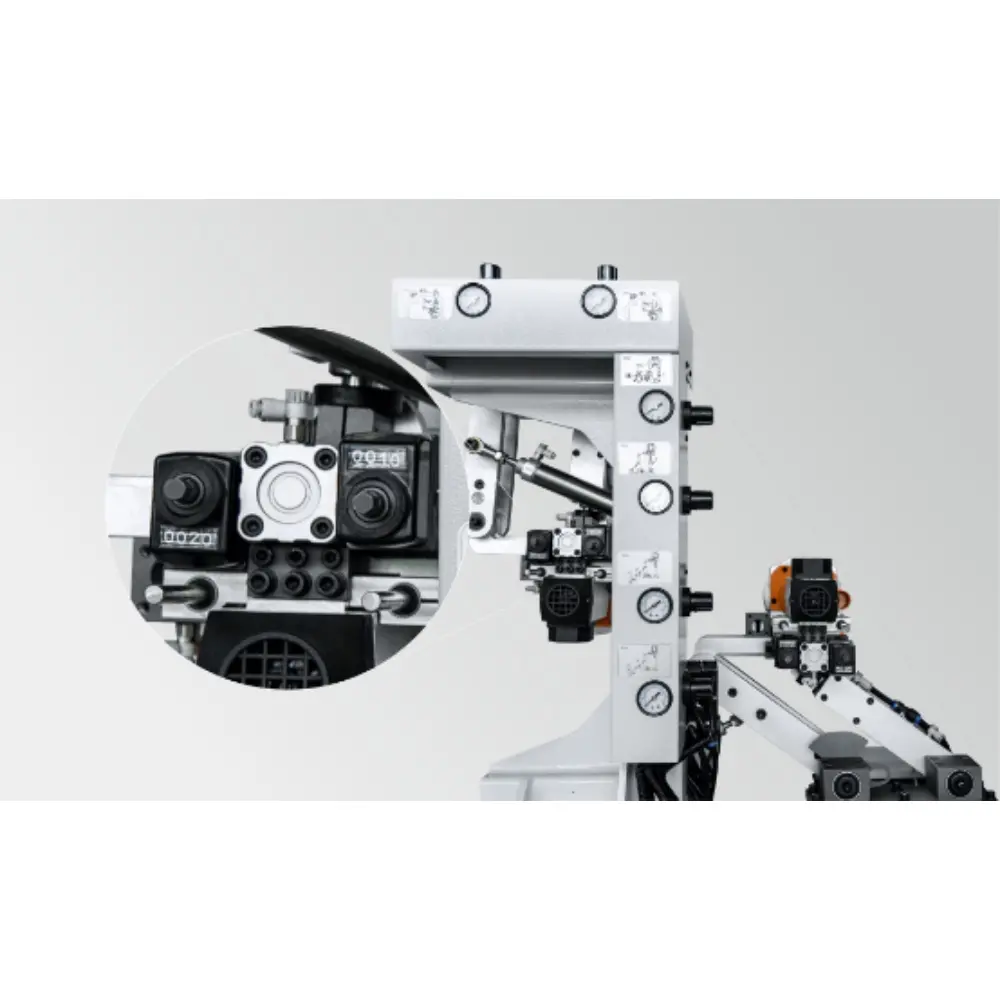

Pneumatic corner rounding unit
Dual cutters are freely switchable according to tape thickness, with easy operation and stable performance.

<b>Pneumatic corner rounding unit</b><br/>Dual cutters are freely switchable according to tape thickness, with easy operation and stable performance.

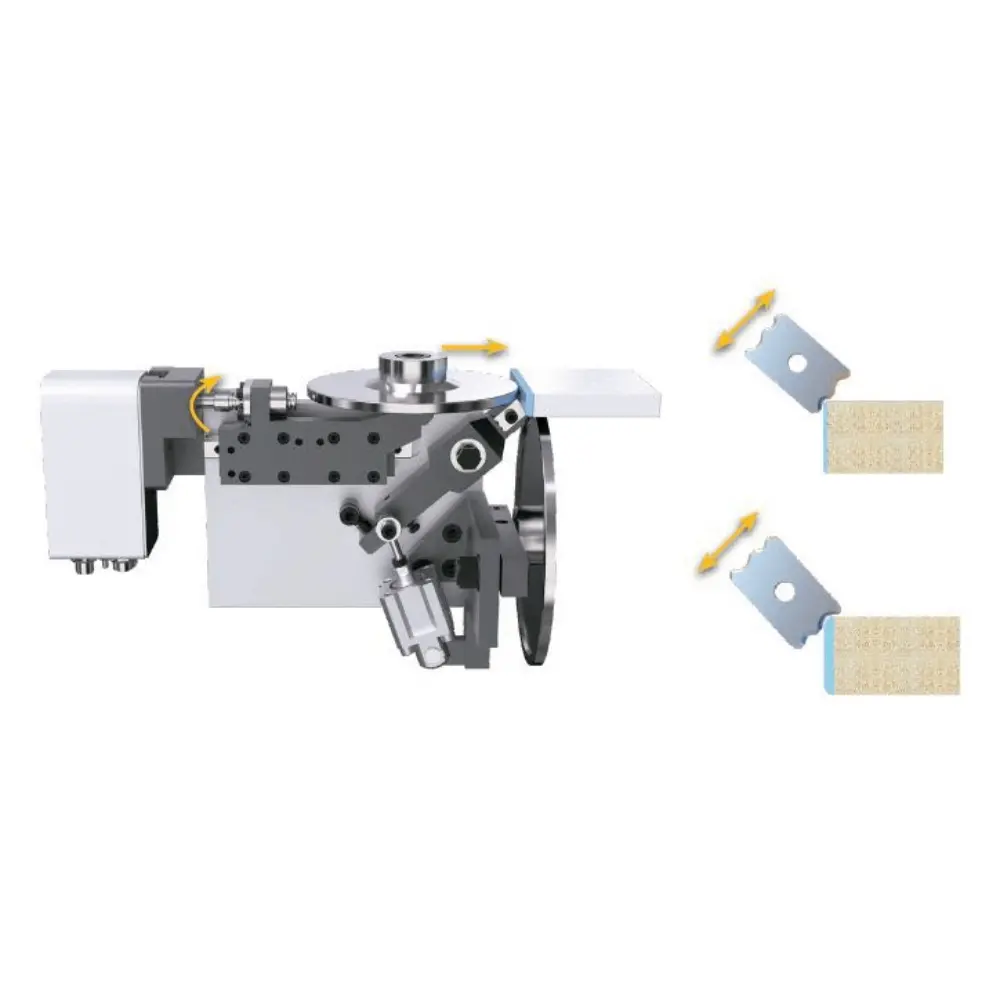

Auto-positioning scraping unit
It can pneumatically switch between R1 and R1.5 tools, with motors for intelligent horizontal and vertical positioning of the tools based on tape thickness, ensuring precise scraping for multiple edge profiles.

<b>Auto-positioning scraping unit</b><br/>It can pneumatically switch between R1 and R1.5 tools, with motors for intelligent horizontal and vertical positioning of the tools based on tape thickness, ensuring precise scraping for multiple edge profiles.

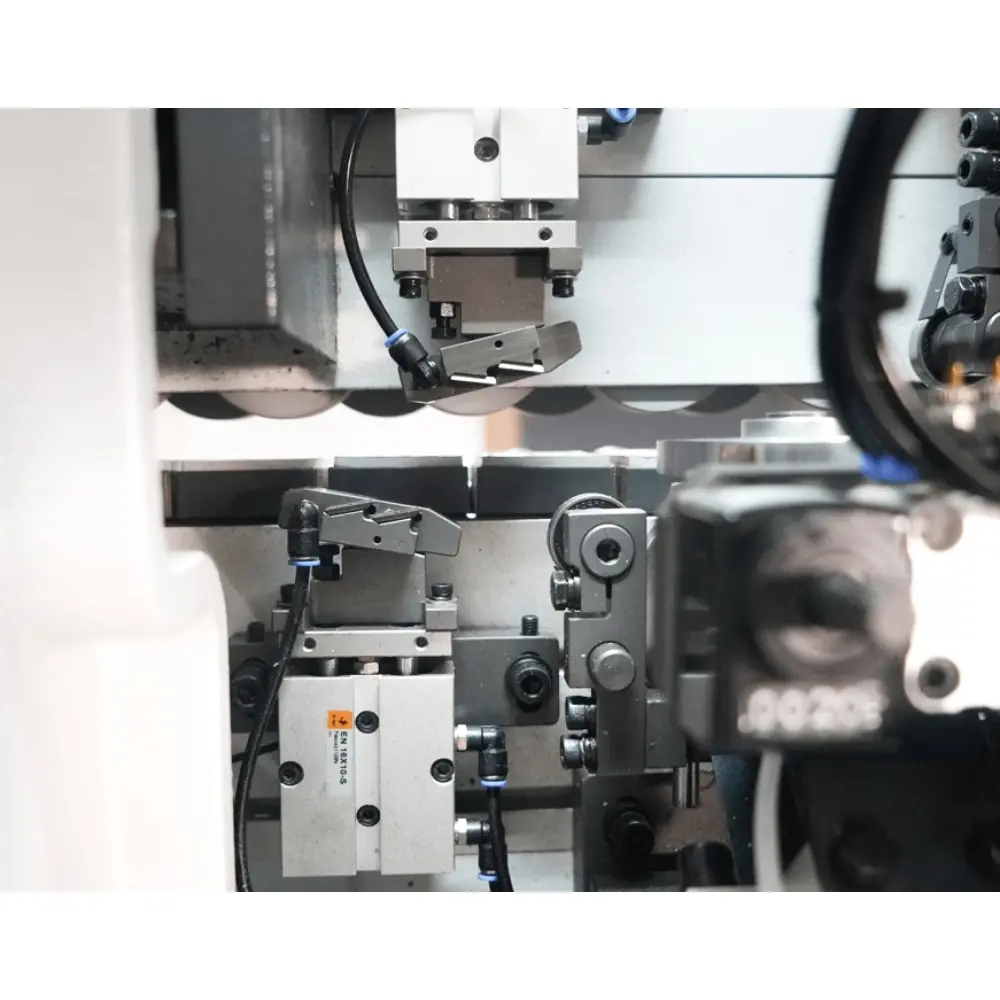

Flexible flat scraping unit
Remove excess glue between the tape and panel.

<b>Flexible flat scraping unit</b><br/>Remove excess glue between the tape and panel.

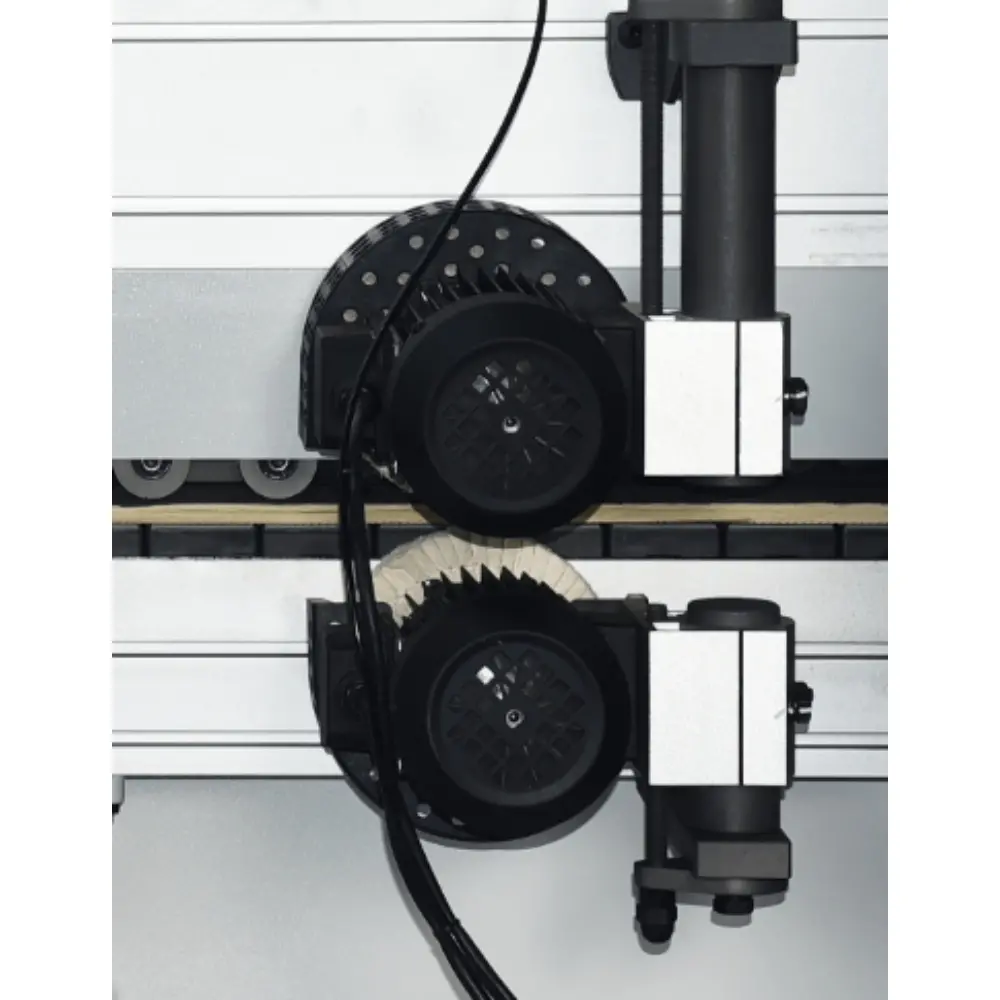

Buffing unit
Cotton buffing wheels efficiently clean the top and bottom of the finished panel for a smooth and clean finish.

<b>Buffing unit</b><br/>Cotton buffing wheels efficiently clean the top and bottom of the finished panel for a smooth and clean finish.

TECHNICAL SPECIFICATIONS

KE-710BT
Export packing size6285L*1070W*1960H
Feed speed15-24m/min
Tape thickness0.4-3mm
Panel thickness9-60mm
Panel length≥120mm
Panel width≥90mm
Min. panel size (long-side edge banding)120×90
Power (kW)20.77
Overall size (mm)6200L*940W*1960H
Dust outlet size & qtyφ100×2+φ125×4
Dust extraction airflow (m³/h)5430
Air pressure (MPa)0.6
