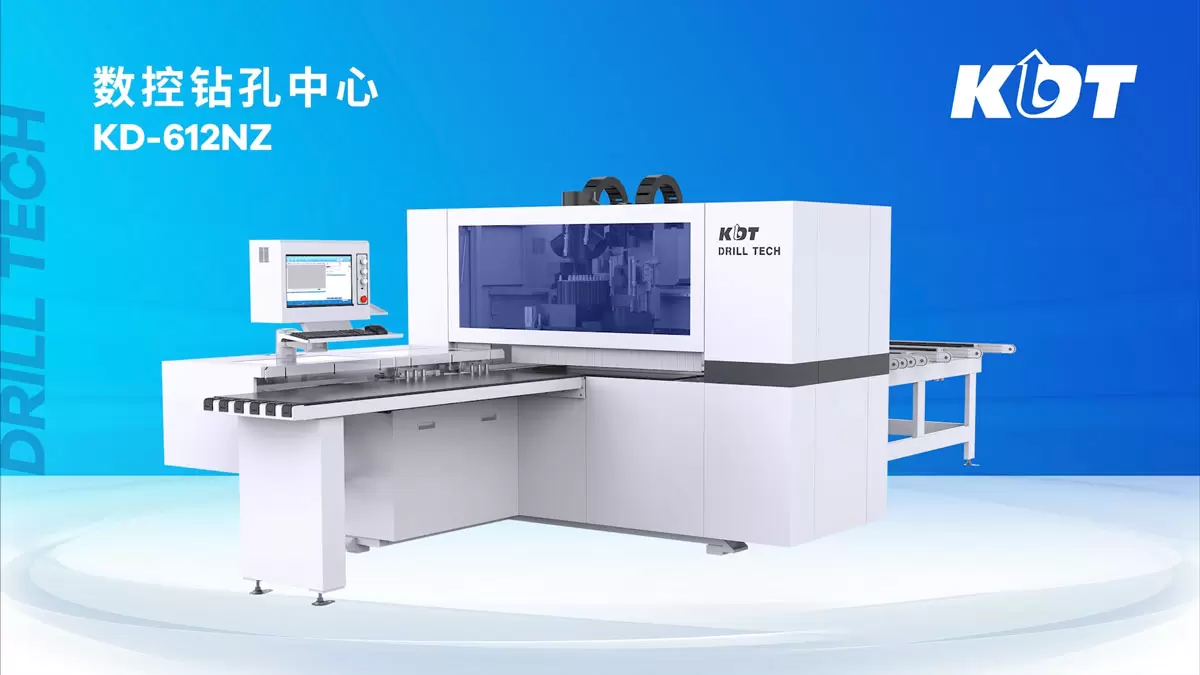

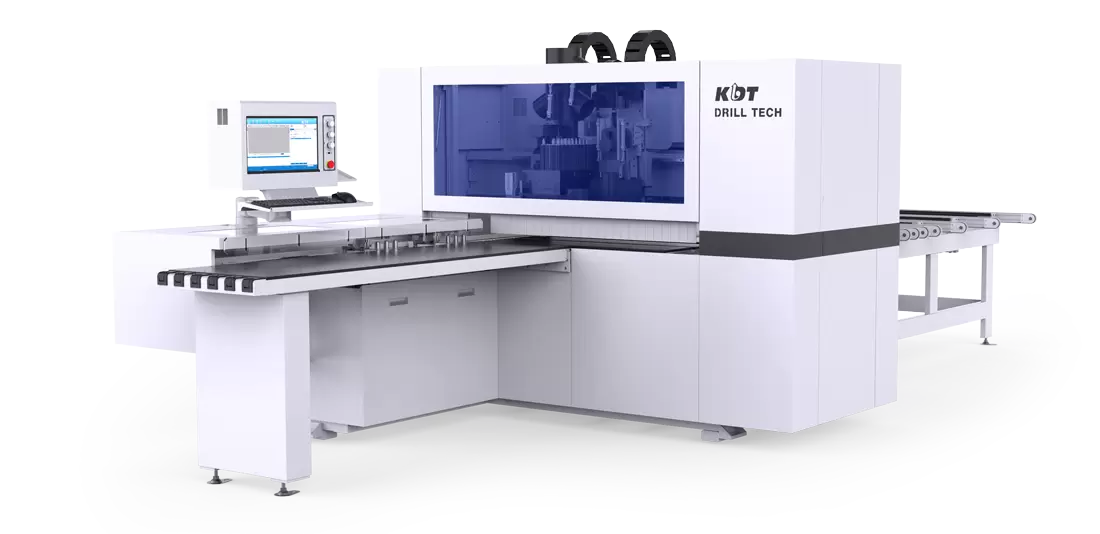

Heavy duty machine frame
The frame is processed by robot welding, annealing, shot blasting, sandblasting, finishing and other processes, effectively ensuring long-term stable operation.
Single drill package (13V+10H)
Upper:13(V)+10(H); Lower:9(V)
Side routering aggregate+5 position ATC
A variety of cutting tools can be installed to meet the requirements of invisible connectors and multi-slot technology, and improve processing efficiency.
Position rod with three bearings
Accurate positioning for small panels, no scratch when switch gripper
Dual positioning device
Choose one between double positioning modes accorrding to panel size
Flotable grippers with self-clean function
The 5.5m guide rail, the gripper moving speed is 140m/min, which can effectively blow off the dust on the board surface.
Double translational air flotation worktable (patent)
It can move flexibly according to the hole position, reasonably support the panel, improve the drilling accuracy, and avoid dust accumulation at the bottom.
Air pressure plate (patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched
New control system

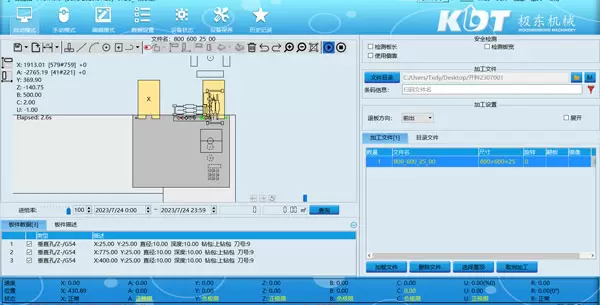

Predictive drilling:intelligent AI algorithm, planned optimal path , and the drill rod works in advance, increase efficiency by 15%
Scanner(standard with scan gun)
Scan label to recognize working file
Crafts
Easily with various processes and improve production efficiency.
Saw blade

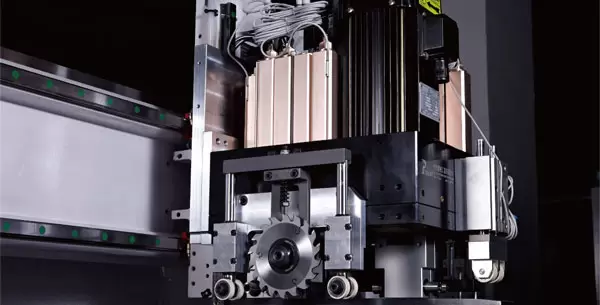

Grooving blade enables straight grooves along the X/A axes at positions between 55–880 mm across the panel width (depending on model).
2-way aggregate
It can accommodate profiling cutters such as grooving cutters, Lamello groove cutters, and lock connector slot cutters for panel side machining.
| KD-612NZ | |
|---|---|
| Packing size(sell to China) | 5600L*2640W*2290H mm |
| Packing size(sell to oversea) | 5600L*2300W*2425H mm |
| Gross weight | 3800kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:13(V)+10(H); Lower:9(V) |
| Spindle power | Upper:5.5kW; Lower:3.5kW |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1220mm;35 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 23.02kW |
| Overall size | 6040L*2960W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*1; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 6150 m³/h |
| Air speed at the dust inlet | 30m/s |
