Single drill package (13V+10H)
Upper: 13(V)+10(H)+1(S); Lower: 9(V)
Double gripper with 3.8 meters long guide rail
Max speed 140/min to improve efficiency
Drilling area optimized
The drilling head is fully covered, improving efficiency.
With 5.5KW ATC air cool spindle
More powerful, and higher processing efficiency

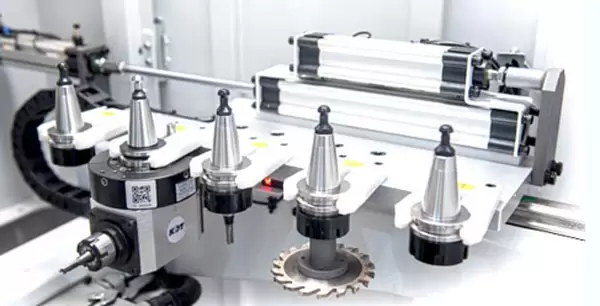

5 type ATC
Various tool available for hogging, milling, lamello connector working

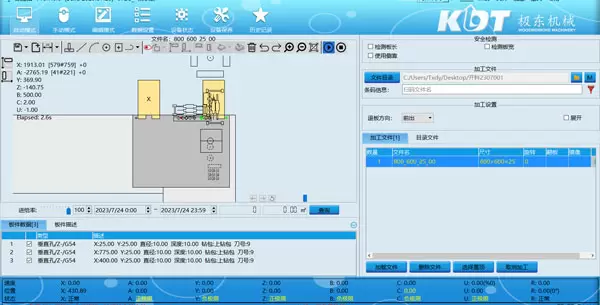

New software control
Processing record statistics allow real-time monitoring of production progress; simulate the machining path to visualize the process and accurately predict machining time.
2-way aggregate
It can accommodate profiling cutters such as grooving cutters, Lamello groove cutters, and lock connector slot cutters for panel side machining.

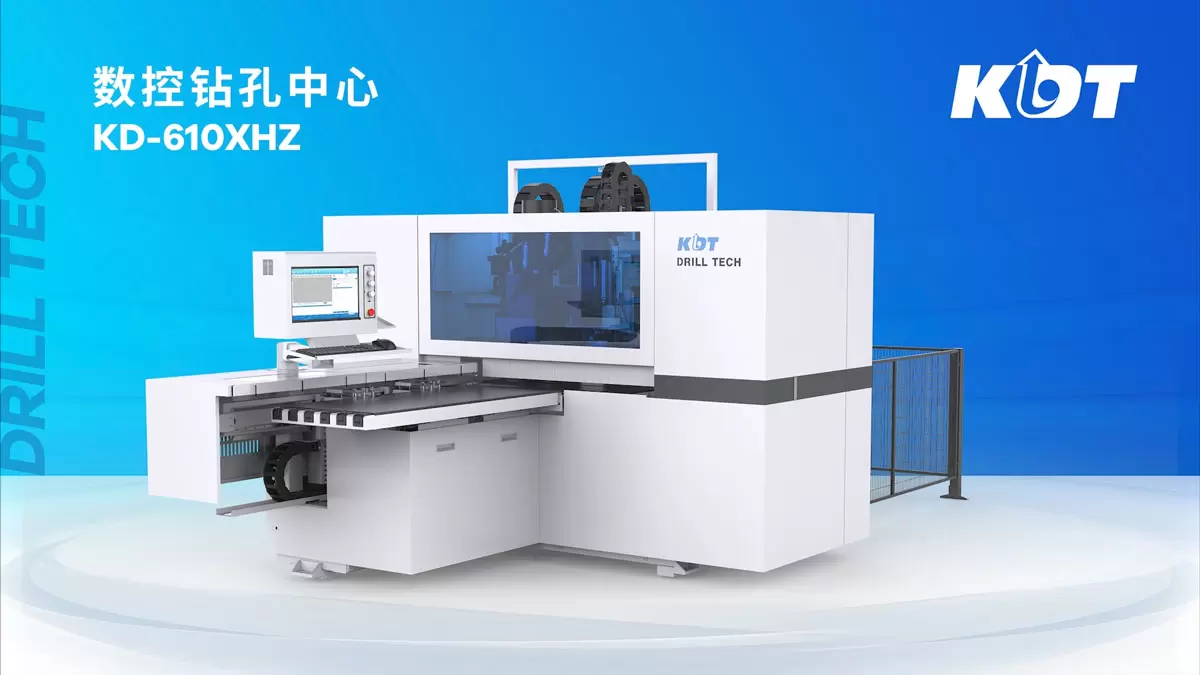

| KD-610XHZ | |
|---|---|
| Packing size(sell to China) | 3900L*2250W*2290H mm |
| Packing size(sell to oversea) | 3950L*2300W*2425H mm |
| Gross weight | 3000kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:13(V)+10(H); Lower:9(V) |
| Spindle power | Upper:5.5kW; Lower:3.5kW |
| Panel length | 70 ~ 3000mm |
| Panel width | 30 ~ 1000mm |
| Panel thickness | 9 ~ 60mm |
| Power | 22.7kW |
| Overall size | 5270L*2954W*2336H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*1; φ150mm*1 |
| Air consumption | 260L/min |
| Air volume in dust collection | 5300m³/h |
| Air speed at the dust inlet | 30m/s |
