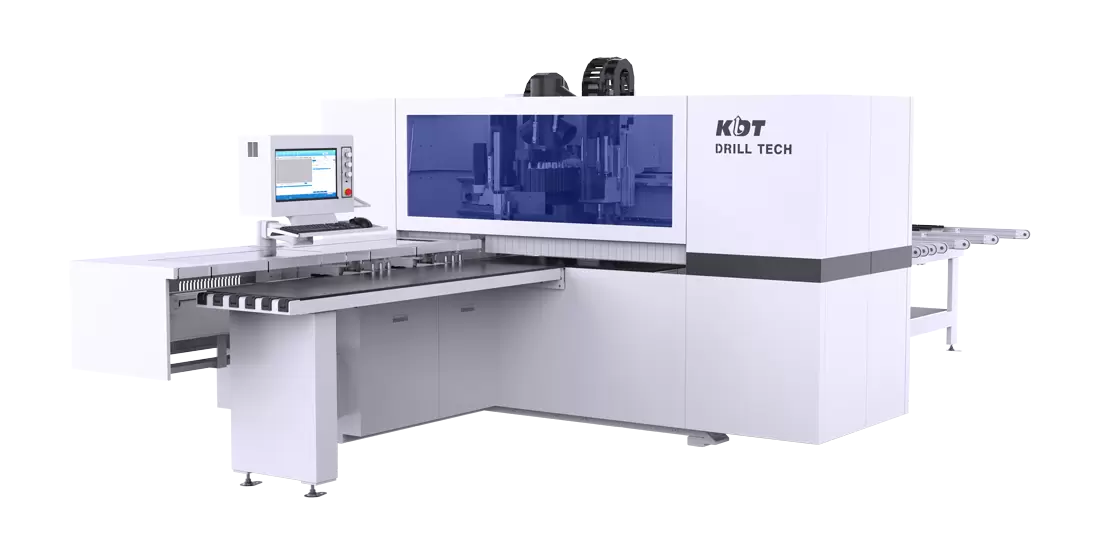

Drill package（13V+10H+1S）
Upper drill: 13V+10H+1S，Bottom drill: 9V

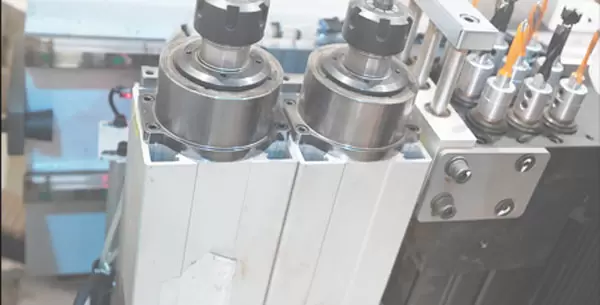

Double bottom spindle
Install 2 tools at the same time, reduce times of changing tools
Left side:9Kw spindle(with C axis)
Install aggregator (two sides standard and four sides optional),realize four side routering
2 position auto tool changer for aggregate
install two sides aggregate, four sides aggregate,45° aggregate etc.
Double layer ATC with 10 position
Positioning rod with three bearings
Accurately positioning for small boards, no scratch when change grippers
Flotable and self clean grippers
The 5.5m guide rail, the gripper moving speed is 140m/min, which can effectively blow off the dust on the board surface.
Double air floatation table in the right and left side(patent)
High precision, protects the plate from being scratched.
5.5KW ATC spindle
Air-cooled electric spindle with increased power;Higher processing efficiency
Belt conveyor dust collection
Centralized remove all dust which fall into machine.
Double translational air flotation worktable (patent)
It can move flexibly according to the hole position, reasonably support the panel, improve the drilling accuracy, and avoid dust accumulation at the bottom

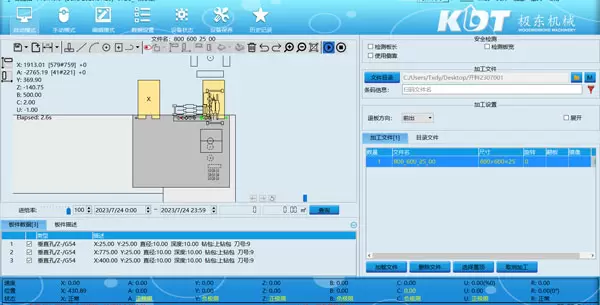

Software upgrade
Processing record statistics：view production progress in real time;Simulate processing path to predict processing time
Support diversified data formats
Crafts
Easily with various processes and improve production efficiency.
| KD-612GNH | |
|---|---|
| Packing size(sell to China) | 5600L*2600W*2290H mm |
| Packing size(sell to oversea) | 5600L*2300W*2450H mm |
| Gross weight | 4000kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 30m/min |
| Tool quantity | Upper:13(V)+10(H)+1(S); Lower:9(V) |
| Spindle power | Upper:9KW+5.5KW; Lower:3.5KW*2 |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1215mm;35 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 36.27kw |
| Overall size | 6040L*3360W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*1; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 6150 m³/h |
| Air speed at the dust inlet | 30m/s |
