Heavy-duty machine body
The frame is processed by robot welding, annealing, shot blasting, sandblasting, finishing and other processes, effectively ensuring long-term stable operation.

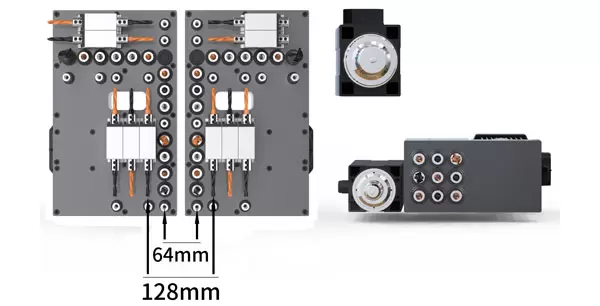

Double upper drill package
Drill package:Upper:26V+18H; Lower:9V

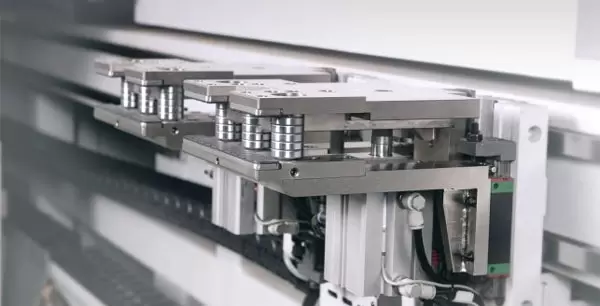

Position rod with three bearings
Accurately positioning for small boards, no scratch when change grippers
Dual position device
Choose one between double positioning modes accorrding to panel size
Floating self-cleaning gripper
Upgrade dual gripper and long guide rail, quick working with various panel holes.
Double translational air flotation worktable (patent)
It can move flexibly according to the hole position, reasonably support the panel, improve the drilling accuracy, and avoid dust accumulation at the bottom.
Air pressure plate (patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched.
Saw-Milling
The standard configuration features an integrated spindle for both sawing and milling, allowing simultaneous machining of front and side grooves without tool change. It is easy to install, fast, and efficient—ideal for light trough and lighting groove processing.
Belt conveyor dust collection
centralized remove all dust which fall into machine.

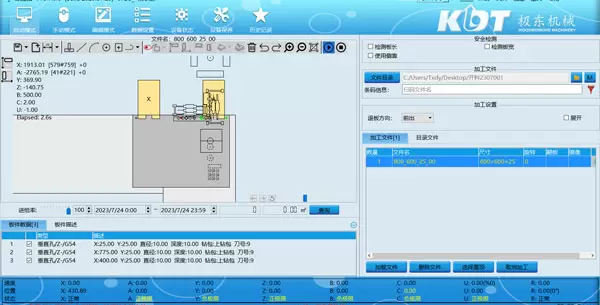

New third-generation software control system
Simulate processing path to predict processing time.
Diversified file formate
Open software docking interface, realizes the intelligent production and information management of customized furniture, and quickly responds to market demand.
Scan label to recognize working file(standard with scan gun)

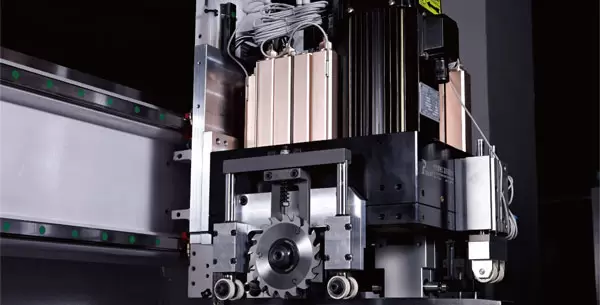

Saw blade
Grooving blade enables straight grooves along the X/A axes at positions between 55–880 mm across the panel width (depending on model).

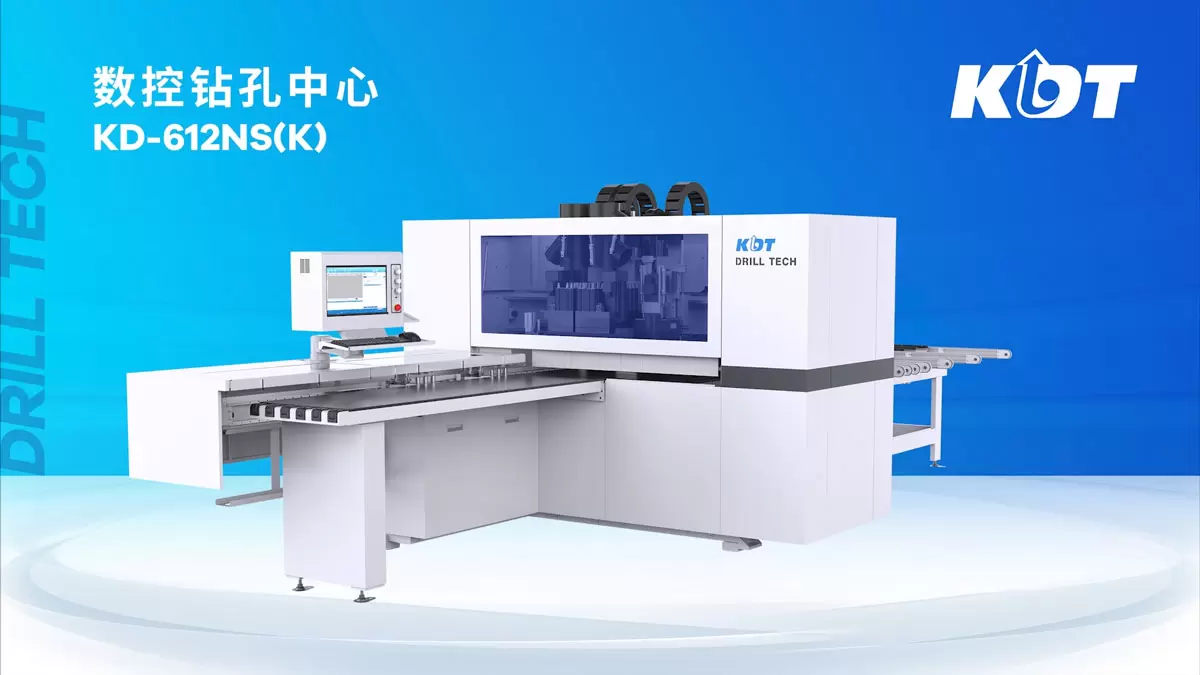

| KD-612NS(K) | |
|---|---|
| Packing size(sell to China) | 5600L*2600W*2290H mm |
| Packing size(sell to oversea) | 5600L*2300W*2425H mm |
| Gross weight | 3400kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:26(V)+18(H); Lower:9(V) |
| Spindle power | Upper:5.5kW; Lower:3.5kW |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1220mm;30 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 28.22kW |
| Overall size | 6040L*2855W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*2; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 9540 m³/h |
| Air speed at the dust inlet | 30m/s |
