CNC Drilling Centers

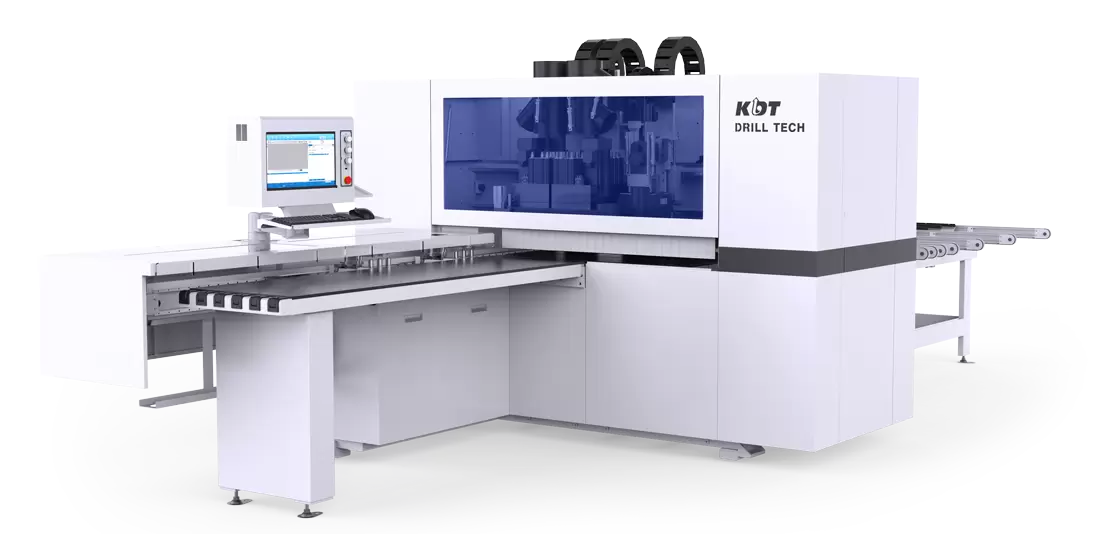

KD-612TH
FEATURES
Heavy-duty frame
The machine frame is processed through robotic welding, annealing, shot blasting, sandblasting, and precision machining, ensuring long-term stability and durability of the equipment.
Dual drill package(26V+18H)
Equipped with UPPER: 26V+18H,LOWER:18V. The upper and lower drilling heads work in coordination, covering a wide machining area. The optimized drilling control method improves overall efficiency.
Position rod with three bearings
Accurately positioning for small boards, no scratch when change grippers
Dual positioning modes
Based on the panel size, the system automatically selects between fixed and movable positioning modes, enabling quick panel alignment and improving processing efficiency.
Floating self-cleaning gripper
Floating self-cleaning gripper with a 5.5-meter guide rail, moving at a speed of 140 m/min. Effectively blows off dust from the panel surface, ensuring closer contact, stronger grip, and more accurate drilling.
Double translational air flotation worktable (patent)
It can move flexibly according to the hole position, offering smarter avoidance and more balanced support.
Air pressure plate (patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched.

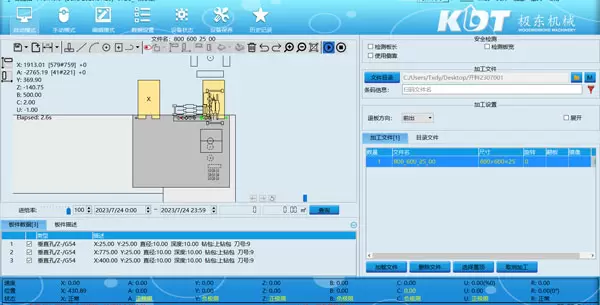

New Generation 3rd Software Control System
Predictive Drilling: with advanced AI-based ant colony optimization, calculating the most efficient drilling path, enabling early spindle engagement and boosting efficiency by 15%.
Automatic dust conveying system
Improves dust extraction efficiency and facilitates equipment cleaning and maintenance.
Diversified file formate
Open software docking interface, realizes the intelligent production and information management of customized furniture, and quickly responds to market demand.
Scan gun
Scan label to recognize working file(standard with scan gun)

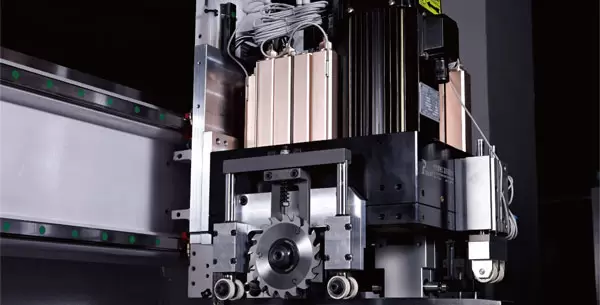

Saw blade
Grooving blade enables straight grooves along the X/A axes at positions between 55–880 mm across the panel width (depending on model).
TECHNICAL SPECIFICATIONS
| KD-612TH | |
|---|---|
| Packing size(sell to China) | 5600L*2600W*2290H mm |
| Packing size(sell to oversea) | 5600L*2300W*2425H mm |
| Gross weight | 3900kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:26(V)+18(H); Lower:18(V) |
| Spindle power | Upper:5.5kW; Lower:3.5kW |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1220mm;30 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 31.92kW |
| Overall size | 6040L*2855W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*2; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 9540 m³/h |
| Air speed at the dust inlet | 30m/s |
