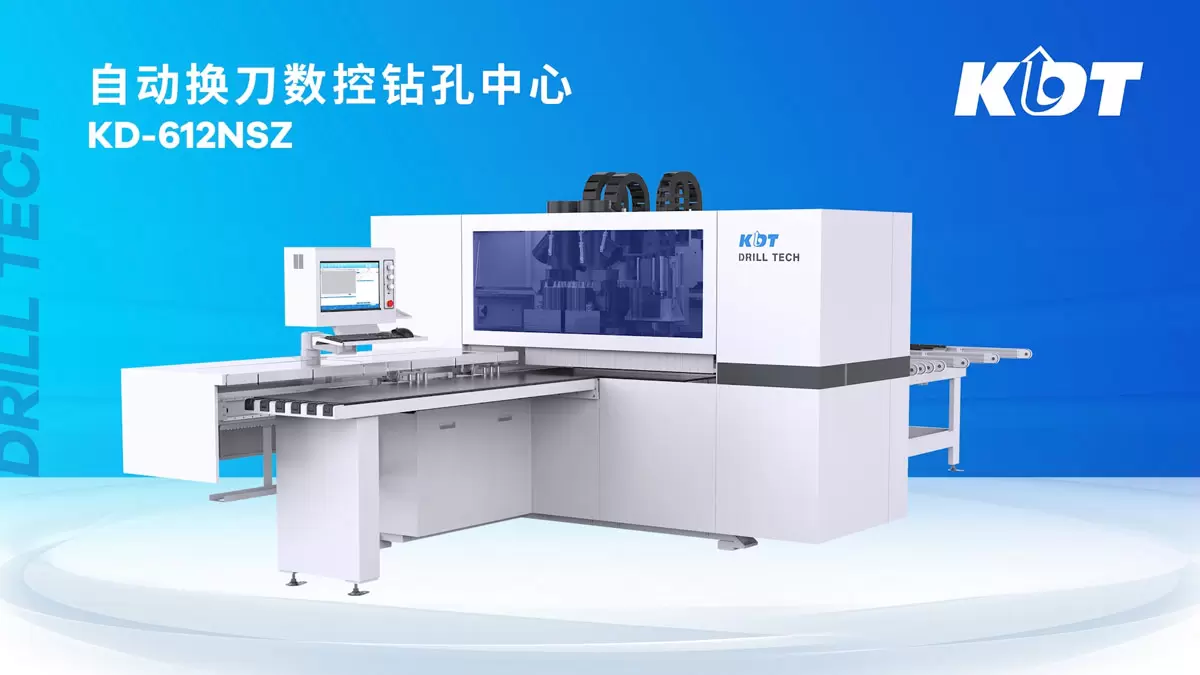

Heavy-duty machine body
The frame is processed by robot welding, annealing, shot blasting, sandblasting, finishing and other processes, effectively ensuring long-term stable operation.

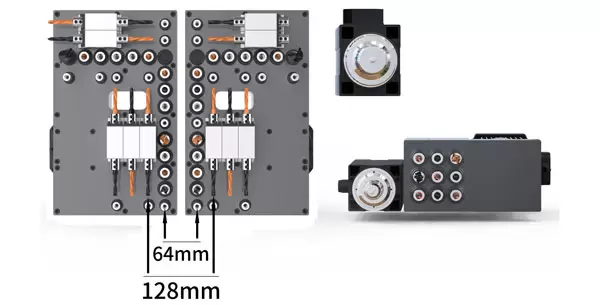

Double upper drill package
Upper:26(V)+18(H); Lower:9(V)
Side routering aggregate+5-place linear magazine
A variety of tools can be installed to meet the requirements of invisible connectors and multi-slot technology, and improve processing efficiency.
Position rod with three bearings
Accurately positioning for small boards, no scratch when change grippers
Dual position device
Automatically selected position mode(fixed/movable) according to the size of the panel,and improve the processing efficiency.
Flotable and self clean grippers
The 5.5m guide rail, the gripper moving speed is 140m/min, which can effectively blow off the dust on the board surface.
Double translational air floation table(patent)
Move flexibly according to the hole position, reasonably support the panel, improve the drilling accuracy, and avoid dust accumulation at the bottom
Air pressure plate (patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched.

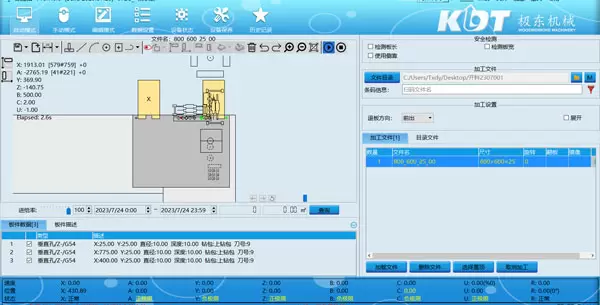

New control system
Simulate processing path to predict processing time.
Belt conveyor dust collection
Centralized remove all dust which fall into machine.
Scanner
Scan label to recognize working file(standard with scan gun)
Crafts
Easily with various processes and improve production efficiency.

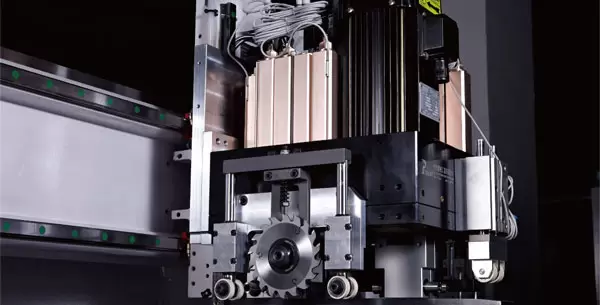

Saw blade
Grooving blade enables straight grooves along the X/A axes at positions between 55–880 mm across the panel width (depending on model).
2-way aggregate
It can accommodate profiling cutters such as grooving cutters, Lamello groove cutters, and lock connector slot cutters for panel side machining.

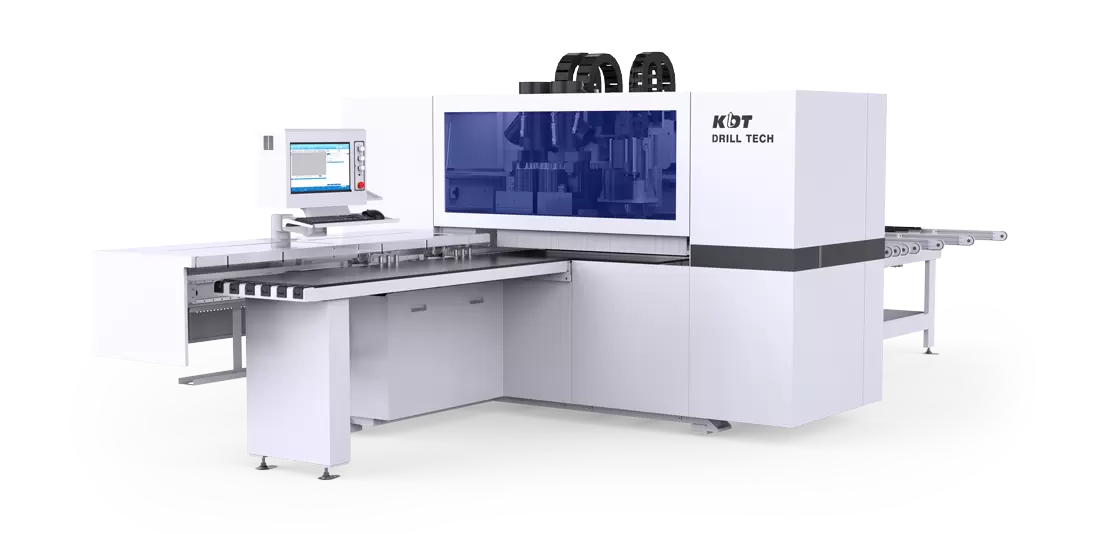

| KD-612NSZ | |
|---|---|
| Packing size(sell to China) | 5600L*2560W*2290H mm |
| Packing size(sell to oversea) | 5600L*2300W*2425H mm |
| Gross weight | 3500kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:26(V)+18(H); Lower:9(V) |
| Spindle power | Upper:5.5kW; Lower:3.5kW |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1220mm; 30 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 28.22kW |
| Overall size | 6040L*3140W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*2; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 9540 m³/h |
| Air speed at the dust inlet | 30m/s |
| Tool magazine | 5-place tools magazine |
