The translational air float platform can be flexibly moved according to the hole positions, providing reasonable support for the plates, improving drilling accuracy, and simultaneously preventing dust accumulation at the bottom
MORE
CNC Drilling Centers

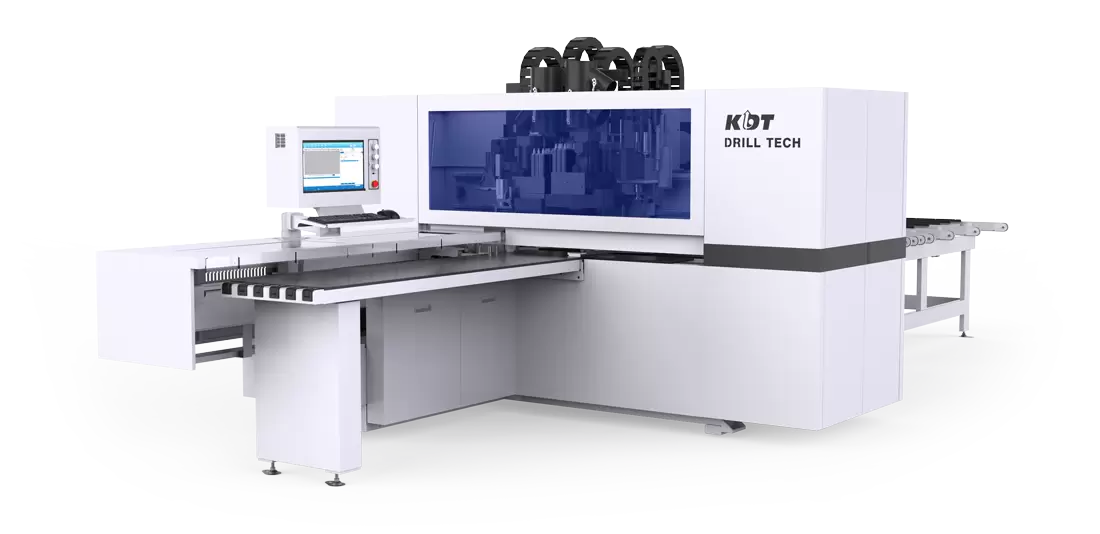

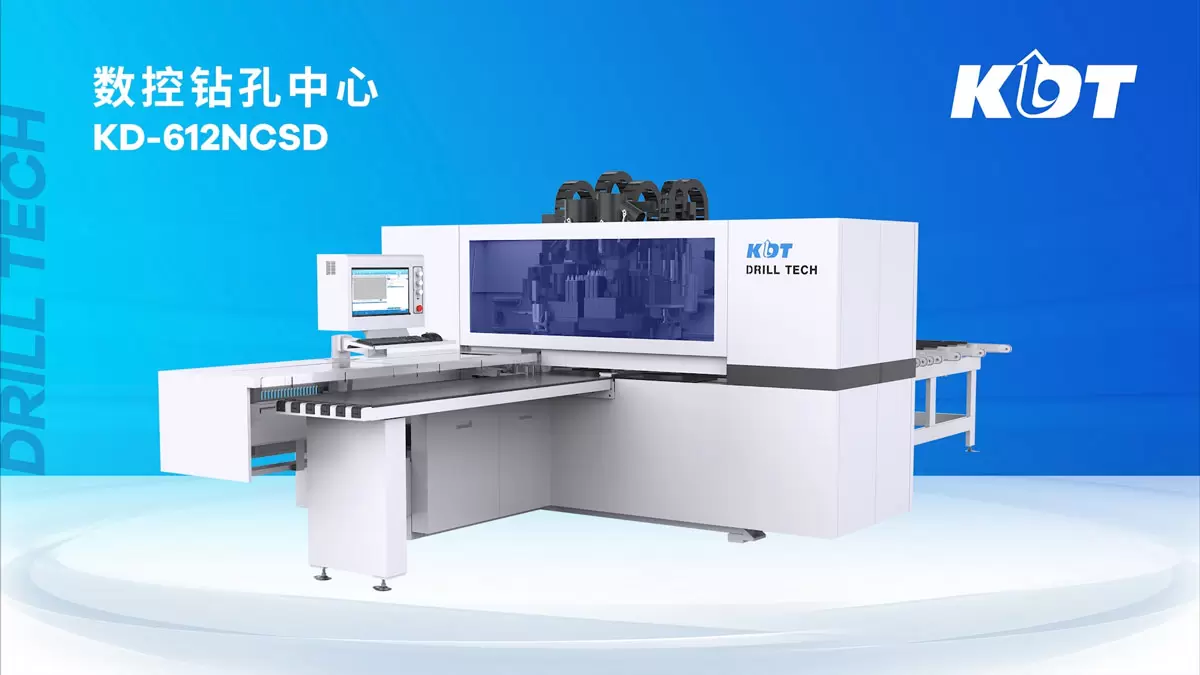

KD-612NCSD
FEATURES
Layout of drill set unit
Upper:26(V) + 16(H ), Lower:9(V). the upper and lower drill packages are processed in linkage, covering a wide area, optimizing the drilling and improving efficiency.
Layout of spindle
Upper part: 6kW high-power side milling motor, which has stronger power and higher efficiency for side grooving; the aggregate is assembled independently, which is convenient for tool installation, care and maintenance, and can be equipped with one-way aggregate or four-way aggregate;
Lower part: Double bottom spindle 3.5KW*2, which can be installed with grooving tools and straighter tools, satisfies higher equipment on grooving accuracy.

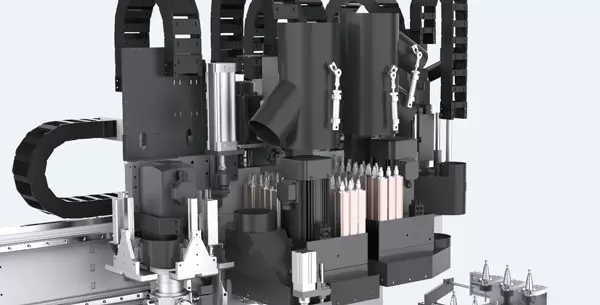

Two layers of 6-post ATC spindle
2 layers of 6-post ATC spindle for different tools at different specification.
Can store horizontal blades for hogging and lamino...
Auto tool pre-setting, and tool length detection.
Position rod with three bearings
Accurate positioning for small panels, no scratch when switch gripper
Dual positioning device
Choose one between double positioning modes accorrding to panel size
Flotable grippers with self-clean function
The 5.5m guide rail, the gripper moving speed is 140m/min, which can effectively blow off the dust on the board surface
Double translational air flotation worktable (patent)
The double-translation air-floating platform with multiple travel sections provides smarter avoidance and more reasonable support.
Air pressure plate(patent)
The pressure plate covers a wide area, with small processing vibration and high precision, which protects the plate from being scratched.

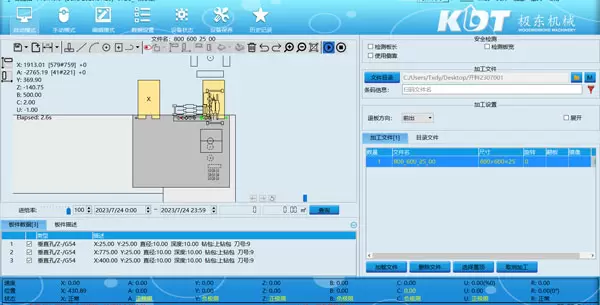

New control system
Predictive drilling:intelligent AI algorithm, planned optimal path , and the drill rod works in advance, increase efficiency by 15%.
Scanner(standard with scan gun)
Scan label to recognize working file
Crafts
Easily with various processes and improve production efficiency.

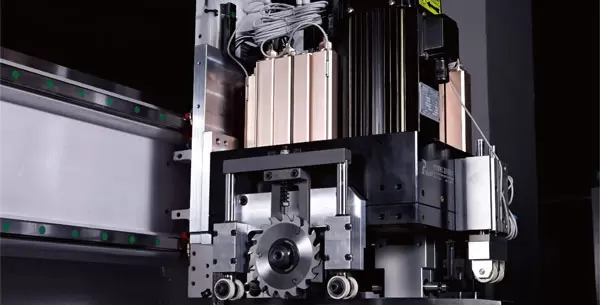

Saw blade
Grooving blade enables straight grooves along the X/A axes at positions between 55–880 mm across the panel width (depending on model).
TECHNICAL SPECIFICATIONS
| KD-612NCSD | |
|---|---|
| Packing size(sell to China) | 5600L*3000W*2290H mm |
| Packing size (sell to overseas) | 5600L*2300W*2450H mm |
| Gross weight | 4000kg |
| X axis max speed | 140m/min |
| Y axis max speed | 90m/min |
| Z axis max speed | 50m/min |
| Tool quantity | Upper:26(V)+16(H); Lower:9(V) |
| Spindle power | Upper:5.5KW; SIDE-ROUTER SPINDLE: 6KW; Lower:3.5KW*2 |
| Panel length | 70 ~ 3000mm |
| Panel width | 50 ~ 1220mm;35 ~ 50mm(L≤1000mm) |
| Panel thickness | 9 ~ 60mm |
| Power | 37.72kw |
| Overall size | 6040L*3450W*2190H mm |
| Air pressure | 0.6Mpa |
| Dust removal pipe size diameter | φ200mm*2; φ150mm*1; φ100mm*1 |
| Air consumption | 450L/min |
| Air volume in dust collection | 9540 m³/h |
| Air speed at the dust inlet | 30m/s |
| Tool magazine | 6-place tools magazine |
