PC control, support multiple sawing modes, easy to operate.
【Vacuum sucker working table】Adjust sawing according to panel size, prevent destorying the working table

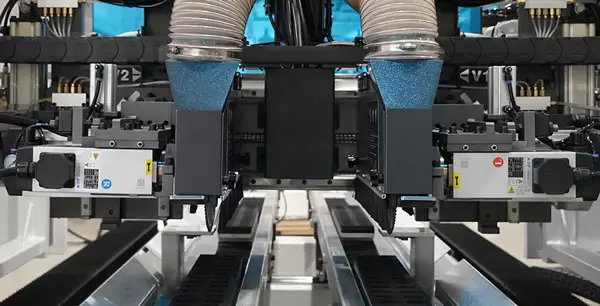

[Longitudinal Saw Unit] Servo-driven, scoring saw adjust based on panel thickness to ensure the precision sawing.
![[Longitudinal Saw Unit] Servo-driven, scoring saw adjust based on panel thickness to ensure the precision sawing.](/uploads/upload/20260824/260R4093HX09.webp)

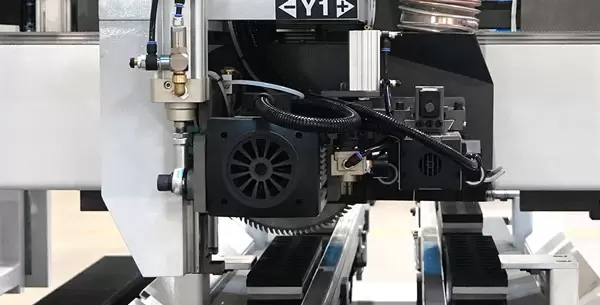

[Horizontal Saw Unit] Servo-driven, scoring saw adjust based on panel thickness to ensure the precision sawing.
![[Horizontal Saw Unit] Servo-driven, scoring saw adjust based on panel thickness to ensure the precision sawing.](/uploads/upload/20260824/260R4093HX31.webp)

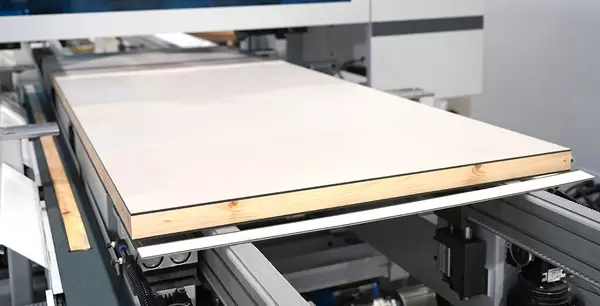

【Wastage collection unit】Automatic wastage collected by belt

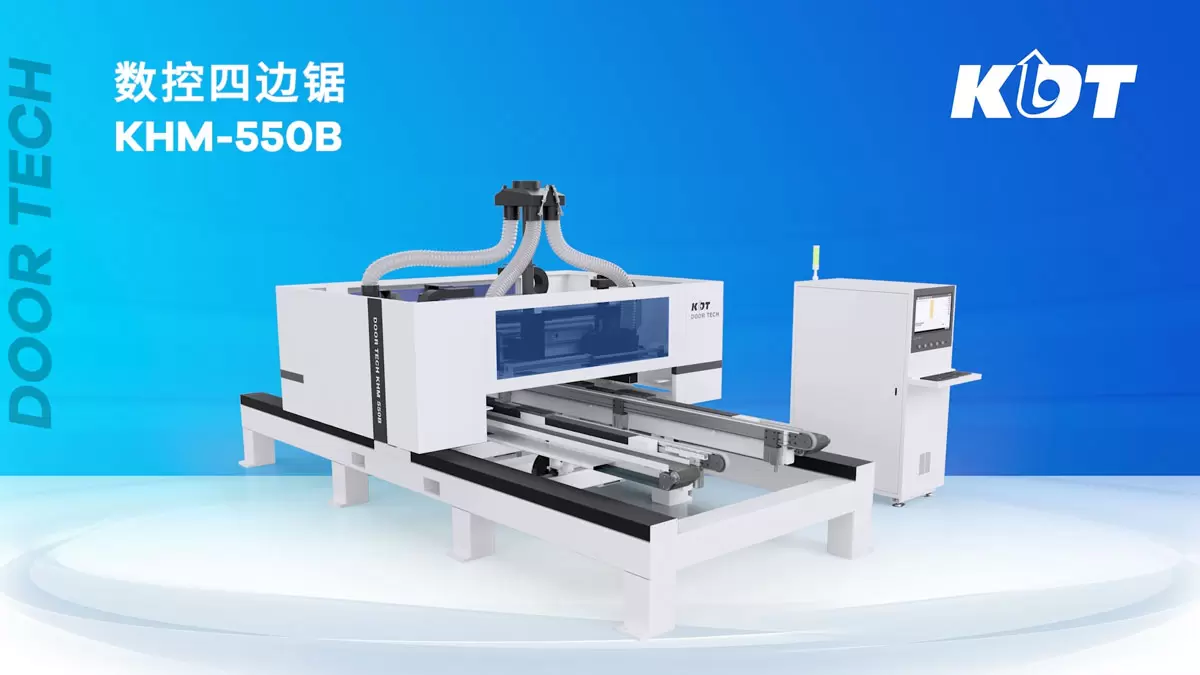

| KHM-550B | |
|---|---|
| Packing size （L*W*H） | 5900*2300*2025mm |
| Working piece length | 1800~3000mm |
| Panel width | 300~1200mm（Width for surplus material≤60mm） |
| Panel thickness | 30-70mm |
| Main saw parameter | 3*5.5kW（Φ350* Φ30） |
| Scoring saw parameter | 3*1.5kW（Φ120* Φ22） |
| Max.moving speed | 40m/min |
| Vacuum sucker position | Servo positioning |
| Workpiece position | Centering |
| Working table height from ground | 960mm |
| QTY of Dust outlet | Φ200*1 |
| Total power | 35.5kW |
| Machine weight | 3500kg |
| Machine size（L*W*H） | 5086*2700*2396mm |
