Wood Door Processing Equipment

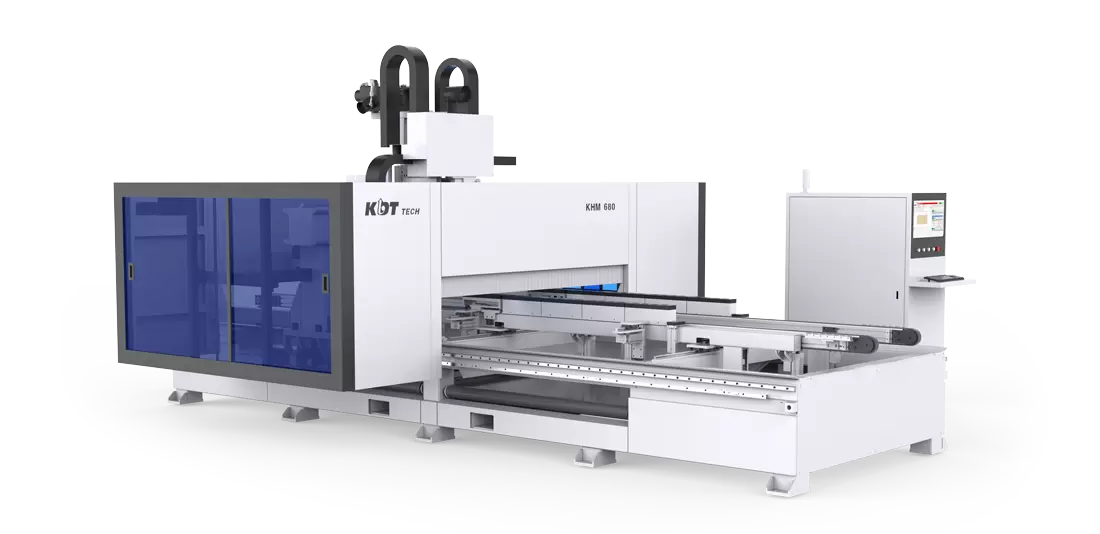

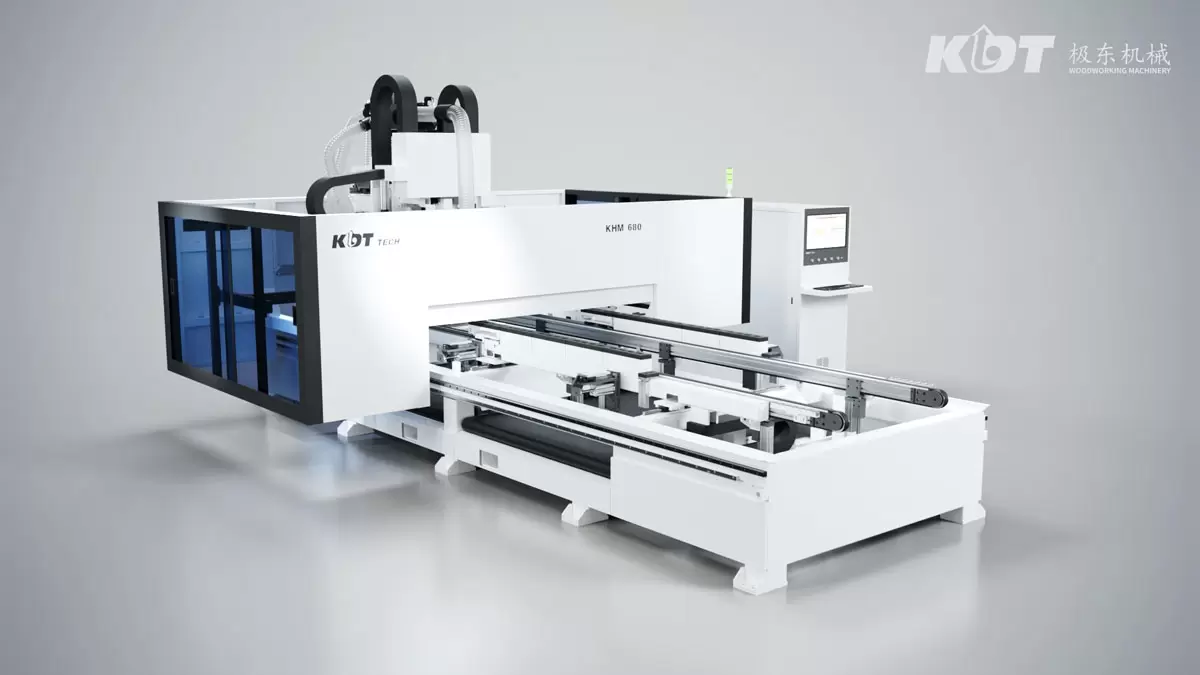

KHM-680
FEATURES
Cutting unit
One set 90 degree rotary sawing unit (5.5kW + 1.5kW sawing spindle)
Horizontal spindle
90 degree rotary double head spindle 6kW+2.2kW
Tool changer spindle
9kW tool changer spindle + 12-position tool changer magazine
Automatic positioning adsorption table
Automatic adjustment of table length and width
Removable Combination Countertop
For doors <1800mm
Lower chip conveyor
Side discharge of machining waste
TECHNICAL SPECIFICATIONS
| KHM-680 | |
|---|---|
| Packing Size | 6300*2300*2470 |
| Weight | 4500KG |
| Working piece length | 1800~3000mm |
| Panel width | 300-1100mm |
| Panel thickness | 30-70mm |
| Power of X/Y/Z axis servo motor | 1.5kW |
| Vertical spindle | Tool changing spindle 9kW (ISO30) |
| Horizontal spindle | Double-headed spindle 6kW (ER32) +2.2kW(ER25) |
| Main saw parameter | 5.5kW (Φ350* Φ30) |
| Scoring saw parameter | 1.5kW (Φ120* Φ22) |
| Vacuum tube size | φ140*1 |
| Total power | 39.3kW |
| Overall size (L*W*H) | 5570*3825*2755mm |
| Machining accuracy | within 0.5mm |
| Maximum Allowable Machining Depth of Workpiece Step | 5mm |
