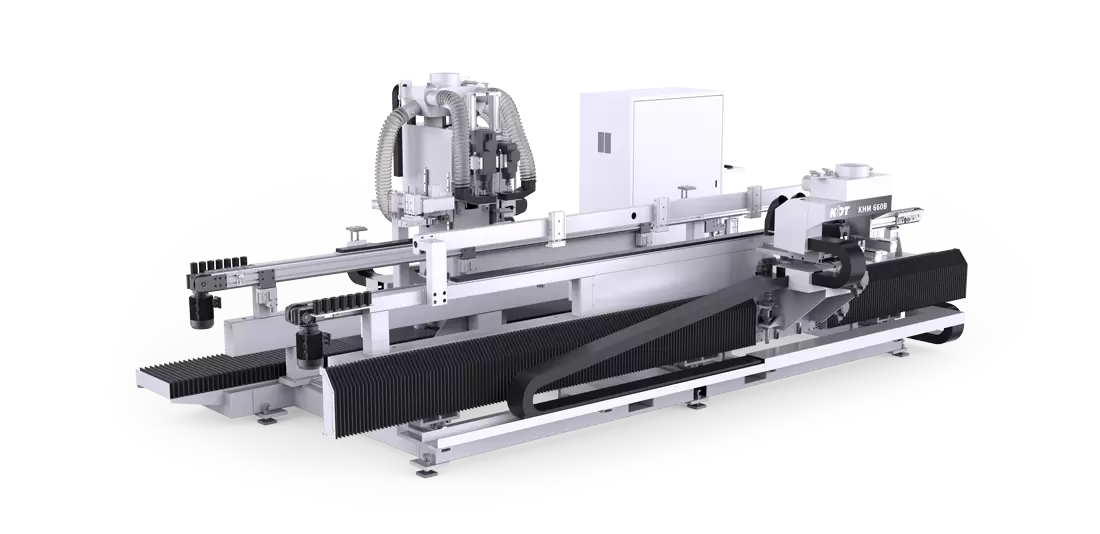

Wood Door Processing Equipment
KHM-660B
FEATURES
PLC intelligent control system
Intelligent visual editing and processing software.
Simultaneous processing of left and right spindles
Simultaneous processing of lock hole and hinges
Vertical spindle(left side)
Equipped with 6kW+1.5kW spindle for keyhole processing.
Horizontal spindle(left side)
Equipped with 6kW+1.5kW+0.75kW spindle, processing lock groove technology.
Horizontal spindle(right side)
Equipped with 6kW+1.5kW+0.75kW spindle, processing hinge technology.
Processing effect
TECHNICAL SPECIFICATIONS
| KHM-660B | |
|---|---|
| Packing size | 5650*2300*2300 |
| Working piece length | 1800~3000mm |
| Panel width | 300~1200mm |
| Panel thickness | 30-60mm |
| Power of X/Y/Z axis servo motor | 1.5kW |
| Door lock vertical spindle 1 | 6kW (ER32)+1.5kW (ER20) |
| Door lock horizontal spindle 1 | 6kW (ER32)+1.5kW (ER20)+0.75kW (ER20) |
| Hinge Horizontal Spindle 1 | 6kW (ER32)+1.5kW (ER20)+0.75kW (ER20) |
| Overall size (L*W*H) | 5275*3250*1975mm |
| Total power | 35.3kW |
| Vacuum tube size | φ200mm*2 |

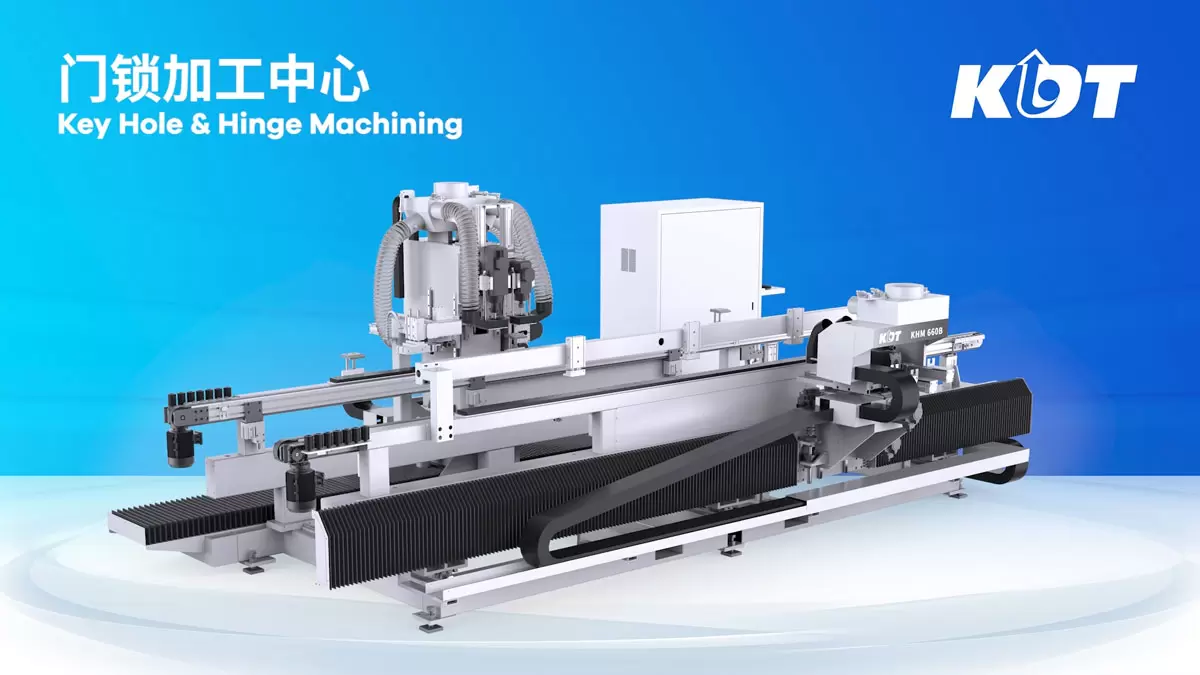

VIDEO
