Reinforced frame
Reinforced frame, annealed, sanded and one-time forming, durable and not easy to be deformed, stable in running.
Automatic Rear-loading
Automatic Rear-loading. Hydraulic lift table equipped, Increase efficiency by 20%，save manpower and reduce labor cost
Pusher with thickness measurement
Grating position realizes an accurate loading, min. thickness of workpiece is 8mm.

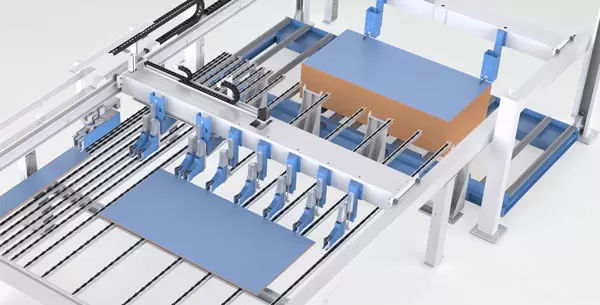

Double crossbeam feeding mechanism
Clamps and pusher independently works, simultaneously loading and sawing, which reduce waiting time in loading and thus improve 20% working efficiency.

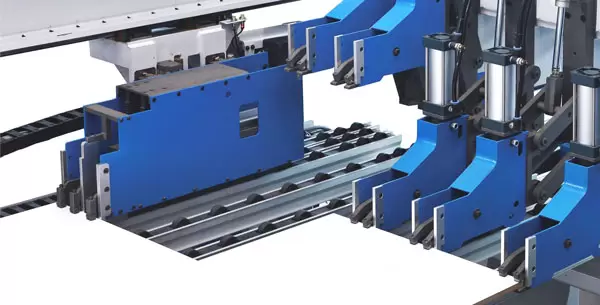

Twin-Pusher Structure
Twin Pusher independently drives and collaboratively works, cut 2 workpieces with different size simultaneously,sawing efficiency improves by 30%.

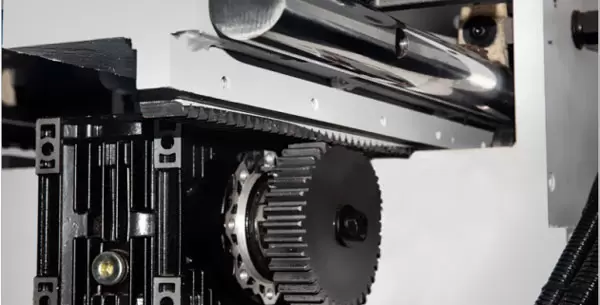

Saw carrier driven system
Servo controlled and transmits along gear&racks, which guarantee a stable and fast run. Max.return speed:150m/min.

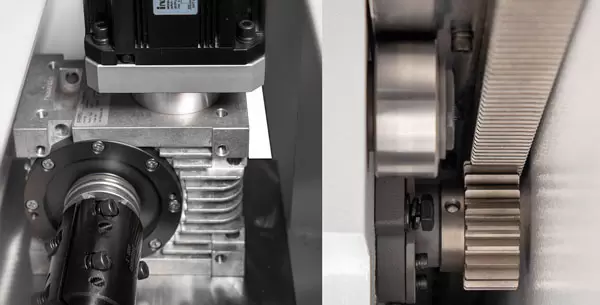

Gripper feeding device
Gripper feeding device use high precision reducer and feeder gear-rack.
Double roller side aligner
The side aligner structure adopts independent servo control, which increases the speed by 100%.
Saw Blade Auto Positioning
Main saw and scoring saw rise and fall independently. The main saw can adjust the lifting height automatically according the cutting width and thickness to reduce time in idle-running and improve the working efficiency
Scoring Saw Adjustment
To realize parametric adjustment on movement of scoring blades without stopping machine.
Blade quick-replacement (KDT patented)
The saw blade can be quickly replaced, effectively reducing the burden on workers.
Air-flotation worktable
Working table is applied with pneumatic floating balls on top, effectively protect panel being scratched, and easy to move the panels to the working area.
Quick-start device
Extra add the continuous cutting pull rod on the air floating table, it is more convenient and faster to start cutting.

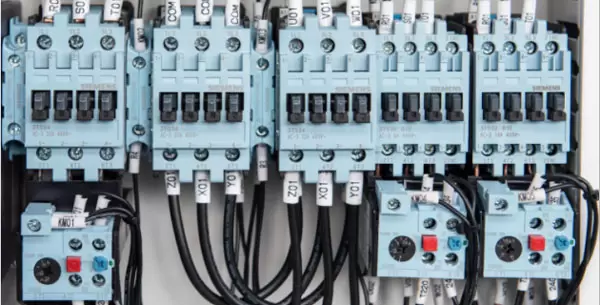

International brand low voltage components
Reliable, strong anti-interference ability and low failure rate

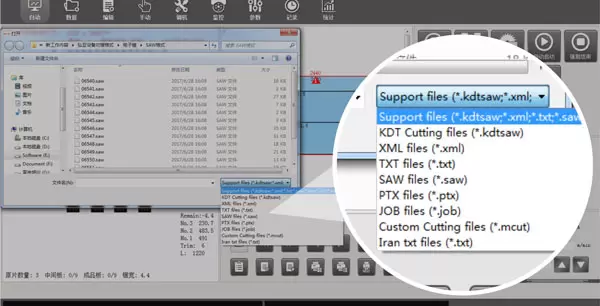

Independently developed control system
Industrial computer, new KDT software

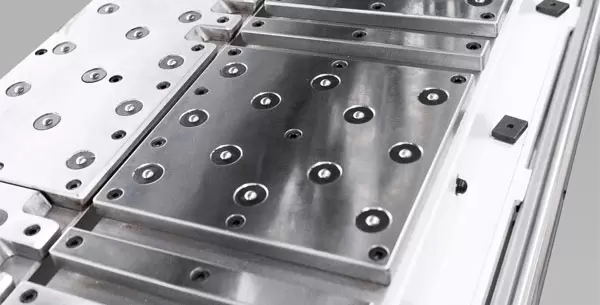

Steel air table
The steel tabletop, with a flatness tolerance of ±0.1mm, ensures high-precision machining, while the air flotation system enables scratch-free processing of delicate veneered panels.

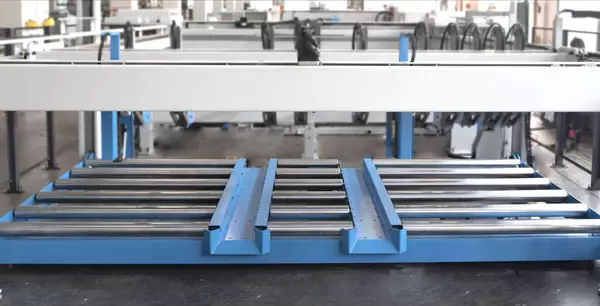

Longitudinal roller conveyor
It can be connected to the material rack or RGV.

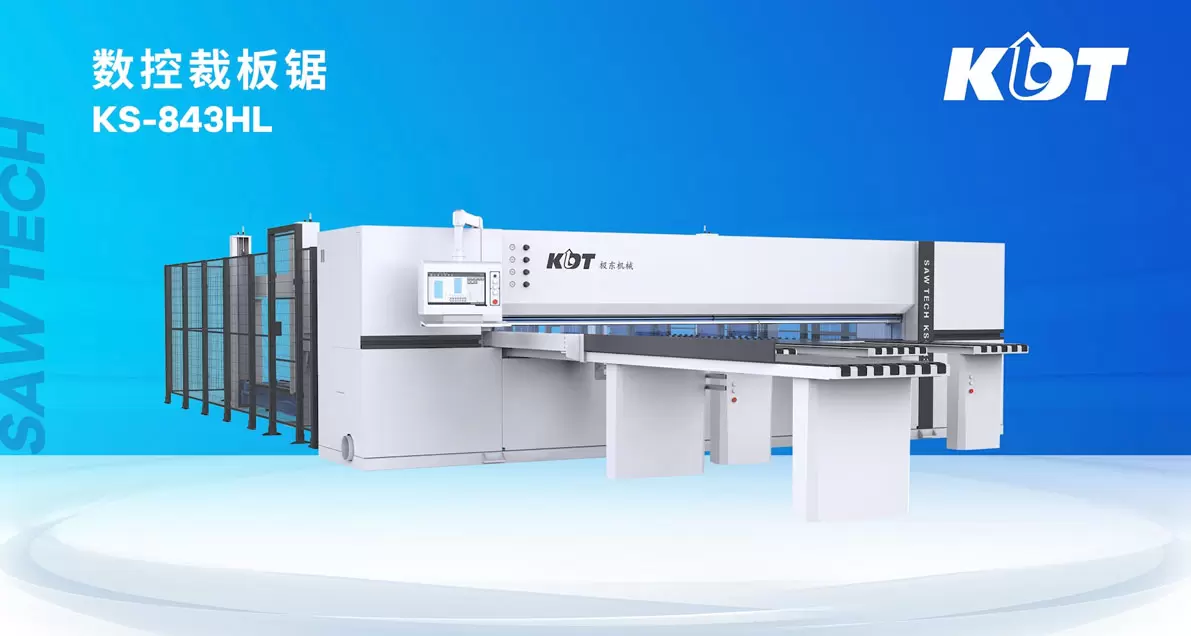

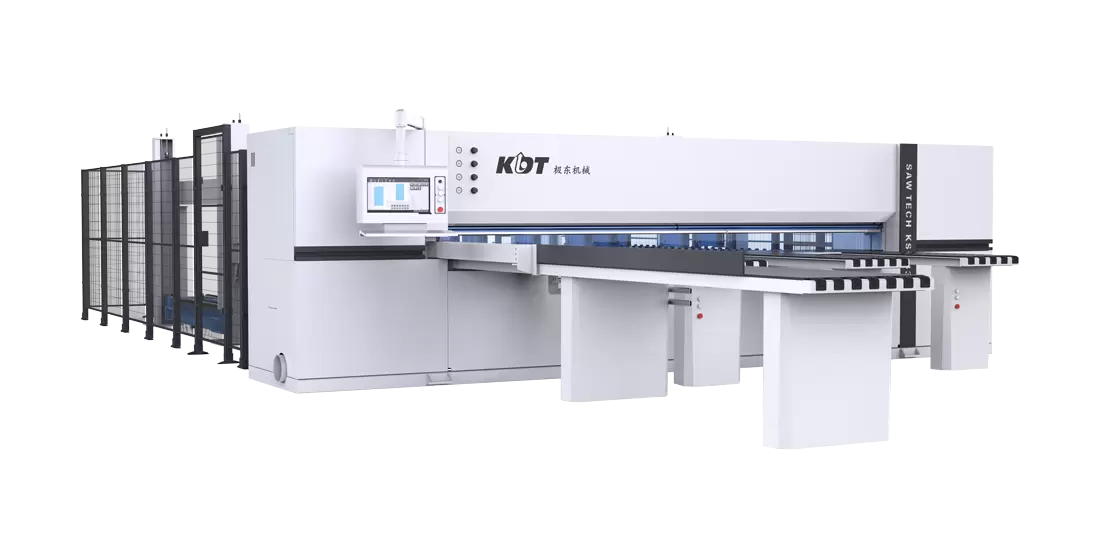

| KS-843HL | |
|---|---|
| Max cutting speed | 120m/min |
| Max feed speed | 95m/min |
| Main saw diameter | φ450*φ75mm |
| Scoring saw diameter | φ200*φ50mm |
| Air consumption | 320L/min |
| Suction wind speed | 30m/s |
| Lifting platform hydraulic motor | 2.2kW |
| Lifting platform moving motor power | 0.75kW |
| Max lifting mesa bearing | 4000kg |
| Lifting mesa Max panel size | 4000*2200 |
| Banked up height | 600mm/1300mm(dig in) |
